Accurate Temp sensors.
These are very accurate. I've bought them several times and have no regrets. I recommend them.
Robocraze

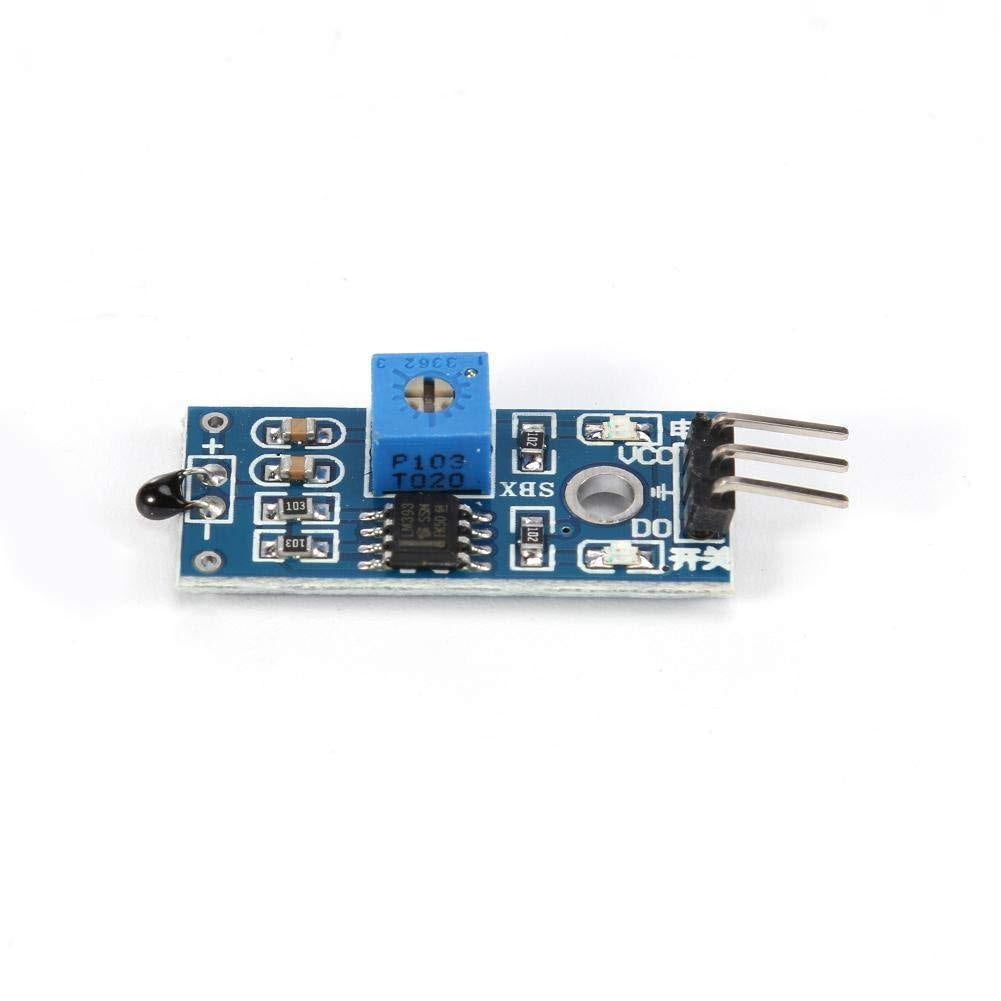

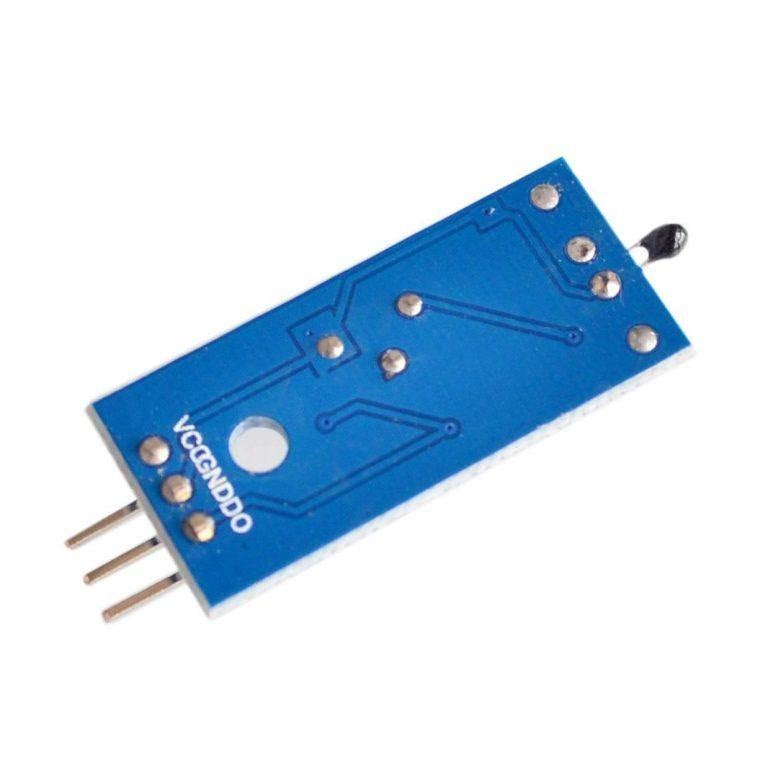

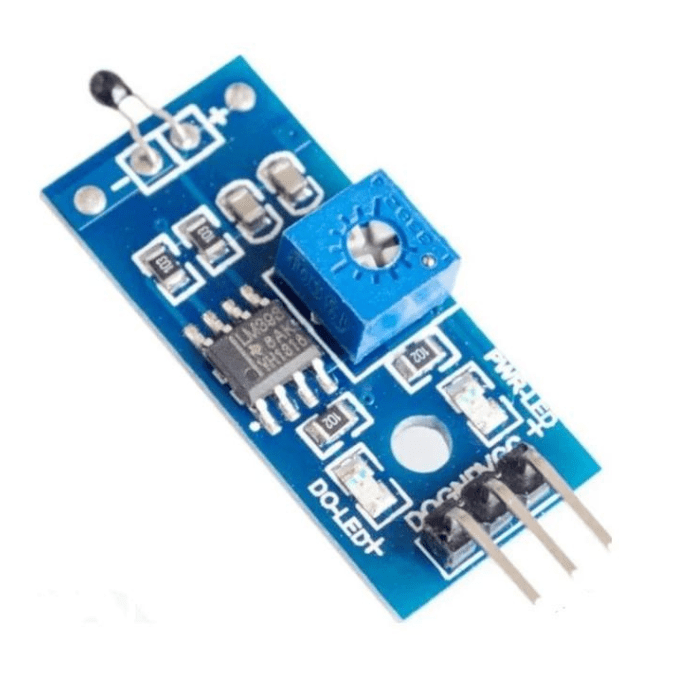

10K Thermistor Temperature Sensor Module(3 Pin)
10K Thermistor Temperature Sensor Module(3 Pin)
Regular price
Rs. 37
Regular price
Rs. 53
Sale price
Rs. 37
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 36 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This module has a working voltage of 3.3V-5V.
- Using the Thermistor Temperature Sensor, good sensitivity.
- The comparator output signal clean waveform is good, driving ability than 15mA.
- Adjust the temperature distribution bit detection threshold.
- The output format is digital switching output (0 and 1).
- With bolt holes for easy installation.
- Using a wide voltage LM393 comparator.
10K Thermistor Temperature Sensor Module(3 Pin)
Thermistor Temperature Sensor Module is very sensitive to ambient temperature. It is generally used to detect the temperature of the surrounding environment. Through potentiometer adjustment, it is possible to change the temperature detection threshold.
DO output can be directly connected to the microcontroller to detect high and low, by detecting temperature changes in the environment. The temperature detection range of the module is between 20 and 80 degrees Celsius. This sensor module can be replaced with a line temperature sensor for controlling the water temperature, water tank, etc.
Generally, the 4-wire method of thermistor measurement is the most accurate because there is effectively no current flowing in either of the measurement cable wires and therefore no added resistance due to the cable wires.
Also check the DC 3-5V MAX6675 Module + K Type Thermocouple Temperature Sensor Thermocouple Sensor Set M6 Screw and Jumper Wire F to F 5pcs available on the Robocraze website. , the set includes a MAX6675 Module, a K Type Thermocouple Sensor, and a set of Jumper Wires.
Also check 10K Temperature Sensor (Thermistor).Thermistors are inexpensive and small sensors that change resistance based on temperature. They are used in many applications, including HVAC systems, medical equipment, and environmental monitoring.
Package Includes:
- 1 x 10K Thermistor Temperature Sensor Module(3 Pin)
Specifications:
| Working voltage | 3.3 - 5VDC |
| Voltage Comparator | LM393 comparator |
| Digital switching output | 0 and 1 |
| Temperature Detection Range | 20 and 80 degrees Celsius |
| Dimensions | 3 x 3 x 1cms |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1.What is temperature sensor module 3 pin?
- The 3 Pin NTC Thermistor Module is a temperature sensor module that uses a thermistor to sense the temperature of the surrounding environment and converts it to a digital and analog output. The thermistor is an abbreviation for thermal resistance, which increases and decreases in proportion to temperature.
2.What temperature should a 10K NTC thermistor be?
- This 10k NTC surface-mounted thermistor has a 5% accuracy and an operating temperature range of -55 to +125°C. It's designed for temperature compensation applications. - A wide operating temperature range of -40 to +125°C is provided.
3.How does a 10K thermistor work?
- A 10K resistor will always limit an electrical current to 10,000 ohms. A 10K thermistor, on the other hand, will only limit 10,000 ohms of current at 25°C. If the temperature is higher, say 50°C, the thermistor will only restrict 3,900 ohms.
4.What causes a thermistor to fail?
- Such failures are typically caused by mechanical separation between the resistor element and the lead material, which can be caused by handling damage, excessive heat, thermal mismatch, and other factors. The second most common failure mode is resistance value drift as the thermistor ages or parameter change.
