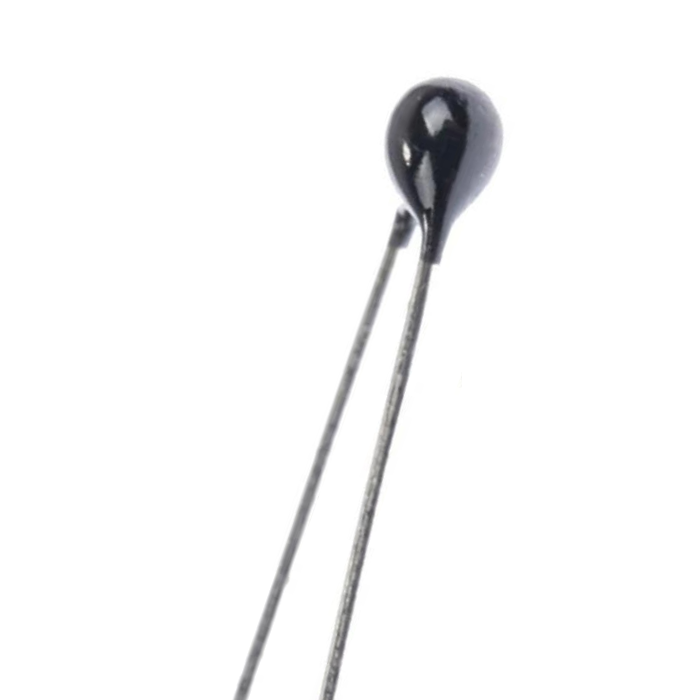

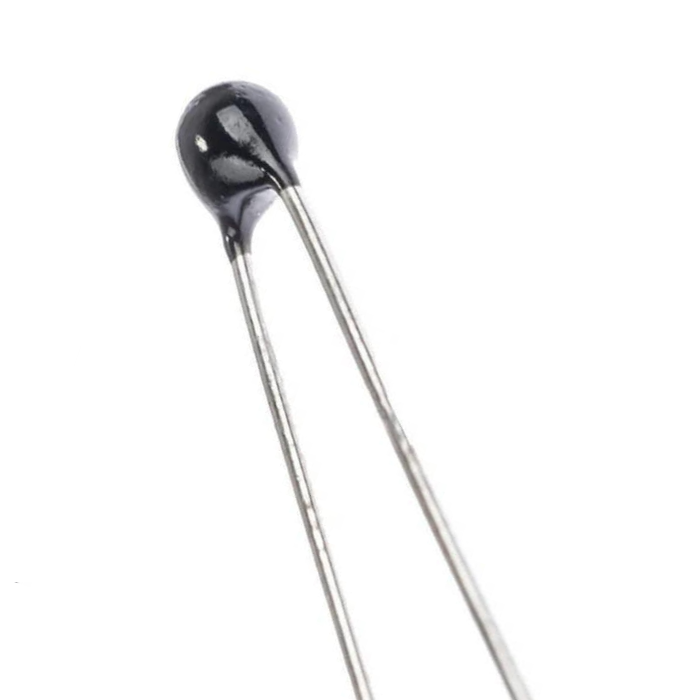

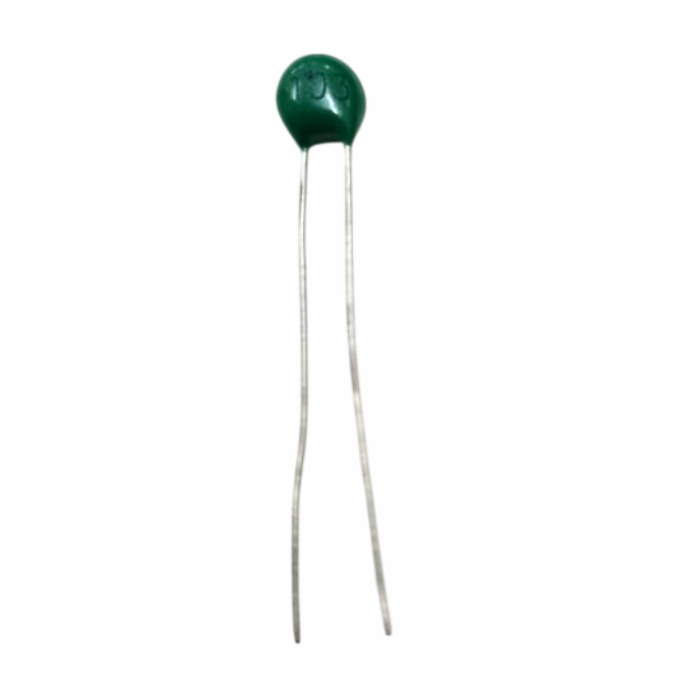

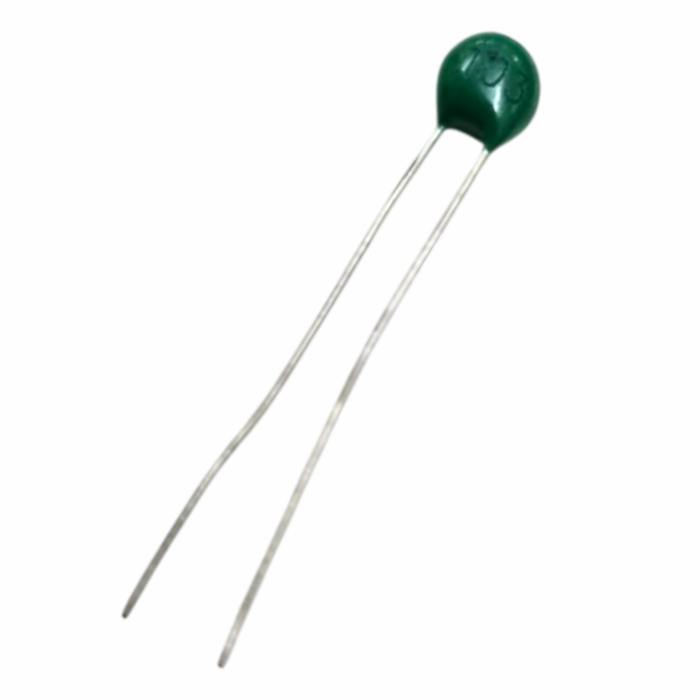

10K Temperature Sensor (Thermistor)

10K Temperature Sensor (Thermistor)

Regular price Rs. 10
Regular price Rs. 12 Sale price Rs. 10
Sale Sold out 17% off Best Price Guaranteed
You save Rs. 2 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • They are inexpensive, rugged and reliable.
  • They respond quickly.
  • The Steinhart-Hart equation gives the reciprocal of absolute temperature as a function of the resistance of a thermistor.

10K Temperature Sensor (Thermistor)

A 10K temperature sensor (also known as a thermistor) is a type of resistor that changes its resistance value in response to changes in temperature. The "10K" refers to its resistance value at a temperature of 25°C, which is 10,000 ohms. Thermistors are commonly used in temperature sensing and control applications because of their high sensitivity and fast response time. They are often preferred over other temperature sensors such as thermocouples and RTDs because they are smaller, cheaper, and easier to use. There are two main types of thermistors: negative temperature coefficient (NTC) and positive temperature coefficient (PTC). NTC thermistors have a resistance that decreases as the temperature increases, while PTC thermistors have a resistance that increases as the temperature increases.

Thermistors are inexpensive, easily-obtainable temperature sensors.  They are easy to use and adaptable.  Circuits with thermistors can have reasonable output voltages - not the millivolt outputs thermocouples have.  Because of these qualities, thermistors are widely used for simple temperature measurements.  They're not used for high temperatures, but in the temperature ranges where they work they are widely used.

Applications:

  • Temperature control in HVAC systems
  • Temperature measurement in medical equipment
  • Temperature measurement in industrial processes
  • Temperature measurement in automotive systems
  • Temperature measurement in environmental monitoring
  • Temperature measurement in consumer electronics.

Also check 10K Thermistor Temperature Sensor Module(3 Pin) available on the Robocraze website. This temperature sensor module is sensitive to ambient temperature and is commonly used to detect the temperature of the surrounding environment. It features a working voltage of 3.3V-5V and uses the LM393 comparator for voltage comparison. The output format is digital switching output (0 and 1), and it has a temperature detection range of 20 to 80 degrees Celsius.

Also check 10K Thermistor Temperature Sensor Module(4 Pin). The module is small and low-cost. It can be used to detect the temperature of the surrounding environment.

Package Includes:

  • 1 x 10K Temperature Sensor (Thermistor)

Specifications

Resistance at 25 degrees C 10K +- 1%
Thermal cooling time constant   <= (in air) 20 seconds
Thermistor temperature range -55 °C to 125 °C
Dimensions  3 x 1 x 1cms
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.What is a 10K temperature sensor (thermistor)?

  • A 10K temperature sensor (also known as a thermistor) is a type of resistor that changes its resistance value in response to changes in temperature. The "10K" refers to its resistance value at a temperature of 25°C, which is 10,000 ohms.

2.How does a 10K temperature sensor (thermistor) work?

  • A thermistor works by changing its resistance value in response to changes in temperature. When the temperature increases, the resistance of an NTC thermistor decreases, while the resistance of a PTC thermistor increases. This change in resistance can be measured using a circuit, and the temperature can be determined based on the resistance value using a lookup table or mathematical model.

3.What are some common applications for 10K temperature sensors (thermistors)?

  • Some common applications for 10K temperature sensors (thermistors) include temperature control in HVAC systems, temperature measurement in medical equipment, temperature measurement in industrial processes, temperature measurement in automotive systems, temperature measurement in environmental monitoring, and temperature measurement in consumer electronics.
