- Supports GSM (voice, SMS) and GPRS
- Quad-band (850/900/1800/1900 MHz) for global use
- Compatible with Arduino, with built-in regulator and TTL converter
- Compact design for versatile applications
- Easy SIM replacement with card slot
- Gold-plated board for stability

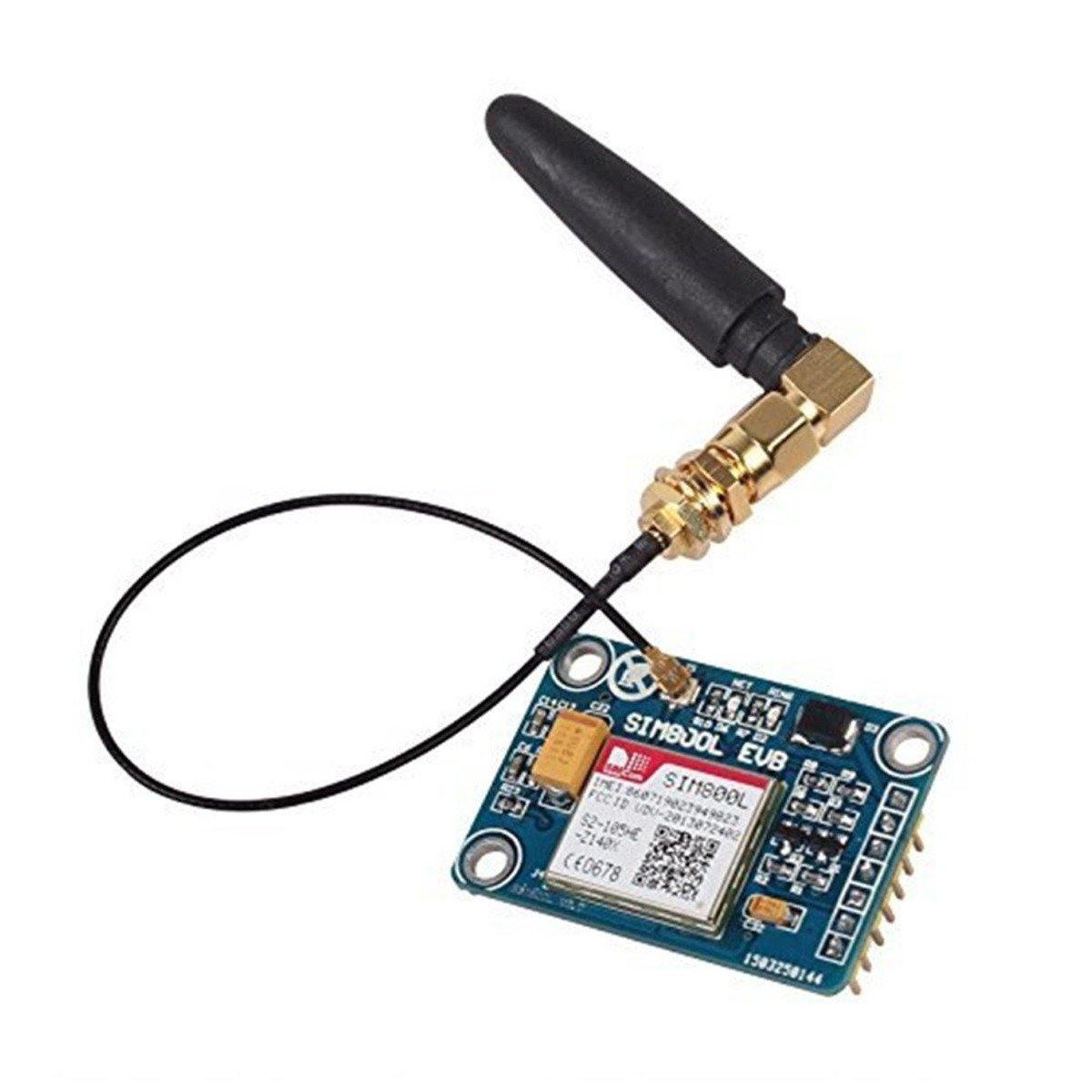

SIM800L V2 GSM GPRS Module
The SIM800L V2 5V Wireless GSM GPRS module provides power supply compatibility with 5V and can be easily connected to a computer for debugging via USB to TTL serial port. It has an output current of 800mA, and its TTL serial interface is compatible with both 3.3V and 5V microcontrollers. You can directly connect it to your single-chip computer after purchasing.
The GSM module features an IPX antenna and offers the flexibility to switch between a PCB glue stick antenna and suction cups. With support for four-frequency communications, this module allows data connectivity worldwide.
The SIM800L GSM GPRS module is a quad-band module that works with Arduino. It offers GSM functionality including voice calls and SMS, as well as GPRS capabilities. This module operates at a voltage of 5V for both the VCC and TTL serial levels.
The SIM800L module includes a built-in regulator circuit and a TTL-level converter while many GPRS/GSM modules on the market require additional components such as a 5V regulator and level converter circuit.
Check out our collection of GPRS/GSM Modules
SIM800L V2 GSM Module Pinout:
Features:
- Quad-Band 850/900/1800/1900 MHz for global GSM support
- 3.3V/5V TTL serial interface
- Compact, fits embedded systems
- Easy SIM swap with card slot
- IPX interface for antenna flexibility
- Gold-plated for stability
- Neat wiring for reliable operation
- Protection against high pressure and wear
Applications:
- Transmit Voice
- SMS and data information with low-power
- Home automation
- Agriculture automation
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
SIM900A GSM GPRS Module with RS232 Interface and SMA Antenna
SIM 800A GSM Modem with SMA Antenna
SIM800A LM317 with Antenna(GSM Finger)- ADIY
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x SIM800L V2 GSM GPRS Module
- 1 x L-Shape Antenna
Specifications:
| Model | SIM800L Module |
| Power supply | 5 -20 V |
| Network support | 850/900/1800/1900 MHz |
| Power Interface | 2.54 mm Pin header or MICRO USB interface |
| Dimensions | 12 x 6 x 1cms |
| Weight | 25g |
1. What is the SIM800L GPRS GSM module?
- SIM800L GSM/GPRS module is a small GSM modem that can be integrated into a variety of IoT projects. You can use this module to do almost anything a regular cell phone can, such as send SMS text messages, make or receive phone calls, connect to the internet via GPRS, TCP/IP, and more.
2. Can SIM800L connect to internet?
- SIM800L supports General Packet Radio Service (GPRS) for internet access via HTTP. The module includes a TCP/IP stack that can be accessed using AT commands. This is particularly useful for persistent data logging on low bandwidth networks.
3. Does SIM800L support 4G SIM?
- SIM800L only supports 2G services. If it is not getting network, try another 2G card and connect the GSM antenna. I use Airtel 4G SIM cards as well as Vodafone 4G sim cards. They operate normally on a 2G network.
4. How do I know if SIM800L is working?
- If the SIM800L receives enough power, the onboard LED begins to blink. If it is blinking every second, it is looking for a network. It will blink every three seconds if it is connected to the network. If the LED blinks rapidly, it indicates that it is connected via GPRS.
5. How does GSM module work?
