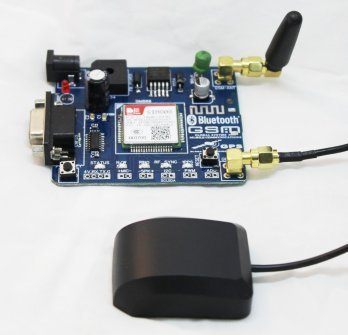

Sim808 GSM-GPRS Module

Sim808 GSM-GPRS Module

Regular price Rs. 1,841
Regular price Rs. 2,128 Sale price Rs. 1,841
Sale Sold out 13% off Best Price Guaranteed
You save Rs. 287
Incl. GST (No Hidden Charges)
  • This is Sim808 GSM-GPRS Module
  • GSM+GPRS+GPS+Bluetooth in a single board.
  • Providing external GSM and GPS antenna.
  • Quad-band support (850/900/1800/1900MHz) compatible with global 2G networks.
  • Integrated MT3337 GPS receiver with -165dBm precision on the same serial port.
  • Earphone/microphone outputs and voice call support with an electret microphone.
  • SMS communication and GPRS data transmission (TCP/IP, HTTP, etc.).
  • Automatic baud rate settings for UART communication.

Sim808 GSM/GPRS Module

The SIM808 Bluetooth Compatible GSM/GPRS/GPS Development Board is designed for Arduino and Raspberry Pi compatibility. It incorporates the SIM808 module, enabling GSM communication and GPS functionality. With this board, you can easily send and receive SMS, track locations, and even create your own cell phone. The SIM808 module serves as both a GSM communicator and a GPS receiver.

The board requires a power supply of 5-26V, and when the power supply is less than 2A, a 9V power supply is necessary. It offers a direct power supply port for convenient access. For battery power supply, a lithium battery ranging from 3.5-4.2V is suitable. The board supports computer debugging through a USB-TTL connection, making it portable and user-friendly. It provides two sets of SMA antenna ports for GPS and GSM antennas. Additionally, it offers two sets of IPX ports, facilitating antenna embedding in an aluminum box. The board features a single TTL serial port, allowing for flexible switching between GPS and GSM functions.

Note: Please note that the new version will use the new AT Command for the GPS function, and use the new library. Quadband GSm850/900/1800/1900MHz, GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load), GPRS mobile station class B, Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands).

Sim808 Pinout:

Pinout Of Sim808 GSM-GPRS Module

Features

SIM808 GSM :

  • Supports Quad-band 850/900/1800/1900MHz, compatible with all 2G networks all around the world.
  • Inner MT3337 GPS receiver, -165dBm precision, control on a same serial port.
  • Earphone/ microphone outputs on a card or external 32-ohm speaker + supports voice calls with an electret microphone.
  • Sending and receiving SMS.
  • Sending and receiving GPRS data (TCP/IP, HTTP vb).
  • UART communication with automatic baud rate settings.
  • GPRS multi-slot class 12/10
  • GPRS mobile station class B
  • Comply with GSM phase 2/2 +
  • Class 4 (2 W @ 850 / 900MHz)
  • Class 1 (1 W @ 1800 / 1900MHz)
  • Support low power consumption mode: 100mA @ 7V-GSM mode
  • Support AT command control (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)
  • Supports GPS satellite navigation technology
  • Support LED status indicator: Power supply status, network status, and operating modes
  • Working environment: -40 ℃ ~ 85 ℃

SIM808 GPS :

  • 22 tracking/66 acquisition channel
  • GPS L1 C/A code
  • Precision: Tracking: -165dBm,
  • Cold start: -148dBm
  • Finding Location Time(typical): Cold start: 32sn, Hot start: 1sn, Warm start: 5sn
  • Accuracy: ~2.5m

Package Includes:

  • 1 x Sim 808 GSM/GPRS Module

Specifications

Model  Sim 808 GSM/GPRS Module
Connectivity GPRS multi-slot class12 connectivity
Control AT Command
Dimensions  5 x 4 x 3cms
Weight 5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.What is the function of SIM808?

  • SIM808 GSM/GPRS/GPS UART mini Modem, the latest addition of rhydolabz ,helps you with wireless connectivity for your project using TTL UART interface. It is a complete Quad-Band GSM/GPRS module that works on frequencies 850/ 900/ 1800/ 1900 MHz which combines GPS technology for satellite navigation.

2.How does SIM808 module work?

  • SIM808 module is a GSM and GPS two-in-one function module. It is based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation. The latest firmware support bluetooth function. You can use all AT commands for BT functions right now.
