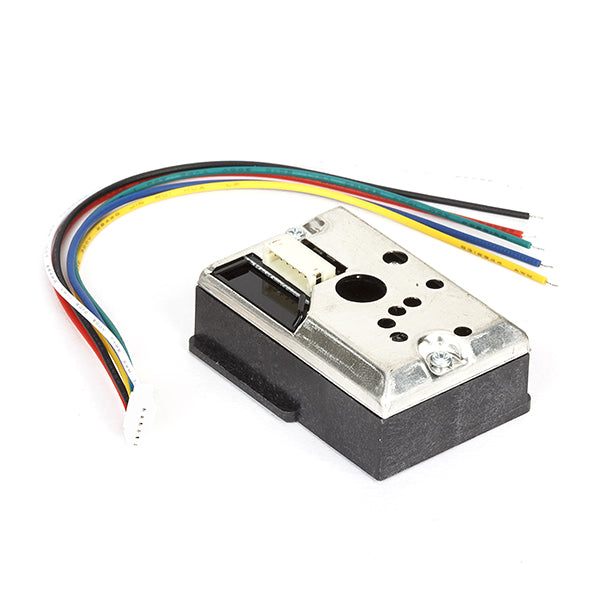

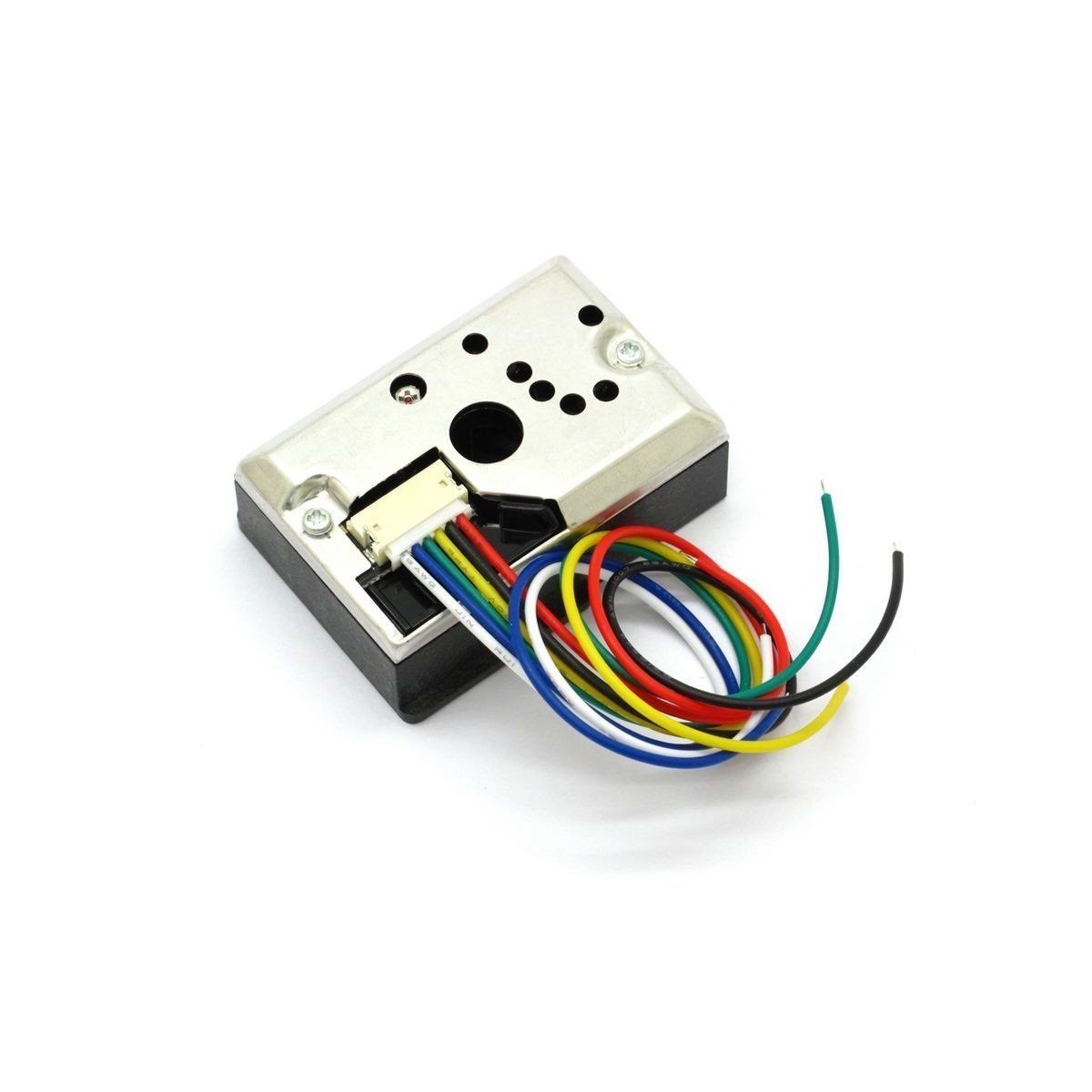

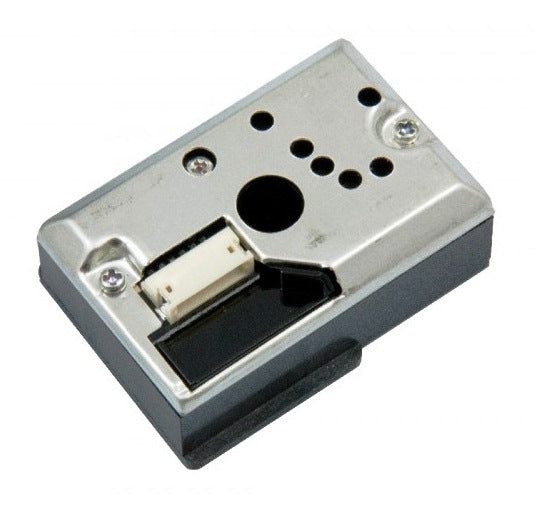

Optical Dust Sensor with Cable

Optical Dust Sensor with Cable

Low stock: 3 left

Regular price Rs. 409
Regular price Rs. 549 Sale price Rs. 409
Sale Sold out 26% off Best Price Guaranteed
You save Rs. 140
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • It requires power supply voltage of DC5 ± 2V.
  • An infrared emitting diode and an phototransistor are diagonally arranged into this device. It detects the reflected light of dust in air.
  • The minimum detection level of particles: 0.8 m.
  • Clean air voltage is 0.9V typ.
  • GP2Y1010AU0F is a dust sensor by optical sensing system
  • Low consumption current (Icc: MAX. 20 mA).
  • The presence of dust can be detected by the photometry of only one pulse.
  • Enable to distinguish smoke from house dust.

Optical Dust Sensor with Cable

This PM2.5 GP2Y1010AU0F Dust Smoke Particle Sensor is an infrared emitting diode (IRED) and a phototransistor is diagonally arranged into this device. It detects the reflected light of dust in the air. Especially, it is effective to detect very fine particles like cigarette smoke. In addition, it can distinguish smoke from house dust by the pulse pattern of the output voltage.

The module is mainly used for dust removal equipment alarm equipment, air purification equipment, dust robots, fire alarm, etc. industry equipment can detect smoke particles, pollen spores, and other particles. The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC. The output of the sensor is an analog voltage proportional to the measured dust density, with a sensitivity of 0.5V/0.1mg/m3.

Applications:

  • Detecting dust in the air.
  • Air purifier, Air conditioner, the Air monitor.
  • Fire alarm
  • Dust robots

Package Includes:

  • 1 x Optical Dust Sensor

Specifications

Sensor  Optical Dust Sensor
Power supply voltage DC5 ± 2V
Sensitivity 0.5V / (0.1mg / m3)
Dimensions 5 x 4 x 3cms
Weight  25 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is the basic working principle of the optical dust sensor?

  • The air enters the sensor through an air inlet valve, where an infrared LED light is turned on and off repeatedly. The dust particles in the air are illuminated by this infrared light.

2. How do you use a dust sensor?

  • Connect the dust sensor to the Arduino. Connect the 3.3V/5V pin on the Arduino board to the Vcc pin on the dust sensor module. Connect the V-LED of the sensor to the 100-ohm resistor. Connect the sensor's LED-GND and S-GND pins to the Arduino's ground pin.

3. How does dust get measured?

  • The dust index is then calculated by measuring the light that is diffusely scattered through the foil and calibrating it against the area covered by dust, in percent, as determined by microscopy.

4. Where is the optical dust sensor module most commonly used?

  • The module is mainly used for dust removal equipment alarm equipment, air purification equipment, dust robots, fire alarm, etc. industry equipment can detect smoke particles, pollen spores, and other particles. The sensor has a very low current consumption (20mA max, 11mA typical), and can be powered with up to 7VDC.
