Sim 800L GSM - GPRS Module

Sim 800L GSM/GPRS Module

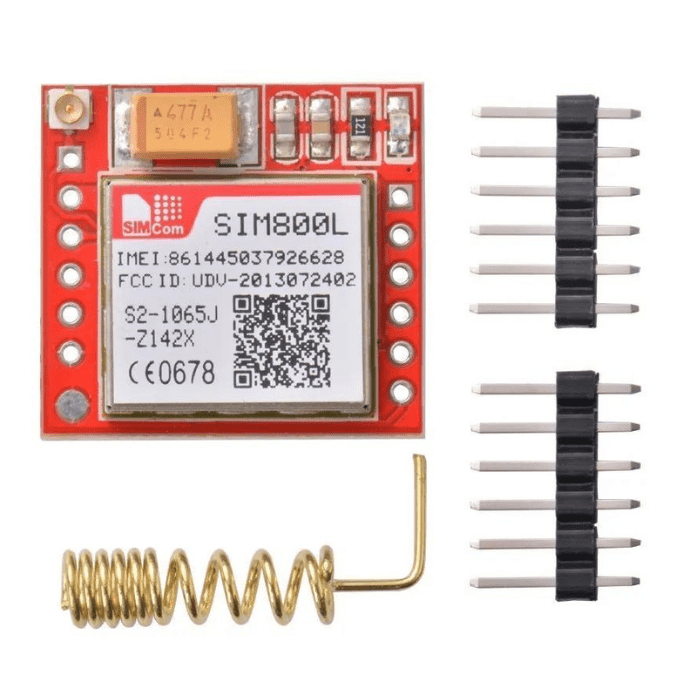

This Small SIM800L GPRS GSM Module is equipped with a Micro SIM Card Core Board and a quad-band TTL Serial Port. It comes with two antennas included, providing excellent wireless connectivity. The SIM800L GSM/GPRS module is a compact GSM modem that can be seamlessly integrated into various IoT projects. With this module, you can achieve a wide range of functionalities similar to a regular cell phone, including sending and receiving SMS text messages, making phone calls, and connecting to the internet via GPRS, TCP/IP, and more! Moreover, this module supports a quad-band GSM/GPRS network, ensuring global compatibility.

One of the antennas is a wire type that can be directly soldered to the NET pin on the PCB, making it highly suitable for narrow spaces. The other antenna is a PCB antenna, which comes with double-sided tape and a pigtail cable featuring an IPX connector. This antenna offers superior performance and enables you to enclose the module within a metal case while keeping the antenna exposed for optimal reception.

check out : Sim 800C GSM Modem with Battery

Pinout:

Features:

• Quad-band GSM/GPRS module
• Works on frequencies: 850MHz GSM, 900MHz EGSM, 1800MHz DCS, and 1900MHz PCS
• Supports GPRS multi-slot class
• Compact size and low current consumption
• Ideal for small projects
• Can be interfaced with any microcontroller for GSM functionality
• Enables making and receiving phone calls
• Supports sending and receiving SMS messages
• Allows for GPRS data transmission (TCP/IP, HTTP, etc.)
• Power-saving techniques with low current consumption (as low as 1mA in sleep mode)
• TTL serial interface
• Baud rates range from 1200 bps to 115200 bps
• Automatic baud rate detection
• Includes lead out buzzer and vibrational motor control port
• Input voltage range: DC 3.7-4.2V

read more : Why GSM Modules Are Essential for IoT Projects

Package Includes:

• 1 x Small SIM800L GPRS GSM Module.
• 1 x PCB Antenna.

Specifications:
