Arduino LilyPad ATmega328P compatible Board

Arduino LilyPad ATmega328P compatible Board

Regular price Rs. 375
Regular price Rs. 582 Sale price Rs. 375
Sale Sold out 36% off Best Price Guaranteed
You save Rs. 207
Incl. GST (No Hidden Charges)
  • This is the LilyPad ATmega328P Board compatible with Arduino
  • The Lilypad Atmega328p board will run from 2V to 5V.
  • This is the new version of the Lilypad board supports automatic reset for even easier programming.
  • You can now use a surface mount programming connector on the Lilypad board to keep the header from poking through.
  • The latest Lilypad arduino board now uses the new ATmega328 at 8MHz.
  • You can Get Lilypad 328p board online at best prices.

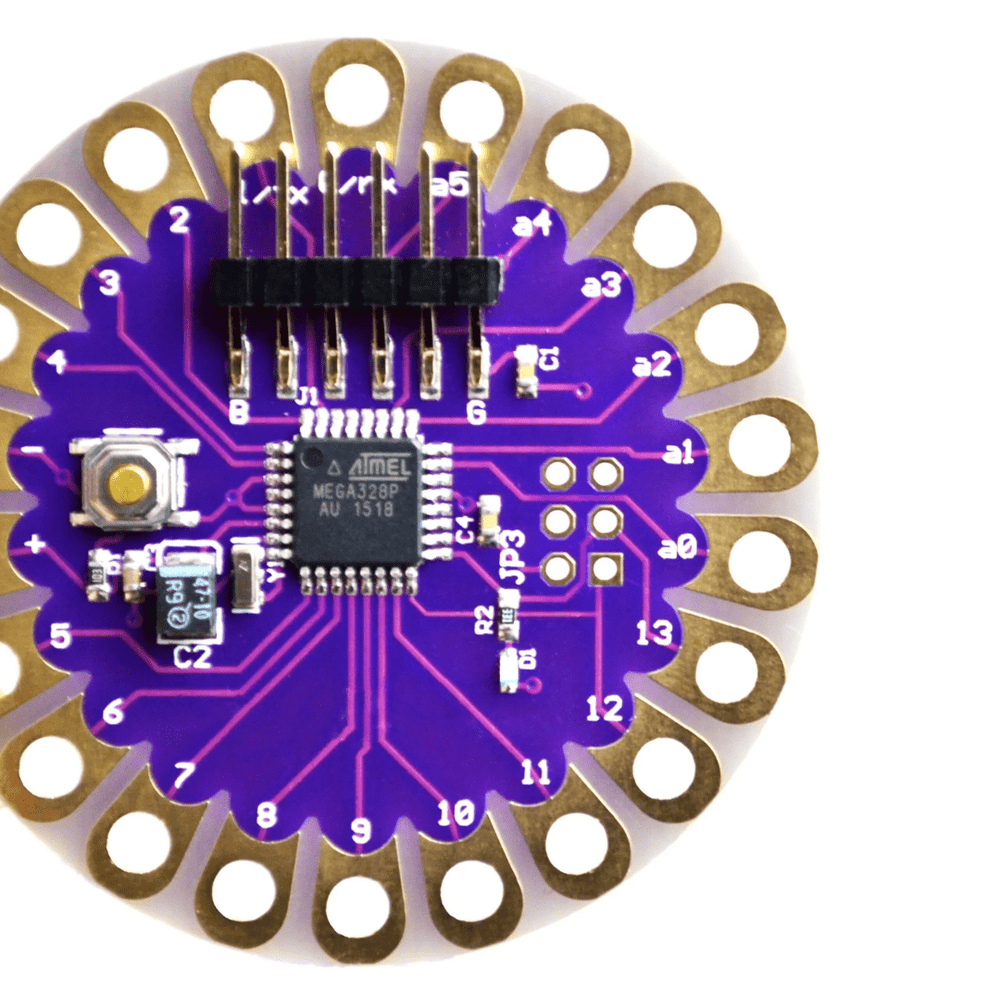

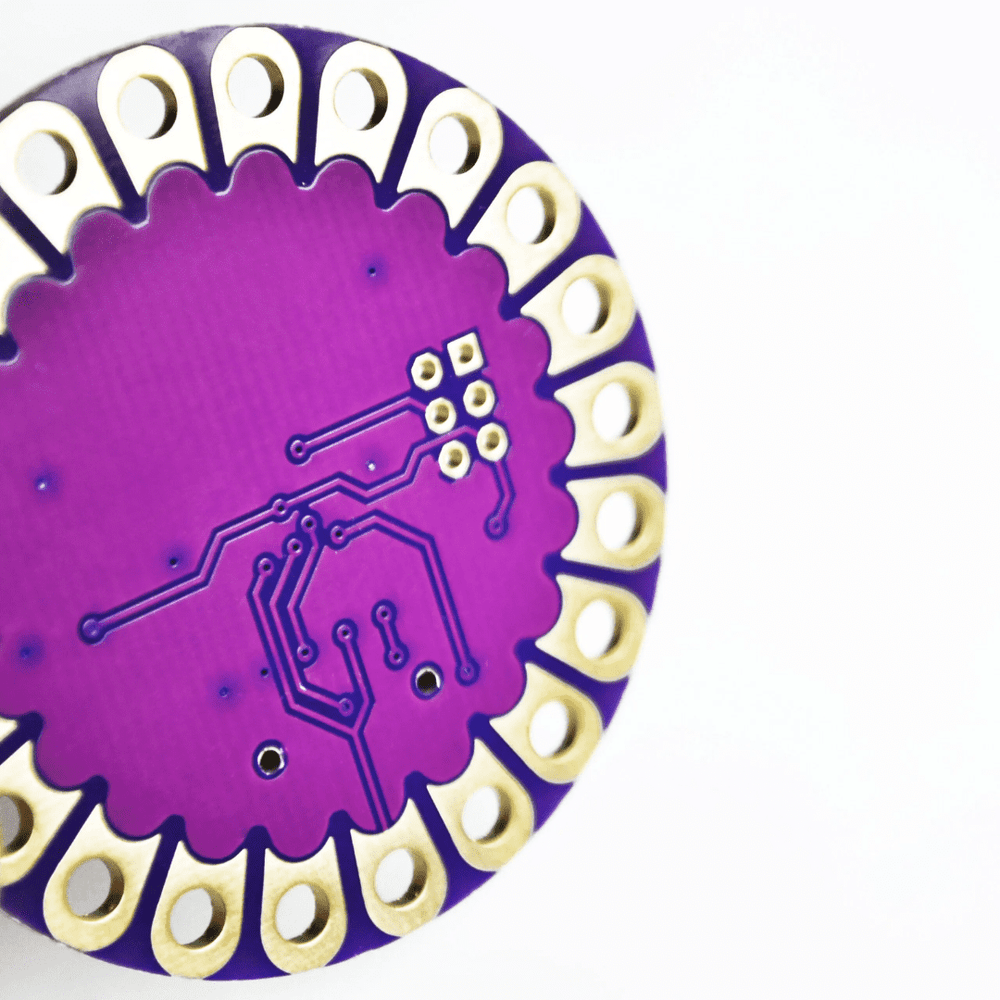

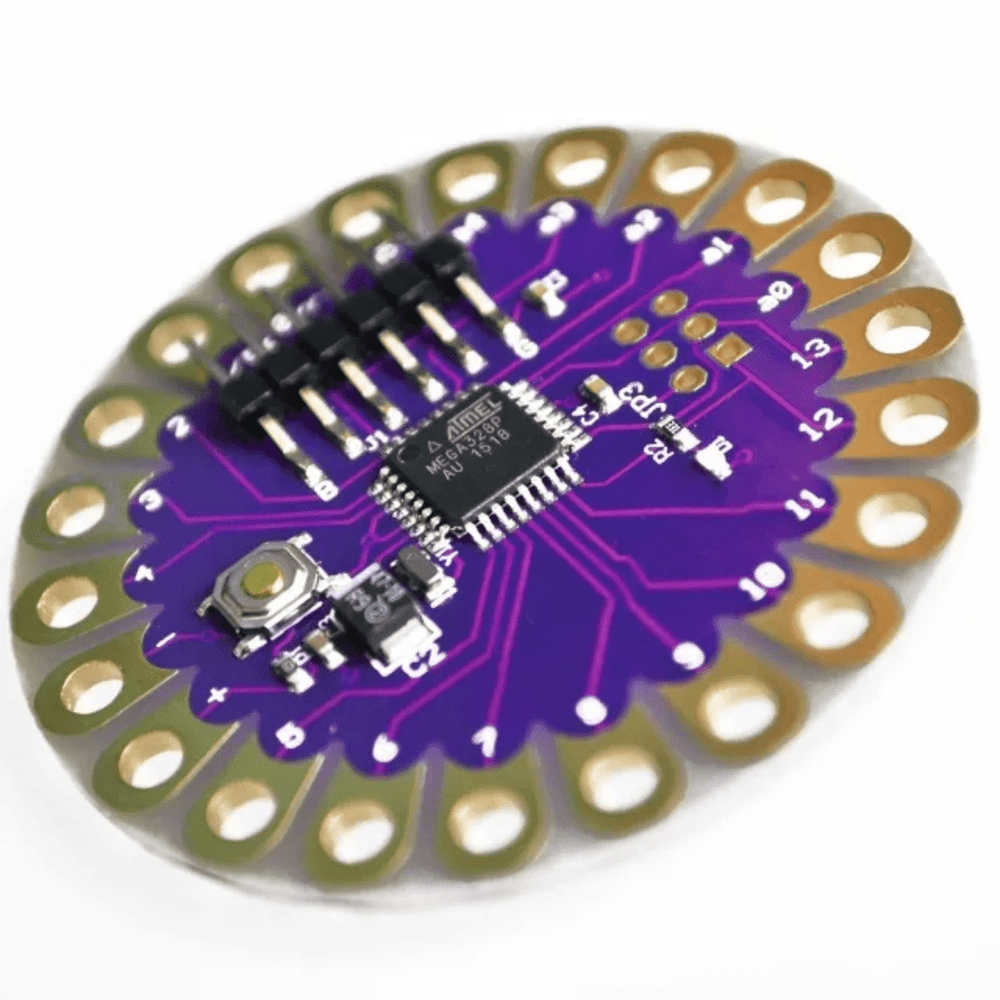

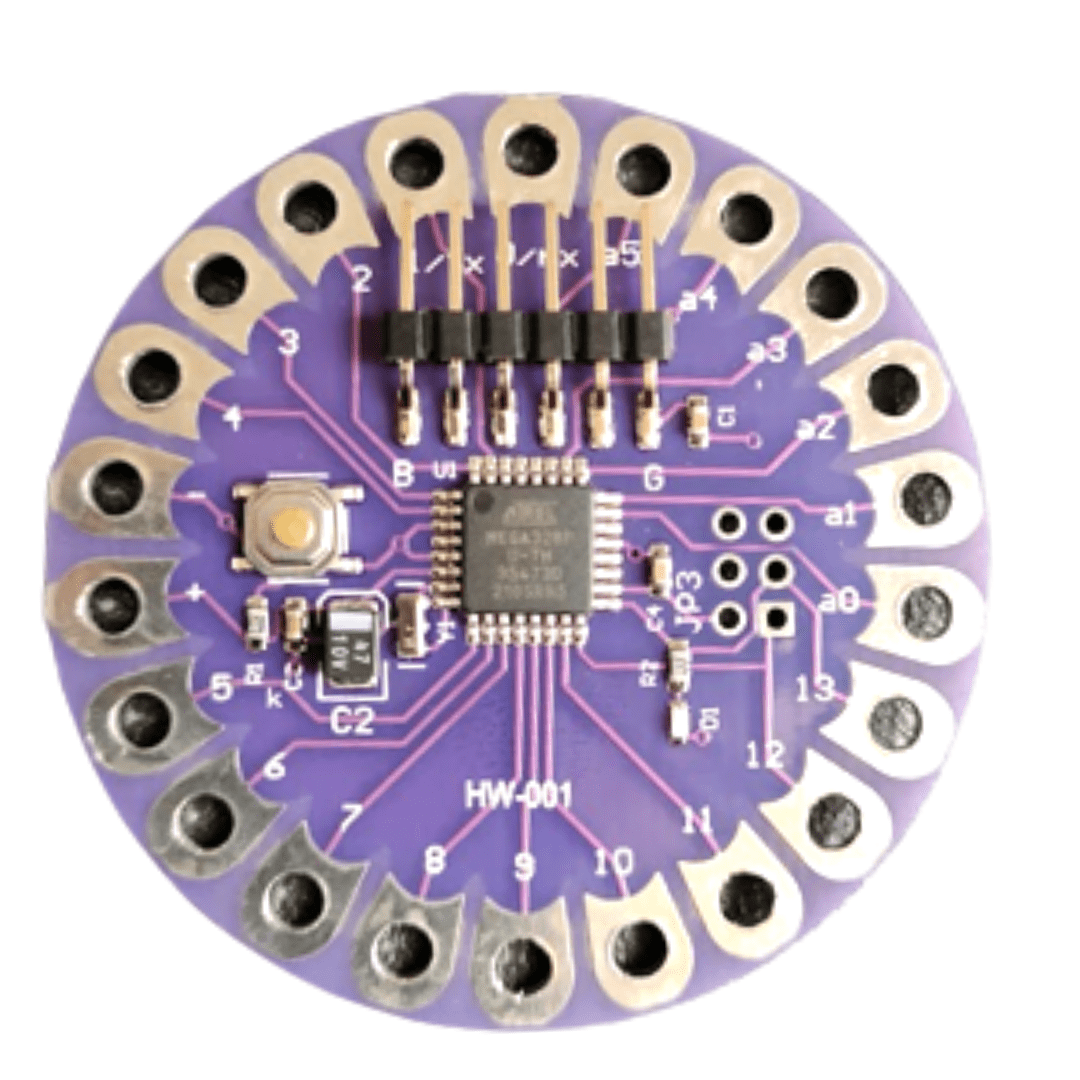

LilyPad ATmega328P Board compatible with Arduino

The LilyPad 328 ATmega328P Main Board 16M is a compatible Arduino-program micro-controller designed to be easily integrated into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile. With wide tabs that can be sewn down and connect with conductive thread.

The LilyPad consists of an ATmega328 compatible with the Arduino bootloader and a minimum number of external components to keep it as small (and as simple) as possible.

This Lilypad board will run from 2V to 5V and offers large pin-out holes that make it easy to sew and connect. Each of these pins, with the exception of (+) and (-), can control an attached input or output device (like a light, motor, or switch).

Each LilyPad was creatively designed to have large connecting pads to allow them to be sewn into clothing. Various input, output, power, and sensor boards are available. These boards are washable as well.

Package Includes :

  • 1 x LilyPad 328 ATmega328P Main Board 16M

Specifications:

Microcontroller ATmega328V
Operating Voltage 2.7-5.5 V
Input Voltage 2.7-5.5 V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
Flash Memory 16 KB
EEPROM 512 bytes
Clock Speed 8 MHz
Dimensions 5 x 4 x 1cms
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is a Arduino LilyPad?

Arduino LilyPad is a microcontroller board based on the ATmega328P microcontroller. It is designed to be used in wearable projects, such as clothing or accessories, and can be sewn onto fabrics using conductive thread. The LilyPad has a round shape and is very small, making it ideal for use in projects where space is limited.

The LilyPad is similar to other Arduino boards in terms of functionality and programming, but it has a few unique features that make it better suited for wearable projects. For example, it has several input and output pins that are specifically designed to be connected to conductive thread. It also has a built-in power supply that can be used to power small components such as LEDs.



2. What is the difference between Arduino Uno and LilyPad?

Both Arduino Uno and LilyPad are based on the ATmega328P microcontroller and have a similar number of digital and analog pins, as well as PWM outputs. However, there are a few key differences between the two boards.
One major difference is the operating voltage and input voltage. Arduino Uno operates at 5V and can accept input voltages between 7-20V, while LilyPad operates at a lower voltage range of 2.7-5.5V.
Another difference is the USB interface. Arduino Uno has a built-in USB interface, which makes it easy to program and power the board. In contrast, LilyPad does not have a built-in USB interface and needs to be programmed and powered using an external FTDI breakout board.

Here is a difference between Arduino Uno and LilyPad:

FeatureArduino UnoLilyPad
MicrocontrollerATmega328PATmega328P
Operating Voltage5V2.7-5.5V
Input Voltage7-20V2.7-5.5V
Digital I/O pins1414
Analog Inputs66
PWM Outputs66
USB InterfaceYesNo
Form FactorBoardRound
Designed forGeneral use Wearable use
