CD4017 - Decade Counter IC

CD4017 - Decade Counter IC

Regular price Rs. 13
Regular price Rs. 20 Sale price Rs. 13
Sale Sold out 35% off Best Price Guaranteed
You save Rs. 7 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • Wide supply voltage range: 3.0V to 15V
  • High noise immunity: 0.45 VDD (typ.)
  • Low power Fan out of 2 driving 74L TTL compatibility: or 1 driving 74LS
  • Medium speed operation: 5.0 MHz (typ.) with 10V VDD
  • Low power: 10 µW (typ.)
  • Fully static operation

CD4017 - Decade Counter IC

The CD4017 IC is a decade counter that counts to ten. It has 10 outputs that represent the numbers 0 to 9. The counter increases with one for every rising clock pulse. After the counter has reached 9, it starts again from 0 with the next clock pulse.

This is a great chip for making running LEDs! See a circuit example further down.

check out : Dual Complementary Pair with Inverter IC - CD4007

Pin Overview:

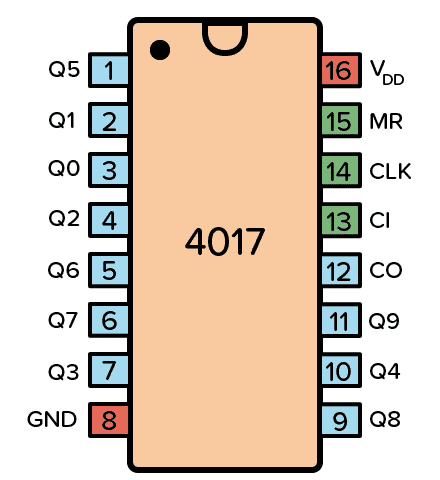

Pinout of CD4017 - Decade Counter IC
Pin Name Pin # Type Description
VDD 16 Power Supply Voltage (+3 to +15V)
GND 8 Power Ground (0V)
Q0-Q9 1-7 and 9-11 Output Qx is high when the counter is x
CO 12 Output Carry Out. Goes high after ten clock pulses
CI 13 Input Clock Inhibit. Ignores clock inputs
CLK 14 Input Clock Input. Increases the counter with one
MR 15 Input Resets the counter to 0

Package Includes:

  • Selected qty of IC - CD4017

Specifications:

Input Voltage (VIN)  −0.5 VDC to VDD +0.5 VDC
Storage Temperature (TS)  −65°C to +150°C
DC Supply Voltage (VDD)  −0.5 VDC to +18 VDC
Power Dissipation (PD): Dual-In-Line  700 mW
Lead Temperature (TL)   260°C
