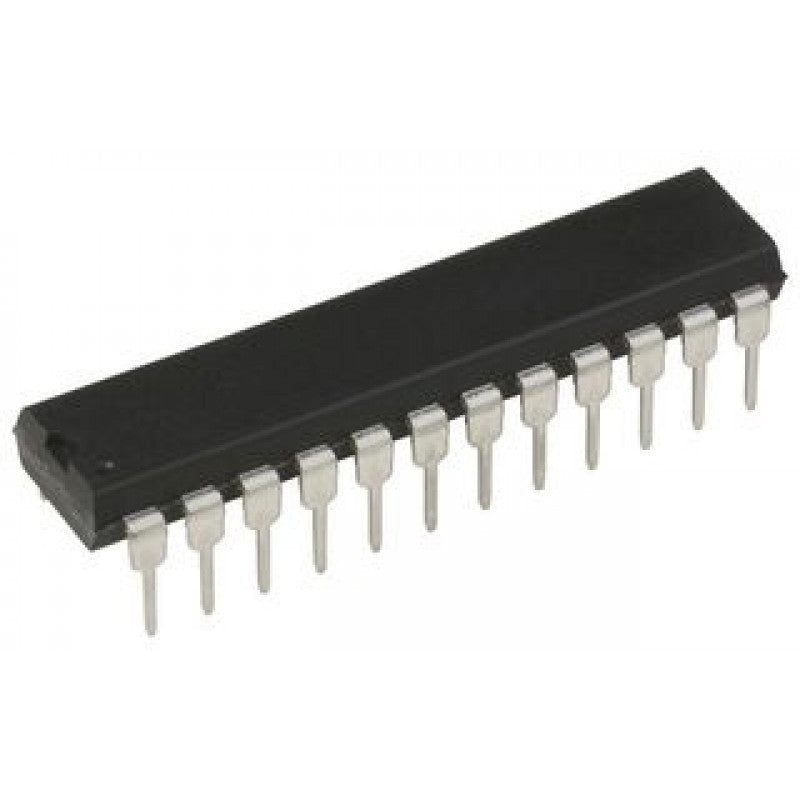

CD4514 - 4 Bit Latch/4-16 Line Decoder IC

CD4514 - 4 Bit Latch/4-16 Line Decoder IC

Regular price Rs. 143
Regular price Rs. 199 Sale price Rs. 143
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 56 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Size
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • Wide supply voltage range: 3.0V to 15V
  • High noise immunity: 0.45 VDD (typ.)
  • Low power TTL: fan out of 2 compatibility: driving 74L
  • Low quiescent power dissipation: 0.025 µW/package @ 5.0 VDC
  • Single supply operation
  • Input impedance = 1012Ω typically
  • Plug-in replacement for MC14514, MC14515

CD4514 - 4 Bit Latch/4-16 Line Decoder IC

The CD4x Series CD4514 IC is a 4-to-16-line decoder with latched inputs implemented with complementary MOS (CMOS) circuits constructed with N- and P-channel enhancement mode transistors. These circuits are primarily used in decoding applications where low power dissipation and/or high noise immunity are required.

The CD4514 (output active high option) presents a logical “1” at the selected output. The input latches are R–S type flip-flops, which hold the last input data presented prior to the strobe transition from “1” to “0”. This input data is decoded and the corresponding output is activated. An output inhibits line is also available.

Pinout:

Pinout Of CD4514 IC

Package Includes:

Selected qty of IC - CD4514

Specifications:

Part number CD4514B
DC Supply Voltage (VDD) −0.5V to +18V
Input Voltage (VIN)  −0.5V to VDD + 0.5V
 Storage Temperature Range (TS) −65°C to +150°C
  Power Dissipation (PD) Dual-In-Line 700 mW
Lead Temperature (TL) 260°C
