Arduino VS1053 MP3 Shield
Arduino VS1053 MP3 Shield
Regular price
Rs. 799
Regular price
Rs. 999
Sale price
Rs. 799
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 9 hours and 4 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Versatile Recording: The VS1053 MP3 Shield offers onboard recording and playback of various music formats, supporting OGG encoding.
- Audio Playback: It features a headphone and stereo output, delivering high-quality sound.
- Recording Capability: Equipped with an onboard microphone, it allows you to record audio effortlessly.
- Line-in Input: The shield includes a line-in input interface for flexible audio connections.
- Dual Jacks: It offers separate 3.5mm jacks for both microphone and speaker for added convenience.
- Power Indicator: The onboard power indicator keeps you informed about its status.
- Stable Voltage: With 3.3V and 2.8V LDO chip AMS-1117, it provides a stable current of up to 800mA.

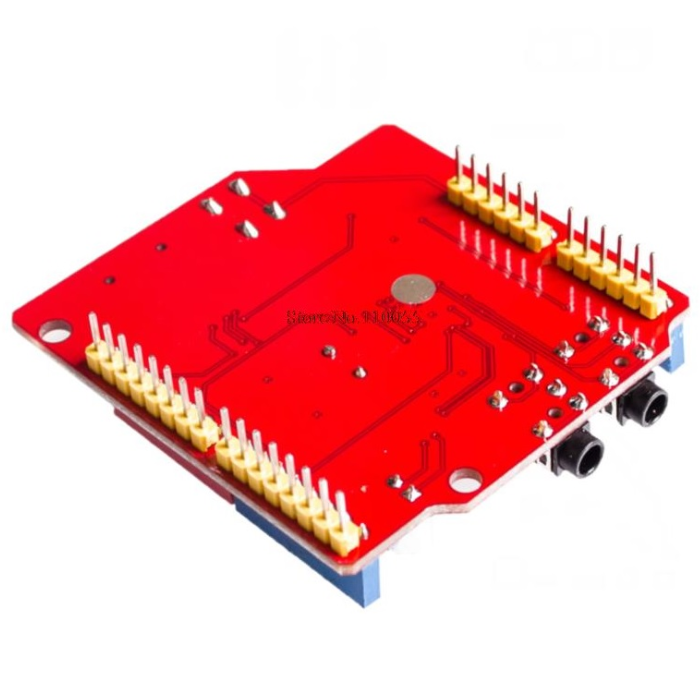

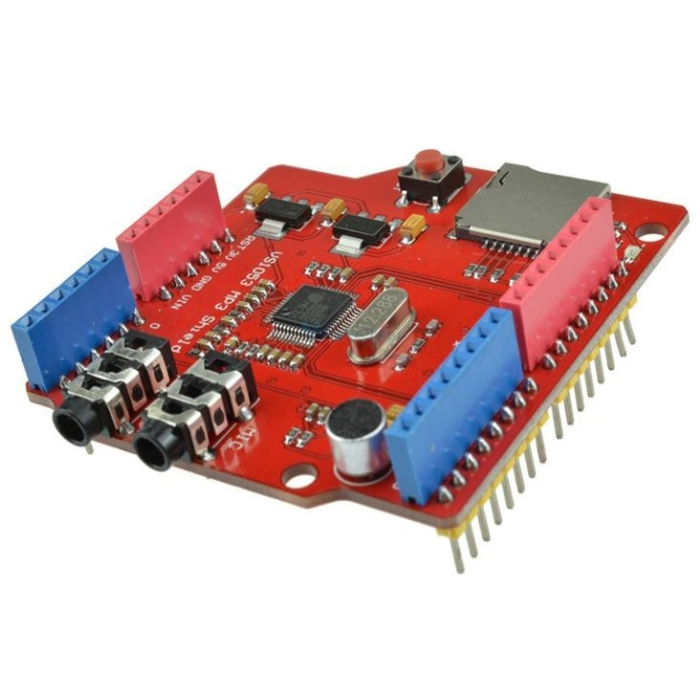

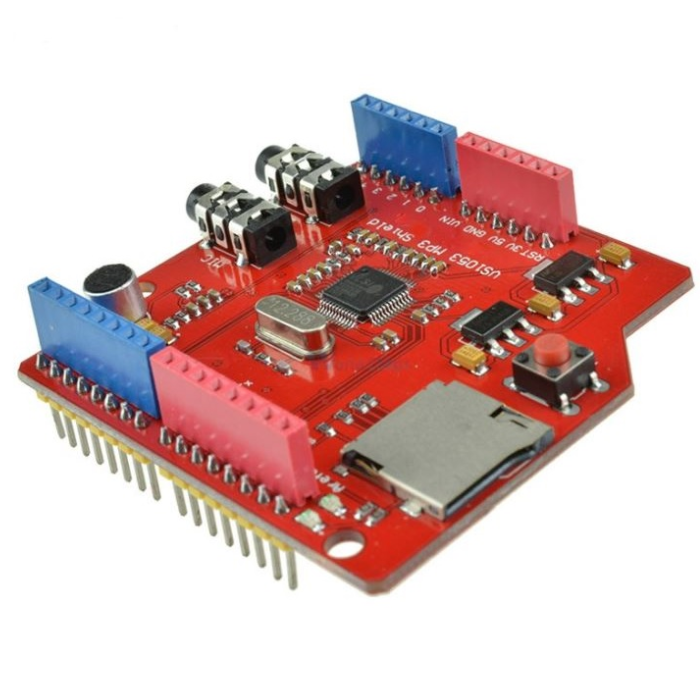

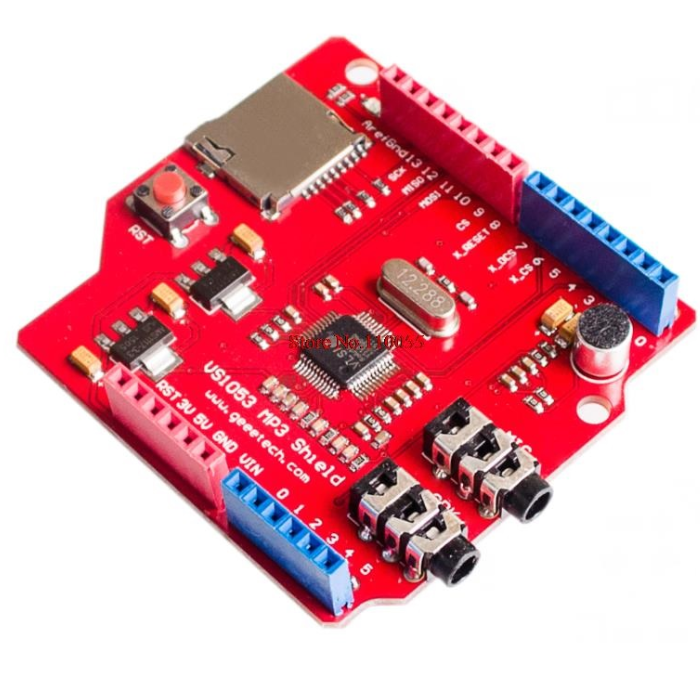

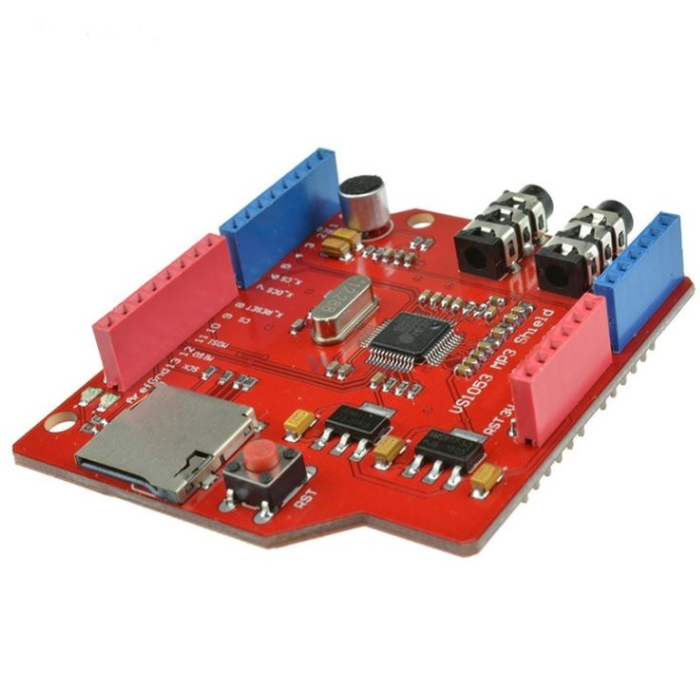

VS1053 MP3 Shield for Arduino
This VS1053 MP3 Shield for Arduino with onboard recording function can record and playback a variety of music formats, and support for OGG encoding real-time recording.
VS1053 is in addition to playing a variety of music formats but also supports the OGG real-time encoding recording. SPI interface, and control signal lines are extracted. The VS1053 MP3 Shield for Arduino has an onboard TF SD card slot to store the record data as well as playback whenever you want, or you can easily transport the recorded MP3 file to any device via SD card.
The MP3 shield module has two separate 3.5 mm jacks for audio Out & Microphone In and Onboard Microphone for recording. This MP3 shield has a capacitor filter and a 12.288Mhz crystal oscillator and with an onboard power indicator light, it easy to monitor the on/off status of the module. Also, the onboard 3.3V and 2.5V LDO chip AMS-1117 provide 800mA current. The single power supply onboard for +5VDC provides the constant stabilized voltage to the circuit.
read more : VS1053 MP3 Shield with Arduino Uno
Features:
- SPI interface, the control signal lines are led out
- A headphone and stereo output
- Onboard Microphone for recording
- A line-in input interface
- Separate 3.5 mm Jack for MIC and Speaker
- Onboard Power Indicator 3.3V and 2.8V of LDO chip AMS-1117 on board provides up to 800mA current
- Can play a variety of music formats, support for OGG encoding real-time recording
- TF card slot
Applications:
- DIY MP3 Players: Create custom MP3 players with playback and recording capabilities.
- Sound Effects for Projects: Add sound effects to interactive projects like haunted houses or Halloween costumes.
- Voice Recorders: Build voice recording devices for various applications.
- Audio Playback in Robotics: Integrate audio playback in robotic projects for voice commands or feedback.
- Educational Tools: Develop educational tools that use audio for instructions or feedback.
- Home Automation: Use in-home automation systems to provide audio alerts or notifications.
- Interactive Art Installations: Enhance art installations with soundscapes or interactive audio elements.
Package Includes:
- 1 x VS1053 MP3 Shield for Arduino
VS1053 MP3 Shield Specifications
| Supports | OGG encoding real-time recording |
| Interface | SPI Inetrface |
| Chip Used | LDO chip AMS-111 |
| Current | 800mA |
| Voltage | 2.8V - 3.3V |
| Dimensions | 5 x 4 x 1cms |
| Weight | 15 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino Uno R3 Original
Regular price
Rs. 1,841
Regular price
Rs. 2,699
Sale price
Rs. 1,841
Unit price
per
Incl. GST (No Hidden Charges)
Sale
SanDisk 64GB Micro SD-SDHC Memory Card
Regular price
Rs. 598
Regular price
Rs. 864
Sale price
Rs. 598
Unit price
per
Incl. GST (No Hidden Charges)
Sale
SanDisk 128 GB Micro SDXC Memory Card
Regular price
Rs. 898
Regular price
Rs. 1,594
Sale price
Rs. 898
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. What is VS1053 MP3 Shield for Arduino?
- The VS1053 MP3 Shield is a microcontroller add-on board that allows the Arduino to play MP3 audio files. The shield is built around the VS1053 MP3 codec chip, a highly integrated audio processor capable of decoding MP3, Ogg Vorbis, and other audio formats. The VS1053 MP3 Shield is an audio output shield that connects to the Arduino using the standard shield interface. It has a speaker output and a headphone jack. It also includes an SD card slot for storing MP3 files for playback. The VS1053 MP3 Shield is a simple way to add audio playback capabilities to Arduino projects. It is frequently used in audio-output projects such as music players, audio visualizers, and other interactive projects.
2. How do I use MP3 shield VS1053?
To use the VS1053 MP3 Shield with an Arduino, you will need to follow these steps:
- Connect the shield to your Arduino board using the standard shield interface.
- Connect a speaker or headphones to the shield using the appropriate output jack.
- Load the Arduino software onto your computer and open it.
- Create a new sketch (project) and import the MP3 library for the VS1053 shield. This can typically be done by going to Sketch > Include Library > MP3 Library for VS1053.
- Write code to control the shield using the functions provided by the MP3 library. For example, you can use the "playMP3" function to play an MP3 file from the SD card, or the "setVolume" function to adjust the volume.
- Upload the code to your Arduino using the Arduino software.
- Press the play button on the shield to start playing the MP3 file.
Keep in mind that the specifics of using the VS1053 MP3 Shield will depend on the specific version of the shield you have, as well as the version of the Arduino software you are using. Refer to the documentation provided with the shield and the MP3 library for more detailed information.
3. What audio formats can the VS1053 MP3 Shield decode?
The VS1053 MP3 Shield can decode multiple audio formats, including MP3, Ogg Vorbis, AAC, WMA, and MIDI. It can also encode audio in formats like IMA ADPCM and user-loadable Ogg Vorbis.
4. What type of output does the VS1053 MP3 Shield provide?
The shield provides both headphone and line-level outputs. This allows you to connect headphones directly to the shield or use external speakers for audio playback.
5. How does the VS1053 MP3 Shield communicate with the Arduino?
The VS1053 MP3 Shield communicates with the Arduino via the SPI (Serial Peripheral Interface). This ensures fast and efficient data transfer between the Arduino and the shield.
