- 8-Channels USB logic analyzer with a 24Mhz sampling frequency.
- Logical light indication: a small light indicate CHO electrical level.
- Great for MCU, ARM system and FPGA development.
- Input feature of this 8CH USB Logic Analyzer is 5PF, 100K Ohm.
- Sampling rate can be set as 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
- Data upload real time, the max of depth of collection is 10T, far from practical need
8CH USB Logic Analyzer
This is a very affordable 24Mhz 8 Channel USB Logic analyzer. This is a hobbyist level analyzer, ideal for testing your Arduino or other hobbyist microcontroller’s communications. A logic analyzer is a must have tool for any serious electronics hobbyist. With a logic analyzer, it is possible to see a visual representation of the zeros and ones that are flashing between two components. A logic analyzer is different from an oscilloscope because the analyzer allows you to capture the data on a PC for a more detailed analysis of the data which is being transmitted and received. This logic analyzer supports 10 different communications standards (see Specifications below). with 8 channels it will allow you to monitor up to 8 different wires. So on an Arduino, you could monitor the Serial port (tx/Rx pins), the I2C port (pins A4, A5), and the SPI port (pins 10, 11, 12, and 13) all at the same time.
If you do single-chip development, ARM system development or FPGA development then we strongly recommend you buy this product. To do a good job, must first sharpen his device MCU related products, as long as you do this tool will be your crescent moon nod. Especially do UART, SPI, and IIC communication debugging, which absolutely let you get twice the result with half the effort.
read more : What is a Logic Analyzer
Package Includes:

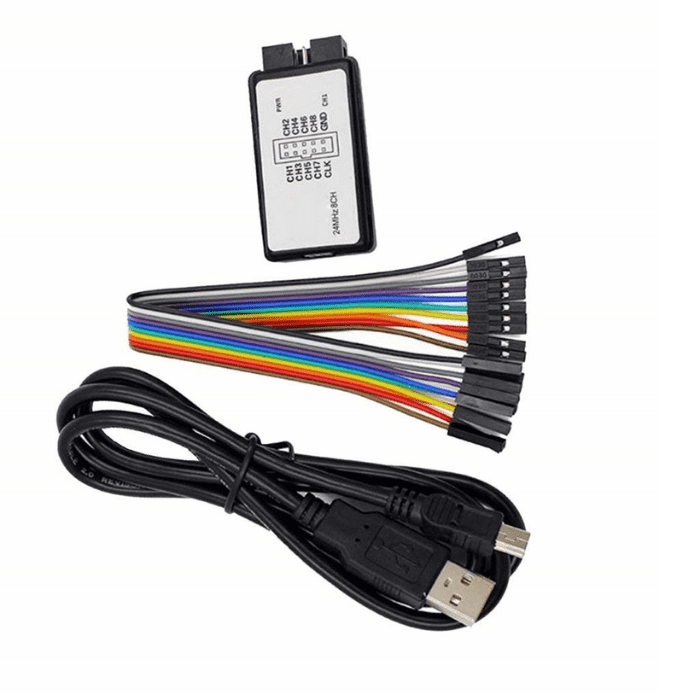

- 1 x 8CH USB Logic Analyzer
Specifications:
| Input Supply Voltage (VDC) | 0 ~ 5.5 |
| Threshold Voltage (V) | 1.5 |
| Dupont Cable Length (cm) | 20 |
| USB Cable Length (cm) | 50 |
| Dimensions | 54 x 27 x14 |
| Weight (gm) | 55 |
