- This is 7805 Voltage Regulator IC
- Built-in current limiting, thermal shutdown, and safe operating area protection for immunity to damage from output overloads
- Designed primarily as a fixed voltage regulator but can also be used for adjustable voltages and currents with external components
- Can deliver over 0.5A output current with adequate heatsinking
- Ideal for local (on-card) regulators and IoT applications
- Widely available in various packages, with TO-220 being the most commonly used.
7805 Voltage Regulator IC
The 7805 voltage regulator IC is a three-terminal voltage regulator IC. A 7805 voltage regulator with a fixed output voltage is used in various applications. This is available through various packages like SOT-223, TO-263, TO-220, and TO-3. Among these, the TO-220 is the most used one.
The IC 7805 is available in the TO220 package. It employs built-in current limiting, thermal shutdown, and safe operating area protection which makes them virtually immune to damage from output overloads.
Features:
- Three-terminal positive voltage regulator IC
- Available in TO220 package
- Built-in current limiting, thermal shutdown, and safe operating area protection
- Primarily designed as a fixed voltage regulator
- It can be used for adjustable voltages and currents with external components
- Can deliver over 0.5A output current with adequate heatsinking
Know why the 7805 Voltage Regulator is essential in electronics.

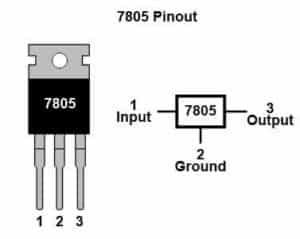

Pinout:
Applications:
- Local (on-card) regulators
- IoT
Also, check the 7812 Voltage Regulator IC with an operating output voltage of 12V.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
7809 Voltage Regulator (Pack of 5)
LM 350 Adjustable Voltage Regulator IC (Pack of 5)
L298N Motor Driver IC
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 7805 Voltage Regulator IC
Specifications:
| Input voltage | 7v to 25v |
| Output voltage range | 4.8 v to 5.2v |
| Typical output voltage | 5v |
| Maximum output current | 1.5A |
| Dimensions | 30 x 10 x 5 mm |
| Weight | 2g |
1. What is an IC 7805?
7805 is a three-terminal linear voltage regulator IC with a fixed output voltage of 5V which is useful in a wide range of applications. The 7508 IC price ranges from 5 INR to 15 INR in India.
2. What is the use of IC 7805?
Applications for the 7805 IC voltage regulators are current regulators, dual regulated power supplies, phone charger build-up circuits, UPS power supply circuits, etc. 7805 IC use can also be seen in fixed output regulators and adjustable output regulators, etc.
3. What is the input voltage range of IC 7805?
The function of pin 1 is to supply the input voltage. Must be in the range of 7V to 35V. Apply an unregulated voltage to this pin for regulation. At 7.2V input, the PIN reaches maximum efficiency.
4. How much current can LM7805 handle?
The LM7805 voltage regulator can handle a maximum output current of 1.5A when adequately heatsinked.
5. Which is better LM317 or LM7805?
The choice between the LM317 and LM7805 depends on specific requirements regarding output voltage and current capabilities.LM317:
| Feature | LM317 | LM7805 |
|---|---|---|
| Output Voltage Range | Adjustable from 1.25V to 37V | Fixed at 5V |
| Output Current Capacity | Up to 1.5A | Typically less than 1.5A |
| External Components | Requires additional components (e.g., potentiometer, precision resistors) for voltage adjustment | No need for external components; connect input voltage source (minimum 7V) |
