5V ESP8266 WiFi Relay Module
5V ESP8266 WiFi Relay Module
Regular price
Rs. 191
Regular price
Rs. 299
Sale price
Rs. 191
Unit price
/
per
You save Rs. 108 |
Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 41 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
Submit your Bulk Enquiry Here
- It has a operating voltage of 5V-12VDC.
- Onboard Module: ESP8266 wifi module; in AP mode it can connect with 5 Clients at the same time.
- Operating Way: cellphone carried on wifi module; cellphone and wifi module carried on the same router, and use the APP to control relay.
- Diode effusion protection.
- Short response time.

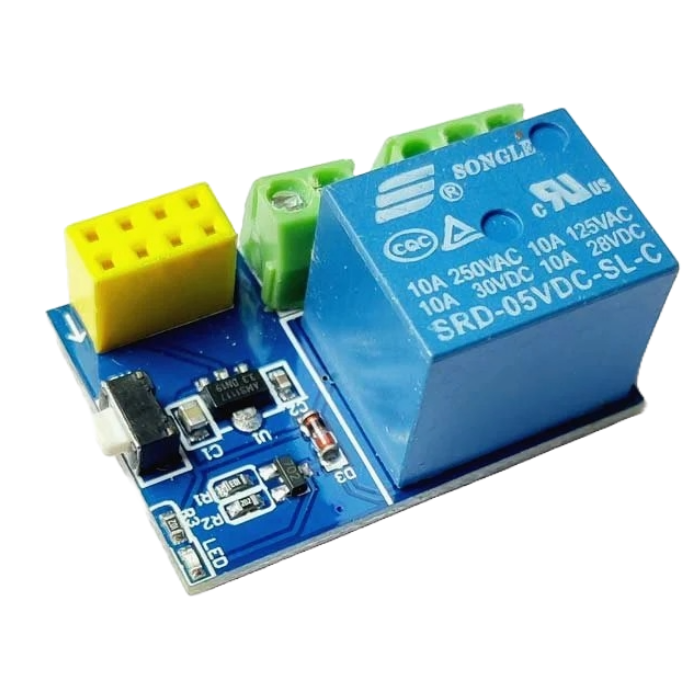

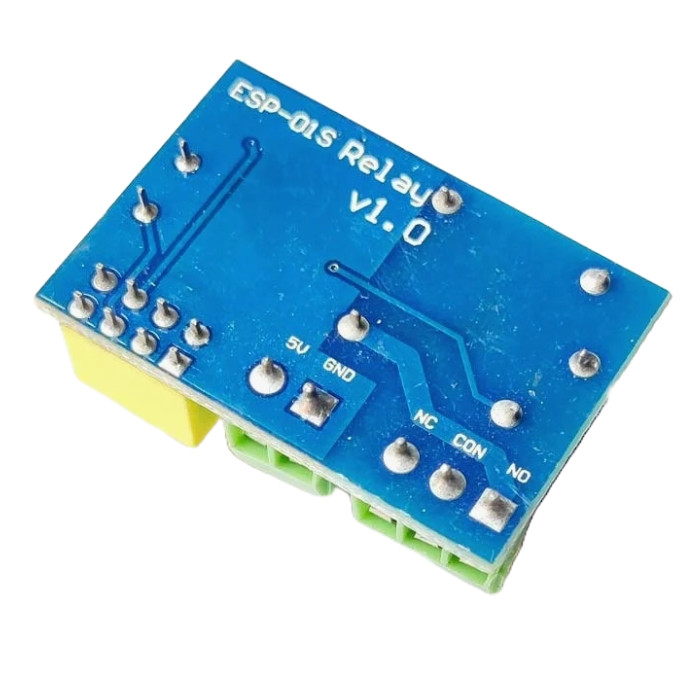

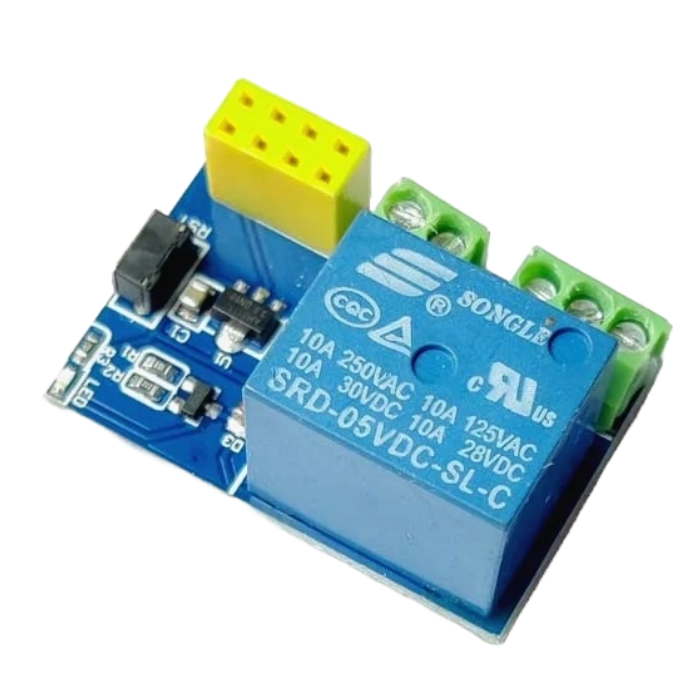

5V ESP8266 WiFi Relay Module
The ESP8266 WiFi 5V 1 Channel Relay Module equips with the ESP8266 WiFi module and micro-controllers, through the mobile phone APP to the module to send serial instructions to achieve in the LAN within the relay for wireless control.

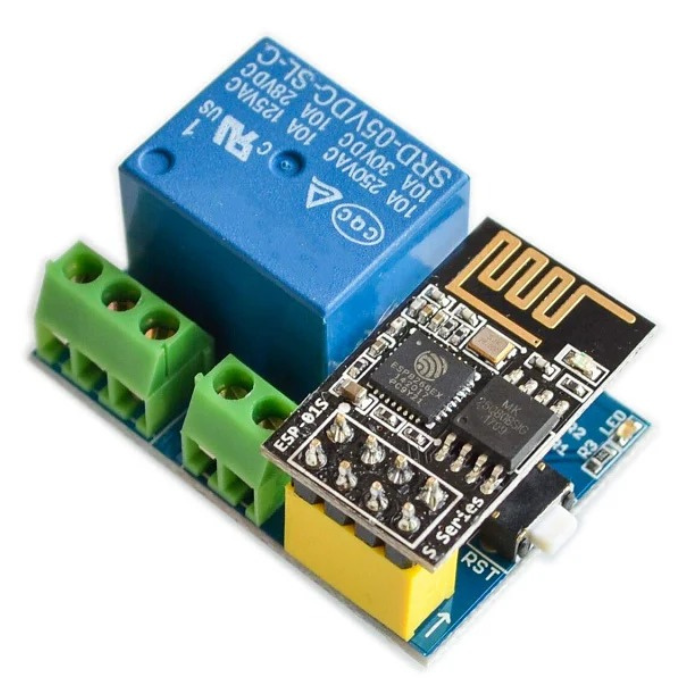

This intelligent esp relay module is independently designed and produced by IOTMCU studio. It is designed based on the ESP-01 / 01S WIFI module and can be used for DIY's own intelligent switch. It can provide APP and LUA source programs via mobile APP remote control. This esp module is ready to use, simple and convenient.
Notable Features
- It has an onboard ESP8266 WIFI module, AP mode can be connected at the same time as 5 clients.
- The module has two ways to work:
(i) mobile phone directly mounted on the WIFI module.
(ii) mobile phone and WIFI module also carried on the router.
Applications:
- DIY projects
- Industrial Automation.
- Home applications.
Package Includes:
- 1 x 5V ESP8266 WiFi Relay Module.
Specifications
| Operating voltage | 5V (DC) |
| Communication | WIFI |
| Load | 10A/250VAC 10A/30VDC |
| Dimensions | 5 x 4 x 3cms |
| Weight | 25 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Share
Found a better price?
Let us know!
We'll try to match the price for you
-
⚡ Dispatched within 24 hours
-
💰 Earn RC Coins on every purchase
-
🚚 Free shipping on orders above Rs 500/-
-
🛠️ Dedicated Technical Support Team
1
/
of
4
1.What is a 5V relay module used for?
- The 5V relay module can be used to control a load such as a lighting system, motor, or solenoid. It can also be used to switch between AC and DC voltages. The maximum voltage and current that the 5V relay module can control are determined by the relay's specifications.
2.What is a 5V ESP8266 WiFi Relay Module?
- The ESP8266 5V Wi-Fi Relay Switch Module is a small and affordable module that requires 5V DC to operate. It comes with an onboard relay that can tolerate 110-250V AC or up to 30 V DC at 10A. The ESP8266 module allows communication through WIFI, and it has three work modes: STA (client), AP (hot), STA + AP (hot +client). This module is perfect for home automation and remote control projects. When operating the relay at 5V, it is marginally safer to use a coupler, as the ESP operates at 3.3V. The module has a diode effusion protection and a short response time
Customer Reviews
Based on 6 reviews Average Rating 5.00 stars out of 5.00/ 5
Filter 6 Reviews with 5 star rating (6)
5
Filter 0 Review with 4 star rating (0)
4
Filter 0 Review with 3 star rating (0)
3
Filter 0 Review with 2 star rating (0)
2
Filter 0 Review with 1 star rating (0)
1
- Reviews
- Questions
- Jagadeesan J. Jagadeesan
- Sakthi Balan S. B. Sakthi B.
21-02-2024Easily handles the current output
I'm using this relay board to connect my ESP8266 'NodeMCU' board with my garage door opener. It works perfectly with the 3.3V output of the ESP8266.
- Vinod Katarmal V. K. Vinod K. 03-01-2024
Satisfactory delivery
Thank you very much for the timely delivery after complaining about the forgotten item due to the condition being missed
- Mairajuddin Tantray M. T. Mairajuddin T. 25-03-2022
If it's pre programmed
I bought one from Amazon and that was not pre programmed so that didn't work.. I tried to programme it but failed... I would like to know if it needs to be programmed ??
- Raman S. R. S. Raman S. 29-04-2020
IoT enabled switch
Great product. Extremely useful for projects where you need an integrated relay
- Rishabh R. Rishabh 29-04-2020
Works
I needed this for an IoT project that required an untethered relay
Verified Customer
Jagadeesan J. Jagadeesan 31-05-2024
Question asked: Hey Hi all!
I working with this the module is extremely good but I want to know relay pin is connected which in esp-01?
I tried with esp-01 GPIO-2 but it was not working.
And I tried below code to turn on/off relay it was working fine but I can't detect the state of relay. Please help me with this?
CODE:
byte relON[] = {0xA0, 0x01, 0x01, 0xA2}; //Hex command to send to serial for open relay
byte relOFF[] = {0xA0, 0x01, 0x00, 0xA1}; //Hex command to send to serial for close relay
void setup(void){ Serial.begin(9600); //make sure the relay is off before moving forward Serial.write(relOFF, sizeof(relOFF)); delay(10); Serial.write(relOFF, sizeof(relOFF));
}
void loop(void){ //turn the relay on for 3 seconds Serial.write(relON, sizeof(relON)); delay(3000); //turn the relay off for 3 seconds Serial.write(relOFF, sizeof(relOFF)); delay(3000);
}
Hey Hi all! I working with this the module is extremely good but I want to know relay pin is connected which in esp-01? I tried with esp-01 GPIO-2 but it was not working. And I tried below code to turn on/off relay it was working fine but I can't detect the state of relay. Please help me with this? CODE: byte relON[] = {0xA0, 0x01, 0x01, 0xA2}; //Hex command to send to serial for open relay byte relOFF[] = {0xA0, 0x01, 0x00, 0xA1}; //Hex command to send to serial for close relay void setup(void){ Serial.begin(9600); //make sure the relay is off before moving forward Serial.write(relOFF, sizeof(relOFF)); delay(10); Serial.write(relOFF, sizeof(relOFF)); } void loop(void){ //turn the relay on for 3 seconds Serial.write(relON, sizeof(relON)); delay(3000); //turn the relay off for 3 seconds Serial.write(relOFF, sizeof(relOFF)); delay(3000); }
Answers
11-06-2024
Hello, The relay control pin can be connected to the GPIO-0 of the ESP-01 The state of the relay is not fed back into the ESP-01, so the ESP-01 itself doesn’t know the state of the relay. However, you can maintain the state of the relay in your code. When you turn the relay on, set a variable to true, and when you turn the relay off, set the same variable to false.
Verified Customer
Rajendra Gorde R. G. Rajendra G. 19-05-2023
R. G. Rajendra G. 19-05-2023 Question asked: Before purchasing this module I would like to know wether tjis module requires any programming or is it pre programmed? Kindly give your answer on this as soon as possible.
Before purchasing this module I would like to know wether tjis module requires any programming or is it pre programmed? Kindly give your answer on this as soon as possible.
Answers
17-09-2024
Hello, the 5V ESP8266 WiFi relay module you linked typically requires programming to function as desired. It is not pre-programmed and will need to be configured using appropriate software and AT commands or custom firmware. Thank you!
