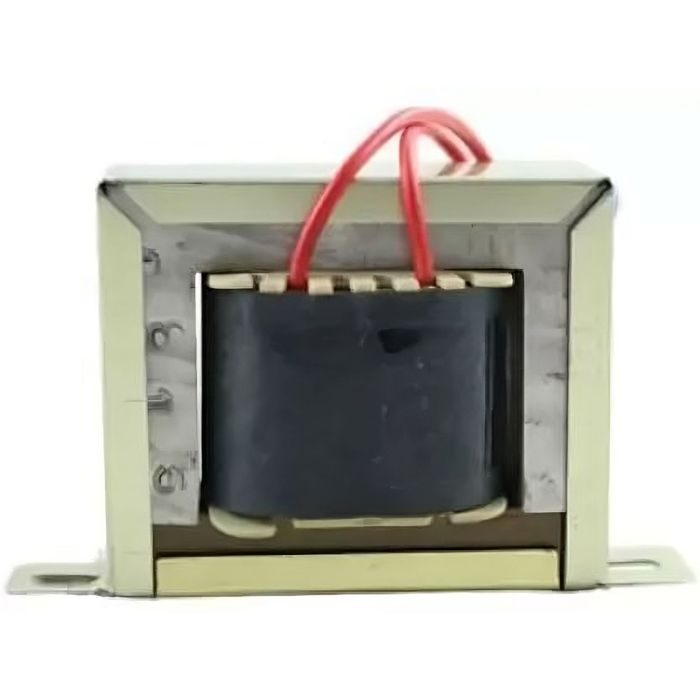

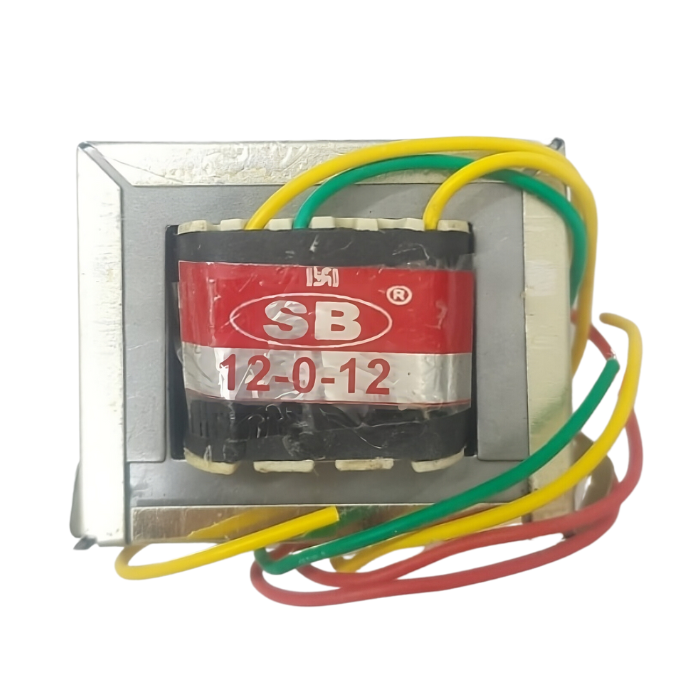

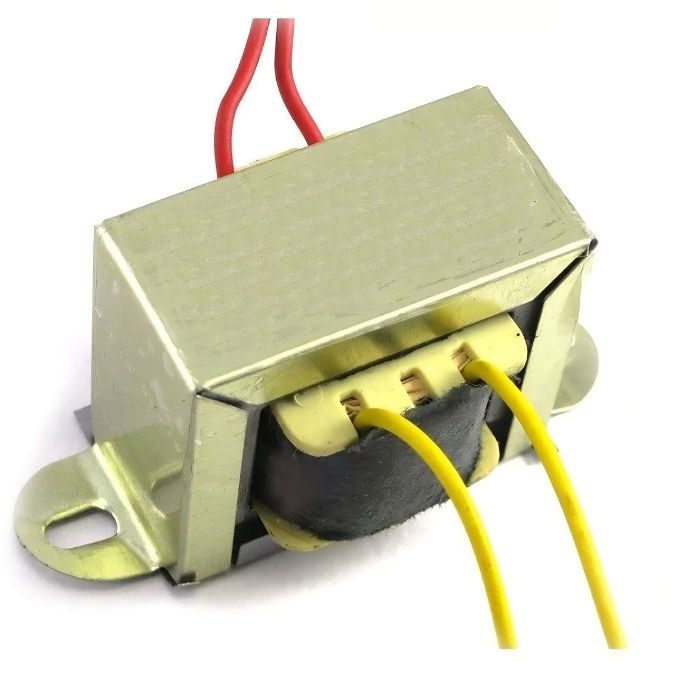

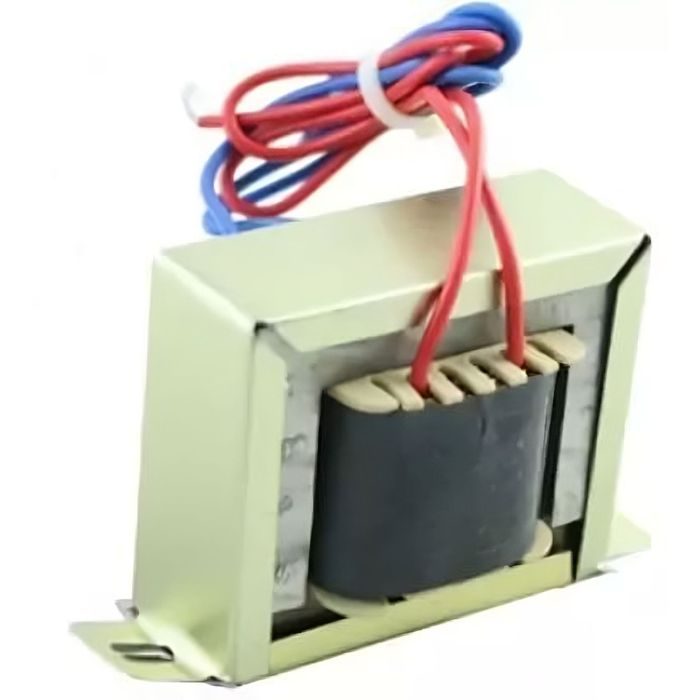

12V 1A Transformer

Regular price
Rs. 195
Sale price
Rs. 195
Regular price
Rs. 236
17% off
Unit price
You save Rs. 41
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • AC - 240 V to AC - 12 V.
  • RM0513 is a general purpose chassis mounting mains transformer.
  • The transformer has 240 V primary windings and center tapped secondary winding.
  • Ithas flying colored insulated connecting leads ( Approx 100 mm long ).
  • The Transformer act as a step-down transformer reducing AC - 240 V to AC - 12V.
  • The Transformer gives two outputs of  12 V and 0 V.

    The Transformer’s construction is written below with details of Solid Core and Winding. The transformer is a static electrical device that transfers energy by inductive coupling between its winding circuits. A varying current in the primary winding creates a varying magnetic flux in the transformer's core and thus a varying magnetic flux through the secondary winding. This varying magnetic flux induces a varying electromotive force (E.M.F) or voltage in the secondary winding. The transformer has cores made of high permeability silicon steel. The steel has a permeability many times that of free space and the core thus serves to greatly reduce the magnetizing current and confine the flux to a path which closely couples the windings.

    The solid core uses one of the common design of laminated core is made from interleaved stacks of E - shaped steel sheets capped with I - shaped pieces, leading to its name of 'E - I transformer’. Such a design tends to exhibit more losses, but is very economical to manufacture. Windings are arranged concentrically to minimize flux leakage. The effect of laminations is to confine eddy currents to highly elliptical paths that enclose little flux, and so reduce their magnitude. Thinner laminations reduce losses, but are more laborious and expensive to construct. Thin laminations are generally used on high-frequency transformers, with some of very thin steel laminations able to operate up to 10 KHz.

    Frequently Asked Questions

    1. How much power does a 12v transformer use?

    A 12v transformer uses Input Voltage of 230V AC and converts into 12V DC. It uses 1 to 5W power.

    2. What does a 12v transformer do?

    A 12V Centre tapped transformer can be used to convert AC Voltage to DC Voltage. It can be used in DIY projects and small electrical devices. It can also be used to make a mobile adapter.

    3. How do you wire a 12 volt transformer?

    Transformer windings have a phase relationship, but this is usually not critical for the power supply. Polarity does not matter if one of the wires is not continuous to the core of the transformer.
