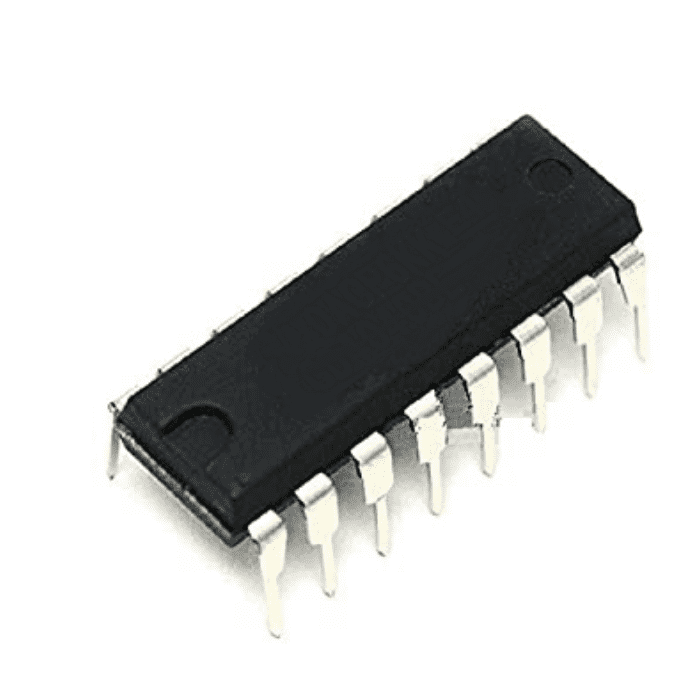

CD4040 - 12-Stage Ripple Carry Binary Counter IC
CD4040 - 12-Stage Ripple Carry Binary Counter IC
10
Regular price
Rs. 27
Regular price
Rs. 34
Sale price
Rs. 27
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 14 people are actively viewing.
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Medium-speed operation
- Fully static operation
- Buffered inputs and outputs
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
- Fully static operation
- Common reset
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- Noise margin (over full package-temperature range):
1 V at VDD = 5 V
2 V at VDD = 10 V
2.5 V at VDD = 15 V
CD4040 - 12-Stage Ripple Carry Binary Counter IC
The CD4x Series CD4040 is a ripple-carry binary counter that features 12 stages, push-pull type, and balanced outputs, with standard speed (TPD > 50ns). All counter stages are master-slave flip-flops. Supports wide input voltage ranges from 3V to 18V. The maximum input current at 18V is 1 uA whereas 100 nA at 18V and 25°C.
All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse; a high level on the RESET line resets the counter to its all-zeros state. Schmitt's trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered. 16 Pin DIP is available in a hermetic dual-in-line ceramic package.
We also have a CD4020 with similar features. The differences are CD4020 is a 14 Stage binary counter whereas CD4040 is a 12 Stage binary counter and there is a difference between the pin layout.
check out : CD4518 - Dual BCD Up Counter IC (Original)
Pinout:
Pinout of CD4040 IC
Applications:
- Control Counters
- Timers
- Frequency Dividers
- Time-Delay Circuits
Package Includes:
Selected qty of IC - CD4040
Specifications:
| VCC (Min) | 3V |
| VCC (Max) | 18V |
| Bits (#) | 12 |
| Voltage (Nom) | 5V, 10V, and 15V |
| F at nom voltage (Max) | 8MHz |
| ICC at nom voltage (Max) | 0.03mA |
| tpd at nom Voltage (Max)(ns) | 160ns |
| IOL (Max) | 1.5mA |
| IOH (Max) | -1.5mA |
| Function | Counter |
| Type | Binary |
| Operating temperature range (C) | -55 to 125 |
