Microwave Radar Human Body Sensor

Name: Microwave Radar Human Body Sensor
Brand: Robocraze
SKU: TIFSS0078
Price: 33 INR
Availability: InStock
Rating: 5.0 (7 reviews)

Rs. 33

~~Rs. 58~~ Rs. 33

Sale Sold out 43% off

Incl. GST (No Hidden Charges)

Product variants

Quantity

Submit your Bulk Enquiry Here

Currently, 13 people are actively viewing.

Free shipping on Orders Above Rs 499/-

Fast Delivery

Technical Support & Easy Returns

Raise a Ticket

Earn RC Coins on Every Purchase

Rewards

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Equipped with RCWL-9196 chip supporting 4-28V wide voltage input, high-level signal output when detecting the motion with active repeat trigger
360 degree no blind angle detection with 5-7m detecting distance, the detection not affected by the surroundings, better performance than the IR sensor
Support night detecting function turn on /off, adjustable repeat trigger time and detecting distance by add the SMD components to the corresponding pins
Compared with the traditional infrared feeling PIR, with the penetrating detection capability
Block time, distance adjustable

Related Tags

Biomedical Sensors

Sensors

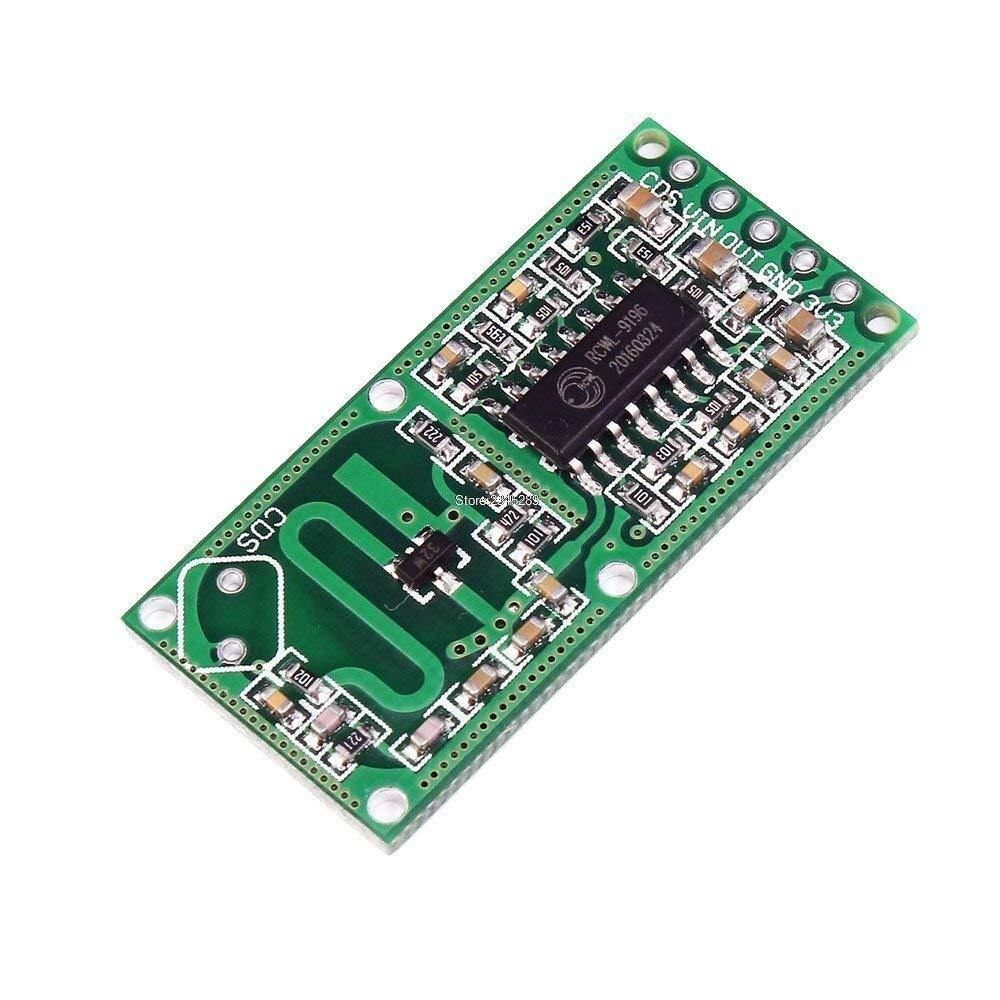

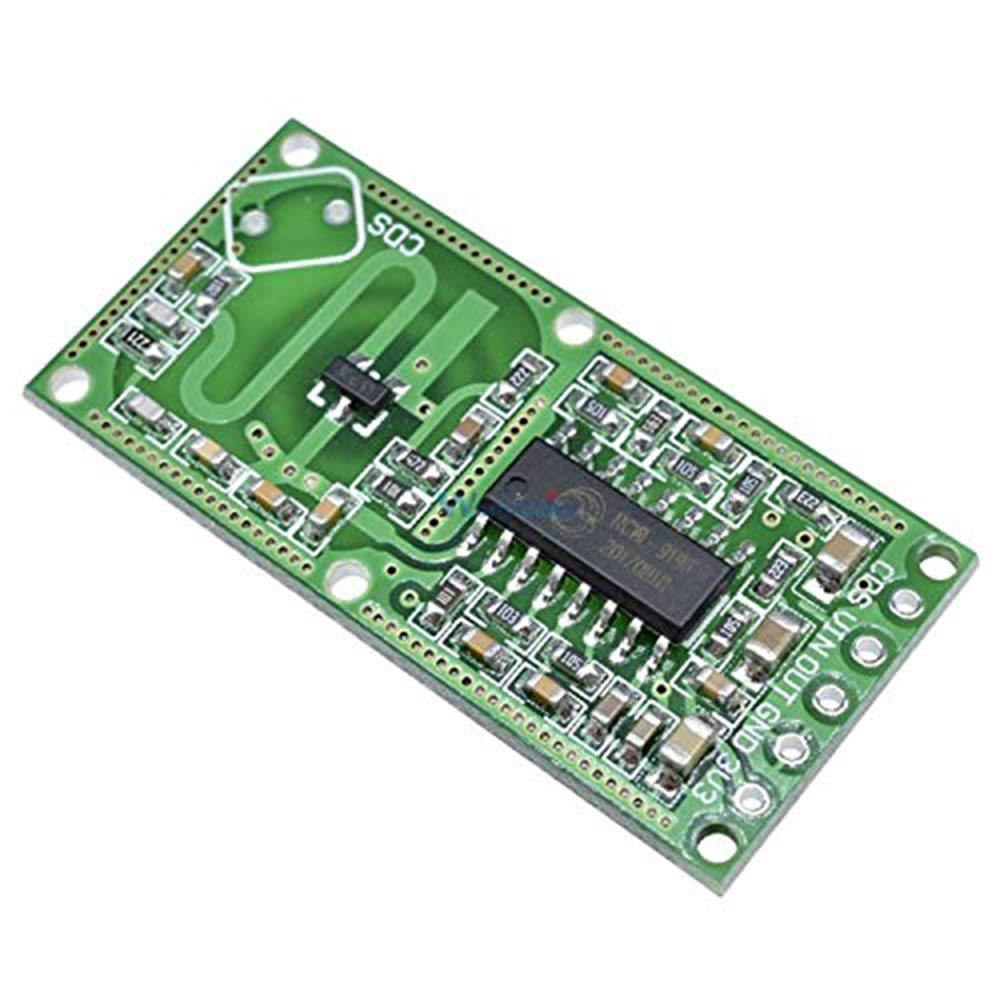

Microwave Radar Human Body Sensor

The Microwave Radar Human Body Sensor has a Transmission signal processing control chip rcwl-9196. This human body sensor has a Wide operating voltage range of 4.0-28V.

The RCWL-0516 Microwave Radar Sensor is a mini doppler radar sensor module equipped with supporting DC 4-28V wide voltage. It is an alternative to the PIR sensor and uses in many security alarms system. This is a mini radar motion sensor module equipped with RCWL-9196 chip based on the doppler microwave induction technology. It will automatically continuously output the high-level TTL signal when there is motion with adjustable delay time and sensitivity. It is perfect for DIY microwave motion sensor light switch, human sensor toys, smart security devices, etc.

The output of the RCWL-0516 sensor is analog and can be connected to an analog input of a microcontroller and sampled by an ADC. The output voltage is roughly proportional to the distance between the sensor and the object. However, since it relies on a Doppler radar system, signal reflections from other nearby objects can interfere with the measurement, making it less reliable and accurate than other kinds of sensors. The reflections from different kinds of objects can also influence measurements, for example, metallic objects have a stronger reflection than plastic objects.

Pinouts:

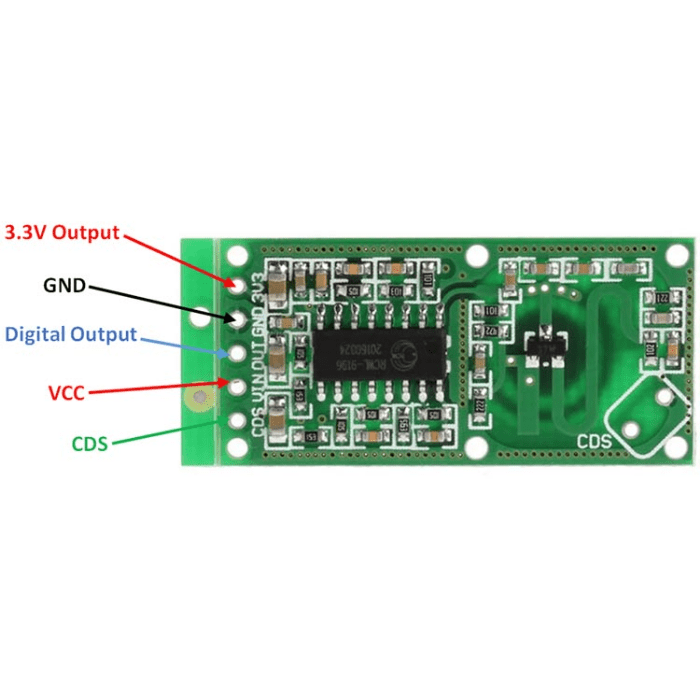

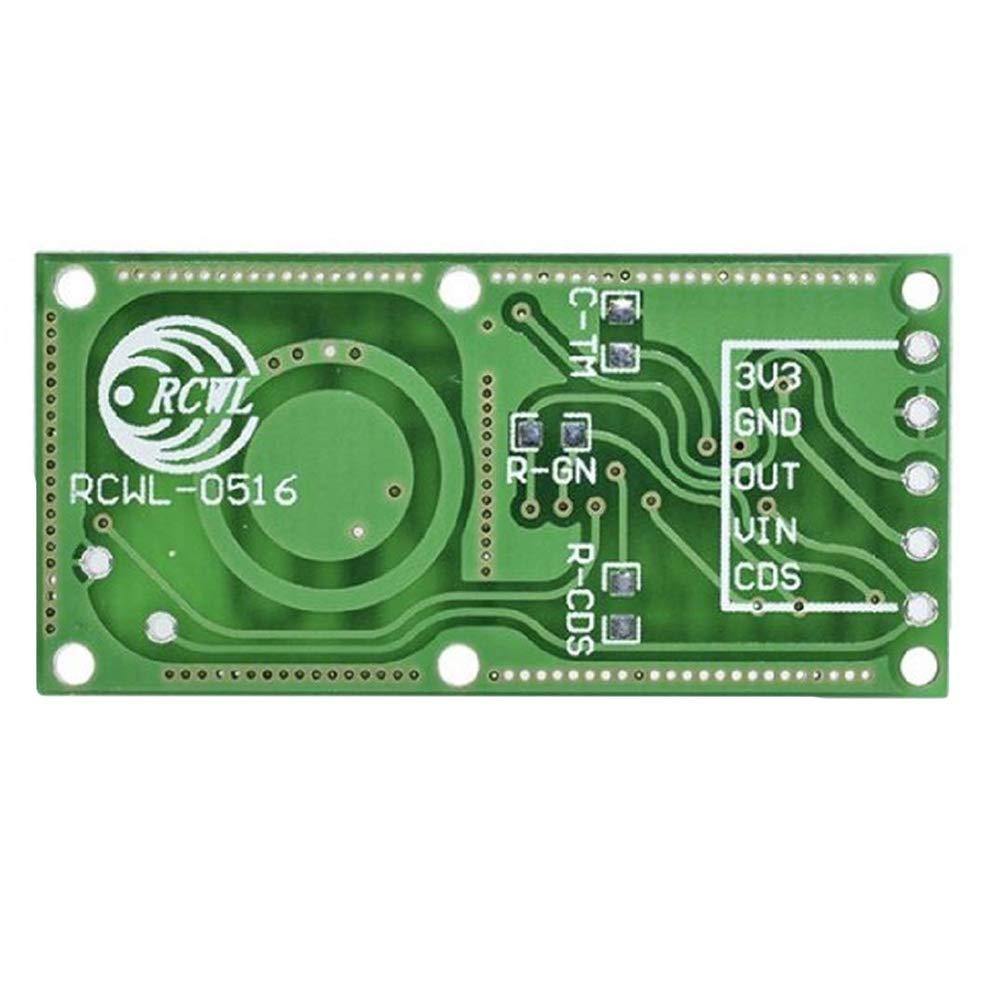

Pinout of RCWL-0516 Microwave Radar Sensor

CDS — Sensor disable input (low = disable)
VIN — 4- to 28-V DC supply input
OUT — HIGH (3.3 V) motion detected/LOW (0 V) idle
GND — Ground/0 V
3V3 — Regulated DC output (100 mA max)

Applications:

Distance sensing
Radar applications

Package Includes:

1 x Microwave Radar Human Body Sensor

Specifications:

Operating Voltage	4 ~ 28VDC
Max. Operating Current	3mA
Transmitting Power	20mW (typical); 30mW (max)
Output Voltage	3.2 ~ 3.4
Output Voltage Driving Capacity	100mA
Trigger Way	Repeat Trigger
Output Control Low Level	0V
Output Control High Level	3.3V
Operating Temperature	-20 to 80°C
Dimensions	3 x 2 x 1cms
Weight	5 grams
