Muscle Sensor Kit

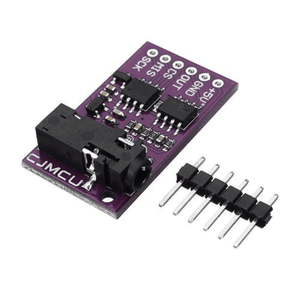

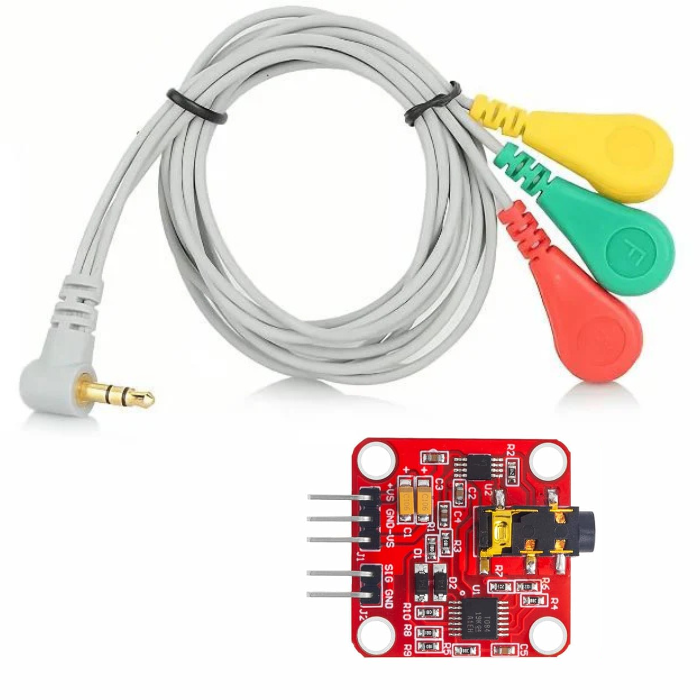

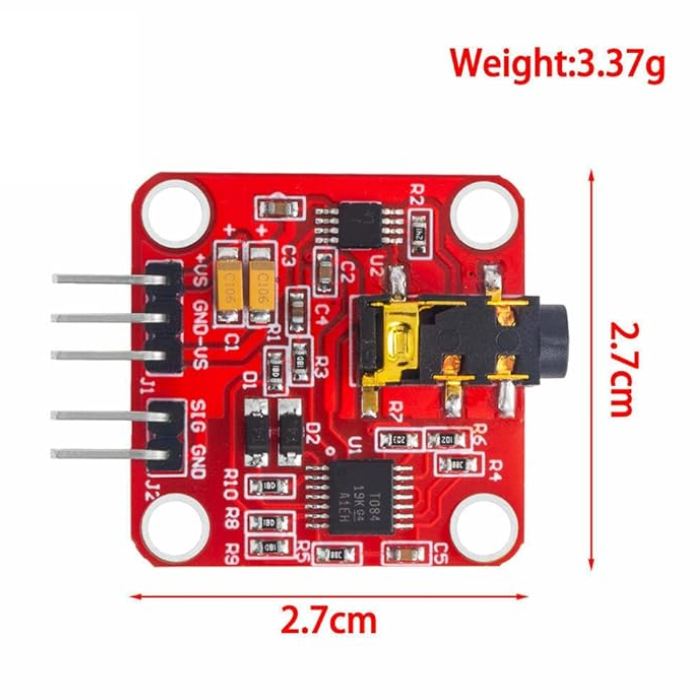

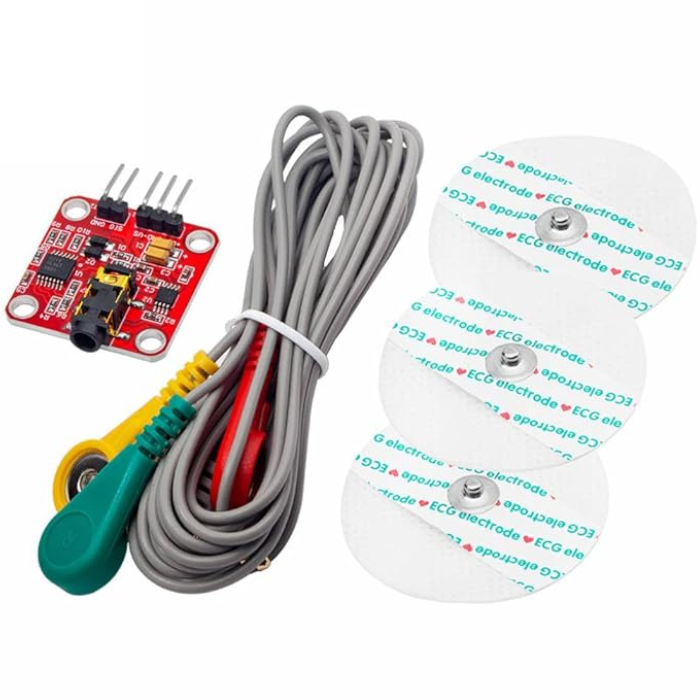

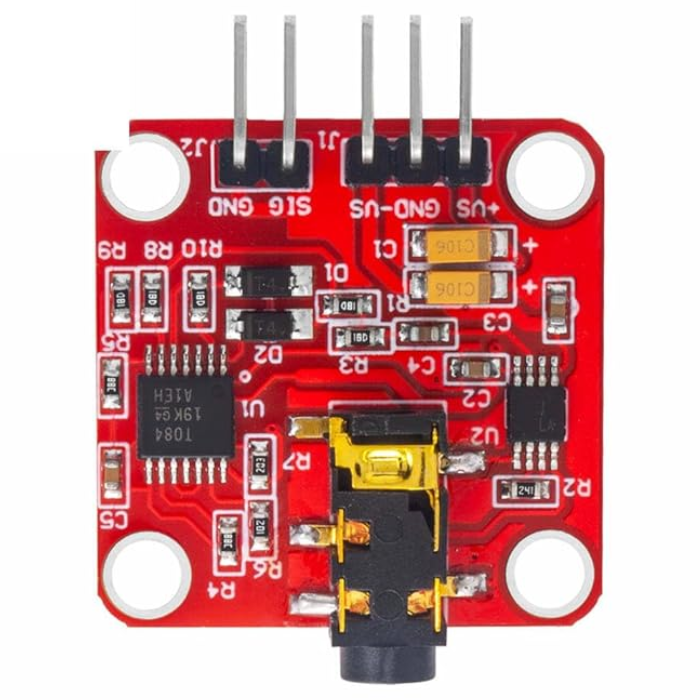

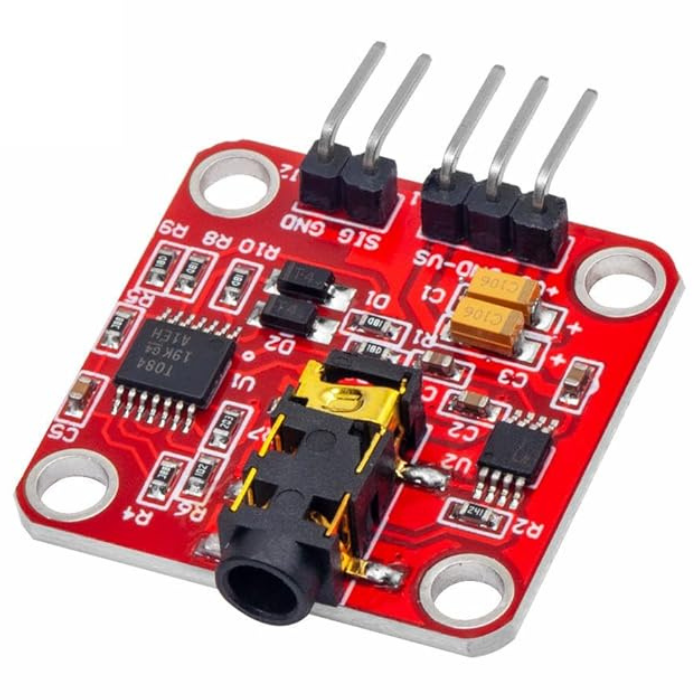

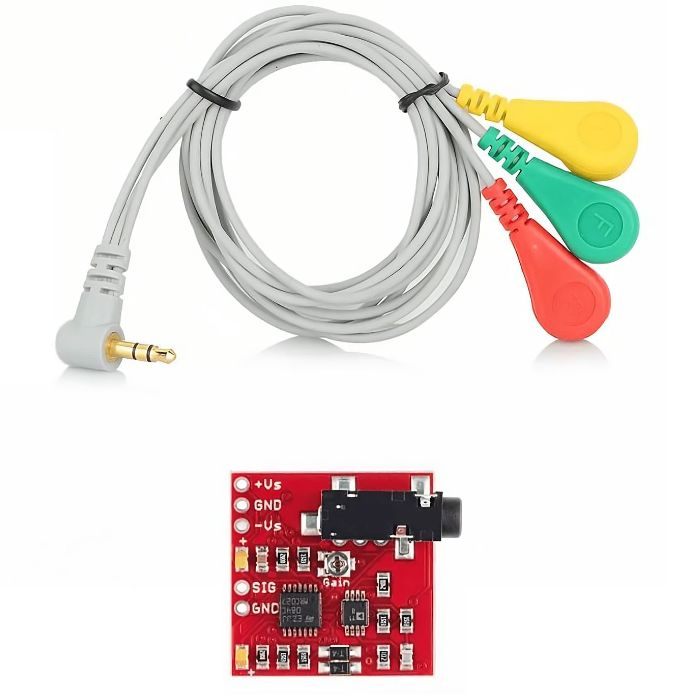

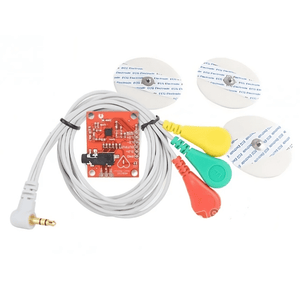

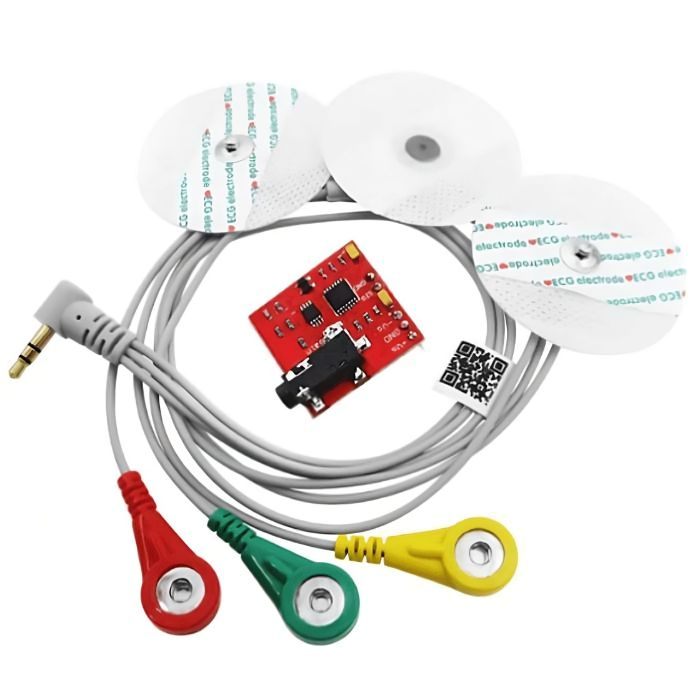

This EMG Sensor or Muscle sensor V3.0 With Cable And Electrodes will measure the filtered and rectified electrical activity of a muscle; outputting 0-Vs Volts depending on the amount of activity in the selected muscle, where Vs signifies the voltage of the power source. Required Power supply voltage: min. +-3.5V. By detecting the electromyogram (EMG), measuring muscle activity has traditionally been used in medical research, however with shrinking but more powerful microcontrollers and integrated circuits the advent of EMG power Road and sensors can be used for various control systems. This EMG Muscle Sensor measures, filters, rectifies, and amplifies the electrical activity of a muscle and produces an analog output signal that can easily be read by a microcontroller, enabling novel, muscle-controlled interfaces for your projects. To use this Muscle sensor you will need a few components like batteries , jumper wires , breadboard and arduino
Wiring Instructions:
- To use this sensor, the user must have three electrodes connected to the subject’s body.
- The reference electrode should be placed on an inactive section of the body, such as the bony portion of the elbow, shin or forearm. This electrode should be connected to the black or brown cable.
- The two other electrodes should be placed along the muscle selected to be measured. The second electrode should be placed along the mid-length of the muscle; this electrode should be connected to the red cable.
- The last electrode should be placed at the end of the muscle and connected to the blue cable.

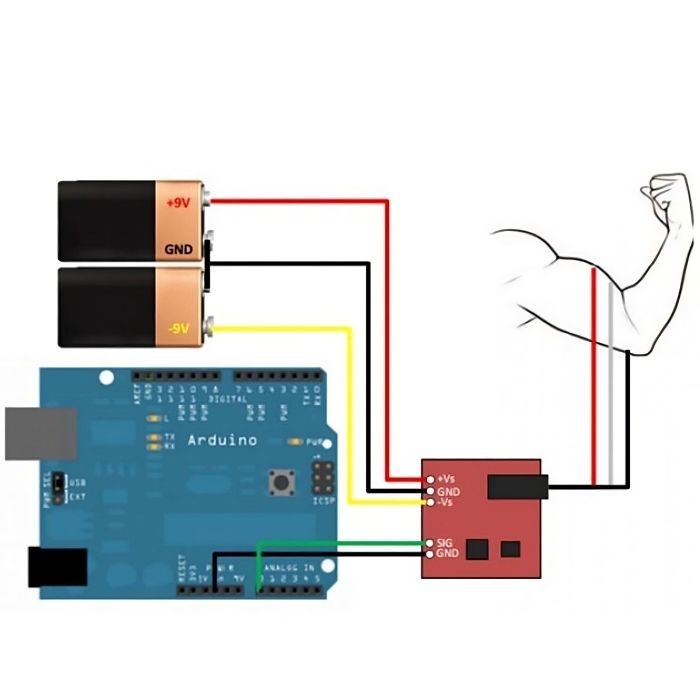

- Finally, connect pin SIG to an analogue input pin of your microcontroller and the GND pin to the ground pin on your microcontroller.
1. How to build a muscle sensor with Arduino?
To build a muscle sensor with Arduino, connect the Muscle Sensor V3 kit's signal pin to an analog input and provide it with power and ground. After placing the electrodes on a muscle group, you can use a simple analogRead() sketch to process the data. This setup allows you to visualize raw EMG signals on the Serial Plotter, showing muscle activity in real-time.
2. How to adjust the gain on the Muscle Sensor V3?
The Muscle Sensor V3 features an onboard potentiometer that allows you to adjust the amplification gain. While monitoring the output, turn the potentiometer's screw to increase or decrease the signal strength. Fine-tuning the gain is essential for achieving clear, strong EMG readings that are not saturated or clipped.
3. How to control a motor using an EMG muscle sensor?
To control a motor, you can process the output from your EMG muscle sensor using an Arduino. In your code, you can set a threshold to detect when the EMG sensor registers a muscle flexion. This digital trigger can then be used to command a motor driver to start or stop a motor, creating a muscle-activated switch.
4. How to make your own EMG muscle sensors?
Creating a custom EMG sensor requires an instrumentation amplifier circuit to condition the very weak electrical signals from your muscles. While the Muscle Sensor V3 provides a pre-built solution, you can design your own board to filter and amplify EMG signals. The final analog output can then be fed into a microcontroller like an Arduino for processing.
5. How to test a Muscle Sensor V3?
To test your Muscle Sensor V3 kit, connect it to an Arduino and place the electrodes securely on a major muscle, like your bicep. Upload a basic analog-reading sketch and open the Serial Plotter to visualize the signal in real time. Flexing the muscle should result in clear spikes, validating that you are getting accurate EMG readings.
1. How does a muscle sensor work?
The Muscle Sensor uses EMG (electromyography) to sense the electrical activity of your muscles. It then converts that into a varying voltage that can be read on the analogue input pin of any microcontroller.
2. What is Muscle Sensor?
The muscle sensor detects electrical activity from a muscle using conductive pads placed on the skin. Every time the muscle is activated, individual fibres within it receive electrical impulses, causing them to contract.
3. What is the use of EMG?
Electromyography (EMG) is a diagnostic procedure used to determine the health of muscles and the nerve cells that control them (motor neurons). The results of an EMG can reveal nerve dysfunction, muscle dysfunction, or issues with nerve-to-muscle signal transmission.
4. What is the Muscle Sensor Kit and how does it work?
The Muscle Sensor Kit is a fascinating tool that allows your projects to react to your own body. It works by detecting the faint electrical signals your muscles generate when you flex them. You can use these signals for all kinds of amazing projects, from controlling video games to developing advanced prosthetic controls.
5. Can I use this sensor with Arduino or other microcontrollers?
Yes, it is designed to work perfectly with popular microcontrollers like Arduino. You simply connect the sensor's output to an analog input pin to read the muscle activity signals in your code. This allows you to use your own muscle flexes to control devices like LEDs, servos, or motors.
6. What are some practical applications of the Muscle Sensor Kit?
The potential applications for the Muscle Sensor Kit are limited only by your imagination. You can build projects that allow you to control robotic arms with your own gestures or create unique musical instruments. It is an excellent tool for exploring the exciting field of human-computer interaction.
7. How do I connect the Muscle Sensor V3 to my project?
Setting up the Muscle Sensor V3 is very straightforward. First, you place the adhesive electrodes on the muscle you want to measure. Then, you connect the sensor board's output to an analog input on your microcontroller, and this EMG sensor provides a real-time signal corresponding to your muscle flexion.
8. Is the Muscle Sensor Kit suitable for beginners?
Absolutely, the Muscle Sensor Kit is an excellent choice for anyone new to this technology. It is very beginner-friendly, with simple connections and plenty of online resources to guide you. This makes it a perfect hands-on introduction to the amazing world of bioelectronics.
