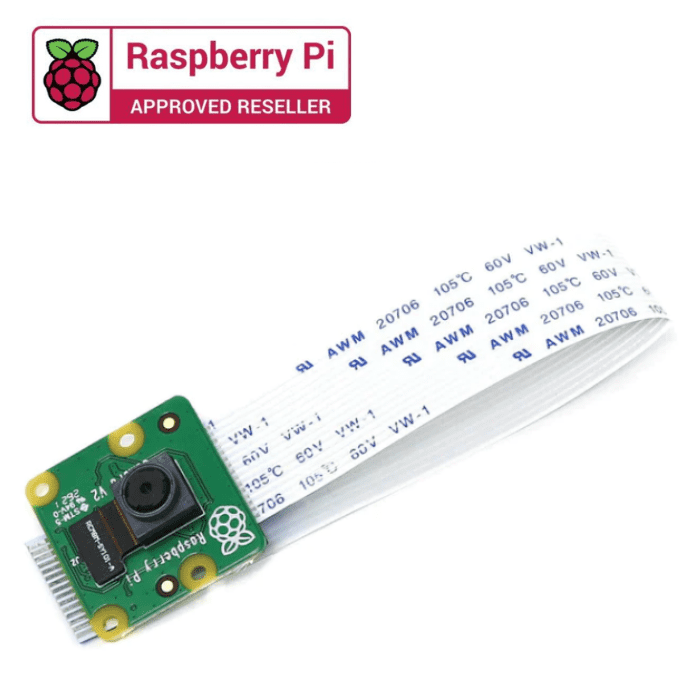

Official Raspberry Pi Camera Module V2 - 8 Megapixel,1080p - Buy Online in India

Package Includes:

• 1 x Official Raspberry Pi Camera Module V2

Specifications:

1. How to connect the Raspberry Pi Camera Module V2 to a Raspberry Pi board?

To connect your Camera Module V2, locate the CSI port on your Raspberry Pi board (it's near the HDMI connector). Gently lift the plastic connector latch and insert the ribbon cable with metal contacts facing toward the HDMI port. Push the latch down firmly to secure the connection. Make sure the cable is straight and fully inserted. Once connected properly, your 8MP camera module will be ready for configuration in Raspberry Pi OS.

2. How to enable the camera module in Raspberry Pi OS?

After connecting your camera, you need to enable the camera interface. Navigate to the desktop menu, then Preferences ? Raspberry Pi Configuration ? Interfaces, and toggle the "Camera" option to enabled. On newer Raspberry Pi OS versions using Bullseye, the system uses libcamera instead of the legacy camera stack. Restart your Pi after making this change to ensure the camera module is properly recognized by the system.

3. How to take still images with the Raspberry Pi Camera Module V2?

Open a terminal and use the libcamera-still command to capture photos. Type libcamera-still -o myimage.jpg to save an 8MP image. You can customize settings by adding parameters like --width 1920 --height 1080 for specific resolutions or --brightness 0.2 for exposure adjustments. The Camera Module V2 delivers excellent image quality for photography projects, making it perfect for your creative or technical applications.

4. How to record videos with the Raspberry Pi Camera Module V2?

Use the libcamera-vid command for video recording. Enter libcamera-vid -t 30000 -o myvideo.h264 to record a 30-second full HD video at 1080p resolution. The Camera Module V2 supports various frame rates and resolutions. Convert the H.264 file to MP4 using FFmpeg for easier playback: ffmpeg -i myvideo.h264 myvideo.mp4. This setup works great for surveillance systems or streaming projects.?

5. How to use the Raspberry Pi Camera as a webcam?

Transform your camera module into a functional web camera using MJPG-Streamer or Motion software. Install MJPG-Streamer, then run it to stream live video to any web browser on your network. You can also integrate it with video conferencing applications. This setup creates an excellent DIY security camera system or streaming solution without purchasing expensive external webcams, making it cost-effective for home projects.

6. How to set up time-lapse photography with this camera?

Create time-lapse videos by writing a simple Python script that captures images at regular intervals using libcamera-still. Set your script to take one photo every few seconds or minutes depending on your subject. After collecting your image sequence, use FFmpeg to compile them into a smooth time-lapse video. The Camera Module V2 excels at capturing plant growth, sunset sequences, or construction progress with consistent image quality.

7. How to use the camera module for object detection projects?

Integrate your Camera Module V2 with computer vision libraries like OpenCV or machine learning frameworks such as TensorFlow Lite. These tools process the live video feed to detect faces, objects, or perform AI recognition tasks. Install the required packages using pip, then write Python scripts that analyze the camera feed in real-time. This combination creates powerful robotics and automation projects with visual intelligence capabilities.

8. How to compare the Camera Module V2 with the High Quality Camera?

The Camera Module V2 offers an 8MP fixed-focus sensor that's perfect for most hobby projects and costs significantly less. The High Quality Camera features a 12.3MP sensor, supports interchangeable lenses, and provides superior low-light performance but costs more. Choose the V2 for budget-friendly projects requiring good image quality, or select the HQ Camera when you need professional-grade photography with lens flexibility and enhanced sensor performance.

9. How to troubleshoot if the Raspberry Pi Camera Module is not detected?

First, verify your ribbon cable connection – ensure it's firmly seated with metal contacts facing the correct direction toward the HDMI port. Check that the camera interface is enabled in Raspberry Pi Configuration settings. Run sudo apt update && sudo apt upgrade to update your system drivers. Test the connection with libcamera-hello to verify detection. If problems persist, try a different ribbon cable or test on another Raspberry Pi to isolate hardware issues.

• Getting Started with RaspberryPi Camera Module

1. How many megapixels is the Raspberry Pi camera?

The Raspberry Pi Camera Module V2 - 8 Megapixel, 1080p is a version of the Raspberry Pi Camera Module V2 that features an 8 megapixel Sony IMX219 image sensor with a resolution of 3280 x 2464 pixels. It is capable of capturing still images and video at a variety of resolutions, including 1080p (1920 x 1080 pixels) at 30 frames per second.

2. Are Raspberry Pi HQ cameras worth it?

The Raspberry Pi High-Quality Camera is a high-quality, specialized camera module that is well-suited for applications that require very high resolution or low-light performance. It is also worth considering the cost of the Raspberry Pi high-quality camera compared to other camera modules.

3. Which Raspberry Pi camera is the best?

The Raspberry Pi Camera Module V2 is the most common version of the Raspberry Pi camera module, and it features an 8 megapixel Sony IMX219 image sensor with a resolution of 3280 x 2464 pixels. It is capable of capturing still images and video at a variety of resolutions and frame rates, and it is well-suited for a wide range of applications, including photography, video surveillance, and computer vision projects.

4. What resolution is the Raspberry Pi camera?

The Raspberry Pi Camera has an 8-megapixel Sony IMX219 image sensor with a 3280 x 2464 pixel resolution. It can capture still images and video at various resolutions, including 1080p (1920 x 1080 pixels) at 30 frames per second.

5. Can the Raspberry Pi Camera Module V2 record videos?

Yes, the Camera Module V2 is capable of recording videos. It offers different video resolutions, including 1080p30, 720p60, and 640x480p90.

6. Is the Raspberry Pi Camera Module V2 compatible with all Raspberry Pi models?

Yes, the Camera Module V2 is compatible with all models of Raspberry Pi single-board computers. Its design facilitates seamless integration with Raspberry Pi boards, ensuring a swift and effortless setup process.

7. How do I install the Raspberry Pi Camera Module V2?

To install the it, follow these steps:

1. Ensure your Raspberry Pi is powered off and disconnected.
2. Locate the camera connector, a rectangular slot near the HDMI port.
3. Gently lift the plastic tabs on both sides of the camera connector.
4. Insert the camera module's ribbon cable into the camera connector, ensuring the metal contacts face away from the HDMI port.
5. Press down on the plastic tabs to secure the ribbon cable in place.
6. Power on your Raspberry Pi; the system should recognize the camera module.

To enable the camera in the Raspberry Pi configuration, follow these steps:

1. Open the terminal or command prompt.
2. Enter the command `sudo raspi-config` and press Enter.
3. In the configuration menu, go to "Interfacing Options" and select "Camera."
4. Choose "Yes" to enable the camera interface.
5. Exit the configuration menu and reboot your Raspberry Pi.

After the reboot, your Raspberry Pi Camera Module V2 should be ready to use. Test it using camera applications or Python scripts for image capture or video recording.

Note that different operating systems and software setups may have slight variations in the installation process. Refer to official Raspberry Pi or your OS documentation for detailed instructions.

8. Can I use multiple Raspberry Pi Camera Modules simultaneously?

Yes, it's possible to utilize multiple Camera Modules at once with a single Raspberry Pi board. Nonetheless, some considerations exist:

• Raspberry Pi Model: Not all models have multiple CSI connectors. For instance, Raspberry Pi Zero features one CSI connector, while Raspberry Pi 3 Model B+ and Raspberry Pi 4 boast two. Ensure your chosen Raspberry Pi model accommodates your desired number of camera modules.
• CSI Connectors: Every Raspberry Pi Camera Module necessitates a separate CSI connector. If your Raspberry Pi board includes multiple CSI connectors, you can link each camera module to a distinct CSI connector.
• Software Support: The official Raspberry Pi camera software (picamera) and third-party camera libraries support the Raspberry Pi Camera Module. These libraries enable you to command and capture images or videos from the camera module. When employing multiple camera modules, indicate the desired camera in your code by referencing the respective CSI connector.
• Power and Processing: The employment of multiple camera modules mandates additional power and processing resources from your Raspberry Pi. Check that both your power supply and Raspberry Pi board can manage the extra load. Moreover, consider the processing capabilities of your Raspberry Pi when employing multiple camera modules simultaneously, as it may impact performance.

All in all, with proper hardware support and software configuration, you can simultaneously utilize multiple Raspberry Pi Camera Modules to capture images or videos from diverse perspectives or for multi-camera applications.

9. Does the Raspberry Pi Camera Module V2 support night vision?

The Camera Module V2 lacks built-in night vision, but you can add night vision capabilities by using infrared lights or an infrared camera module. These additions allow capture in low-light or dark conditions, though resulting images/videos will be grayscale.

10. Can I use the Raspberry Pi Camera Module V2 for streaming?

Yes, you can employ the Raspberry Pi Camera Module V2 for streaming. The module captures 1080p high-definition videos, which are great for streaming.

To stream with the camera module, you can use software libraries and frameworks like the Picamera Python library or the GStreamer multimedia framework on your Raspberry Pi.
