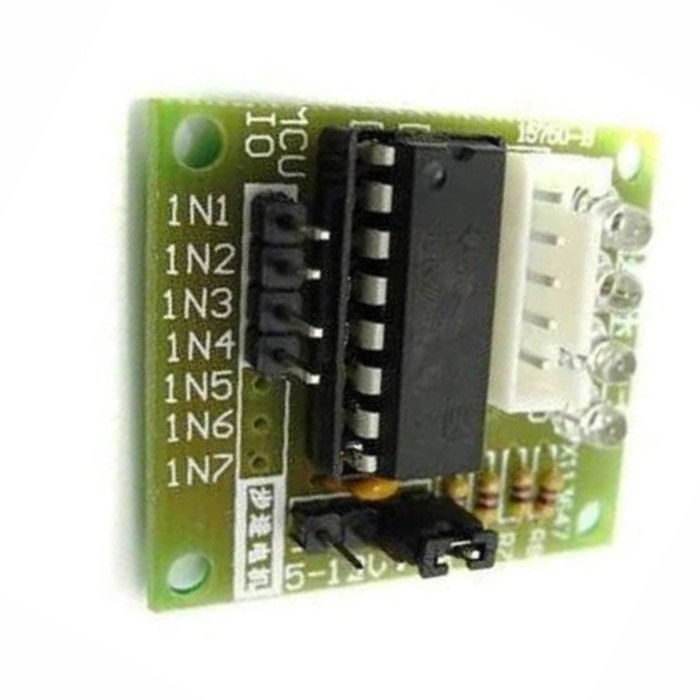

- This is the ULN2003 Stepper Motor Driver Module
- The power supply of this module is 5-12V
- This has a 4-way signal indicator
- Chip all the pins have Input leads Mounted for easy connection to use
- XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
- The Weight of this ULN2003 Stepper Motor Driver Module is 3 gm

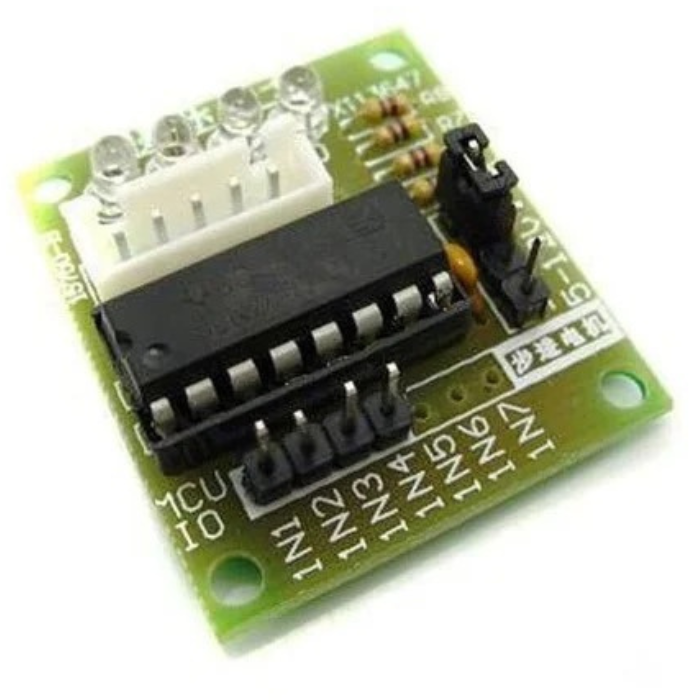

ULN2003 Stepper Motor Driver Module
This is ULN2003 Driver Module Stepper Motor Driver, small in size and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option is commonly used to run and control stepper motors.
If you want to use this Stepper Motor Driver in your projects, for that you will need a few essential components like Arduino, jumper wires, stepper motors, and a power supply.
Note: The colour of the PCB may vary according to the Manufacturer
HOW TO CONTROL STEPPER MOTOR
The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive stepper motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse. The following picture is the schematic of the stepper driver.
The following picture is the control signal to drive a 28BYJ48 stepper to rotate 1/4096 circle.

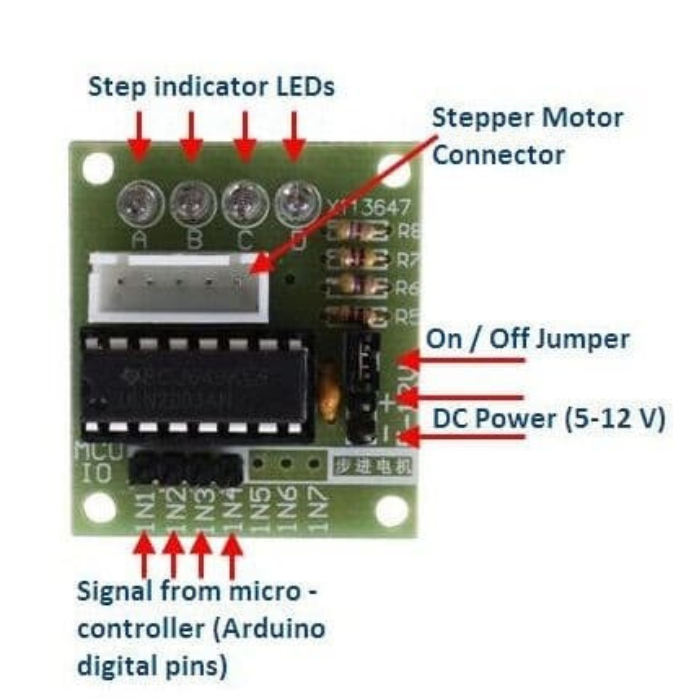

Pin Diagram of ULN2003 Stepper Motor Driver:
| Lines | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| red | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| orange | 1 | 1 | 0 | 0 | 0 | 0 | 0 | 1 |
| yellow | 0 | 1 | 1 | 1 | 0 | 0 | 0 | 0 |
| pink | 0 | 0 | 0 | 1 | 1 | 1 | 0 | 0 |
| blue | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 |
Features:
- 4-way signal indicator
- Chip all the pins have Input leads Mounted for easy connection to use
- XH-5P socket can be connected directly 28BYJ-48 Model stepper motor
