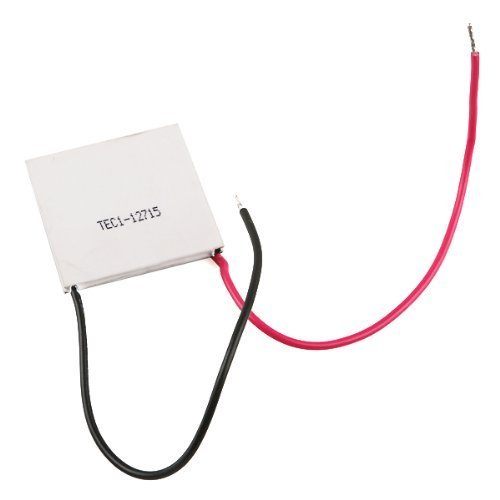

TEC1-12715 Peltier Module
TEC1-12715 Peltier Module
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- No moving part, no noise Compact Structure, small in size, light in weight.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- It's recommended you use this device in conjunction with a heat sink to avoid being burned.
- Functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other
- Simple to install and operate.
TEC1-12715 Peltier Module
The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm.
Thermoelectric coolers are also known as TEC or Peltier modules create a temperature differential on each side. One side gets hot and the other side gets cool. Therefore, they can be used to either warm something up or cool something down, depending on which side you use. You can also take advantage of a temperature differential to generate electricity.
The TEC1-12715 40x40mm Thermoelectric Cooler 15A Peltier Module is the simple application of the Peltier Thermoelectric Effect. The module features 127 semiconductor couples in the area of 40mmx40mm.
The TEC1-12715 Thermoelectric Peltier Cooler Module works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it.
A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying the DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPUs, CCDs, portable refrigerators, medical instruments, and so on.
read our blog explaining Peltier module working, It explains the working principle of a Peltier Module, which involves transferring energy between two metals through electrical current.
TEC1-12715 Peltier Module Operating Tips:
- Do not exceed Imax or Vmax when operating a module.
- Please carry out moisture protection options (sealing) in final application use.
- Life expectancy: 200,000 hours.
- Failure rate based on longtime testings: 0.2%.
Read our blog Peltier module working principle where we explained what is a Peltier Cooler, how it works, things to keep in mind while using a Peltier, and applications of Peltier.
Applications:
- Industrial areas
- Computer CPU
- CCDs
- Portable refrigerators
- Medical instruments
Package Includes:
- 1 x TEC1-12715 Peltier Module
Specifications:
| Model | TEC1-12715 |
| Operating Voltage | 12V |
| Maximum Voltage | 15V |
| Maximum Current | 15A |
| Maximum Power | 230W |
| Power Chord | 25cms |
| Dimensions | 40mmx40mm |
| Weight | 15 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Thermoelectric Peltier Refrigeration Cooling System DIY Kit without TEC-12706 Peltier
Thermoelectric Peltier Refrigeration Cooling System DIY Kit With TEC-12706 Peltier

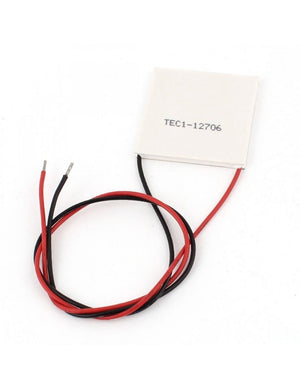

TEC1 12706 Peltier Module
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What is TEC1 -2715? What does TEC mean?
- Peltier Element TEC1-12715 is thermoelectric cooling element that uses the Peltier effect to create a heat flux at the junction of two different types of materials. TEC stands for Thermoelectric coolers
2. How does a Peltier module work?
- Thermoelectric coolers operate according to the Peltier effect. The effect creates a temperature difference by transferring heat between two electrical junctions. A voltage is applied across joined conductors to create an electric current. When the current flows through the junctions of the two conductors, heat is removed at one junction and cooling occurs. Heat is deposited at the other junction.
3. How do I choose the correct peltier for my application?
- Estimate heat load of the object to be cooled
- Define temperature working range of object and heat sink
- Choose a Peltier element that satisfies the requirements
- Choose a TEC controller with suitable power range
- Choose a heat sink for the Peltier element
- Choose a fan to air the heat sink (optional)
- Choose the object temperature sensor and the optional sink sensor
- Choose a power supply for the TEC controller
