Raspberry Pi

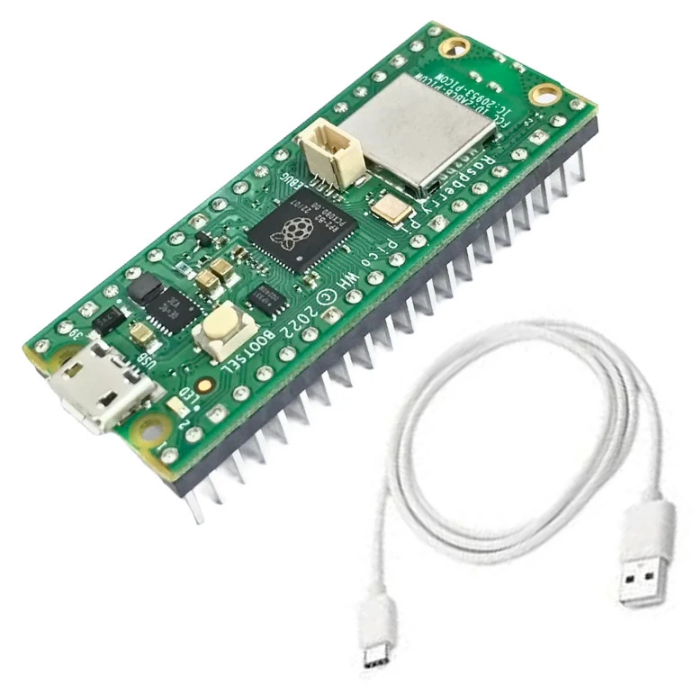

Raspberry Pi Pico W with Headers Soldered and USB Cable

Raspberry Pi Pico W with Headers Soldered and USB Cable

Regular price Rs. 699
Regular price Rs. 749 Sale price Rs. 699
Sale Sold out 7% off Best Price Guaranteed
You save Rs. 50
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • Powered by Raspberry Pi's own RP2040 system-on-chip (SoC) based on two Arm Cortex-M0+ cores running at 133MHz, Raspberry Pi Pico W features 2MB of onboard flash storage, 264kB of RAM, and 40 pins - including three analogue inputs and the unique Programmable I/O subsystem.
  • Features onboard Wi-Fi connectivity to use in a variety of exciting IoT projects.
  • The Raspberry Pi Pico W features fast cores, large memory, and flexible interfacing make RP2040 a natural building block for Internet of Things (IoT) applications.
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels.
  • 8×Programmable IO (PIO) state machines for custom peripheral support.

If you are a manufacturer, and want to purchase Raspberry Pi in BULK, please fill this form.

Raspberry Pi Pico W with Headers and USB Cable

Raspberry Pi Pico W brings wireless connectivity to the best-selling Raspberry Pi Pico product line. Built around our RP2040 silicon platform, Pico products bring our signature values of high performance, low cost, and ease of use to the microcontroller space.

With a large on-chip memory, symmetric dual-core processor complex, deterministic bus fabric, and rich peripheral set augmented with our unique Programmable I/O (PIO) subsystem, RP2040 provides professional users with unrivaled power and flexibility.

Offering detailed documentation, a polished MicroPython port, and a UF2 bootloader in ROM, it has the lowest possible barrier to entry for beginner and hobbyist users.

RP2040 is manufactured on a modern 40nm process node, delivering high performance, low dynamic power consumption, and low leakage, with a variety of low power modes to support extended-duration operation on battery power.

Raspberry Pi Pico W offers 2.4GHz 802.11 b/g/n wireless LAN support, with an onboard antenna, and modular compliance certification. It is able to operate in both station and access-point modes. Full access to network functionality is available to both C and MicroPython developers.

Raspberry Pi Pico W pairs RP2040 with 2MB of flash memory, and a power supply chip supporting input voltages from 1.8–5.5V. It provides 26 GPIO pins, three of which can function as analog inputs, on 0.1”-pitch through-hole pads with castellated edges. Raspberry Pi Pico W is available as an individual unit, or in 480-unit reels for automated assembly.

Key Features:

Raspberry Pi Pico W has been designed to be a low-cost yet flexible development platform for RP2040, with a 2.4GHz wireless interface and the following key features:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of onboard Flash memory
  • On-board single-band 2.4GHz wireless interfaces (802.11n)
  • The castellated module allows soldering direct to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support

Raspberry Pi Pico W and Pico WH incorporate an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch

Check out the Raspberry Pi price in India where you get the lists of all different Raspberry Pi model prices.

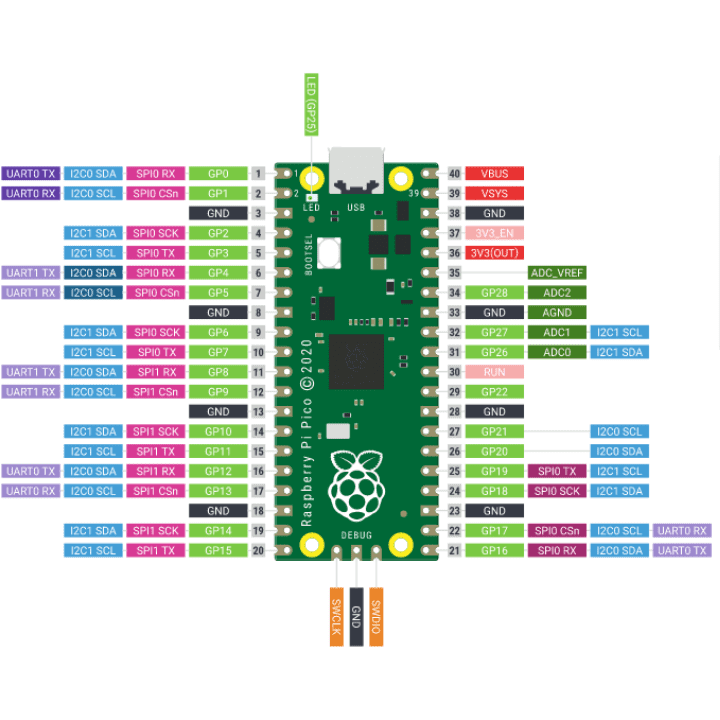

Pinout:

Pinout of Raspberry Pi Pico W

Raspberry Pi Pico W Getting Started Tutorial:

Applications:

  • Learning IoT and Prototyping
  • Home Automation Projects
  • Can be used to create Web Servers

Package Includes:

  • 1 x Raspberry Pi Pico W with Headers
  • 1 x USB Cable

Specifications:

Brand Raspberry Pi
CPU Dual-core Arm Cortex-M0+ @ 133MHz
Memory 264KB on-chip SRAM; 2MB onboard QSPI flash
Interfacing 26 GPIO pins, including 3 analog inputs
Connectivity 2.4GHz IEEE 802.11b/g/n wireless LAN, on-board antenna
Input power 1.8–5.5V DC
Operating temperature -20°C to +70°C
Dimensions (mm) L x B 21 mm × 51 mm

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What can you do with a Raspberry Pi Pico W?

  • The Raspberry Pi Pico W microcontroller development board is just like the standard Raspberry Pi Pico which is ideal for controlling electronics projects and has a very low power requirement, and it also includes onboard Wi-Fi connectivity for use in a variety of exciting IoT projects.

2. Does Raspberry Pi Pico W support Bluetooth?

  • Based on the adaptable Raspberry Pi Pico Microcontroller, the Raspberry Pi Pico W offers wireless connectivity that includes Wi-Fi and Bluetooth 5.2, bringing more possibilities.

3. What is the difference between PI Pico and PI Pico W?

There are numerous similarities between the Raspberry Pi Pico and Pico W, including the memory size the RP2040 microcontroller. The Pico W distinguishes itself, nevertheless, with its built-in antenna and Infineon chip that enable wireless connectivity. The antenna integrity is maintained through plated-through mounting holes and a repositioned debug header, among other physical modifications. Different internal GPIO configurations exist, for example, the Pico W has four internal GPIO pins that are used just for Infineon chip communication. Also, different GPIO assignments are used to control the user LED. Both variants retain comparable microcontroller capability despite these differences.

4. Can Pi Pico run Linux?

The Pi Pico is capable of running Linux. For this reason, a variation known as Pico-rv32ima—which is based on the Mini-rv32ima made by CNLohr—has been developed. The Mini-rv32ima emulator core is used in this project to enable Linux operating systems to be run on the Pi Pico.

5. Can Pi Pico run OS?

Of course, an operating system (OS) can be run on the Pi Pico. One such OS is Fuzix, a small-device-oriented Unix-like operating system. In a blog post, Raspberry Pi declared that Fuzix for the Pi Pico microcontroller was now available, meaning that users could now run Unix on the Pi Pico.
