3.2in Raspberry Pi Touch Screen
People Also Buy

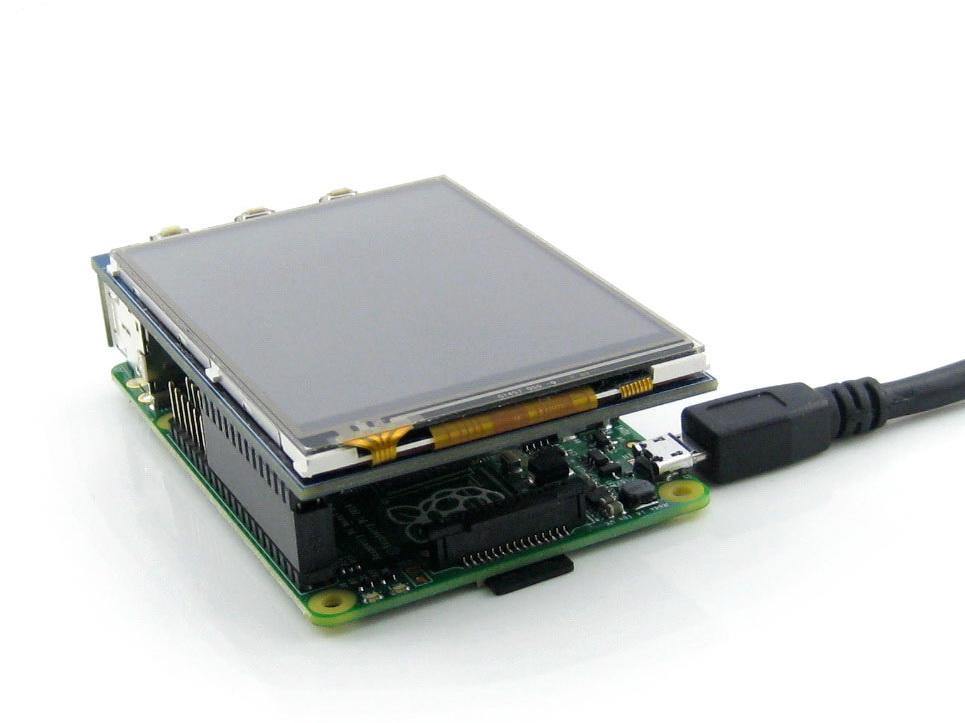

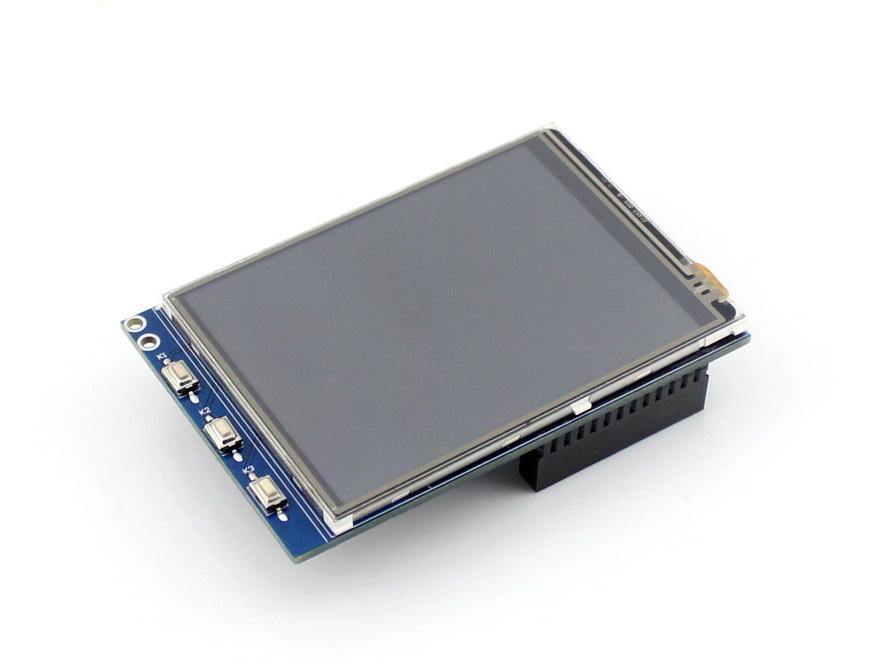

3.2inch Raspberry Pi Touch Screen
The 3.2inch standard display, support HDMI input, refresh rate of 60FPS or more. It has a physical resolution 320*240. It can be used as display for raspberry pi, with touch control function (need to install touch drive). It also can be used as a computer monitor, TV box, PSP and other standard HDMI output device (without touch function). The 3.2 inch display module is compatible and can be inserted directly into all versions of raspberry pi board (raspberry pi, 1 generation B and Zero, HDMI line).
This 3.2 Inch TFT LCD display is an alternative solution for Raspberry Pi compatible HDMI displays; the 3.2 inches Resistive TFT Touch Screen Display communicates with the main processor via SPI Protocol (serial peripheral interface). This display can be directly connected to the GPIO pins and does not require an external power source.
Features:
- 320 × 240 resolution, support touch
- Compatible with any version of the raspberry pi
- Provide driver (can be used directly for custom Raspbian / Ubuntu system)
- Comes with three buttons for easy application
- Shen Jin process, uncompromising attention to detail
- Designed for Raspberry Pi Model B/B+, easy to use
- Compatible with Raspberry Pi A+,B,B+/2.
- Supports Raspbian system, enables your system to Play videos (supports multi formats, MP4 and so on)
- Take photos by touching Support software keyboard (system interaction without keyboard/mouse)
Package Includes:
- 1 x 3.2inch LCD Display for Raspberry Pi
3.2inch LCD Display for Raspberry Pi Specifications
| TFT | LCD |
| Interface | SPI |
| Touch Screen Type | Resistive Type |
| Controller | PT2046 touch screen controller |
| Resolution | 320*240 pixels |
| Aspect Ratio | 4:3 |
| Dimensions | 85.5*60.6 (mm) Approx. |
| Weight | 150 grams |
1. Can Raspberry Pi run a touch screen?
- Yes, Raspberry Pi OS includes touchscreen drivers that support ten-finger touch and an on-screen keyboard, allowing you to use the device without connecting a keyboard or mouse.
2. What touch screens work with Raspberry Pi?
- There are several good touch screens you can use for Raspberry Pi. You can choose the best touch screen based on your requirement Some best touch screens in India are mentioned below.
- 7 inch LCD Capacitive Touch Panel with HDMI and USB Cable
- 3.2in Raspberry Pi Touch Screen
- Waveshare HDMI 7 inch Display
