- This is MQ-4 Natural Gas Sensor Module
- This has Good sensitivity to Combustible gas in wide range
- This has High sensitivity to CH4, Natural gas.
- This has Fast response Stable and long life
- This has Simple drive circuit

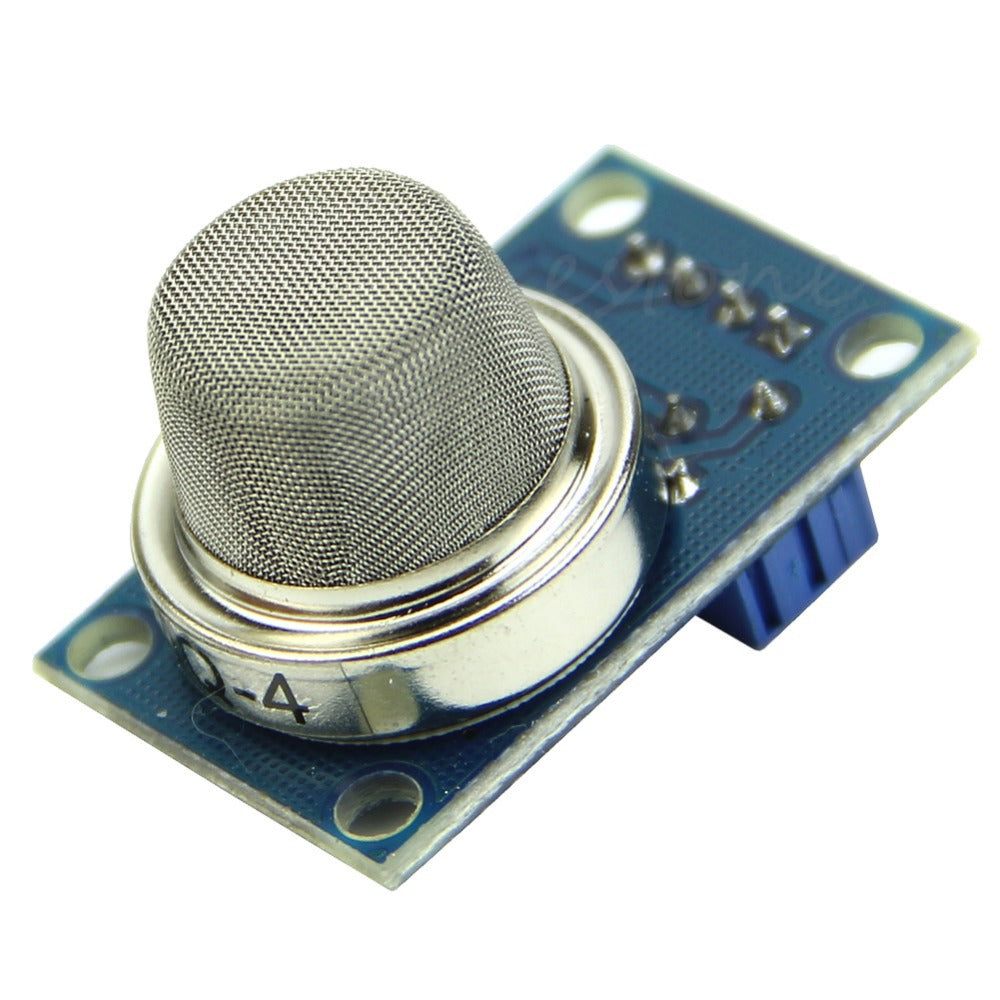

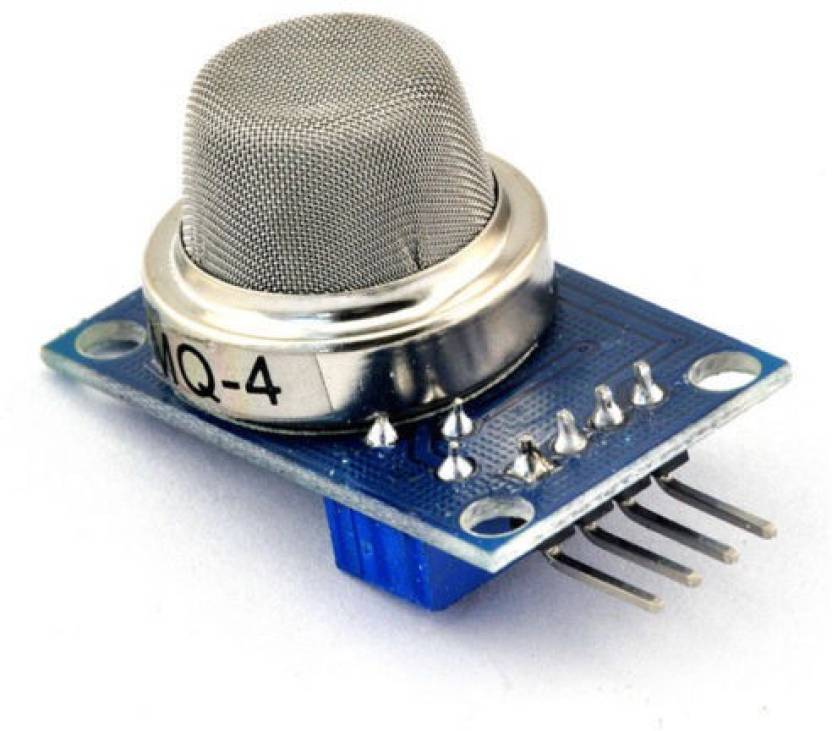

MQ-4 Natural Gas Sensor Module
This is a straightforward MQ-4 Gas Sensor Module that detects the presence of Compressed Natural Gas (CNG), methane (CH4), and other gases in the air. Our MQ-4 sensor is used in the module. It simplifies the interface to the sensor's odd pin spacing by providing the interface via standard 4 x 0.1?? header pins.It has an analogue output that corresponds to the concentration of gases in the air and a simple digital output. The onboard potentiometer can be used to set the maximum gas concentration that will trigger the digital output. The MQ-4 sensor is capable of detecting natural gas concentrations ranging from 200 to 10000ppm.
Simply connect the MQ 4 sensor module to 5V, set the threshold, and you can begin measuring the gas concentration in the air around the sensor! The presence of any gas is indicated by an onboard LED. Microcontrollers and other circuits can easily interface with the digital output. The analogue output can be connected to a microcontroller's ADC to obtain a wide range of sensor readings.
This is a simple compressed natural gas (CNG) sensor for sensing natural gas concentrations in the air (mostly Methane [CH4]).
If you want to use this MQ-4 Gas Sensor Module with Arduino, for that you will need
Features:
- Signal output indicator
- Dual Signals output (analog output and TTL output)
- The TTL output signal is low level, allows to connect with SCM directly
- High sensitivity
- Long working life and stable performance
- Quick response and recovery.
Read our blog MQ sensor where we explained what is a gas sensor, what is 1ppm equal to, MQ sensor list of different series and their features.
MQ-4 Natural Gas Sensor Module pin Diagram
MQ-4 Natural Gas Sensor Module pin description
| 1 | AO | Analog output (Sensor data output in analog form) |
| 2 | DO | Digital output (Sensor data output in digital form) |
| 3 | GND | To -ve of power supply |
| 4 | VCC | To +ve of power supply |
Applications:
- Domestic gas leakage detector
- Industrial Combustible gas detector
- Portable gas detector
| Model | MQ4 Gas Sensor Module |
| IC Chip | LM393 |
| Operating Voltage | 3 ~ 5V (DC) |
| Detecting Range | 300ppm to 10000ppm |
| Dimensions | 3.1 x 1.9 x 2.1 cms |
| Weight | 5 grams |
