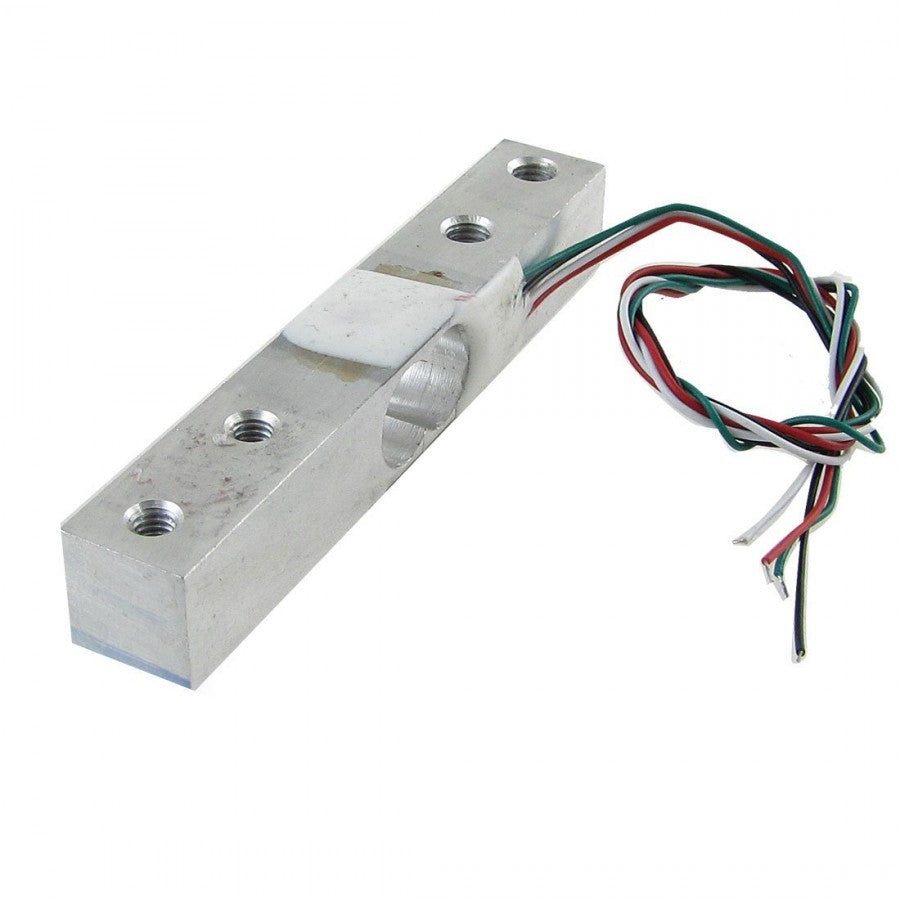

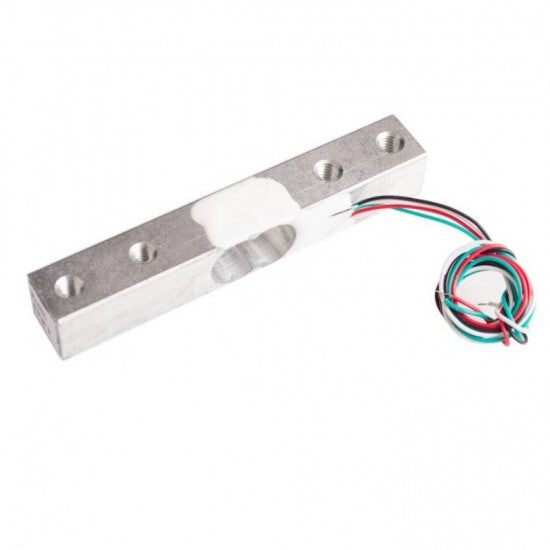

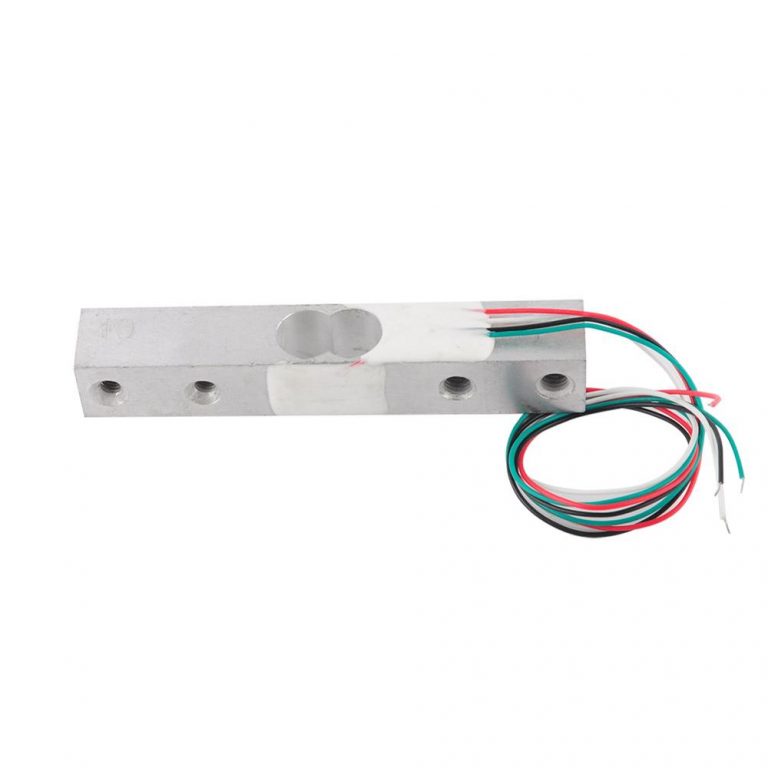

3Kg Load Cell
The electrical signal output is typically in the order of a few millivolts and requires amplification by an instrumentation amplifier before it can be used. The output of the transducer is plugged into an algorithm to calculate the force applied to the transducer.Ā A load cell is a transducer that is used to create an electrical signal whose magnitude is directly proportional to the force being measured.Ā
Package Includes:
- 1 xĀ 3 Kg Load Cell
Specifications:
| Product Name | Load Cell |
| Model | YZC-133 |
| Rated Load | 3KgĀ /6.6lb |
| Rated Output | 1Ā±0.15mV/V |
| InputĀ Resistance | 1066 Ā± 20 Ohm |
| Output Resistance | 1000 Ā± 20 Ohm |
| Insulation Resistance | 2000 Ohm |
| WorkingĀ Temperature | -20Ā°C~+65Ā°C |
| CompensatedĀ Temperature Range | -10Ā°C~+50Ā°C |
| Safety Overload | 120%F.S |
| Recommend Excitation Voltage | DC 5V |
| Max Excitation Voltage | DC 10V |
| Total Size | 80 x 12.7 x 12.7mm /3.1" x 0.5" x 0.5"(L*W*T) |
| Thead Diameter | 3.4mm / 0.12" |
| Hole Center Distance | 40mm/1.6", 70mm/2.8" |
| Cable Length | 24mm/ 9.4'' |
| Material | Aluminium Alloy |
| Color | Silver Tone |
| Weight | 31g |
| Package Content | 1 x Load Cell |
