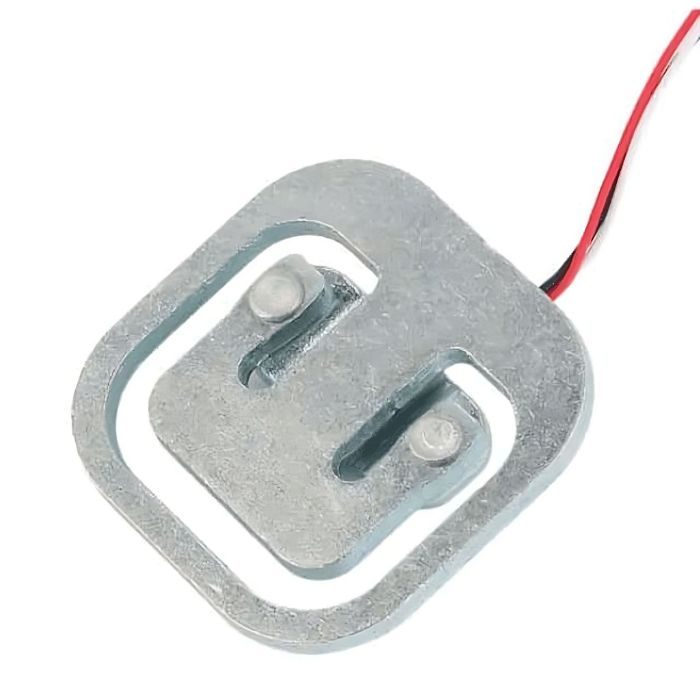

- This is 50KG load cell
- This load cell is widely used in hopper scales, platform scales, platform balance, belt scales, and other electronic weighing devices.

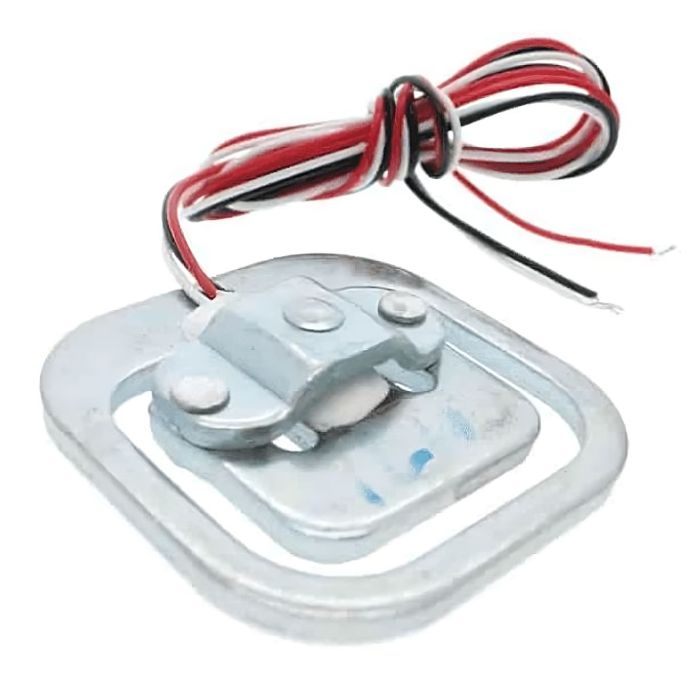

- This is a half-bridge load sensor, which is used in weight scales. When the half-bridge is being stretched, it sends the signal via the red signal wire.
- This is Alloy Steel wired weighing load cell, with high accuracy, simple structure, and simple installation.
You can use multiple load sensors simultaneously to increase the capacity range, Parallel use to add additional capacity.
50Kg Load Cell
This 50kg load cell, also known as a strain gauge, can be found in digital bathroom scales. This load cell sensor is capable of measuring up to 50 kg. While using this load cell sensor, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms); and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.
If you want to use this load cell you need few essential elements like hx711, Arduino , jumper wires , display module and soldering tools . There are other types of load cell also available , according to your requirement
The sensor can be used with the following three methods
- Using a sensor with an external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for an external resistor.
- The uses of only two full-bridge sensors measuring range are the range of the two sensors and: 50kgx2 = 100kg.
- The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg.
Package Includes:
- 1 x 50Kg Load Cell
Specifications
| Capacity (Kg) | 50 |
| Output Sensitivity (mv/v) | 1.0±0.1 |
| Nonlinearity (%FS) | 0.03 |
| Repeatability (%FS) | 0.03 |
| Input Resistance (Ω) | 1000 |
| Insulation Resistance (MΩ) | ≥5000 |

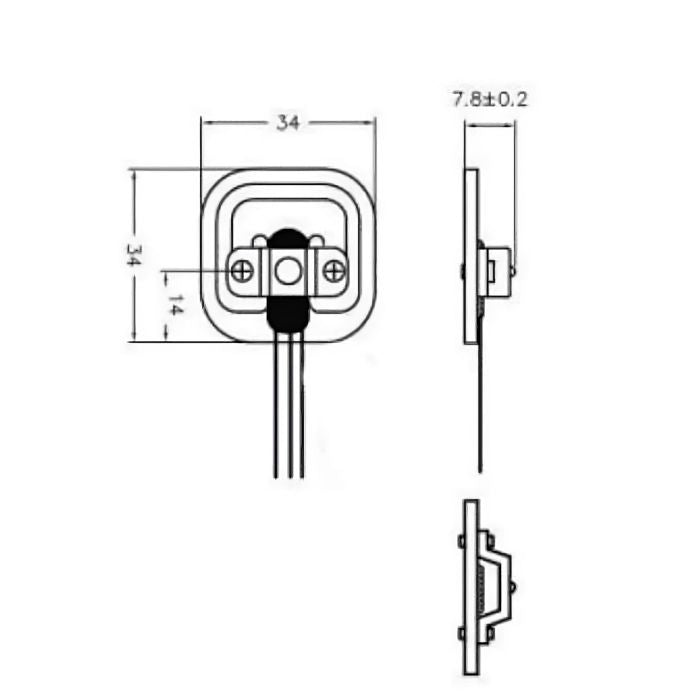

| Dimensions | 9 x 5 x 1cms |
| Weight | 100 grams |
