IR Proximity Sensor ( Pack of 25)

IR Proximity Sensor ( Pack of 25)

Regular price Rs. 704
Regular price Rs. 975 Sale price Rs. 704
Sale Sold out 28% off Best Price Guaranteed
You save Rs. 271
Incl. GST (No Hidden Charges)
  • This is IR Proximity Sensor (pack of 25)
  • It Easy to assemble and use
  • This has Onboard detection indication
  • The effective distance range of 2cm to 30cm
  • This has A preset knob to fine-tune distance range
  • If there is an obstacle, the indicator lights on the circuit board.

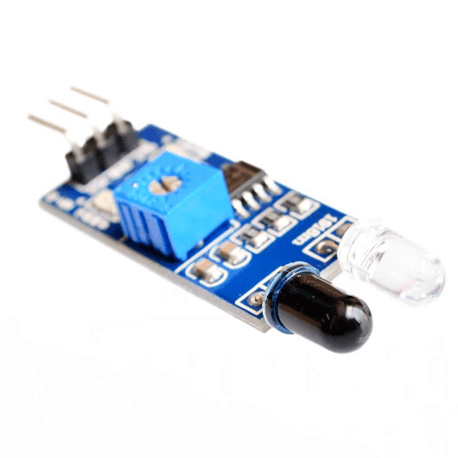

IR Proximity Sensor

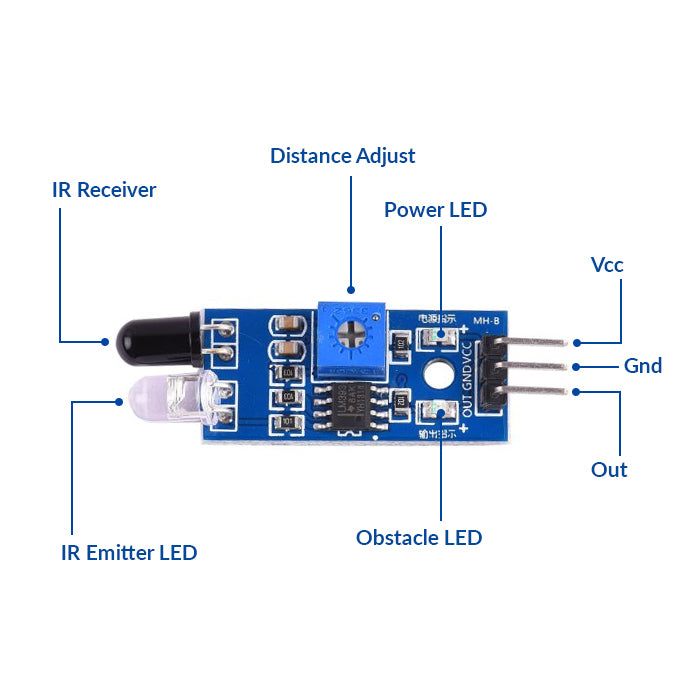

The IR Proximity Sensor module has great adaptive capability of the ambient light, having a pair of infrared transmitter and the receiver tube, the infrared emitting tube to emit a certain frequency, encounters an obstacle detection direction (reflecting surface), infrared reflected back to the receiver tube receiving, after a comparator circuit processing, the green LED lights up, while the signal output will output digital signal (a low-level signal), through the potentiometer knob to adjust the detection distance, the effective distance range 2 ~ 30cm working voltage of 3.3V-5V.

The detection range of the infrared proximity sensor can be adjusted by the potentiometer, with little interference, easy to assemble, easy to use features, can be widely used for line follower robot ,obstacle avoidance, DIY Automatic Sanitizer Dispenser Kit, obstacle avoidance car assembly line count and black-and-white line tracking, and many other occasions.

Features:

  • Easy to assemble and use
  • Onboard detection indication
  • The effective distance range of 2cm to 30cm
  • A preset knob to fine-tune distance range
  • If there is an obstacle, the indicator lights on the circuit board.

Applications:

  • IP cameras
  • Alarm systems and other crime prevention devices
  • Battery-driven human presence sensors for IoT smart homes
  • IR sensors are also used in IR imaging devices, optical power meters, sorting devices, remote sensing, flame monitors, moisture analyzers, night vision devices, infrared astronomy, etc.

Package Includes:

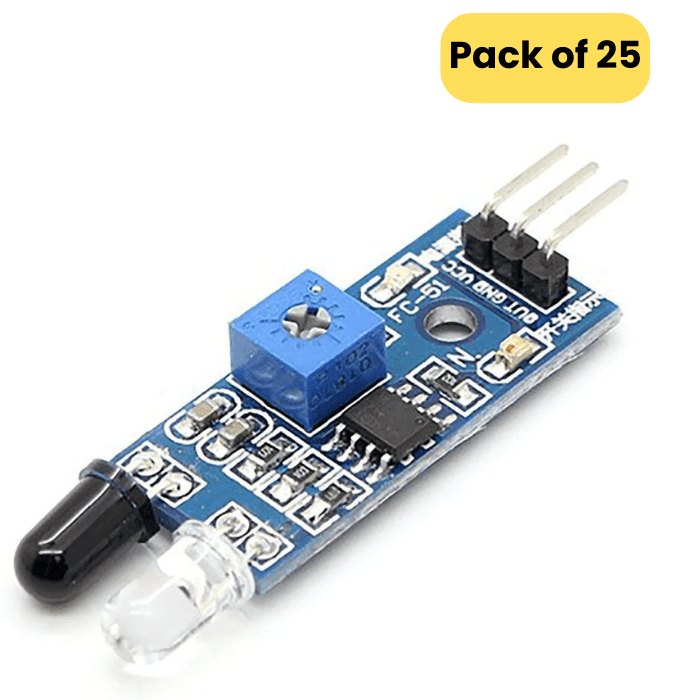

  • 25 x IR Proximity Sensor

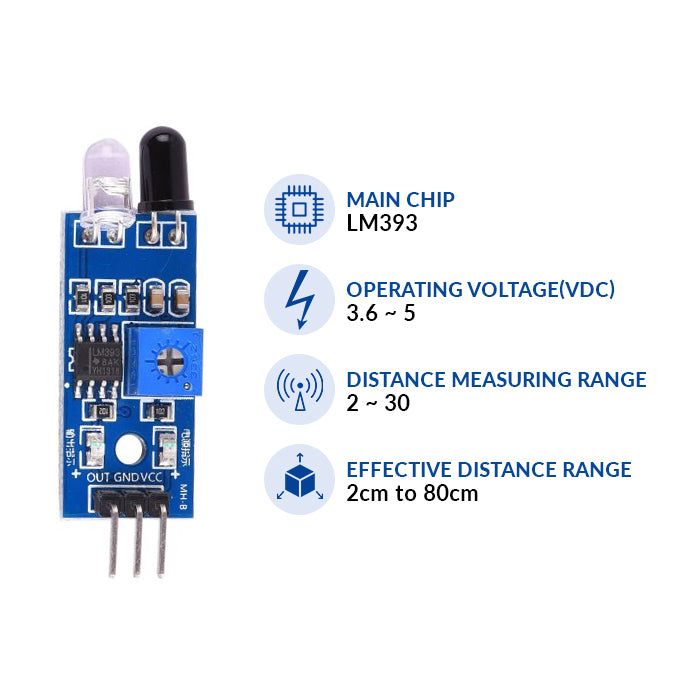

Specifications:

Main Chip LM393
Operating Voltage  3.3 ~ 5 VDC
Distance Measuring Range  2 ~ 30 CM
Dimensions  48 x 14 x 8 mm
Weight  15 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1. What is an IR Sensor and why is it not visible?

  • An infrared (IR) sensor is an electronic device that measures and detects infrared radiation in its surrounding environment. Infrared radiation was accidentally discovered by an astronomer named William Herchel in 1800. While measuring the temperature of each color of the light (separated by a prism), he noticed that the temperature just beyond the red light was the highest. IR is invisible to the human eye, as its wavelength is longer than that of visible light. Anything that emits heat gives off infrared radiation

2. What are the types of IR sensor and their difference?

  • There are two types of infrared sensors: active and passive.
    • Active infrared sensors both emit and detect infrared radiation.
    • Passive infrared (PIR) sensors only detect infrared radiation and do not emit it.

3. What is the difference between PIR and IR Sensor?

  • The IR sensors detect whether the light from the transmitter is emitted by an object or a person. Whereas, the PIR sensors detect changes in the levels of energy around the area.
  • If the PIR sensor is installed towards the changing environment, it may let off a false alarm due to the change in the way the air flows; however, IR sensors must be installed facing the motion.
  • IR sensors are usually only installed on the outside of properties, whereas PIR sensors are usually installed inside.
  • PIR sensors don't actually emit the infrared; objects give the sensor infrared rays. This differs from IR sensors, which do actually infrared.
