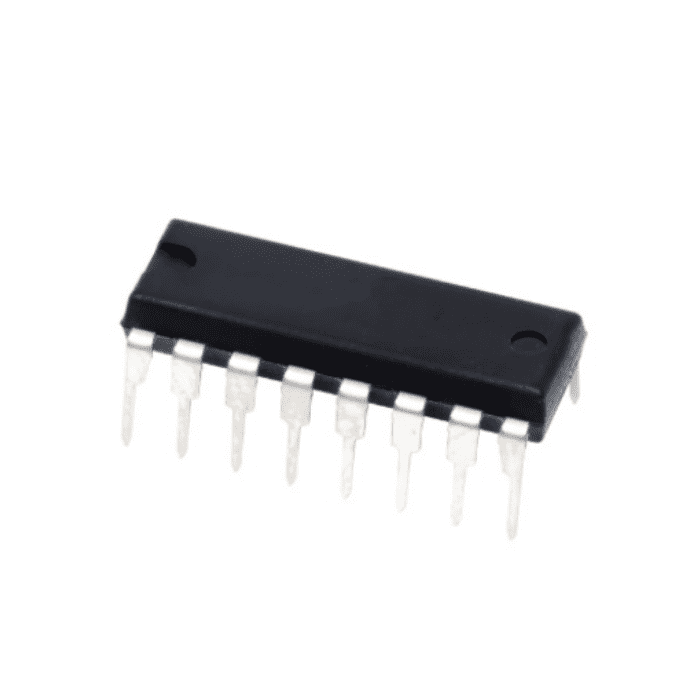

Dual 4-bit Decade Ripple Counter IC - 74HC390

Dual 4-bit Decade Ripple Counter IC - 74HC390

Regular price Rs. 36
Regular price Rs. 42 Sale price Rs. 36
Sale Sold out 14% off Best Price Guaranteed
You save Rs. 6 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Size
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 53 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • DC Input Diode Current: ±20mA
  • Frequency: 71MHz
  • Output Drive Capability: 10 LSTTL Loads
  • Outputs Directly Interface to CMOS, NMOS, and TTL
  • Low Input Current: 1 μA
  • High Noise Immunity Characteristic of CMOS Devices
Trust Badge 1 Trust Badge 2 Trust Badge 3

Dual 4-bit Decade Ripple Counter IC - 74HC390

The 74HC Series 74HC390 IC is a 16 Pin Dual 4-bit Decade Ripple Counter IC having a 2V to 6V Operating Voltage range. It has been divided into four separately clocked sections. The counters have two divide-by-2 sections and two divide-by-5 sections. These sections share an asynchronous master reset input (nMR) and can be used in a BCD decade or bi-quinary configuration. If master reset inputs 1MR and 2MR are used to clear all 8 bits of the counter simultaneously, numerous counting configurations are possible within one package.

Section clocks nCP0 and nCP1, allow ripple counter or frequency division applications of divide-by-2, 4, 5, 10, 20, 25, 50 or 100. The HIGH-to-LOW transition of the clock inputs nCP0 and nCP1 triggers each section. For BCD decade operation, the nQ0 output is connected to the nCP1 input of the divide-by-5 section. For bi-quinary decade operation, the nQ3 output is connected to the nCP0 input and nQ0 becomes the decade output. A HIGH on the nMR input overrides the clocks and sets the four outputs LOW. Inputs include clamp diodes. It enables the use of current-limiting resistors to interface inputs to voltages in excess of VCC.

Pinout:

Pinout Of 74HC390 IC

Symbol    Pin Description
1CP0, 2CP0 1, 15 Clock input divide-by-2 section (HIGH-to-LOW; edge-triggered)
1MR, 2MR 2, 14 Asynchronous master reset input (active HIGH)
1Q0, 1Q1, 1Q2, 1Q3 3, 5, 6, 7 Flip-flop outputs
1CP1, 2CP1 4, 12 Clock input divide-by-5 section (HIGH-to-LOW; edge-triggered)
GND 8 Ground (0 V)
2Q0, 2Q1, 2Q2, 2Q3 13, 11, 10, 9 Flip-flop output
VCC   16 Supply voltage

Package Includes:

Selected qty of IC - 74HC390

Specifications:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−16
Input Current 1 uA
Powering Current 160 uA
Output Current at VCC 4 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 14 ns
Temperature Range -65 °C to +150 °C

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

ADDITIONAL RESOURCES

1.What is the maximum frequency of operation for 74HC390?

  • The 74HC390 is a dual 4-bit decade ripple counter separated into four independently clocked portions. There are two divide-by-2 parts and two divide-by-5 sections on the counters. The maximum operating frequency of the 74HC390 is 77 MHz.

2.What is the function of the clear (CLR) pin on 74HC390?

  • The clear (CLR) pin on 74HC390 is used to reset the counter to its initial state when it is pulled low. This pin is asynchronous, which means it can be engaged at any moment regardless of the clock signal.
