9-60V 10A DC Motor PWM Speed Controller
People Also Buy
9-60V 10A DC Motor PWM Speed Controller

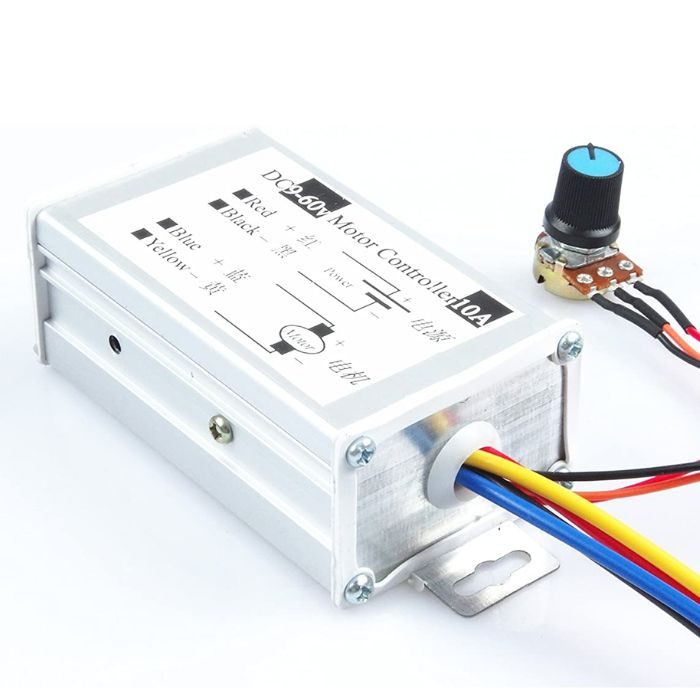

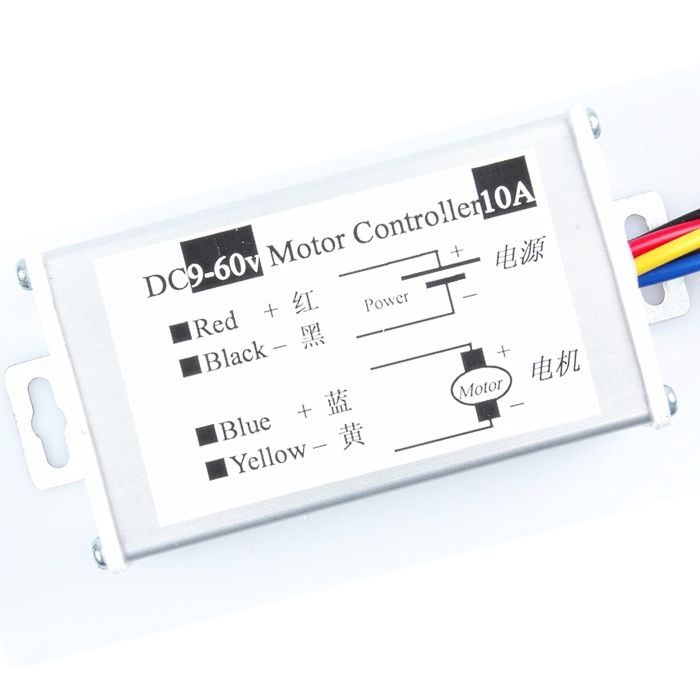

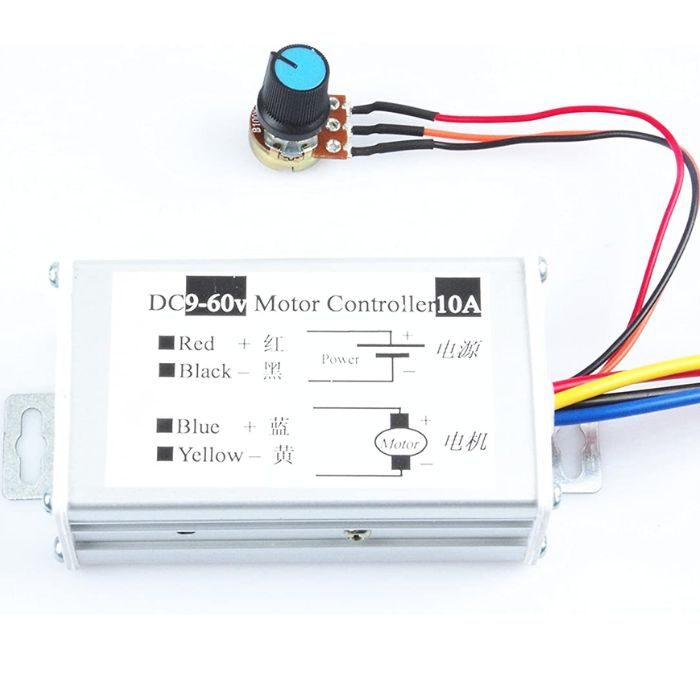

The 10A PWM DC Motor Speed Regulator Module 9 -60V is designed for brushed DC motors (or DC loads) rated at 10A. It comes with a metal shell and a connective label, making it very simple to install and use. It has a potentiometer with an adjustable speed switch and a button switch.
Note: DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. THIS WILL DAMAGE THE CONTROLLER. TO CHANGE THE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF THE MOTOR.
Remainder
Before you attempt to wire the controller, make sure the power is off
Features:
- Adjustable speed range: 0%-100%.
- Speed adjustment way: Potentiometer.
- Output voltage: Linear under load.
- Speed control type: Basins.
- Output voltage: Load Linear
- Type: Adjusting flow
- The motor running condition adjustment: Forward / Stop /Reverse
- Reverse polarity protection: Yes.
- Suitable Motor: DC brush motors.
- Have Thermal protection
Package Includes:
- 1 x 9-60V 10A DC Motor PWM Speed Controller
Specifications:
| Operating Voltage (VDC) | 9 ~ 60 |
| Continuous power | 600W |
| PWM frequency | 25KHz. |
| Dimensions (mm) | 90 x 50 x 35 |
| Weight (gm) | 135 |
| Peak current | 10A |
| No. of channels | 1 |
| Continuous Current | 10A |
1. Does a DC motor need a speed controller?
- Brushed DC motors generate electrical and acoustic noise, and require frequent maintenance because their brushes and commutator are both consumable parts. But, they also feature a simple design and can operate without an electronic drive circuit if speed control is not needed.
2. How does a DC motor speed controller work?
- The DC Motor Speed controller is a reversible PWM switch that includes a connective label and metal shell, making it simple to install and operate. The DC Motor regulator has a linear potentiometer with adjust speed switch function, and button switch function. The controller has an operating frequency of 25 KHZ and reverses polarity protection. The motor running condition adjustment is given by: Forward, Stop and Reverse.
