- This is 50KG load cell
- This load cell is widely used in hopper scales, platform scales, platform balance, belt scales, and other electronic weighing devices.
- This is a half-bridge load sensor, which is used in weight scales. When the half-bridge is being stretched, it sends the signal via the red signal wire.
- This is Alloy Steel wired weighing load cell, with high accuracy, simple structure, and simple installation.
You can use multiple load sensors simultaneously to increase the capacity range, Parallel use to add additional capacity.
50Kg Load Cell
This 50kg load cell, also known as a strain gauge, can be found in digital bathroom scales. This load cell sensor is capable of measuring up to 50 kg. While using this load cell sensor, the correct force is applied to the outer side of the strain E-shaped beam portion of the sensor (i.e., a strain gauge affixed to the intermediate, adhesive coating with white beam arms); and the outer edges to form a shear force in the opposite direction, i.e., middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.
If you want to use this load cell you need few essential elements like hx711, Arduino , jumper wires , display module and soldering tools . There are other types of load cell also available , according to your requirement
- Using a sensor with an external resistors full bridge measurement range of a sensor range: 50kg. Higher requirements for an external resistor.
- The uses of only two full-bridge sensors measuring range are the range of the two sensors and: 50kgx2 = 100kg.
- The use of four full-bridge sensors measuring range is the range of four sensors and: 50kgx4 = 200kg.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
10Kg Load Cell
50kg Load Cell with HX711 Weight Sensor

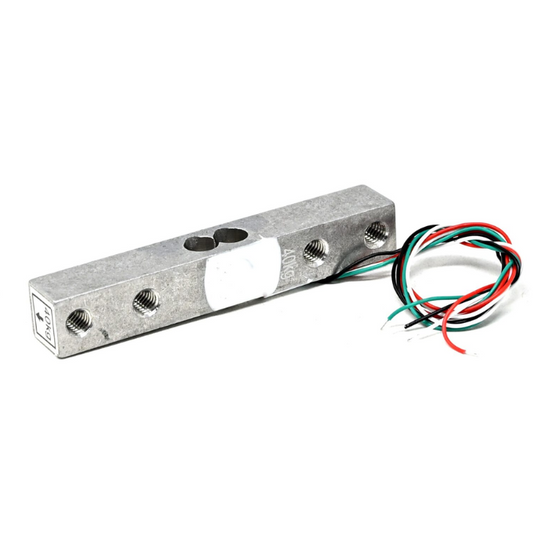

40Kg Load Cell
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 50Kg Load Cell
Specifications
| Capacity (Kg) | 50 |
| Output Sensitivity (mv/v) | 1.0±0.1 |
| Nonlinearity (%FS) | 0.03 |
| Repeatability (%FS) | 0.03 |
| Input Resistance (?) | 1000 |
| Insulation Resistance (M?) | ?5000 |
| Dimensions | 9 x 5 x 1cms |
| Weight | 100 grams |
1. What is the purpose of load cells?
- Load cells are a type of sensor that measures force and load. The force is converted into an electrical signal. You can use multiple load sensors simultaneously to increase the capacity range, and Parallel use to add additional capacity.
2. Where are load cells used?
- A load cell measures mechanical force, primarily the weight of objects. Almost all electronic weighing scales now use load cells to measure weight. They are widely used because of the precision with which they can measure weight.
3. What is a 50Kg load cell?
- The 50kg Load Cell Sensor measures the correct force applied to the outer side of the strain E-shaped beam portion of the sensor and the outer edges to form a shear force in the opposite direction, i.e, middle strain beam bending necessary changes can occur under stress, strain beam side by another force should not be a barrier.
