What is an Electric Circuit? Components, Symbols, and Formulas

Summary

Of all the modern marvels we take for granted, few are as fundamental as the simple act of flipping a switch. In an instant, a dark room is flooded with light, a silent stereo fills the air with music, or a dormant computer screen springs to life.

This seemingly magical transformation is all thanks to a hidden network, a carefully designed pathway that allows energy to travel from its source to where it's needed. This pathway is the foundation of virtually all our technology.

But what exactly happens when you flip that switch? You are completing a loop, giving invisible energy a road to travel. Understanding this process isn't just for engineers or scientists; it's for anyone curious about how the modern world works.

Just as knowing how an engine works can make you a better driver, understanding the basics of an electrical circuit can demystify the technology that powers our lives.

Let's explore the world of circuits, from their basic definition to the components and rules that govern them.

What Is an Electric Circuit?

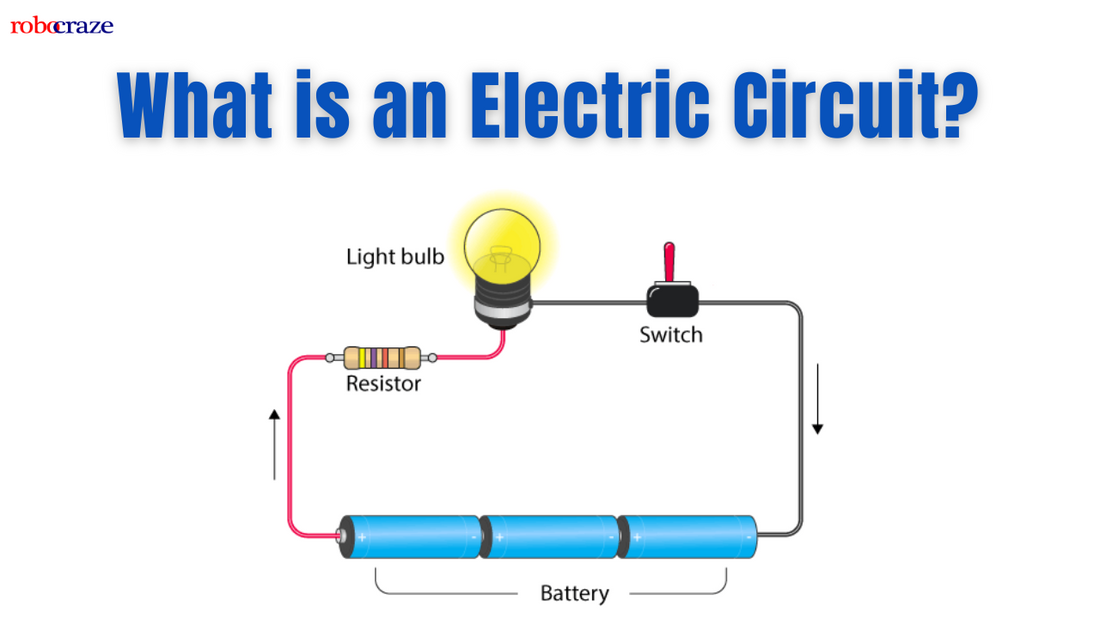

An electric circuit is a closed, continuous path through which an electrical current can flow. Think of it like a plumbing system for electricity.

The pipes are the wires, the water is the electric current (the flow of electrons), and the pump is the power source, like a battery.

For the water to flow, the pipes must form a complete, unbroken loop from the pump, through the system, and back to the pump. If there's a break anywhere in the pipe, the flow stops.

Similarly, an electrical current needs an uninterrupted path to travel. This path, typically made of conductive wires, connects a power source to a device that uses the energy—known as a load—and then returns to the source.

When this path is complete, we call it a closed circuit, and electrons are free to move, powering our devices. If there is any break in the path, such as an open switch, it becomes an open circuit, and the current stops flowing immediately.

This simple open/close principle is how we control nearly every electronic device we own.

Main Components of an Electric Circuit and Their Symbols

To understand how an electric circuit works, you first need to know its basic parts. Every circuit, from the one in a simple flashlight to the complex networks inside a smartphone, is built from a few key elements.

These are the fundamental components of electric circuit design. To map these out, engineers use a visual shorthand known as a circuit diagram, which uses standardized electric circuit symbols to represent each part.

Here are the most common components and their roles:

Wire

The solid, straight line is the universal symbol for a wire or electrical conductor. Its purpose is to connect different electronic components within a circuit, creating a continuous and low-resistance path.

This allows electric current to flow easily from one point to another, forming a complete loop.

Resistor

The zig-zag line represents a resistor, a component designed to impede or control the flow of current.

Adding resistance to a circuit helps to limit the amount of electricity passing through, protecting more sensitive components from damage. Resistors are fundamental for managing voltage and current levels within a circuit design.

Light Bulb

This symbol, a circle with a cross inside it, denotes a light bulb or an indicator lamp. It acts as a load, meaning it consumes electrical energy and converts it into another form—in this case, light and heat.

It's often used in diagrams to provide a simple, visual representation of a circuit's output.

Cell

This symbol, with one long and one short parallel line, represents a single electrical cell. The long line indicates the positive (+) terminal, and the short line is the negative (-) terminal.

A cell is the most basic form of a power source, providing the voltage needed to push current through a circuit.

Battery

The battery symbol is essentially a series of cell symbols connected together. It represents a power source made of two or more cells, which provides a higher voltage than a single cell.

Like a single cell, the longest line at one end is the positive terminal, and the shortest line at the other is the negative terminal.

Switch

This symbol illustrates an open switch, a device used to control the circuit by interrupting the flow of current.

When the switch is open, as shown here, it creates a gap that stops the electricity. Closing the switch completes the connection, allowing the circuit to function.

Understanding Series and Parallel Circuits

Once you have the basic components, the way you connect them fundamentally changes how the circuit behaves.

The two primary layouts are series and parallel circuits. The arrangement determines how current, voltage, and resistance are distributed among the components.

• Series Circuits In a series circuit, components are connected end-to-end, forming a single path for the current to flow. Imagine a single-lane road where all the cars must follow the same path, one after another. In this type of electric circuit, the electric current is the same through every single component. If you add more light bulbs in series, they will all share the same voltage from the source and will glow less brightly. The main drawback is that if one component breaks (like a bulb burning out), the entire path is interrupted, and the whole circuit stops working.
• Parallel Circuits In a parallel circuit, components are connected across the same two points, creating multiple branches or paths for the current to flow. Think of a multi-lane highway. The current leaves the power source and splits, with a portion of it flowing through each branch before rejoining on the other side. The key feature here is that the voltage across each component is the same. This is how houses are wired; you can turn on a light in one room without affecting the TV in another. If one bulb in a parallel circuit burns out, the other branches remain complete, and the other bulbs stay lit.

Important Electric Circuit Formulas

The behavior of electricity isn't random; it follows predictable physical laws. These relationships are described by mathematical formulas that form the foundation of circuit theory.

Mastering these formulas allows engineers to analyze and design circuits with precision. The most fundamental of these is Ohm's law.

Ohm's Law

Ohm's law is the most important Electric Circuit Formula. It describes the relationship between voltage (V), current (I), and resistance (R).

It states that the current flowing through a conductor is directly proportional to the voltage across it and inversely proportional to the resistance.

• Formula: V=I×RV=I×R
• V: Voltage, measured in Volts (V). It's the "push" or pressure that drives the current.
• I: Current, measured in Amperes (A). It's the rate of flow of electric charge.
• R: Resistance, measured in Ohms (Ω). It's the opposition to the current flow.

Using this formula, if you know any two of the values, you can calculate the third. For example, if a 12-volt battery is connected to a 6-ohm resistor, the current flowing through it would be 2 amperes (12V / 6Ω = 2A).

Other Essential Formulas

While Ohm's law is central, other formulas are vital for circuit analysis:

For more complex circuits with multiple loops and power sources, engineers rely on a more advanced set of principles known as Kirchhoff's rules. These rules provide a systematic way to analyze current and voltage throughout any part of a complex electrical circuit.

Conclusion

From the simple path inside a flashlight to the intricate web of connections in a supercomputer, electric circuits are the invisible highways that power our world.

At its core, a circuit is simply a closed loop that gives electricity a path to follow. By understanding its main components—the source, conductor, and load—and the symbols used to draw them, we can begin to read the language of electronics.

Knowing the difference between series and parallel arrangements reveals why our home electronics don't all go dark when one bulb fails. And with fundamental rules like Ohm's Law, we can calculate and predict how a circuit will behave.

While the technology built upon these principles can be incredibly complex, the foundational ideas are accessible to anyone with a spark of curiosity. The next time you flip a switch, you'll know you're not just making light; you're completing a circuit.
