1/8 Inch Water Flow Sensor YF-S401
1/8 Inch Water Flow Sensor YF-S401
Regular price
Rs. 197
Regular price
Rs. 370
Sale price
Rs. 197
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 4 hours and 37 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- The YF-S401 Water flow sensor measures water flow accurately using a hall effect sensor and digital pulses.
- It has a flow rate of 0.3-6 litres per minute and outputs a pulse for every revolution of the pinwheel sensor, which is approximately 2.25 millilitres each.
- It is ideal for monitoring water flow through laser cutters or CNC machines for cooling.
- The hall effect sensor is sealed from the water pipe, making it a reliable and accurate option for measuring water flow in various applications.
- It can be used in water heaters, vending machines, automatic water dispensers, agriculture, food processing, coffee/tea makers, and water management systems.
- It is a small and lightweight device, making it easy to install and use.

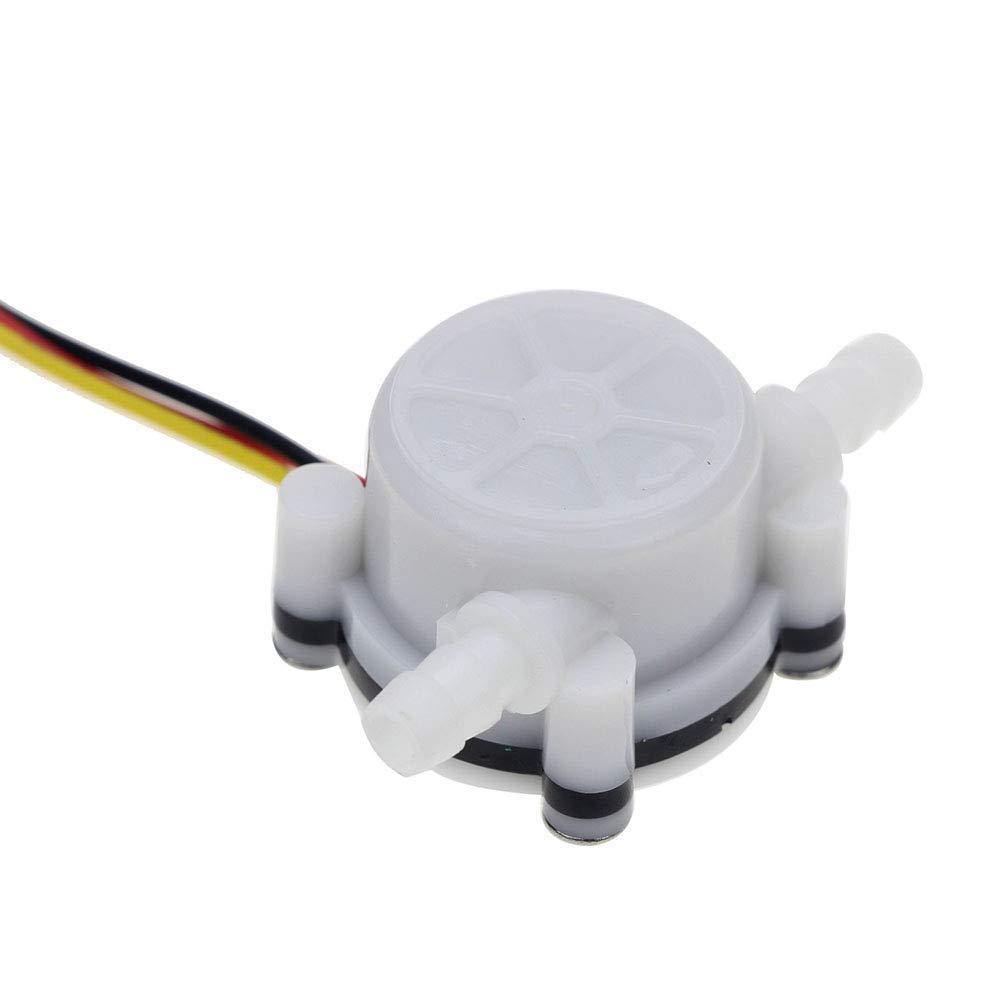

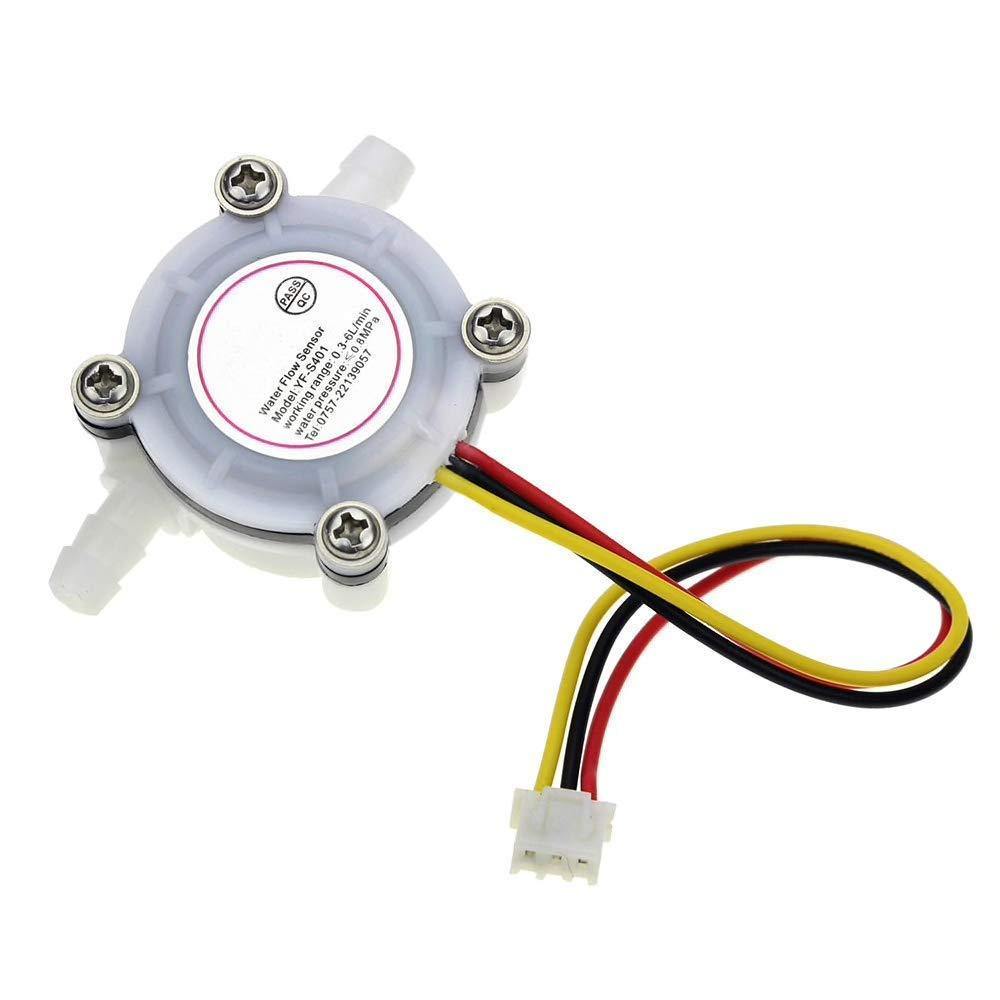

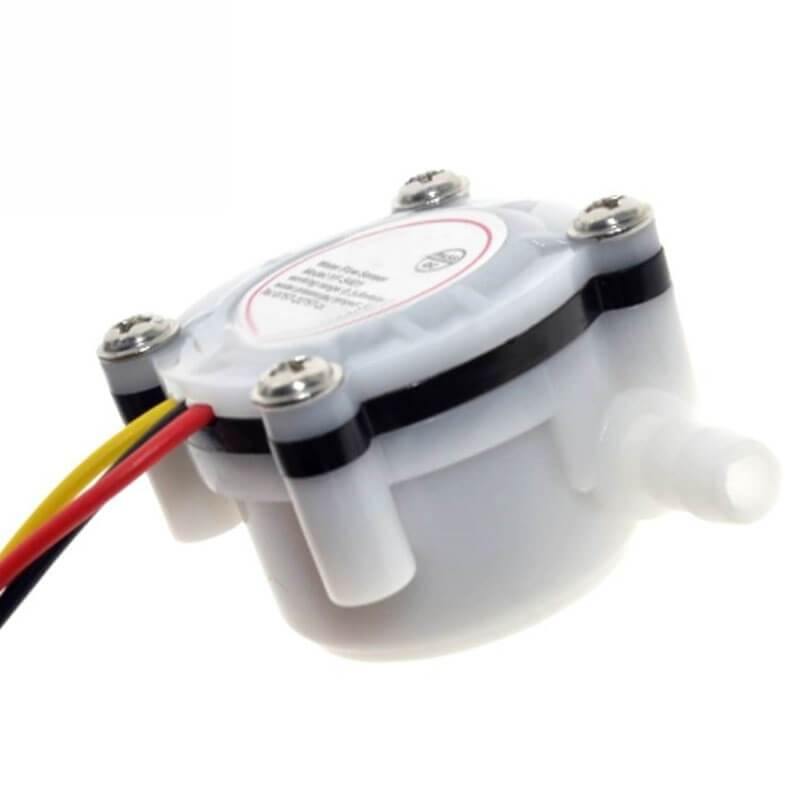

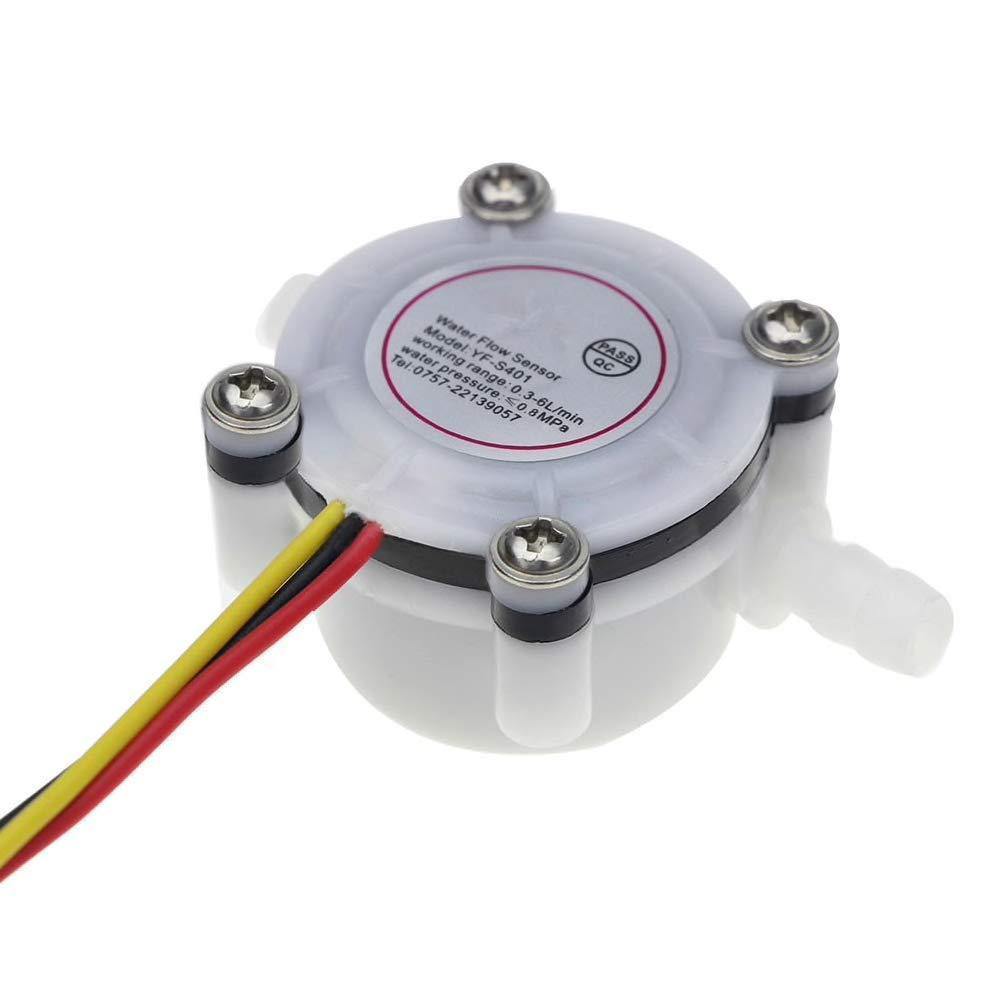

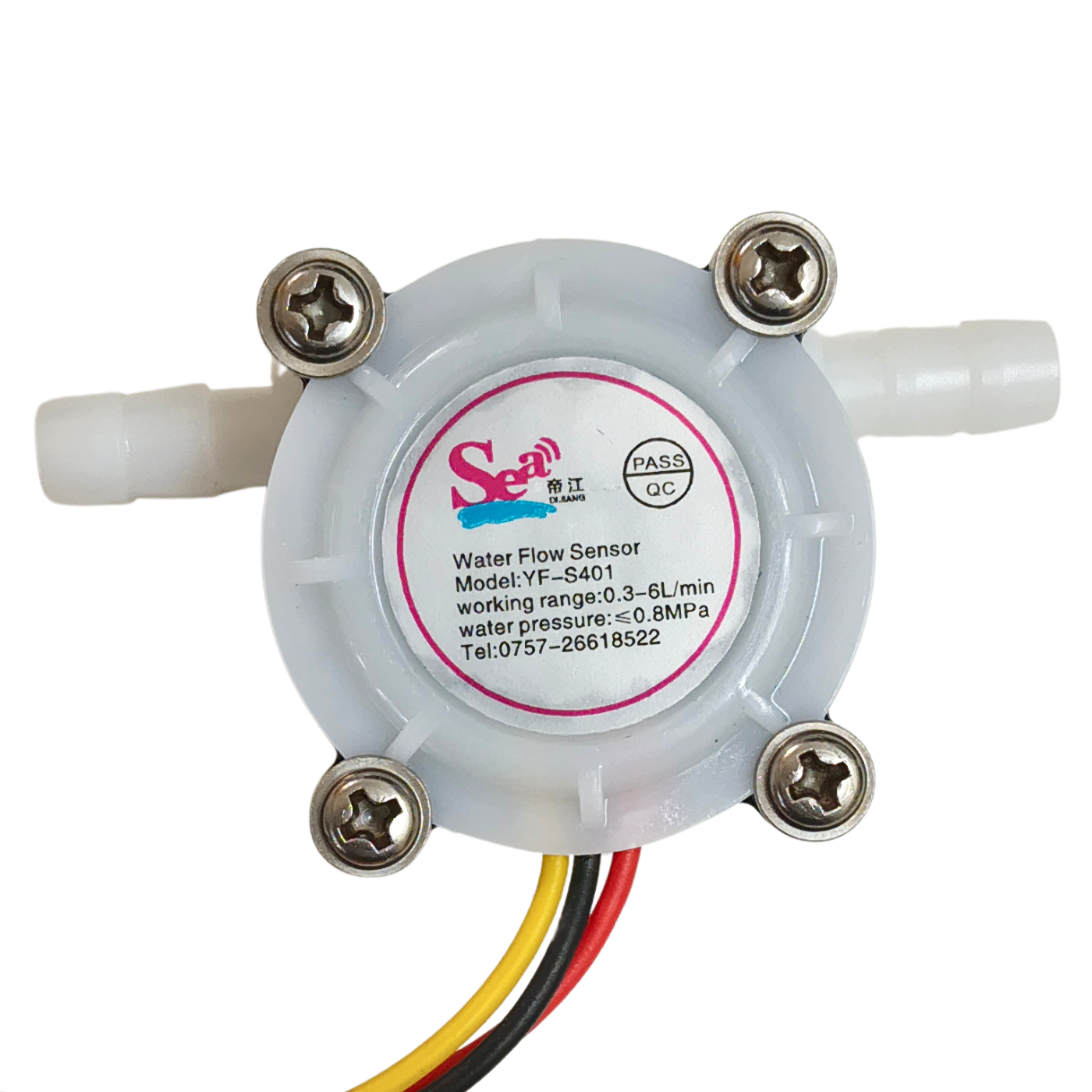

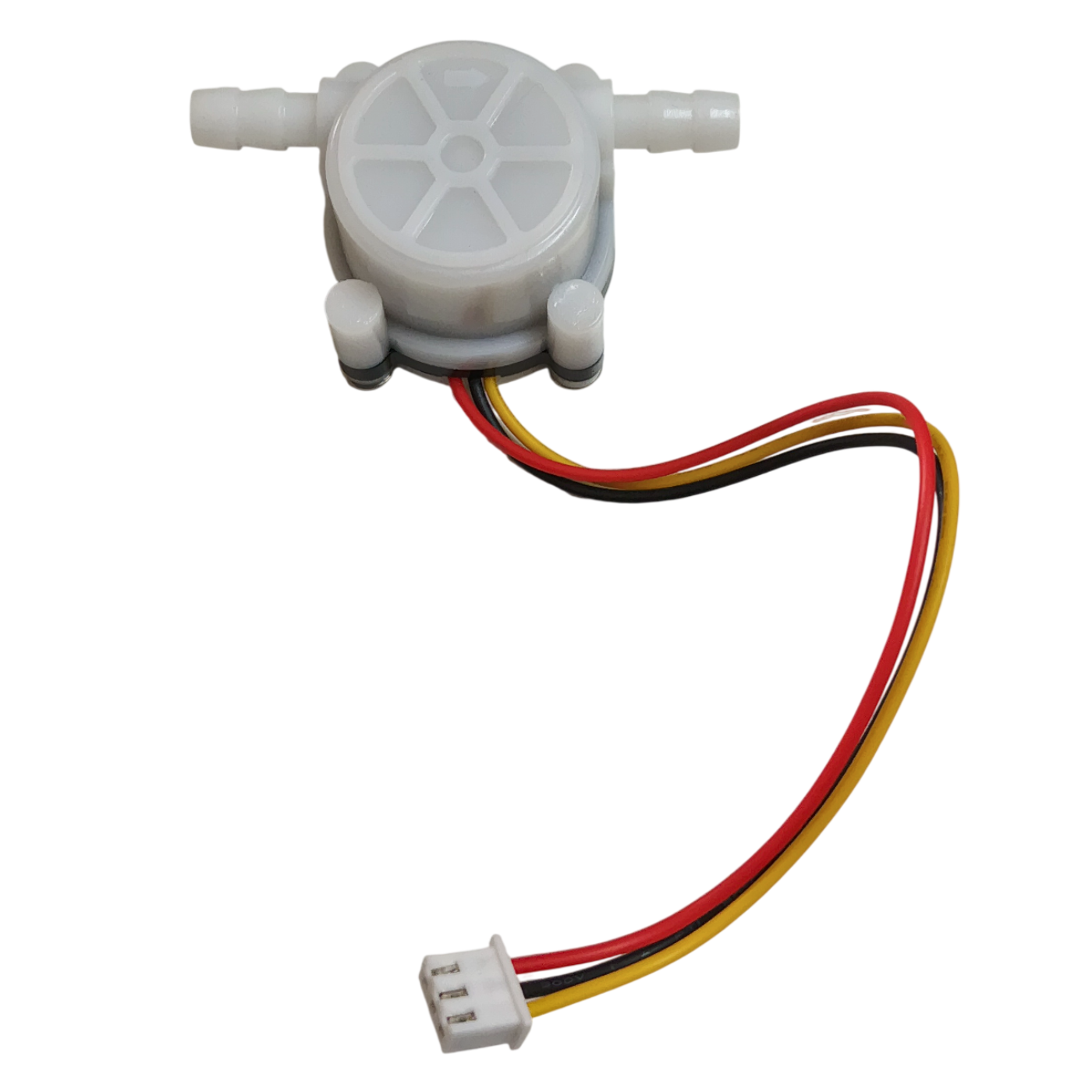

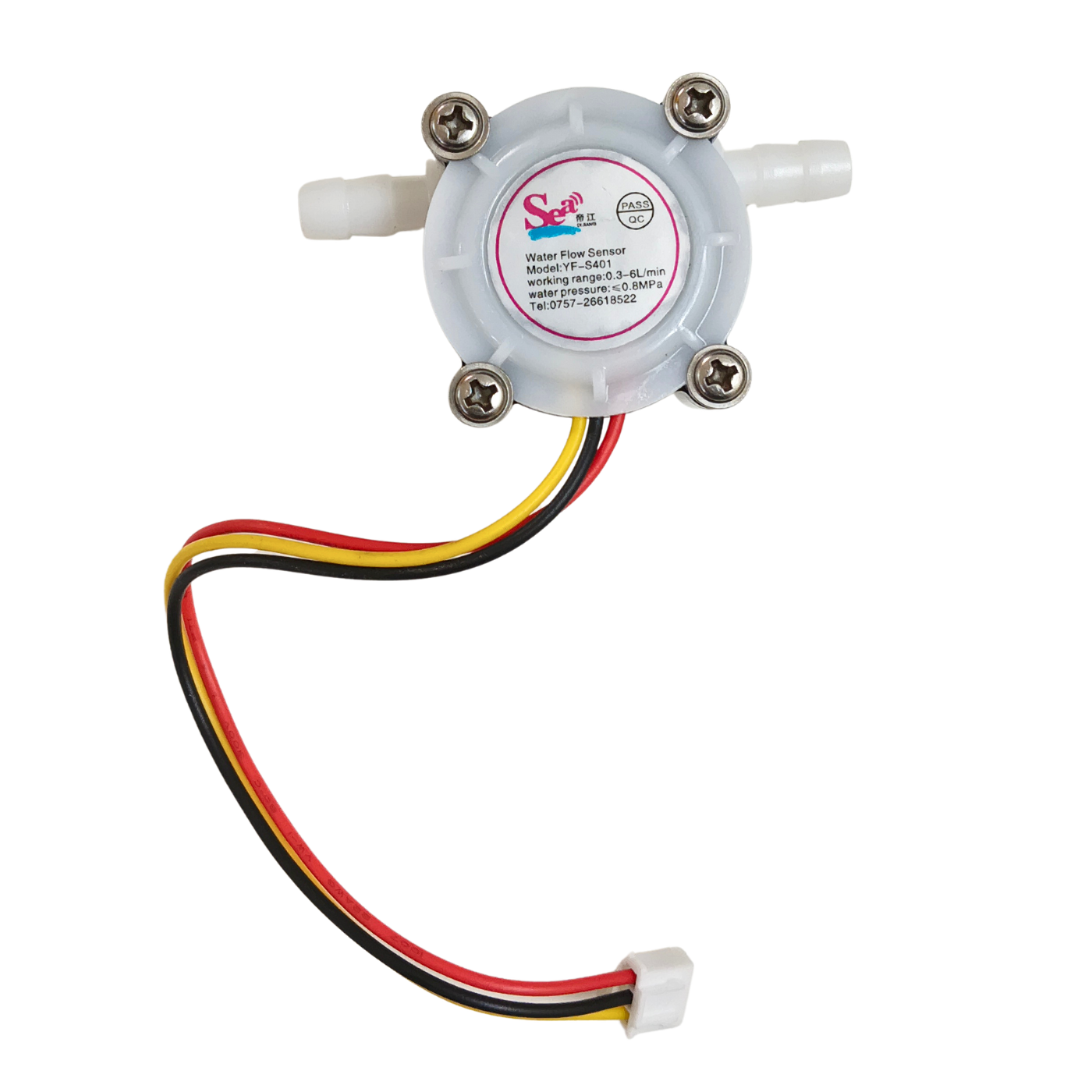

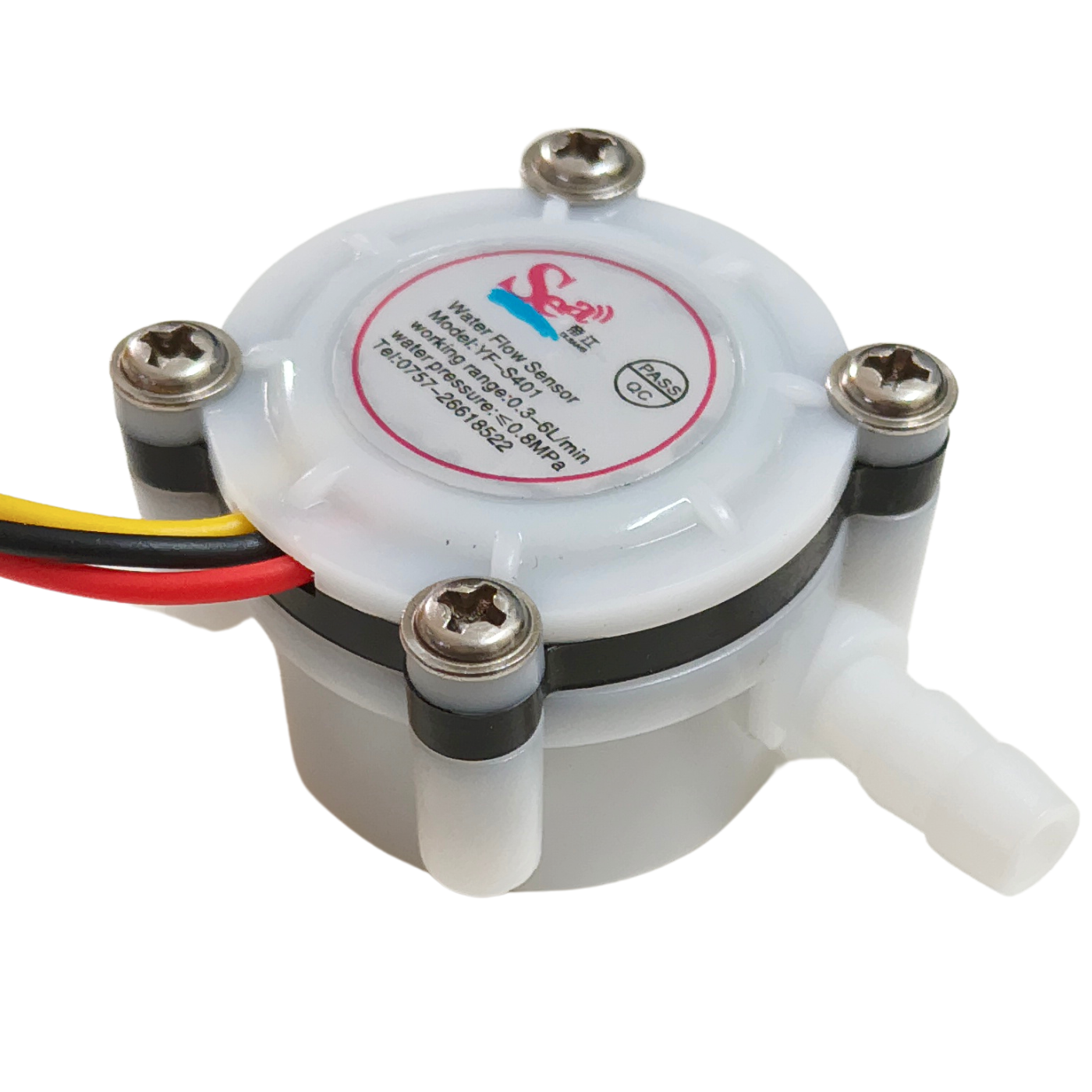

1/8 Inch Water Flow Sensor YF-S401
The YF-S401 Water flow sensor is a small device comprising a plastic valve body, a water rotor, and a hall effect sensor. As water flows through the Water flow sensor, the internal rotator changes its speed in accordance with the rate of flow, and the hall effect sensor outputs a series of digital pulses. This allows the flow rate to be accurately measured using a microcontroller.
This Water flow sensor is ideal for use with laser cutters or CNC machines to monitor the flow of water through the laser tube or spindle for cooling. This Water Flow Sensor has a flow rate of 0.3-6 litres per minute and outputs a pulse for every revolution of the pinwheel sensor. These pulses are approximately 2.25 millilitres each and can be easily counted to calculate the water flow.
One of the key advantages of the YF-S401 Water flow sensor is that the hall effect sensor is sealed from the water pipe, ensuring it stays safe and dry. This makes it a reliable and accurate option for measuring water flow in various applications.
Connections:
- Red: Power In
- Black: Ground
- Yellow: Signal Output
Applications:
- Water heaters
- Water vending machine
- Flow measurement device
- Automatic water dispenser
- Agriculture
- Food processing
- Coffee/Tea makers
- Water Management
Package Includes:
- 1 x YF-S401 1/8 inch Water Flow Sensor
Specifications:
| Model | YFS401 |
| Working Voltage | DC 5V~24V |
| Maximum Working Current | 15mA @ 5V DC |
| Flow Rate Range | 0.3~6L/min |
| Connection | 6mm (external diameter) |
| Inlet Water Pipe Diameter | 2.5-4mm |
| Dimensions | 5 x 4 x 3cms |
| Weight | 15 grams |
