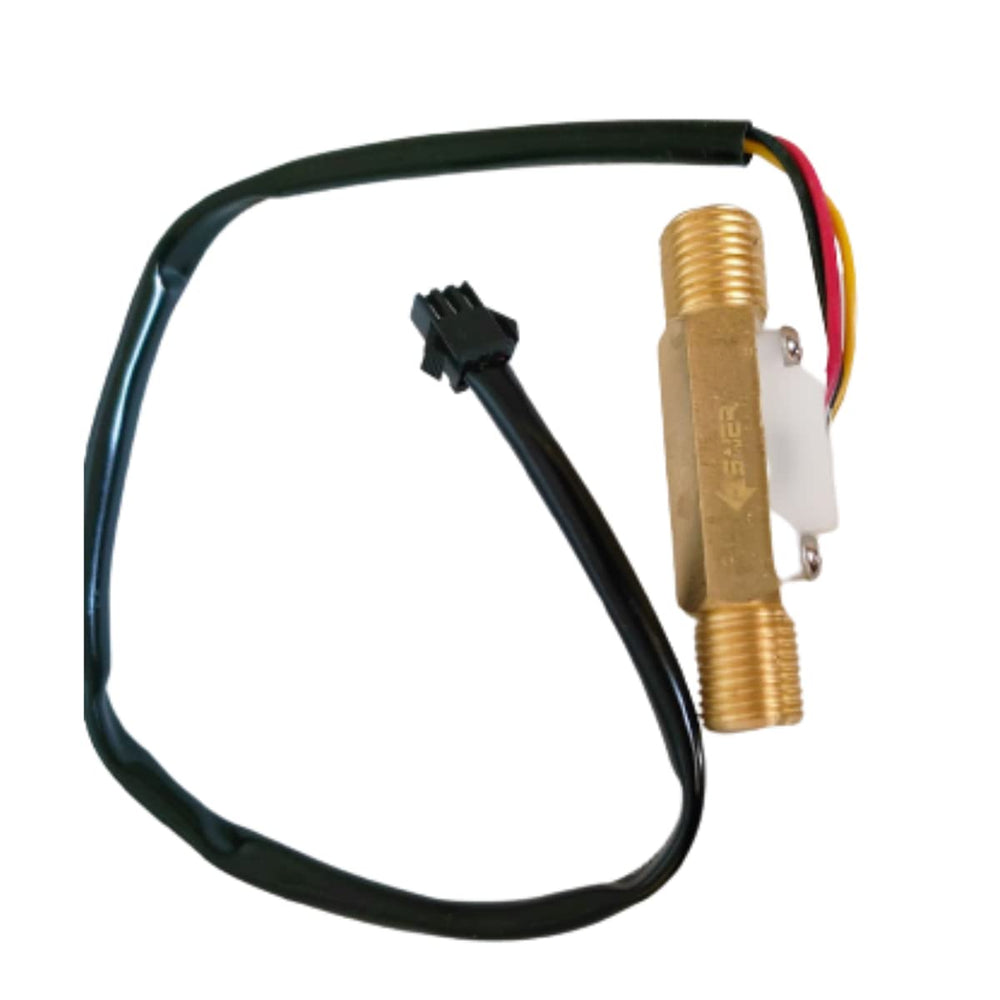

1/4 Inch Brass Water Flow Sensor SEN-HZ41WC

1/4 Inch Brass Water Flow Sensor SEN-HZ41WC

Rs. 454
Rs. 599 Rs. 454
Sale Sold out 24% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 12 people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 3 Hours and 43 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • This SEN-HZ41WC water flow sensor is connected in line with the liquid whose flow rate has to be measured.
  • Flow range: 0.35 ～ 3.0 Liter/min and Withstand hydraulic pressure: ≤1.75 MPa.
  • Insulation resistance: >100MΩ
  • Electrical strength: AC500V, 50HZ
  • Flow characteristic: F=73Q, F:HZ, Q:L/min，±10% and features Pulse duty cycle: 50%.

1/4 Inch Brass Water Flow Sensor SEN-HZ41WC

The SEN-HZ41WC water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device. The sensor is commonly used in applications such as irrigation systems, water treatment plants, and industrial process control. It is often preferred over other types of flow sensors because it is easy to install and has a low cost.

Now easily measure water (liquid) flow in your application using this 1/4" Brass water flow sensor. This is a good quality flow sensor with a brass body and can be used for industrial and commercial applications. This 1/4 inch water flow sensor is used extensively in various types of vending machines.

Note:

  • When magnetic material is close to the sensor, its characteristics may vary.
  • In order to avoid particle debris, the sensor must be installed after a filter.
  • The flow sensor installation has to avoid strong vibration and shaking of the environment, so as not to affect the sensor's measurement accuracy.

Applications:

  • Widely used in water industrial fields
  • Thermostatic water heaters
  • Water purifiers
  • Water dispensers
  • Smart card equipment
  • Coffee machine

Package Includes:

  • 1 x SEN-HZ41WC Water Flow Sensor

Specifications:

Water quality requirement Drinking water health standards, 0~80℃
Voltage/electric current DC 4.5 ～ 18 Volt, ≤15mA
Output level Rated voltage DC 5 Volt, high level ≥4.5 Volt, low level ≤0.5 Volt
Cumulative flow conversion 1 Liter water=1780 pulse, accuracy: 8%
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN -Infinity

1. How do water flow sensors work?

  • The water flow sensor consists of a plastic valve from which water can pass. A water rotor along with a hall effect sensor is present to sense and measure the water flow. When water flows through the valve it rotates the rotor.

2. What are the two main uses of flow sensors?

  • They are commonly used in water industrial fields, Thermostatic water heaters, Water purifiers, Water dispensers, Smart card equipment and, Coffee machine. Flow sensors are able to detect leaks, blockages, pipe bursts, and changes in liquid concentration due to contamination or pollution. Flow sensors can be divided into two groups: contact and non-contact flow sensors.

3. How do you test a water flow meter?

  • Take a photo of the flow meter dial.
  • Run the system for a day's watering.
  • Take a second photo of the flow meter dial.
  • Calculate the amount of flow that went through the flowmeter.

4. What is the water flow sensor sen-hz41wc?

  • This water flow sensor is connected in line with the liquid whose flow rate has to be measured. There is a simple rotating wheel with a magnet and when the liquid flows the wheel is rotated and a hall effect sensor measures how many times the wheel is rotated and accordingly gives pulses. By counting the number of pulses you can easily calculate the flow rate as well as the amount of liquid dispensed.
