Witty Fox

Witty Cloud ESP12F Module

Witty Cloud ESP12F Module

Regular price Rs. 275
Regular price Rs. 349 Sale price Rs. 275
Sale Sold out 21% off Best Price Guaranteed
You save Rs. 74
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • The ESP8266 is a highly integrated chip, including antenna and power management converter.
  • The ESP-12 module is one of the most complete of the ESP family as it allows you to use the biggest amount of pins.
  • You can program this module to work stand alone with the Arduino IDE or with LUA as NodeMCU.
  • Support STA/AP/STA+AP operation modes.
  • Support Smart Link Function for both Android and iOS devices.

Witty Cloud ESP12F ESP8266 Serial WiFi Development Board (Mini Node MCU Module)

The ESP8266/ ESP-12F Module/ Serial WIFI Witty Cloud Development Board + MINI nodeMCU is a cheap and small Wifi transceiver, a perfect solution for Home Automation and IoT applications. It can be the replacement for your NRF24L01, it can talk to your Wifi router directly through the UART MCUs (Rx, Tx).

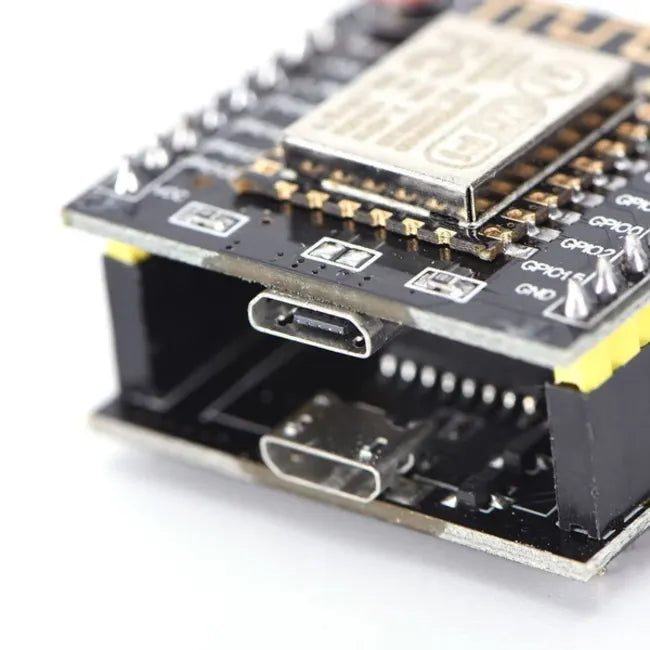

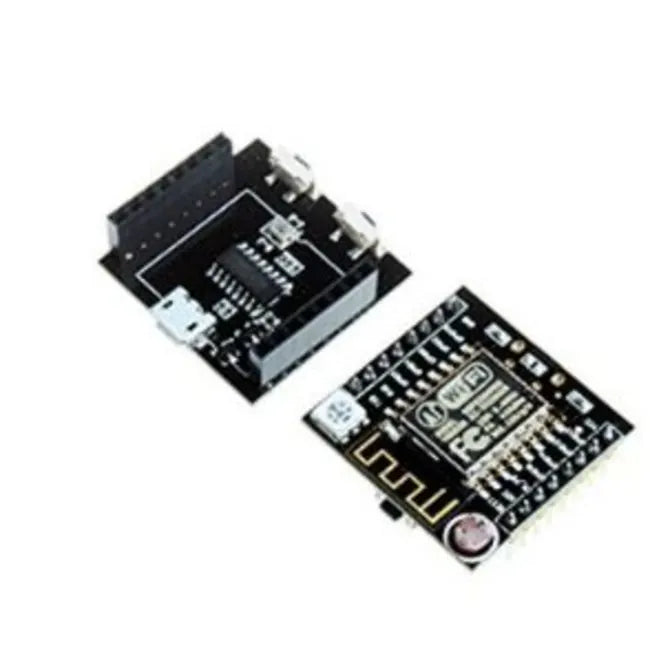

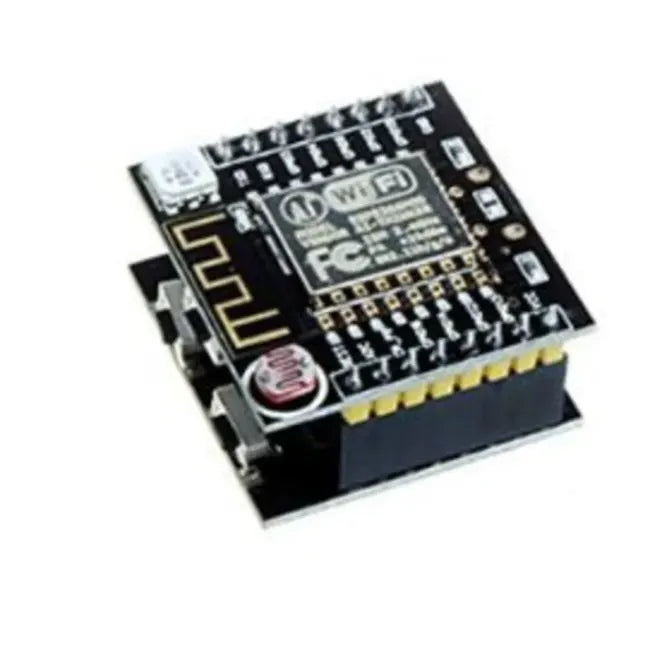

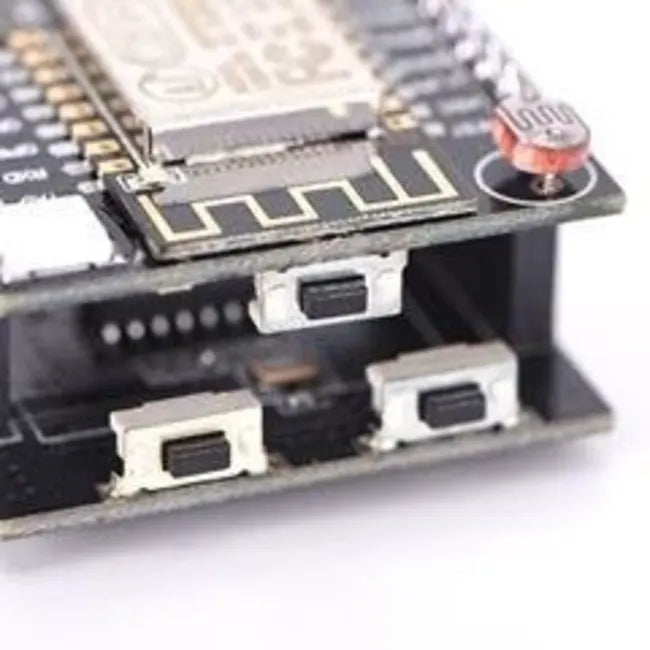

The upper board is the main board which consists of an ESP-12F module where the ESP8266 Wi-Fi microcontroller is located, an RGB LED, an LDR, a button, a micro USB port, and a 3.3V voltage regulator. The lower board mounts the CH340G USB-to-UART module that allows connection with a computer to the ESP8266 for programming the flash or for seeing debug messages. There are other two buttons RST (reset) and FLASH, and a micro USB port.

It has an LDR and a WS2812 LED already on board for your projects. The esp board comes with a CH40 micro USB module to program it. The system equips ESP8266 and its features are: energy-saving VoIP quickly switch between the sleep/wake patterns, with low-power operation adaptive radio bias, and front-end signal processing functions.

Witty Cloud ESP12F Module Circuit Diagram:

ESP8266 Serial WiFi Witty Cloud Development Board ESP-12F Module Mini Wifi Module Circuit Diagram

ESP8266 Serial WiFi Witty Cloud Circuit Diagram


  • Home Automation.
  • IoT Devices.

Package Includes:

  • 1 x Witty Cloud ESP12F Module


Microcontroller ESP8266
Operating Voltage 3.3
Tactile buttons x 3
Supports 3 modes  AP, STA, AP+STA
Dimensions 3 x 3 x 3cms
Weight 5g

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4


1.What is Witty Cloud ESP12F Module?

  • The ESP8266 Witty Cloud ESP-12F WiFi Module is a powerful WiFi-enabled processor in a compact package that incorporates an RGB LED, LDR light sensor, and push button for easy stand-alone operation. It is a stack of two circuit boards with an ESP-12F, USB connectors, tactile switches, a photoresistor (LDR), and an RGB LED chip.

2.What is the use of Witty Cloud ESP12F Module?

  • The Witty Cloud ESP12F Module is a versatile and powerful module that is ideal for IoT projects, standalone operation, and programming. Its onboard features make it easy to use and its low cost makes it accessible to hobbyists and professionals alike.
