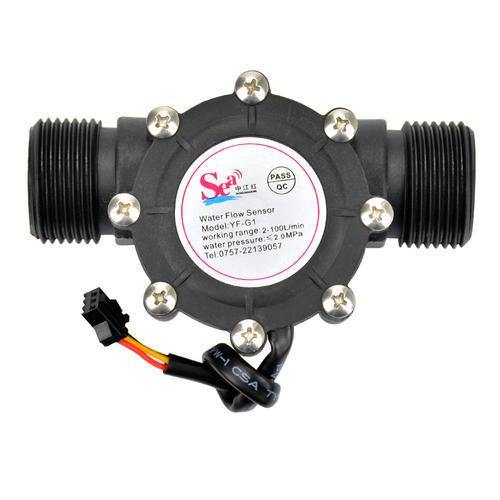

1 Inch Water Flow Sensor YF-G1 DN25

1 Inch Water Flow Sensor YF-G1 DN25

Regular price Rs. 795
Regular price Rs. 1,324 Sale price Rs. 795
Sale Sold out 40% off Best Price Guaranteed
You save Rs. 529
Incl. GST (No Hidden Charges)
  • This sensor is light and handy in appearance, small in size, and easy to install.
  • The impeller rotates around the entire stainless-steel bearing, and the stainless-steel ball is embedded to improve the rotational sensitivity.
  • The sealing ring adopts an upper and lower force structure and will never be affected by thermal expansion and contraction.
  • The hall element is imported, and designed to be isolated from water, epoxy resin encapsulated, and anti-oxidation.
  • All raw materials are in compliance with RoHS testing standards
  • Porous design and small flow can be sensed as usual.

1 Inch Water Flow Sensor YF-G1 DN25

The YF-G1 water flow sensor is a device that is used to measure the flow rate of water. It consists of a turbine-type rotor that is placed in the water stream, and as the water flows past the rotor, it causes the rotor to spin. The sensor measures the speed of the rotor and converts it to a flow rate. The sensor has a digital output, which means that it provides a digital signal that can be read by a microcontroller or other host device.

The water flow sensor is mainly composed of a plastic valve body, a water flow rotor assembly, and a Hall sensor. It is installed on the water inlet end of the water heater to detect the water flow rate. When the water passes through the water flow rotor assembly, the magnetic rotor rotates and the speed changes with the flow rate. The Hall sensor outputs the corresponding pulse signal and feeds it back to the controller. The device judges the size of the water flow and regulates it.

Precautions for Use:

  • Severe impact and chemical erosion are strictly prohibited.
  • Throwing or collision is strictly prohibited.
  • The temperature of the medium should not exceed 120 degrees
  • If the water quality is too bad, please add a filter at the water inlet.
  • Do not use beyond the flow range

Applications:

  • Water heaters
  • Water vending machine
  • Flow measurement device
  • Automatic water dispenser
  • Agriculture
  • Food processing
  • Coffee/Tea makers
  • Water Management

    Package Includes:

    • 1 x Water Flow Sensor YF G1

    Specifications:

    Sensor Type  Water Flow Sensor
    Model  YF G1 Water Flow Sensor
    Water pressure resistance = >2MPa
    Operating Temperature -20~85C
    Insulation resistance >100MΩ
    Dimensions  5 x 5 x 5 cms
    Weight  50 grams
