SKG13 GPS Module
SKG13 GPS Module
Out of stock
Regular price
Rs. 1,349
Regular price
Rs. 1,440
Sale price
Rs. 1,349
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is SKG13 GPS Module
- Ultra high sensitivity: -165dBm.
- Extremely fast TTFF (Time To First Fix) at low signal level.
- Low power consumption: Typical 18mA@3.3V.
- NMEA-0183 compliant protocol or custom protocol.
- Operating voltage: 3.3V or 12V DC,
- Operating temperature range: -40 to 85℃.
- SMD type with stamp holes.
SKG13 GPS Module

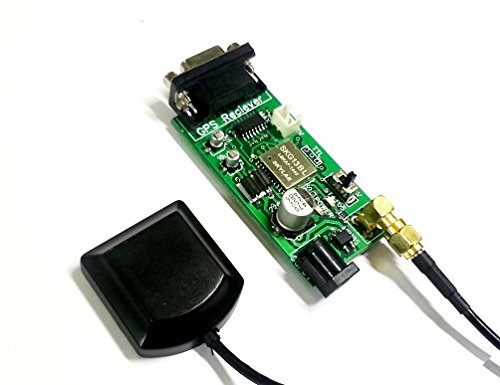

The SKG13C GPS Receiver with External Active Antenna is a user-friendly device compatible with both PCs and MCUs. It belongs to the Skylab SKG13 series, which offers a complete GPS receiver module with outstanding sensitivity, minimal power consumption, and a compact form factor.
The module functions by receiving the GPS signal through the antenna input. It then provides a comprehensive serial data message containing position, velocity, and time information through the serial interface. The module supports communication using either the NMEA protocol or a custom protocol.
Based on the high-performance MediaTek 3329 single-chip architecture, this GPS receiver module exhibits exceptional tracking sensitivity of -165dBm. This allows for extended positioning coverage even in challenging environments such as urban canyons and dense foliage where GPS reception was previously difficult. The module's small form factor and low power consumption make it effortless to integrate into portable devices like personal navigation devices (PNDs), mobile phones, cameras, and vehicle navigation systems.
read more : SKG13 GPS RECEIVER MODULE
Features:
- Operating Voltage Range: 3.0 ~ 12V
- Power Consumption: 45mA
- Operating Temperature Range: -40 ~ 85°C
- Ultra-high sensitivity: -165dBm
- Extremely fast TTFF at the low signal level
- Built-in 12 multi-tone active interference canceller
- Low power consumption: Typical 18mA@3.3V
- 10ns high accuracy time pulse (1PPS)
- Advanced Features: Always Locate; AIC; EPO; EASY
- QZSS, SBAS (WAAS, EGNOS, MSAS, GAGAN)
- Indoor and outdoor multi-path detection and compensation
- Small form factor: 15x13x2.2mm
- RoHS compliant (Lead-free)
Applications
- LBS (Location-Based Service)
- PND (Portable Navigation Device)
- Vehicle navigation systems
- Mobile phones
Package Includes:
- 1 x SKG13 GPS Module
Specifications
| Model | SKG13 GPS Module |
| Ultra-high sensitivity | -165dBm |
| Operating voltage | 3.3V or 12V DC |
| Operating temperature range | -40 to 85℃ |
| Dimensions | 11 x 9 x 5cms |
| Weight | 100 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
SIM 800A GSM Modem with SMA Antenna
Regular price
Rs. 849
Regular price
Rs. 999
Sale price
Rs. 849
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
SIM800A LM317 with Antenna(GSM Finger)- ADIY
Regular price
Rs. 889
Regular price
Rs. 1,149
Sale price
Rs. 889
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
SIM 800C GSM Modem with SMA Antenna
Regular price
Rs. 649
Regular price
Rs. 850
Sale price
Rs. 649
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the SKG13 GPS module?
The SKG13 GPS module is a complete GPS receiver module that features super sensitivity, ultra-low power, and small form factor. It receives GPS signals from satellites and processes them to determine the user's location.
2. What are the features of the SKG13 GPS module?
The SKG13 GPS module has features such as super sensitivity, ultra-low power consumption, small form factor, and a complete serial data message with position, velocity, and time information presented at the serial interface with NMEA protocol or custom protocol. It also has an external antenna input and can operate at 3.3V or 12V DC.
3. What is the sensitivity of the SKG13 GPS module?
The SKG13 GPS module has ultra-high sensitivity of -165dBm, which extends positioning coverage into places like urban canyons and dense foliage environments where GPS was not possible before.
4. What is the operating voltage of the SKG13 GPS module?
The SKG13 GPS module can operate at 3.3V or 12V DC.
5. What are the applications of the SKG13 GPS module?
The SKG13 GPS module can be used for various applications that require location information, such as navigation systems, tracking devices, geotagging, PNDs (Portable Navigation Devices), LBS (Location-Based Services), mobile phones, cameras, and vehicle navigation systems.
