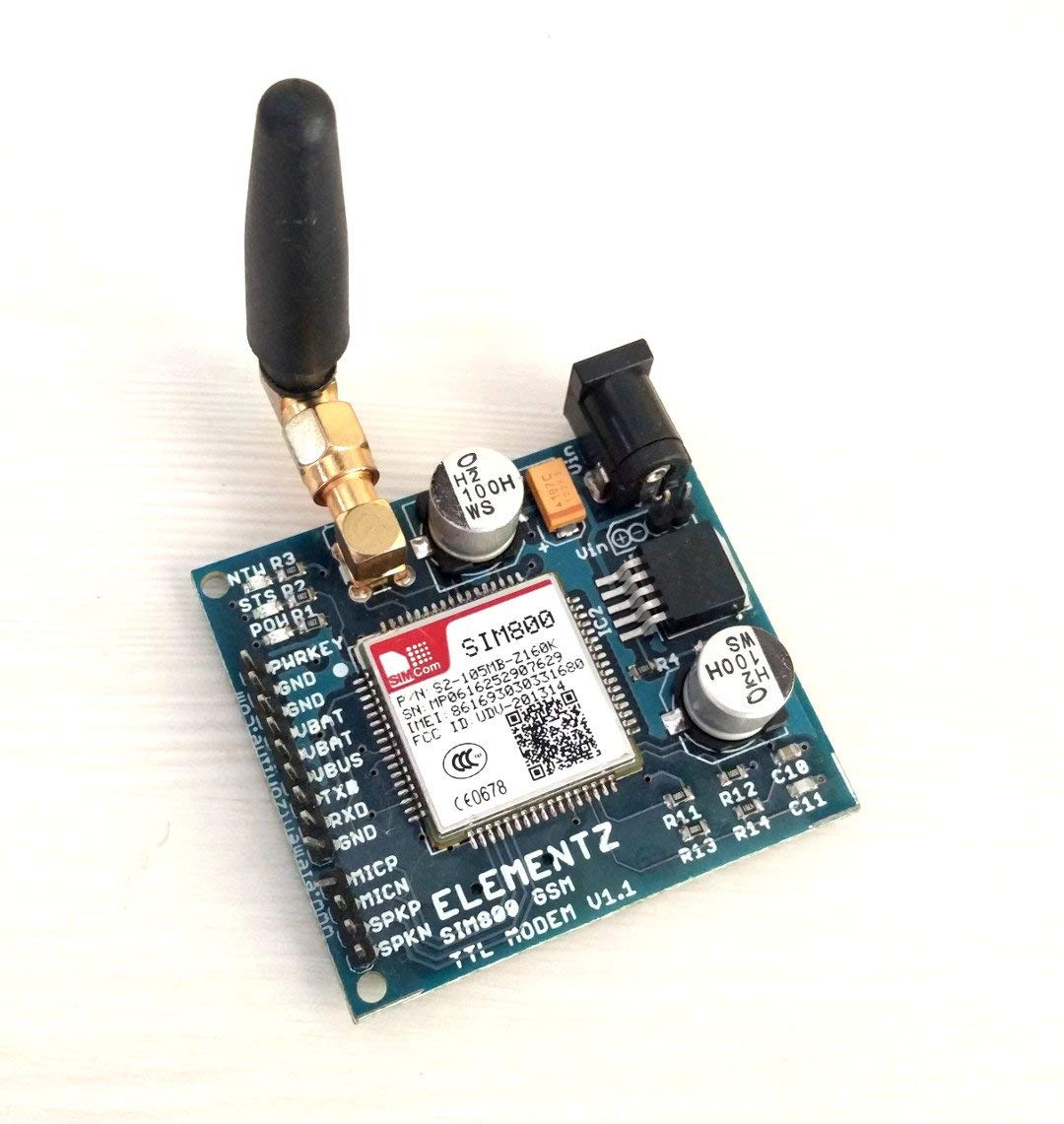

SIM800 UART TTL GSM Modem Module With SMA Antenna
SIM800 UART TTL GSM Modem Module With SMA Antenna
Out of stock
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for โน 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is SIM800 UART TTL GSM Modem Module With SMA Antenna
- Quad-band GSM/GPRS module working on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz, and PCS 1900MHz
- GPRS multi-slot class 12/class 10 (optional) supporting CS-1, CS-2, CS-3, and CS-4 GPRS coding schemes
- Configurable baud rate from 1200 to 115200 through AT commands
- Internal TCP/IP stack for internet connection via GPRS
- One UART port and one USB port available
- SMA antenna (requires assembly) for enhanced reception
- Compatible with any GSM network operator SIM card
SIM800 UART TTL GSM Modem Module With SMA Antenna
SIM800 is a quad-band GSM/GPRS module that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz. SIM800 features GPRS multi-slot class 12/ class 10 (optional) and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4. The baud rate is configurable from 1200-115200 through AT command.
The GSM/GPRS Modem is having internal TCP/IP stack to enable you to connect with the internet via GPRS. SIM800 is an ultra-compact and reliable wireless module. This is a complete GSM/GPRS module in an SMT type and designed with a very powerful single-chip processor.
Features
- Quad-band GSM/GPRS module that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz, and PCS 1900MHz
- GPRS multi-slot class 12/class 10 (optional), and supports CS-1, CS-2, CS-3, and CS-4 GPRS coding schemes
- Configurable baud rate that can be set between 1200-115200 through AT commands
- Internal TCP/IP stack to enable internet connection via GPRS
- One UART port and one USB port
- SMA antenna that needs to be assembled to the modem
- Accepts any GSM network operator SIM card
- Highly reliable for 24x7 operation with matched antenna
- Status of the modem indicated by LED
- Low power consumption
- Can be used for applications like SMS control, data transfer, remote monitoring, traffic signals monitor and control
Package Includes:
- 1 xย SIM800 UART TTL GSM Modem
- 1 xย SMA Antenna
Specifications
| INPUT VOLTAGE | 5V-20V DC |
| On Board | Power LED,ย Network LED |
| Materialย | FR4 (High Quality) |
| Board Thickness | 1.6mm |
| Compatibility | AT cellular command interface |
| Dimensionsย | 5 x 4 x 3cmsย |
| Weightย | 25 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Peopleย Alsoย Buy
SIM 800A GSM Modem with SMA Antenna
SIM800A LM317 with Antenna(GSM Finger)- ADIY
SIM 800C GSM Modem with SMA Antenna
Found a better price?
Let us know!
We'll try to match the price for you
1. What is the SIM800 UART TTL GSM Modem Module with SMA Antenna?
The SIM800 UART TTL GSM Modem Module with SMA Antenna is a complete GSM/GPRS module that works on frequencies GSM 850MHz, EGSM 900MHz, DCS 1800MHz, and PCS 1900MHz. It features GPRS multi-slot class 12/class 10 (optional) and supports the GPRS coding schemes CS-1, CS-2, CS-3, and CS-4. The modem module has one UART port and one USB port that can be used for interfacing with a PC. It also has an SMA antenna that needs to be assembled to the modem. The SIM800 modem module can be used for applications like SMS control, data transfer, remote monitoring, traffic signals monitor and control
2. What is the input voltage needed for the SIM800 GPS modem?
The SIM800 GSM module supports communication through TTL Pins. The SIM800 GPS modem needs an input voltage of 5V-20V DC
3. What is the baud rate range for the SIM800 modem module?
The baud rate of the SIM800 modem module is configurable and can be set between 1200-115200 through AT commands
