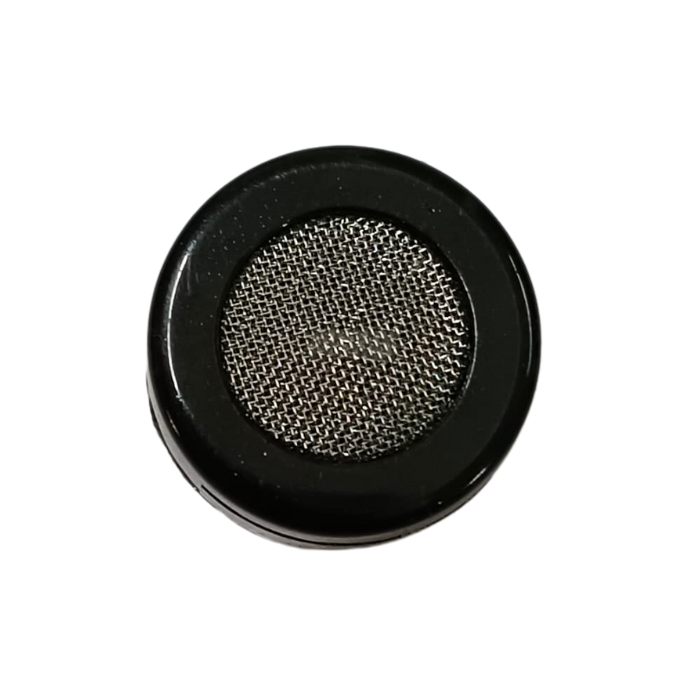

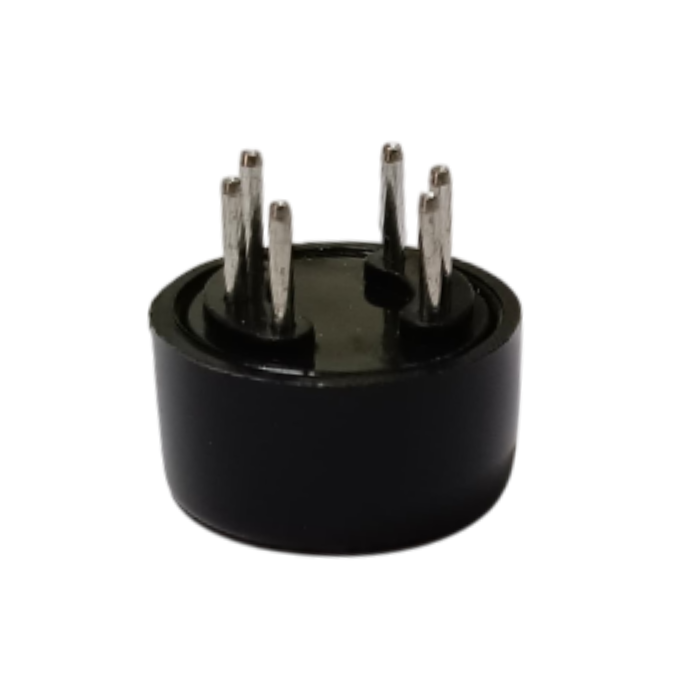

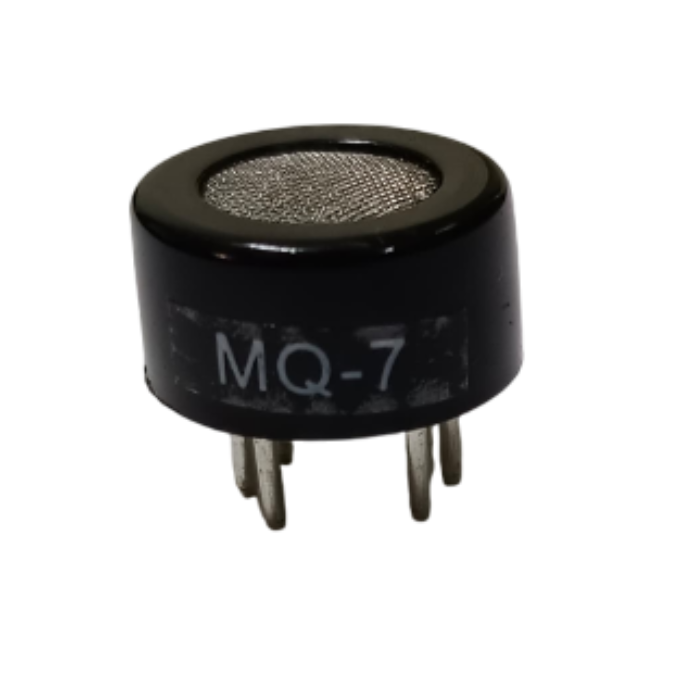

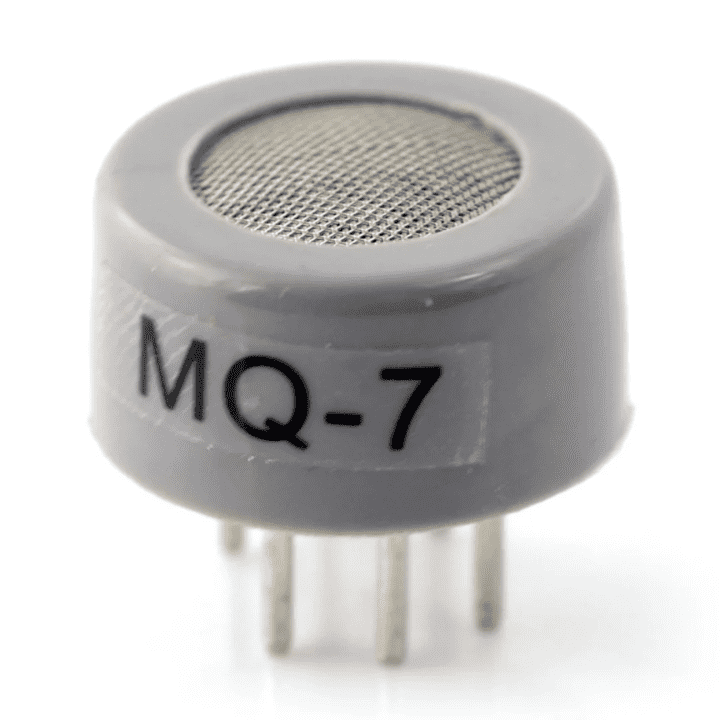

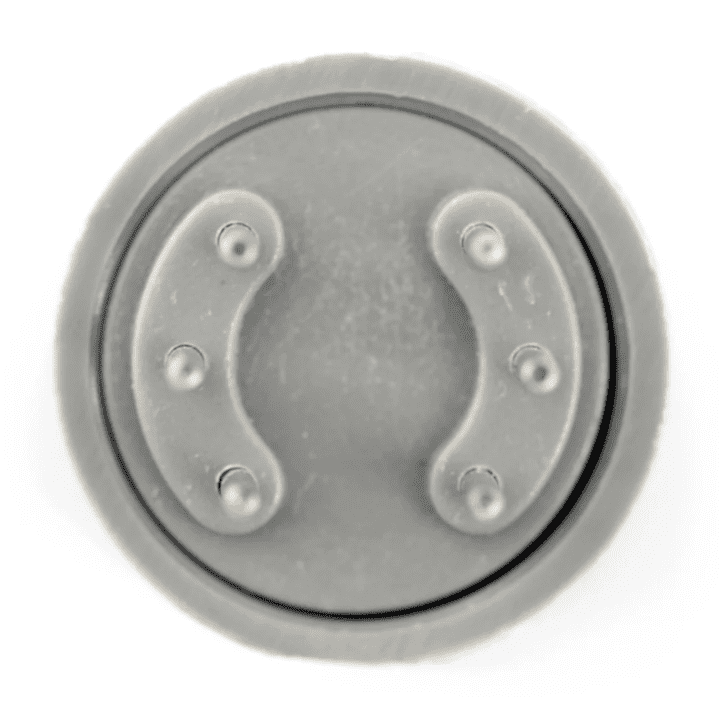

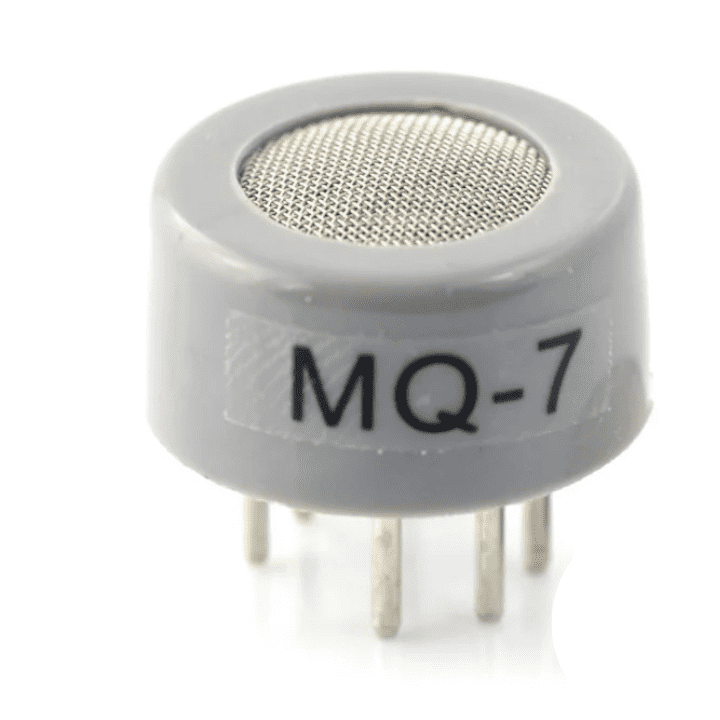

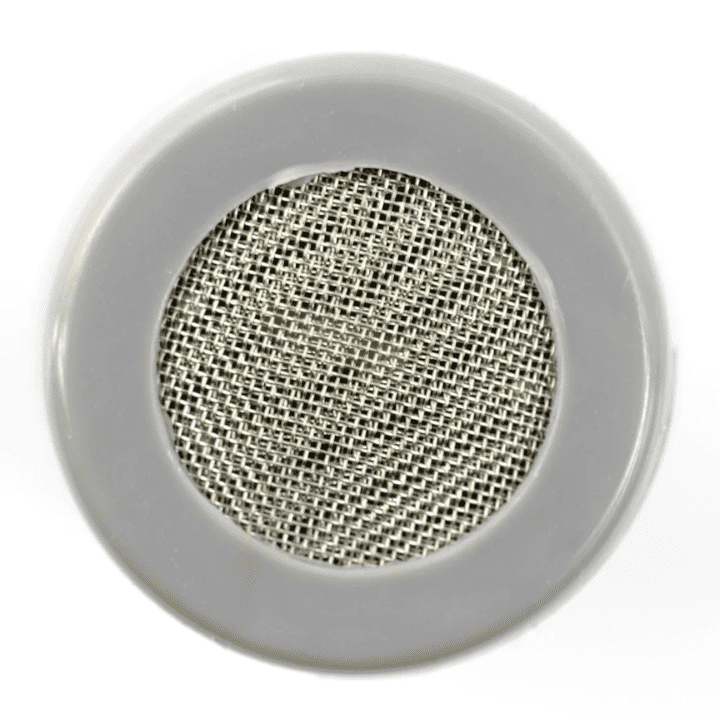

MQ-7 Gas Sensor For Carbon Monoxide Detector Module

MQ-7 Gas Sensor For Carbon Monoxide Detector Module

Regular price: Rs. 127
Sale price: Rs. 127
Regular price: ~~Rs. 170~~
Unit price: per

⚡ Dispatched within 24 hours
🚚 Free shipping on orders above Rs 500/-
💰 Earn RC Coins on every purchase
🛠️ Dedicated Technical Support Team

Quantity must be 1 or more

High sensitivity to carbon monoxide

Stable, long life, and low cost

Good sensitivity to Combustible gas in a wide range

High sensitivity to Natural gas

Simple drive circuit

Related Tags

Gas Sensor

Sensors

MQ-7 Gas Sensor

The MQ-7 gas sensor is a device that can detect the presence of carbon monoxide (CO) gas in the air. It is commonly used in applications such as gas leak detectors, safety devices, and industrial control systems. The MQ-7 sensor operates by using a chemical reaction between the CO gas and a conductive metal oxide to produce a current. The magnitude of the current is proportional to the concentration of CO gas in the air. The sensor can be used to detect CO gas concentrations in the range of 20-2000 ppm.

It is important to note that CO is a poisonous gas that can be dangerous at high concentrations. It is recommended to use the MQ-7 gas sensor with caution and to take appropriate safety measures when working with it. The MQ-7 can detect CO-gas concentrations anywhere from 20 to 2000ppm. This sensor has a high sensitivity and fast response time. The sensor’s output is an analog resistance.

Package Includes:

1 x MQ-7 Gas Sensor

Specifications:

Voltage	5V
Heating Resistance	33Ω ± 5%
Heating consumption	About 350mW
Relative Humidity	Less than 95%RH
Detecting range	20ppm-2000ppm carbon monoxide
