Great for the price
The displays were bright and fit perfectly on my breadboard.
Robocraze

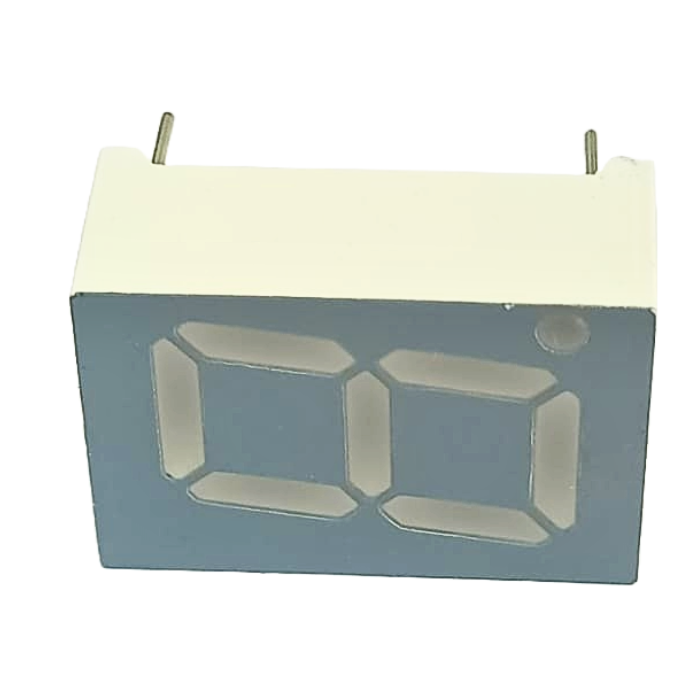

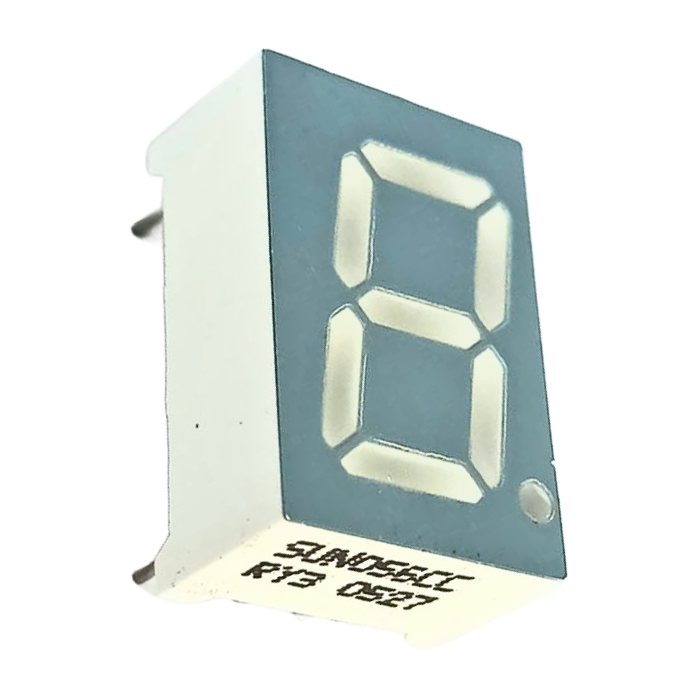

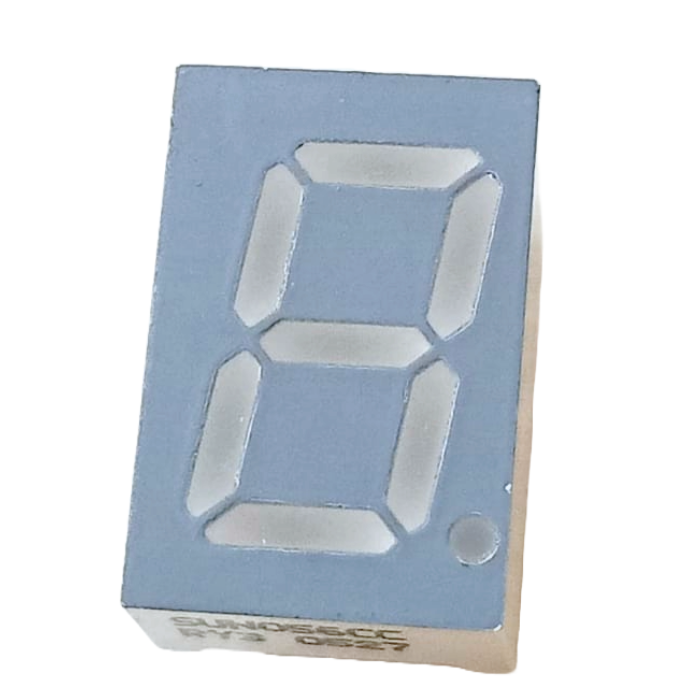

7 Segment Led Display (Common Cathode)
7 Segment Led Display (Common Cathode)
Regular price
Rs. 7
Regular price
Rs. 11
Sale price
Rs. 7
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 15 hours and 0 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is 7 Segment Led Display (Common Cathode)
- This 7-Segment Led Display is simple and easy to interface with a microcontroller
- Sample Codes and libraries are available for all popular microcontrollers
- This has high Light Intensity Output and offers the best viewing experience compared to LCD Displays
- These displays are the cheapest displays available
7 Segment Led Display (Common Cathode)
7 Segment Led Display (Common Cathode), is a form of an electronic display device for displaying decimal numerals that is an alternative to the more complex dot matrix displays.
In a common cathode display, all of the LED segment cathode connections are connected to logic "0" or ground. Individual segments are illuminated by applying a "HIGH" or logic "1" signal to the individual Anode terminals via a current limiting resistor (a-g).
Read more: Implementation of 7 segment LED display Controller on FPGA
Seven-segment displays or ( 7 segment displays) are widely used in digital clocks, electronic meters, basic calculators, and other electronic devices that display numerical information. If you want to use a 7 Segment Led Display in your Arduino project, then you will need a few components like breadboard , jumper wires , resistors , capacitors and transistors.
Robocraze offers at best Common Cathode 7 segment display price in India. Don't settle for anything less than the best— Buy Common Cathode 7 Segment Display now for your next project from Robocraze.
Common Cathode Configuration
Common Cathode 7 Segment Display Truth Table
In a common cathode 7 segment display, all the cathodes of the LEDs are linked together. Each LED is accompanied by a current-limiting resistor connected between it and the +VCC. In this configuration, to activate a specific LED, it is connected to +5V. Thus, by connecting inputs a to g to VCC, digits ranging from 0 to 9 can be displayed. For instance, to display the digit 3, LEDs a, b, c, d, and g will emit light, while the remaining LEDs will remain inactive. Consequently, the illuminated LEDs will take the form of the digit 3.
Common Cathode 7 Segment Display Pinout:
Features:
- Pin Type: DIP (Dual In-line Package)
- Common Cathode Configuration
- High Light Intensity Output for optimal viewing
- Simple and easy interface with microcontrollers
Applications:
- Digital Clocks: Used to display time in a clear and easily readable format.
- Electronic Meters: Applied in various measuring instruments for numerical data display.
- Basic Calculators: Utilized for showcasing numerical calculations and results.
- Counters and Timers: Applied in devices that count or time events, such as countdown timers.
- Temperature Displays: Utilized in temperature monitoring systems for numeric temperature readouts.
- Numeric Displays: Suitable for any application requiring the display of numeric information.
- DIY Electronics Projects: Used by hobbyists and DIY enthusiasts in various electronic projects.
- Price Displays: Employed in retail settings for displaying product prices.
- Scoreboards: Used in sports and games to display scores and relevant information.
- Process Control Systems: Integrated into systems for displaying numeric process parameters.
How to Check 7-Segment Display is Common Anode or Cathode
Package Includes:
- 1 x 7 Segment Led Display (Common Cathode)
7 Segment LED Display Specifications
| Device type | Seven Segment Display |
| Display type | LED Display |
| Pin number | 10 |
| Pin type | DIP |
| Dimension | 19mm x 12mm x 7mm |
| Weight | 5 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
TM1637 4 Digit 7 Segment LED Display
Regular price
Rs. 44
Regular price
Rs. 59
Sale price
Rs. 44
Unit price
per
Incl. GST (No Hidden Charges)
Sale
7 Segment Led Display (Common Anode)
Regular price
Rs. 10
Regular price
Rs. 14
Sale price
Rs. 10
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Arduino UNO 21-in-1 Starter Kit compatible
Regular price
Rs. 1,424
Regular price
Rs. 2,319
Sale price
Rs. 1,424
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
1. What is common cathode 7-segment display?
In a common cathode display, all LED segment cathode connections are connected to logic "0" or ground. Individual segments are illuminated by applying a "HIGH" or logic "1" signal to the individual Anode terminals via a current limiting resistor (a-g).
2. How does a 7 segment LED display work?
A 7 segment display consists of seven distinct illuminating segments. These are arranged in a way to form numbers and characters by displaying different combinations of segments. These seven segments are used to display binary data.
3. How do you know if a 7-segment is anode or cathode?
Put your multimeter's black lead on pin 3 or 8. Both are common pins as they are internally connected. Now connect the red lead of your metre to any other pin, such as 1 or 5. If any of the display's segments glow then the display is a common cathode
4. What is the difference between common anode and common cathode 7 segment display?
The primary distinctions between common anode and common cathode are as follows:
- Common cathode: All of the LED segments' cathodes are linked together and connected to the ground in a common cathode configuration. A current-limiting resistor connects the anode of each segment separately to a positive voltage source (Vcc). A HIGH (Vcc) signal must be applied to a segment to make it light up.
- Common anode: All of the LED segments' anodes are linked together and coupled to a positive voltage source, usually Vcc, in a common anode configuration. A current-limiting resistor connects the cathode of each section separately to the ground. Applying a LOW (0V) signal to a segment's corresponding pin will light it up by grounding it. Completing the circuit, permits current to pass through that section and lighting it.
5. What is the common cathode IC number for 7 segment?
The 74LS47 or 7447 is a popular IC used to drive common cathode 7-segment displays. It acts as a BCD-to-7-segment decoder/driver IC.
6. Is common cathode positive or negative?
A common cathode is a negative side. when we talk about a common cathode configuration, it means that the cathode terminals of all the LEDs in the display are tied together and connected to the ground (negative voltage). This makes the cathode the common terminal shared by all segments.
