24 in 1 Sensors DIY Learning Kit

24-in-1 Sensors DIY Learning Kit

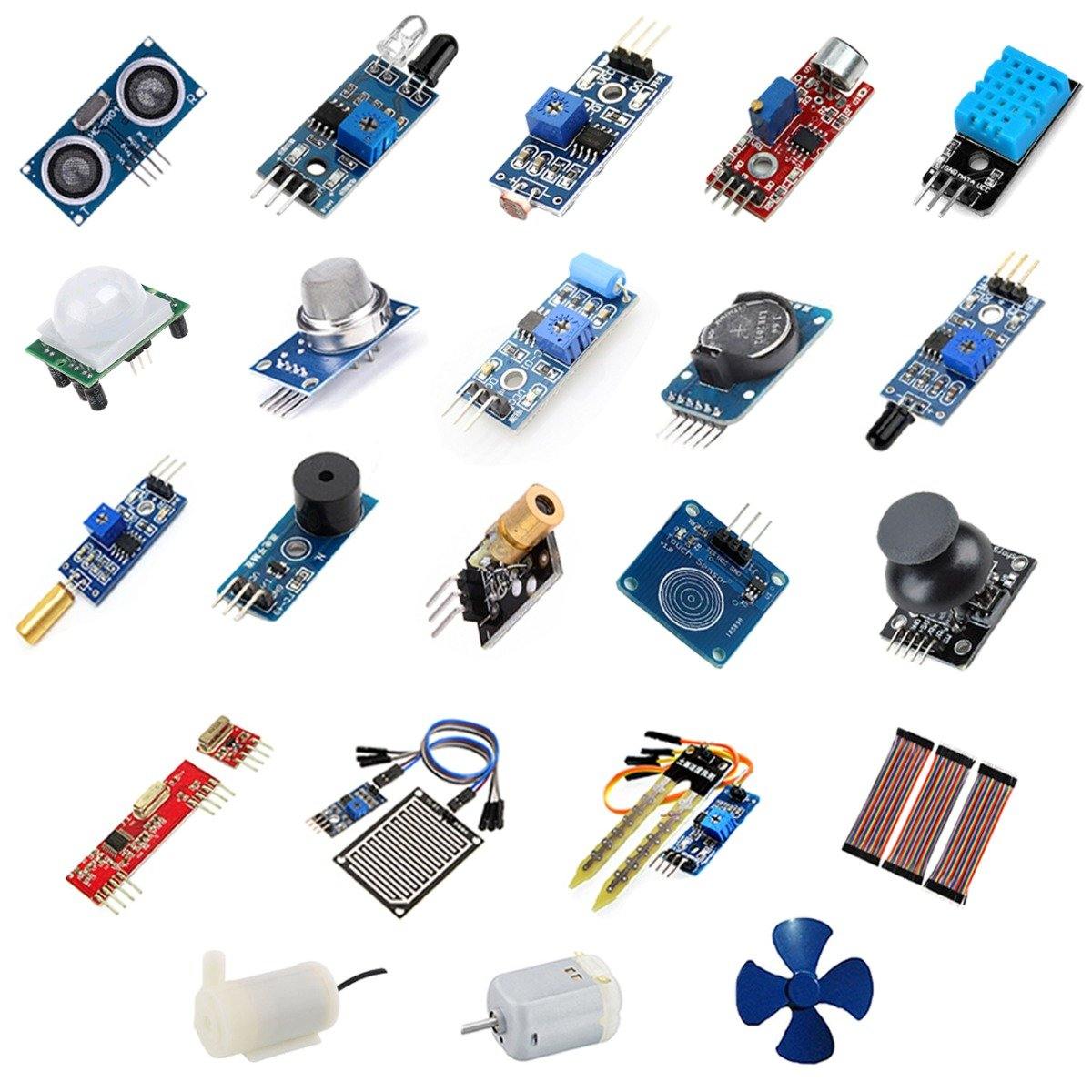

The DIY sensors learning kit is an amazing way to learn about embedded systems and electronics engineering. This sensors kit contains 24 components that are compatible with Arduino. These sensors are easy to use and understand and therefore do not require any coding or programming skills.

This sensor kit consists of; distance sensors, light sensors, temperature sensors, and much more helping you get started with a variety of projects

The sensors learning kit is similar to a stem education kit since it is based on the idea of educating students in 4 different fields of science, technology, engineering, and mathematics in an applied method. All sensors & modules included in our kit are compatible with different micro-controllers like Raspberry Pi, Arduino, ESP, Micro:bit, Witty Fox, and many more.

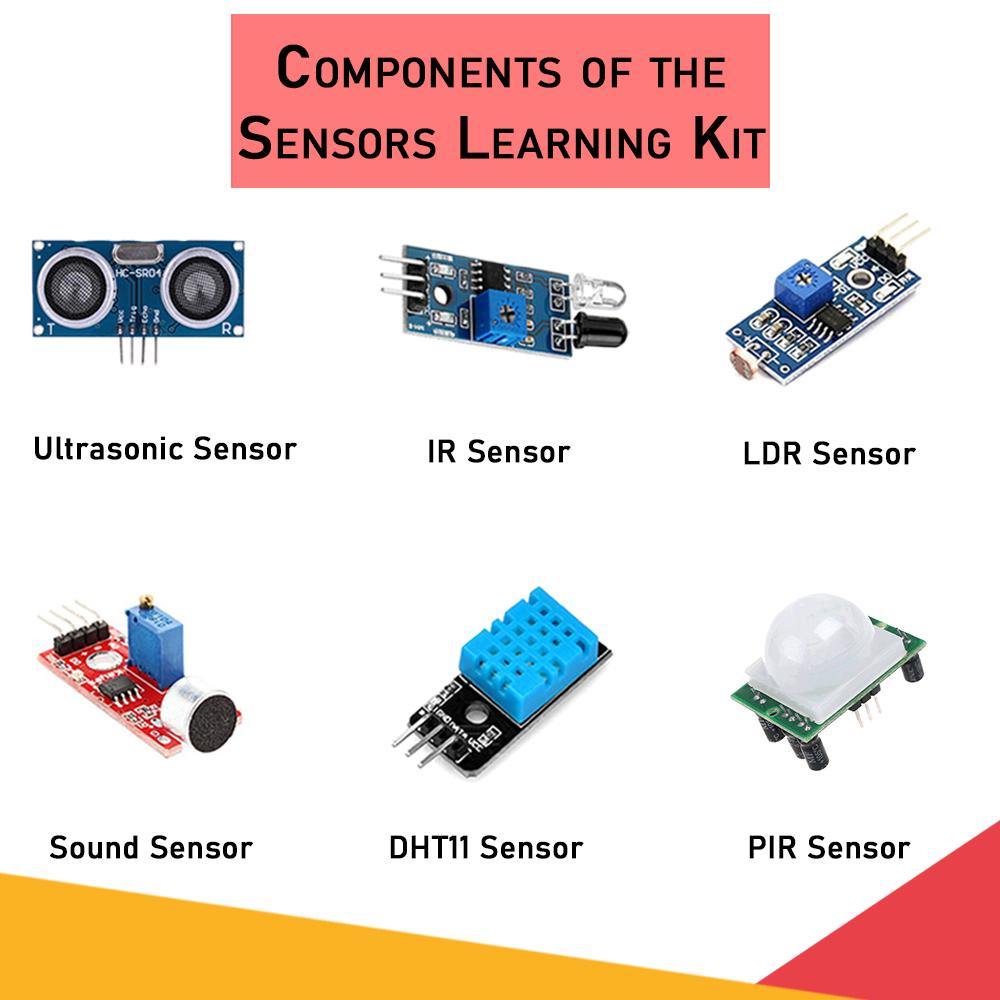

PIR Sensor: The PIR Motion Sensor Module allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to as using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion Sensor” sensors.

IR Sensor: The IR Proximity Sensor module has great adaptive capability of the ambient light, having a pair of an infrared transmitter and a receiver tube, the infrared emitting tube emits a certain frequency, and encounters an obstacle detection direction (reflecting surface), infrared reflected back to the receiver tube receiving, after a comparator circuit processing, the green LED lights up, while the signal output will output digital signal.

DHT11 Temperature Sensor: ?The module can detect the surrounding environment of the humidity and temperature and gives the output from the digital output.

HCSR04 Ultrasonic Sensor:  ?This HC-SR04 Ultrasonic Range Finder is a very popular sensor that is found in many applications where it requires measuring distance and detecting objects.

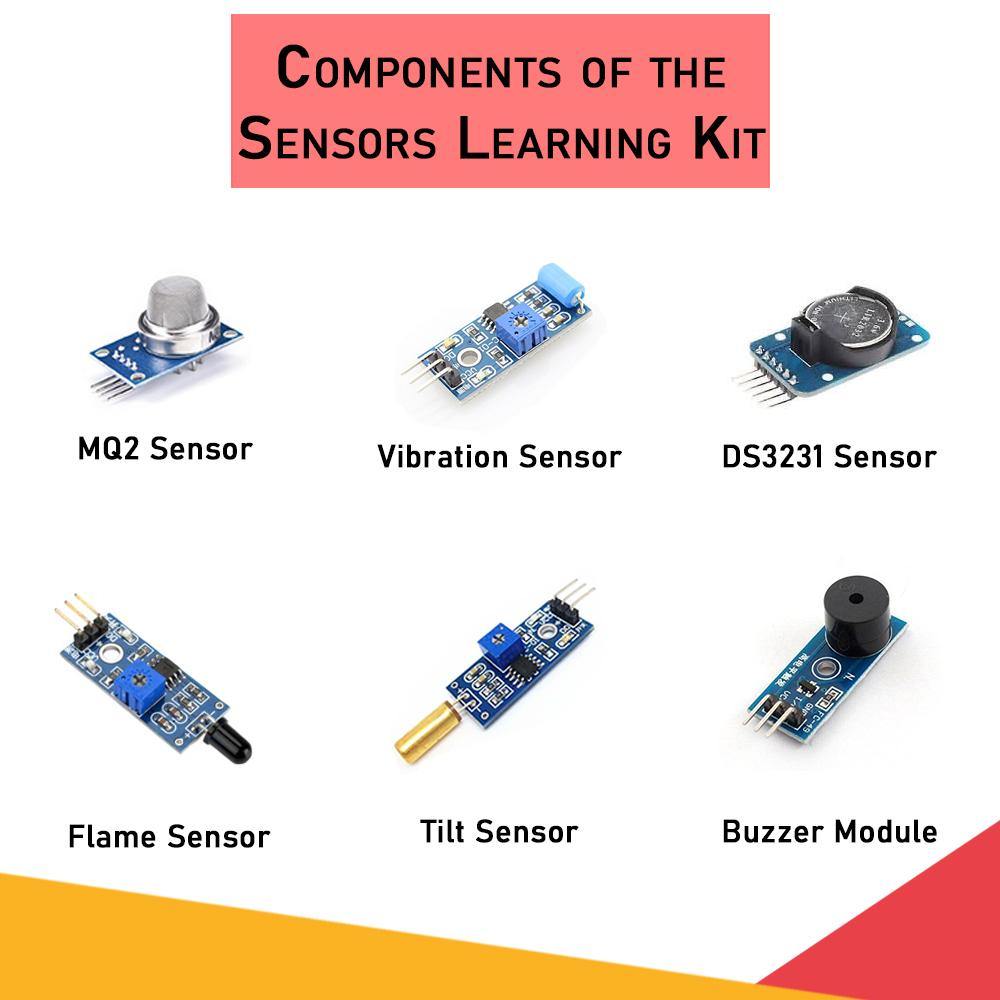

MQ2 Gas Sensor: The MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Detector Module is useful for gas leakage detection (home and industry). It is suitable for detecting H2, LPG, CH4, CO, Alcohol, Smoke, or Propane. Due to its high sensitivity and fast response time, measurements can be taken as soon as possible. The sensitivity of the sensor can be adjusted by the potentiometer

LDR sensor module: The LDR sensor Module is used to detect the presence of light and measure the intensity of light. The output of the module goes high in the presence of light and it becomes low in the absence of light. The sensitivity of signal detection can be adjusted using the potentiometer.

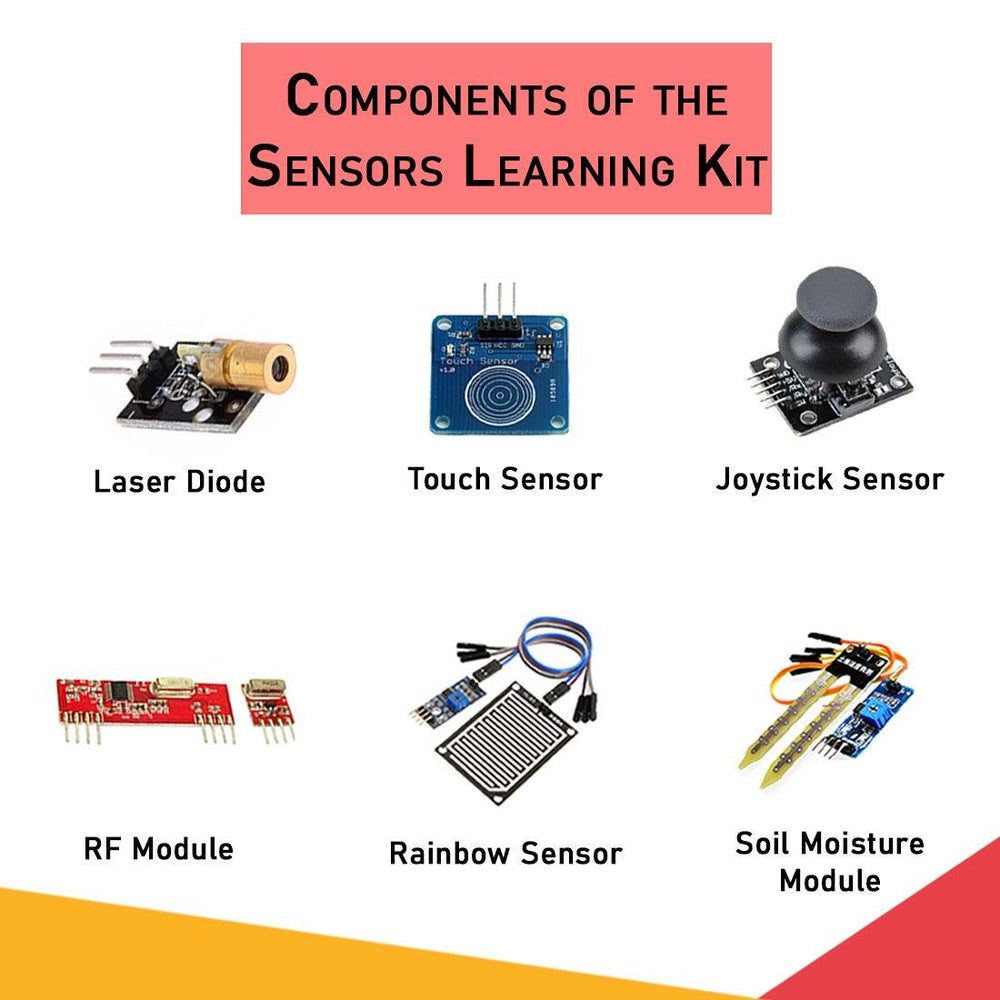

Joystick Module: This is a dual-axis high-quality JoyStick Module. It can be used to sense movements in 2 directions(axes). It also has an inbuilt switch which can be activated by pressing the stick. Directional movements are simply two potentiometers - one for each axis.

Sound Sensor Module - This Sound Detection Sensor Module consists of a Microphone, resistors, capacitor, potentiometer, comparator LM393 IC, Power, and status LED in an integrated circuit. Sound Detection Module Sensor for Intelligent Vehicle Compatible With Arduino is a Single channel signal output Sensor. The output is effective to the low-level sound signal with good fidelity, When there is sound, outputs low level and signal light.

Projects and tutorials for the Sensors Learning kit:

This sensors learning kit is designed and curated to create and build various innovative projects. These projects are helpful and act as a learning element for the students. Some of the DIY projects along with the tutorial blog and video are mentioned below:

• DIY Automatic Sanitizer Dispenser

• DIY Obstacle Avoider Robot car

• DIY Line Follower Robot
