XH-W3001 Intelligent Led Digital Microcomputer Temperature Controller Mini Thermostat Switch with Water-Resistant Sensor Probe 10A (Max) Multipurpose Controller
XH-W3001 Intelligent Led Digital Microcomputer Temperature Controller Mini Thermostat Switch with Water-Resistant Sensor Probe 10A (Max) Multipurpose Controller
Couldn't load pickup availability
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Easy to install
- Output type: AC Output (AC 220V 1500W).
- Output capacity: MAX 10A temperature measurement, display; refrigeration, heating control
- Temperature setting upper and lower limits
- Simple operation, suitable for seafood machines.
- Upper key: The start temperature is displayed in one press, and long press to set start temperature.
- Lower key: The stop temperature is displayed in one press, and long press to set stop temperature.
XH-W3001 Intelligent Led Digital Microcomputer Temperature Controller Mini Thermostat Switch with Water-Resistant Sensor Probe 10A (Max) Multipurpose Controller

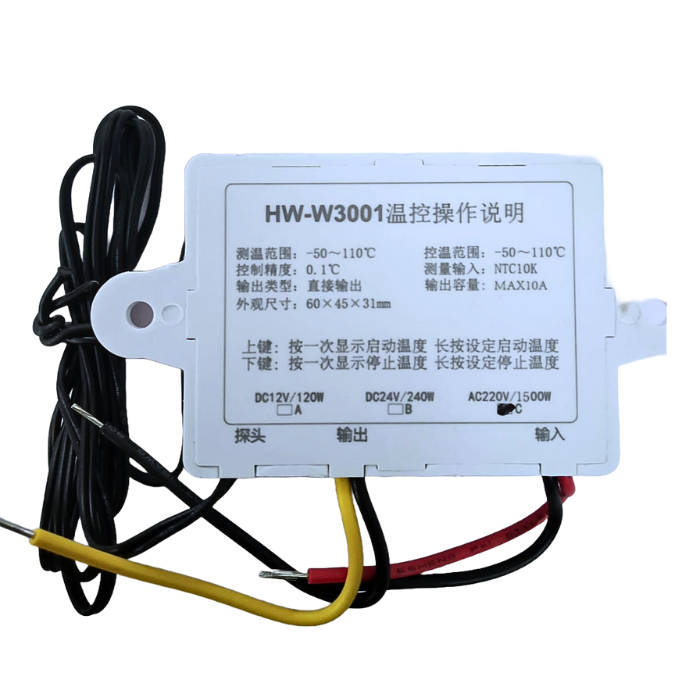

This is XH-W3001 AC 220V 1500W Digital Temperature Controller Microcomputer Thermostat Switch. A temperature measurement and Controller tool with high accuracy and precision at a very low cost.
It offers a high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 110℃.
TheLED Display shows the results clearly. One can directly install or embed the XH-W3001 in industrial control equipment panel, convenient and quick.
It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmental protective.
Digital display LLL: If the digital tube displays LLL, the sensor is faulty. Please repair the sensor or replace the sensor.
Digital display HHH: If the digital tube displays HHH, this is because the detected temperature is beyond the measurement range.
Button functions of the XH-W3001 Controller:
- Press UP to show the start temperature button.
- On Long press of the UP button, the display starts flashing, then press the UP or DOWN button Set the beginning of the temperature value
- Press Down the display button to stop temperature.
- On the Long press of the Down button, the display starts flashing, then press the Up or Down button Set to stop the temperature value.
Also check the XK-W2001 Adjustable Temperature Controller Socket with 1M Probe and AU Plug available on Robocraze. The adjustable temperature controller socket features a clear digital display for better readability and has a wide temperature measuring range from -50℃ to 110℃.
Package Includes:
- 1 x XH-W3001 Intelligent Led Digital Microcomputer Temperature Controller Mini Thermostat Switch with Water-Resistant Sensor Probe 10A (Max) Multipurpose Controller
Specifications:
| AC Output | AC 220V 1500W |
| Temperature Measuring Range | -50~110°C |
| Temperature Control Range | -50~110°C |
| Control Accuracy | Upto 0.1℃ |
| Dimensions | 6 x 5 x 3cms |
| Weight | 150 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
1. How to set the temperature and restore the factory settings?
- To set the Startup Temperature:
Press the UP Button once and display the start temperature.
Press and hold the UP Button for about 3 seconds, then Startup temperature flashed, you can use the UP/DOWN Button to adjust the Startup Temperature.
To set the Desired Temperature:
Press the Down Button once and display the desired temperature.
Press and hold the Down Button for about 3 seconds, then desired temperature flashed, you can use the UP/DOWN Button to adjust the Desired Temperature.
To restore factory settings:
When power is on, press and hold the UP/DOWN Button at the same time, the display will show 888 and then automatically perceive current temperature, the factory settings have been restored.
2. How to set heating and cooling mode in the XH-W3001 temperature controller?
Heating Mode | Cooling Mode |
Control the water heater: Heat it to 50 °C stop. When return the temperature to40 °C to start the heating again. How to set it? 1. Startup Temperature(40 °C) < Desired Temperature(50 °C). 2. Press and hold 3 seconds for the UP Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust 40 °C. 3. Press and hold 3 seconds for the DOWN Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust 50 °C. | The radiator is controlled: The heat is cooled to 26 °C stop. When temperature is raised to 30 °C to start the radiator again. How to set up? 1. Startup Temperature(30 °C) > Desired Temperature(26 °C). 2. Press and hold 3 seconds for the UP Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust to 30 °C. 3. Press and hold 3 seconds for the DOWN Button. When the temperature value flashes, press UP/DOWN BUTTON to adjust to 26 °C. |
