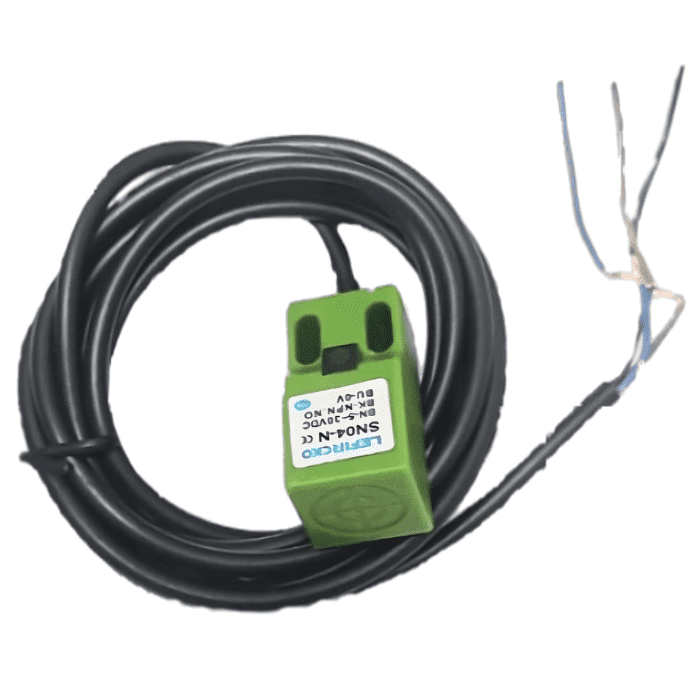

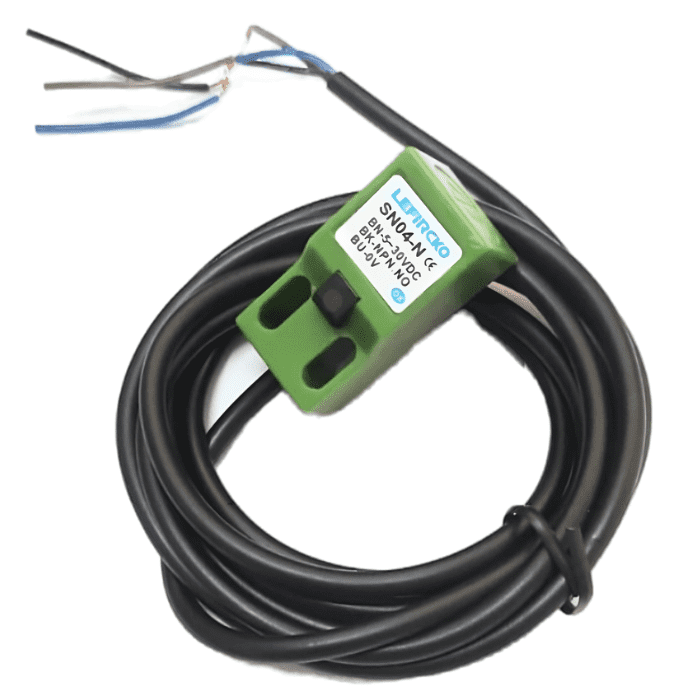

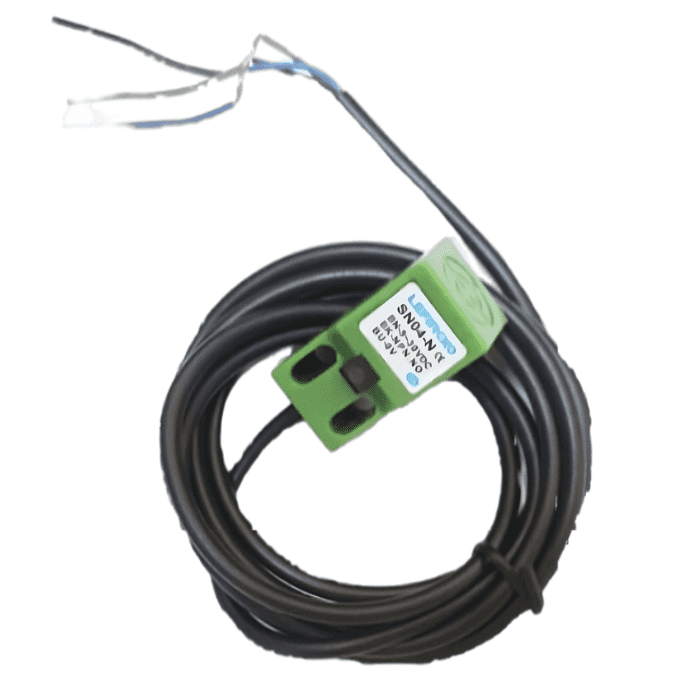

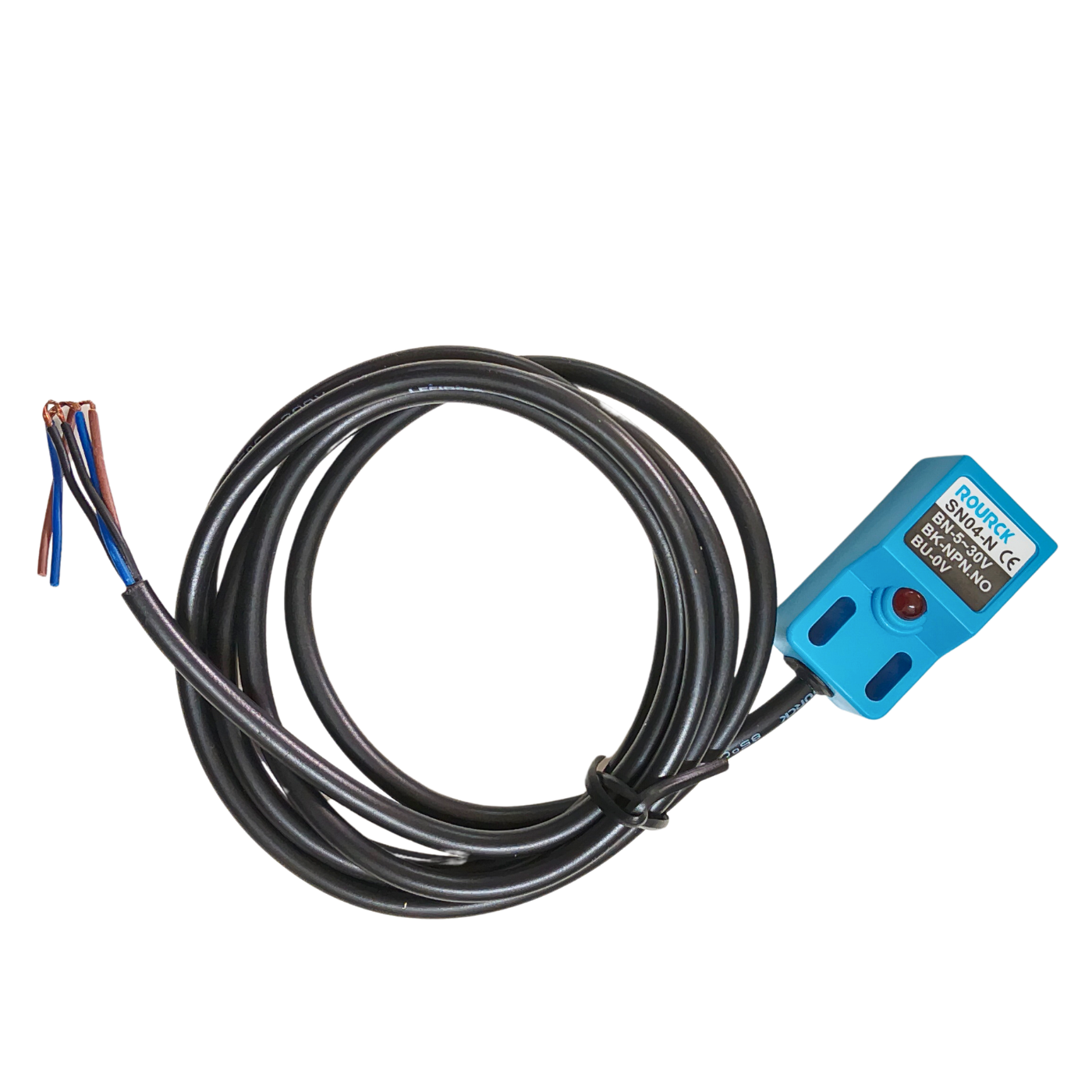

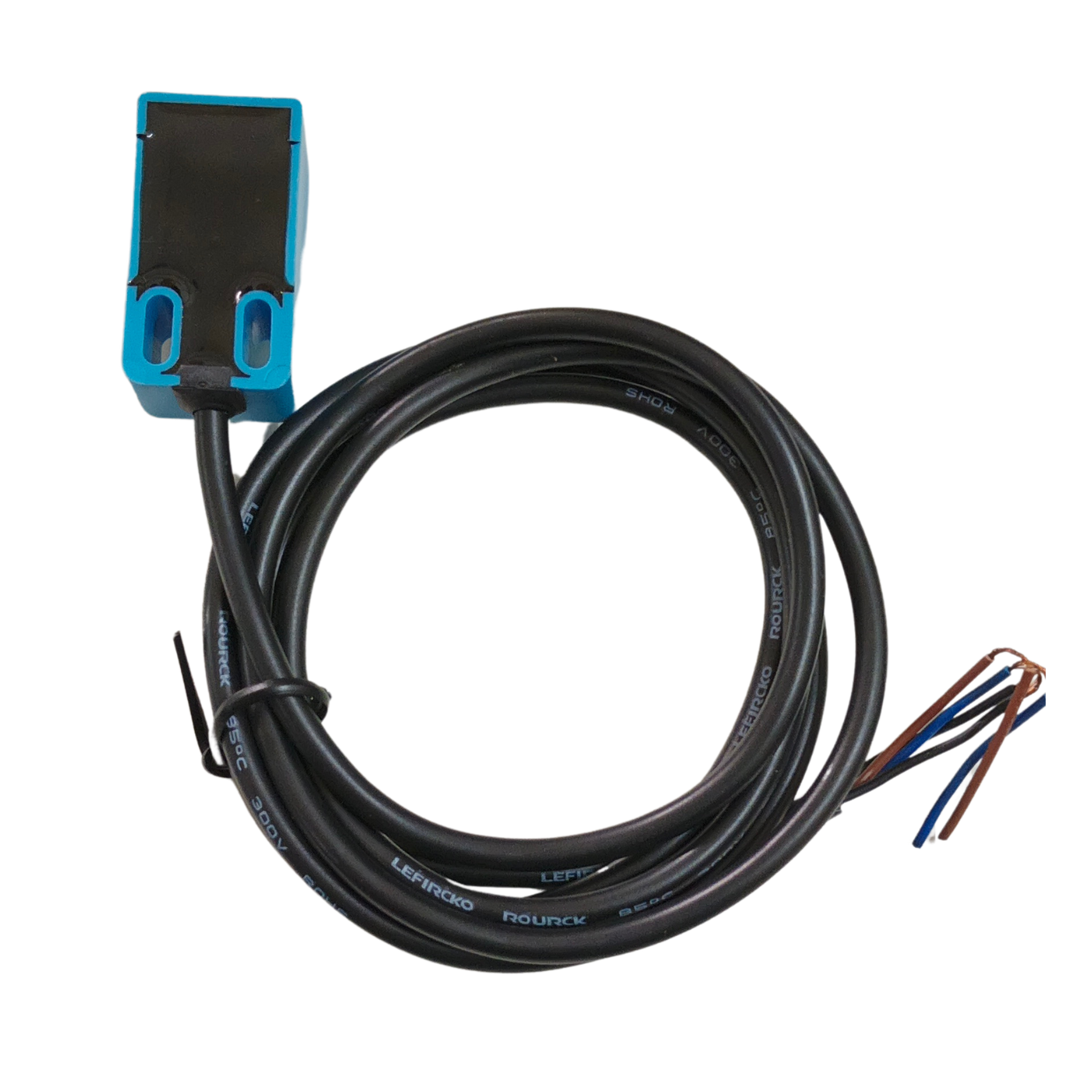

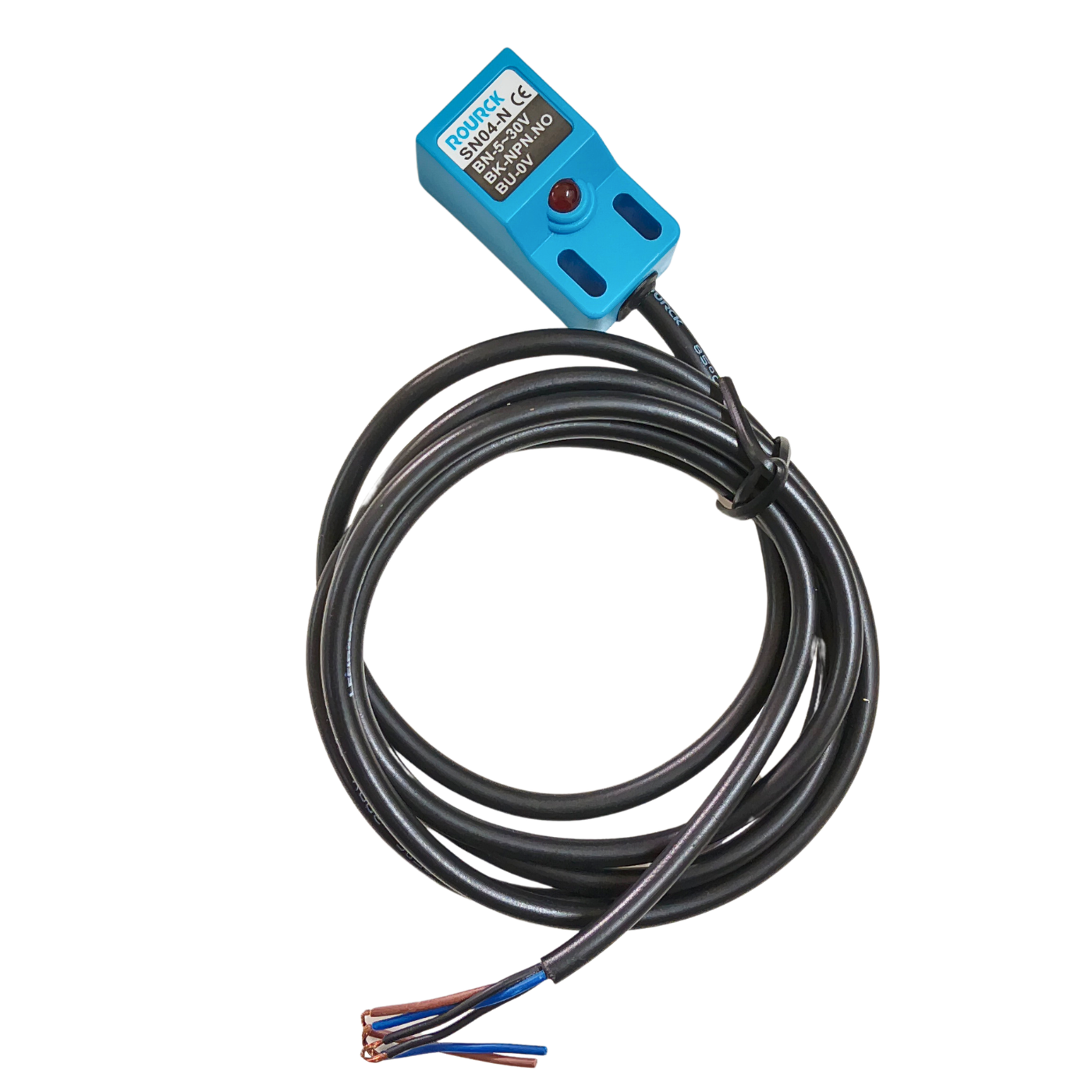

SN04-N NPN NO Distance Proximity Sensor Switch Module

Regular price
Rs. 225
Sale price
Rs. 225
Regular price
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • The SN04-N NPN distance detector is a proximity detection sensor that can detect distance upto 5mm.
  • It is integrated withan LED indicator that turns on when the device is powered and increases in brightness when an object is detected.
  • The detection sensor can detect through thin, non-metallic materials.
  • It features reverse power protection and short circuit protection upon directly connecting with PLC.
  • Buy the SN04-N NPN distance detector online at best prices.

Related Tags
Distance proximity sensor
Distance sensor
Distance/Proximity
Sensor
Sensors
SN04 Sensor

SN04-N NPN NO Distance Proximity Sensor Switch Module

The SN04-N NPN proximity sensor switch module is a 5mm diatance detector  will detect the presence of a metallic object within 4mm of the surface of the sensor. The distance that the proximity sensor switch detects may vary with respect to the size and material of the object. This SN04-N NPN distance detector features an LED indicator and is manufactured with materials that antivibration, dust, water and oil prevention.

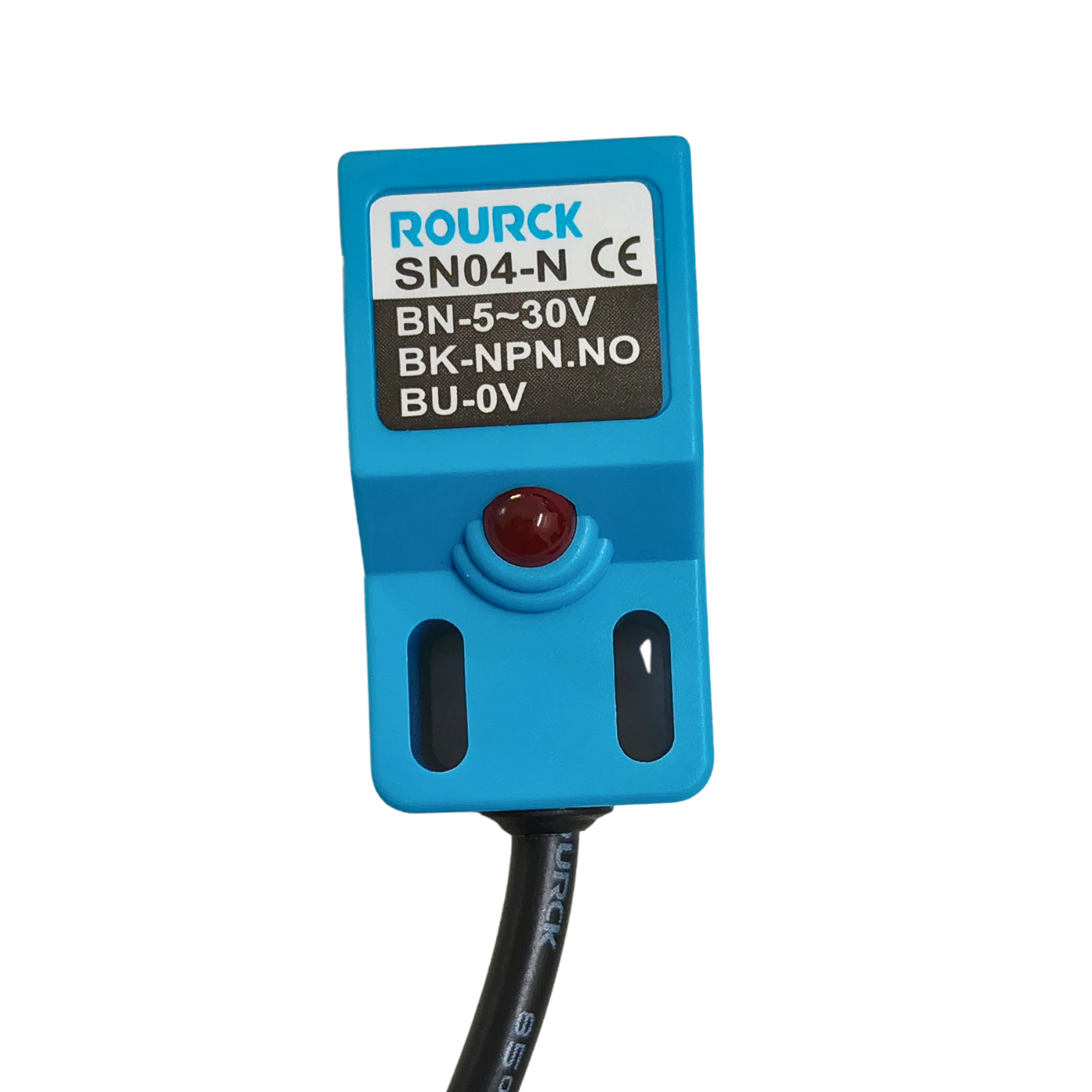

Connections:

  • Brown wire: 10 ~ 30 VDC (+Ve).
  • Blue wire: 0 V (GND).
  • Black wire: signal.

Package Includes:

  • 1 x SN04-N NPN distance detector

Distance Detector Specifications

Operating Voltage 10-30V
Current Consumption  5mA (Max)
Detection distance 5mm
Type of detection Induction
Cable Length 145 cm
Response Frequency 500Hz Max
Dimensions  3.6 x 1.8 x 1.8cms
Weight  100 grams

Frequently Asked Questions

1. What are the features of this sensor?

  • Red LED checks the state of the proximity sensor
    High repeated positioning accuracy
    High switching frequency
    Wide voltage range
    Anti vibration, dust, water and oil prevention
    Reverse power protection, short circuit protection, directly connecting with PLC
    It can replace small switches and limit switches.
