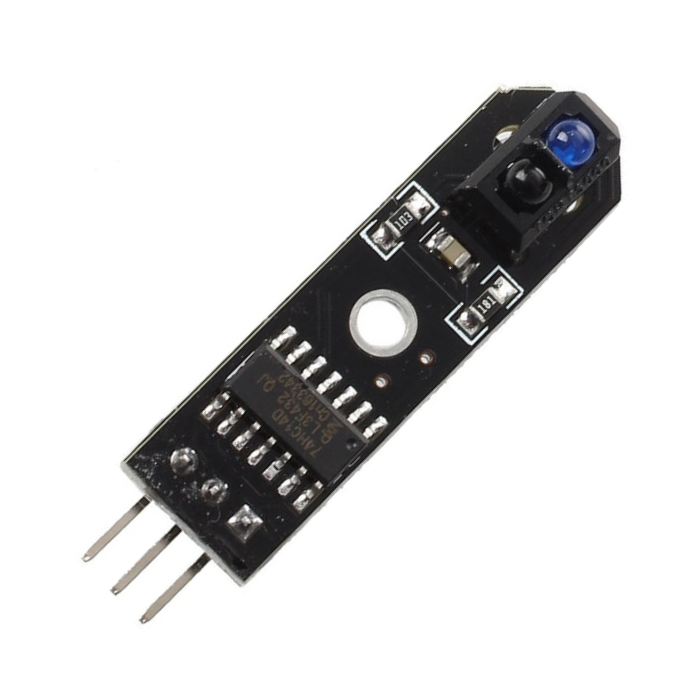

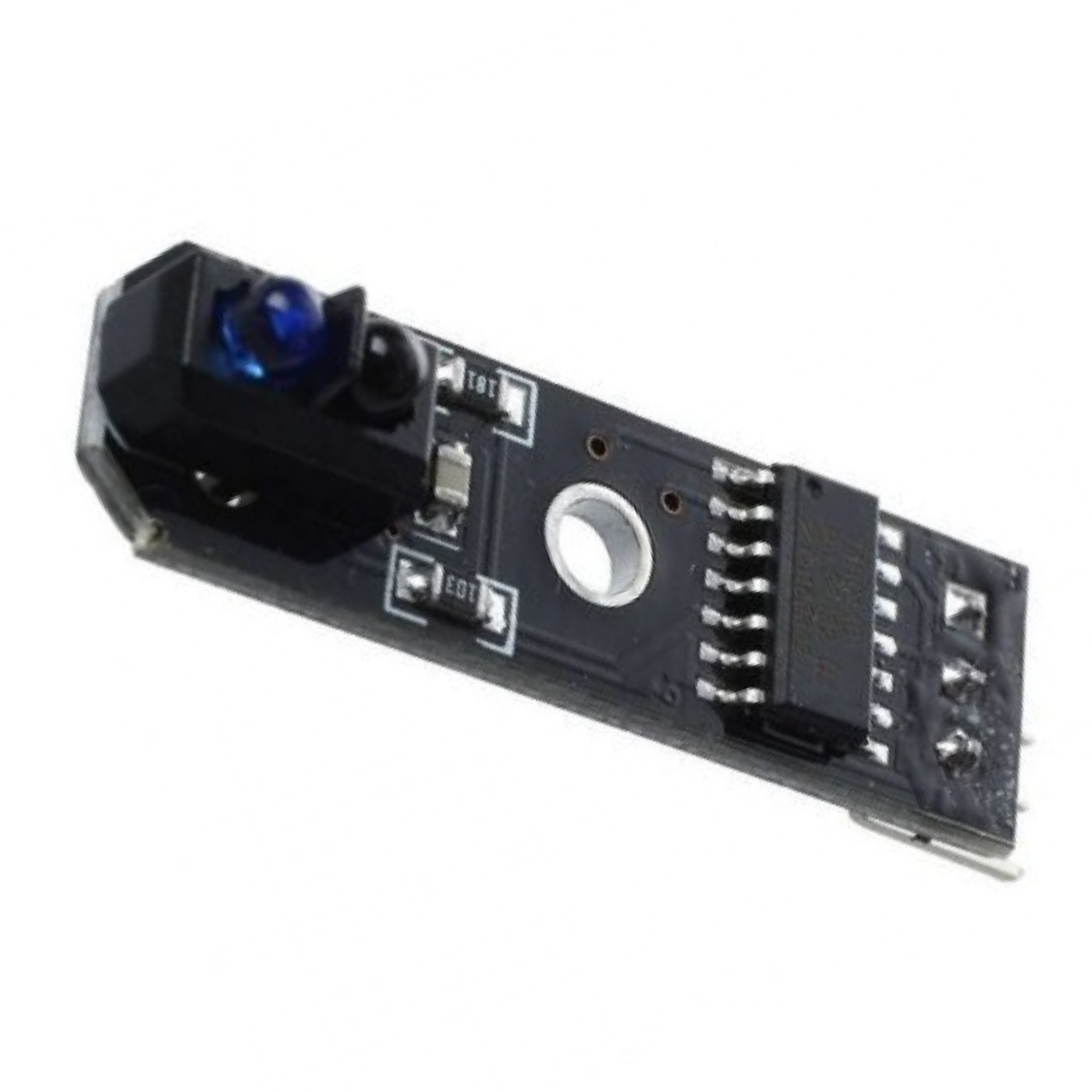

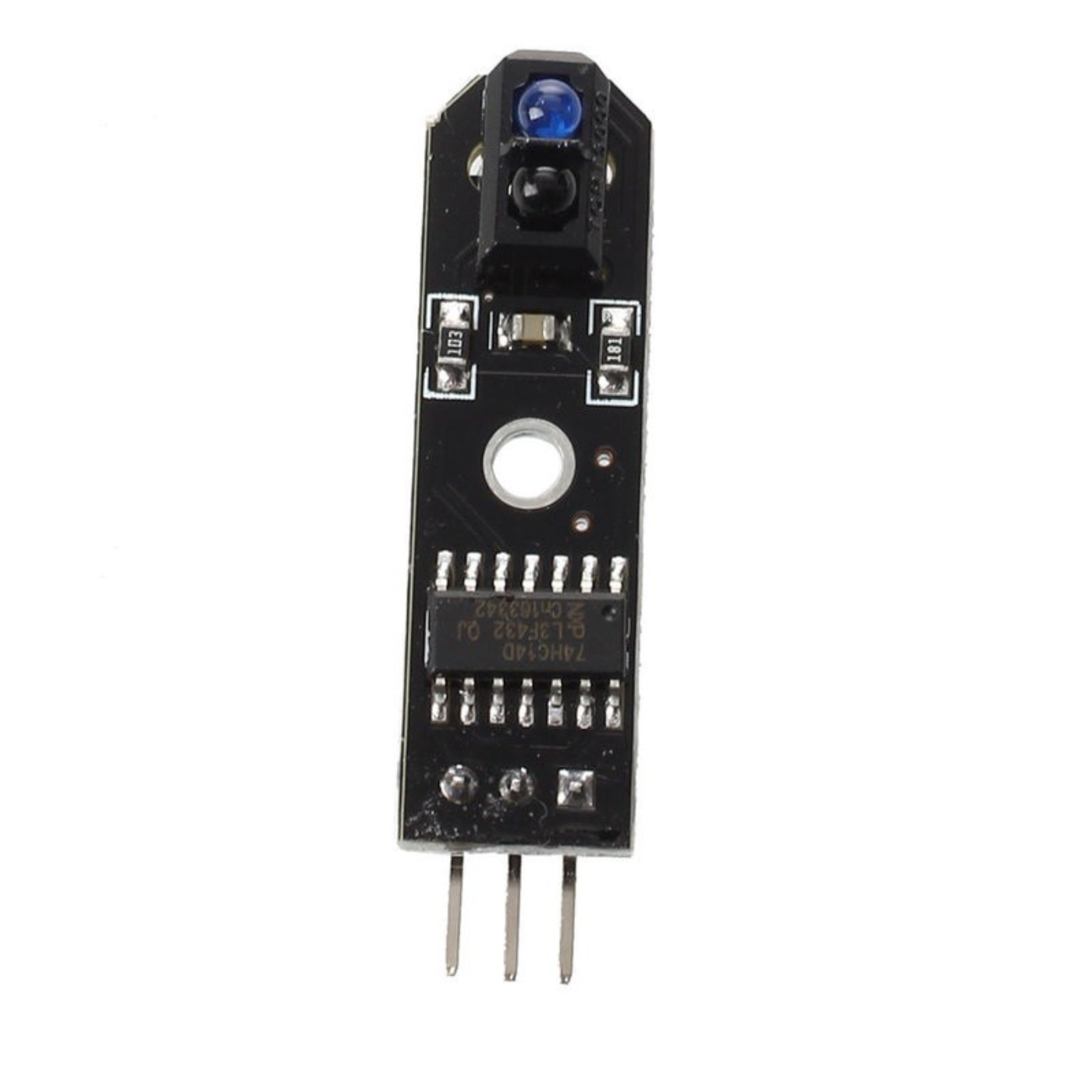

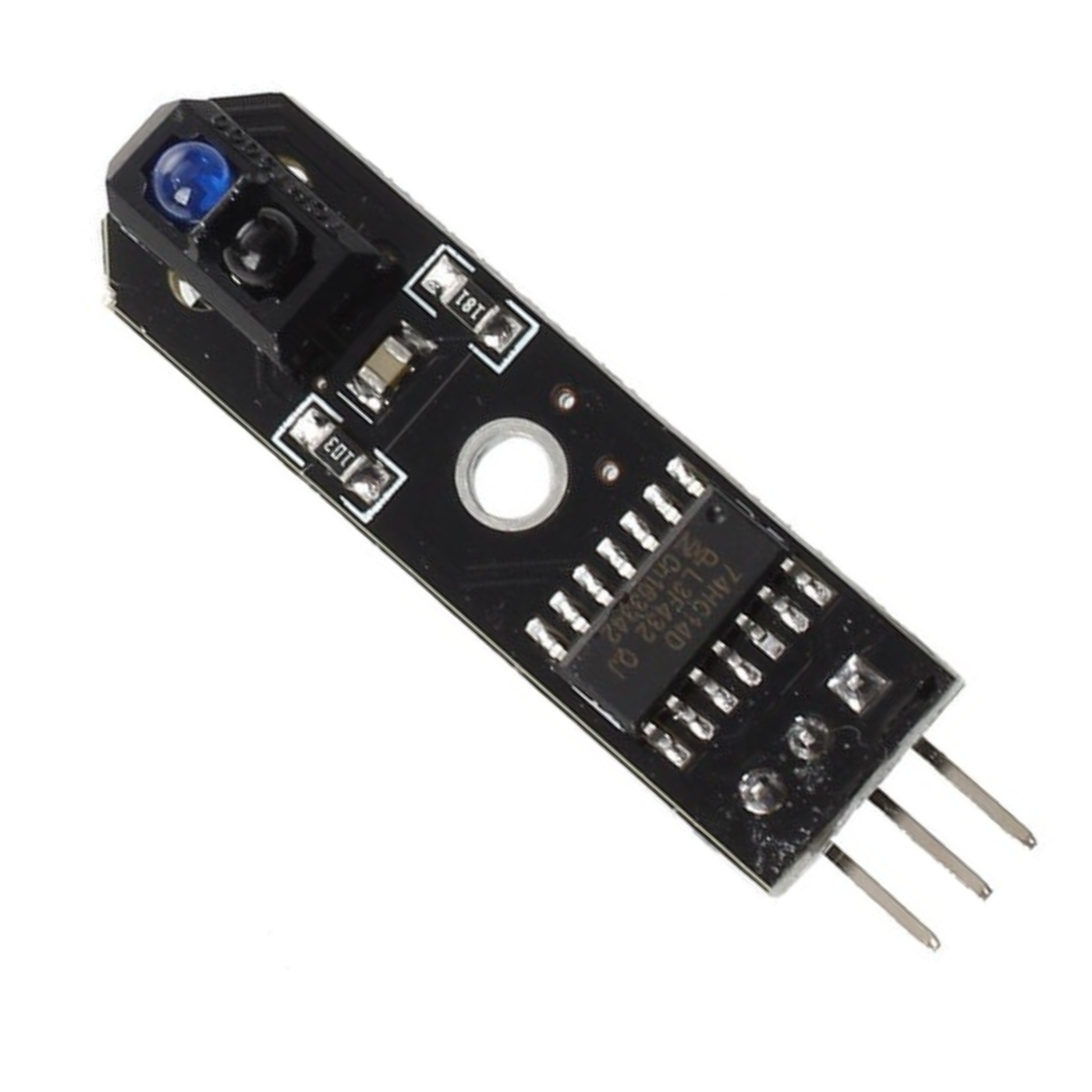

KY033 TCRT5000 Sensor

KY033 TCRT5000 Sensor

Rs. 33
Rs. 58 Rs. 33
Sale Sold out 43% off Best Price Guaranteed
You save Rs. 25 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 8 hours and 44 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • The working voltage of 5V, the output of the black line low, white line of high output
  • Uses Infrared Light to Detect Anti-Interference Ability
  • Sensors to adopt TCRT5000 High Sensitivity, Stable Performance
  • Exquisite workmanship, with the indicator
  • Has a fixed bolt hole for easy installation
Trust Badge 1 Trust Badge 2 Trust Badge 3

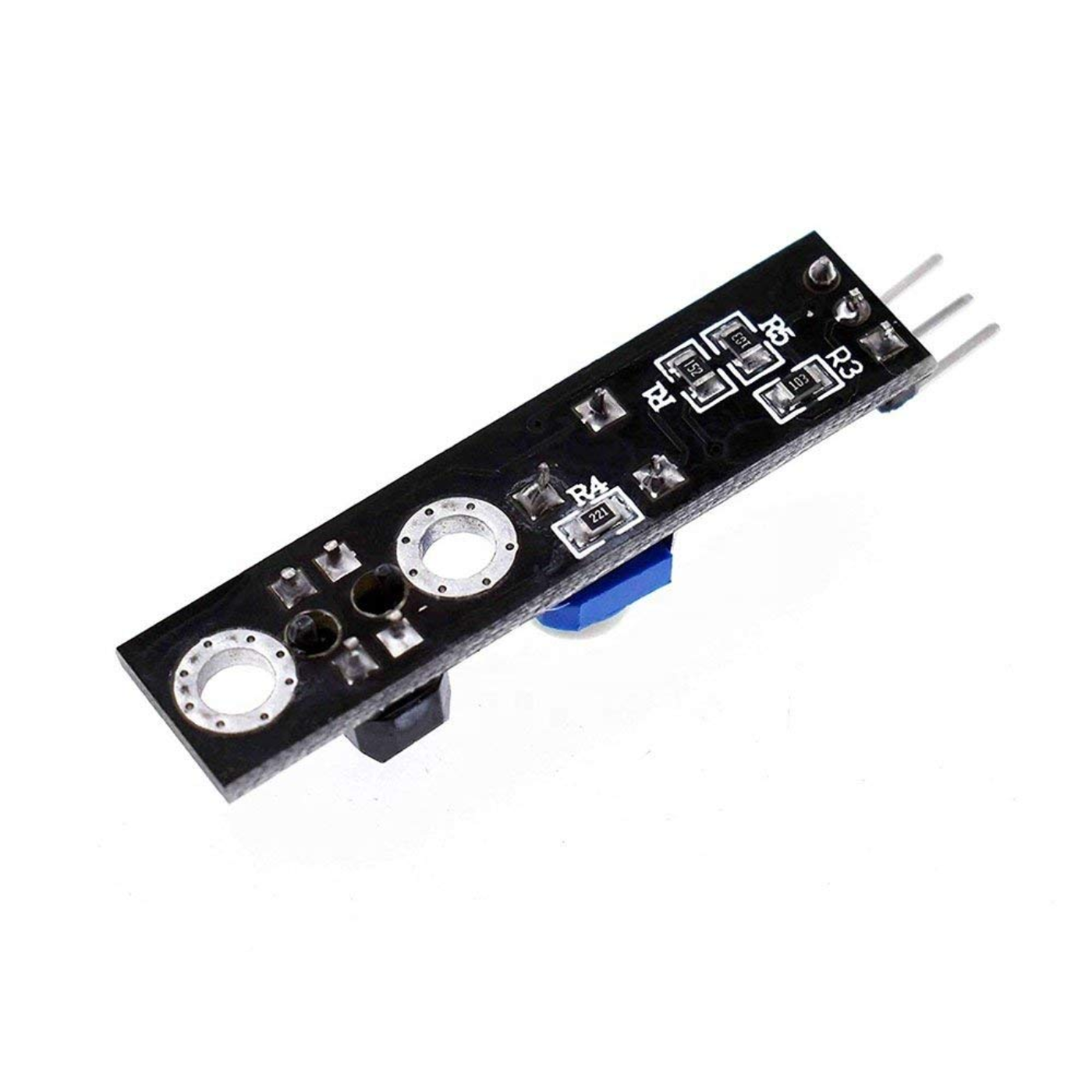

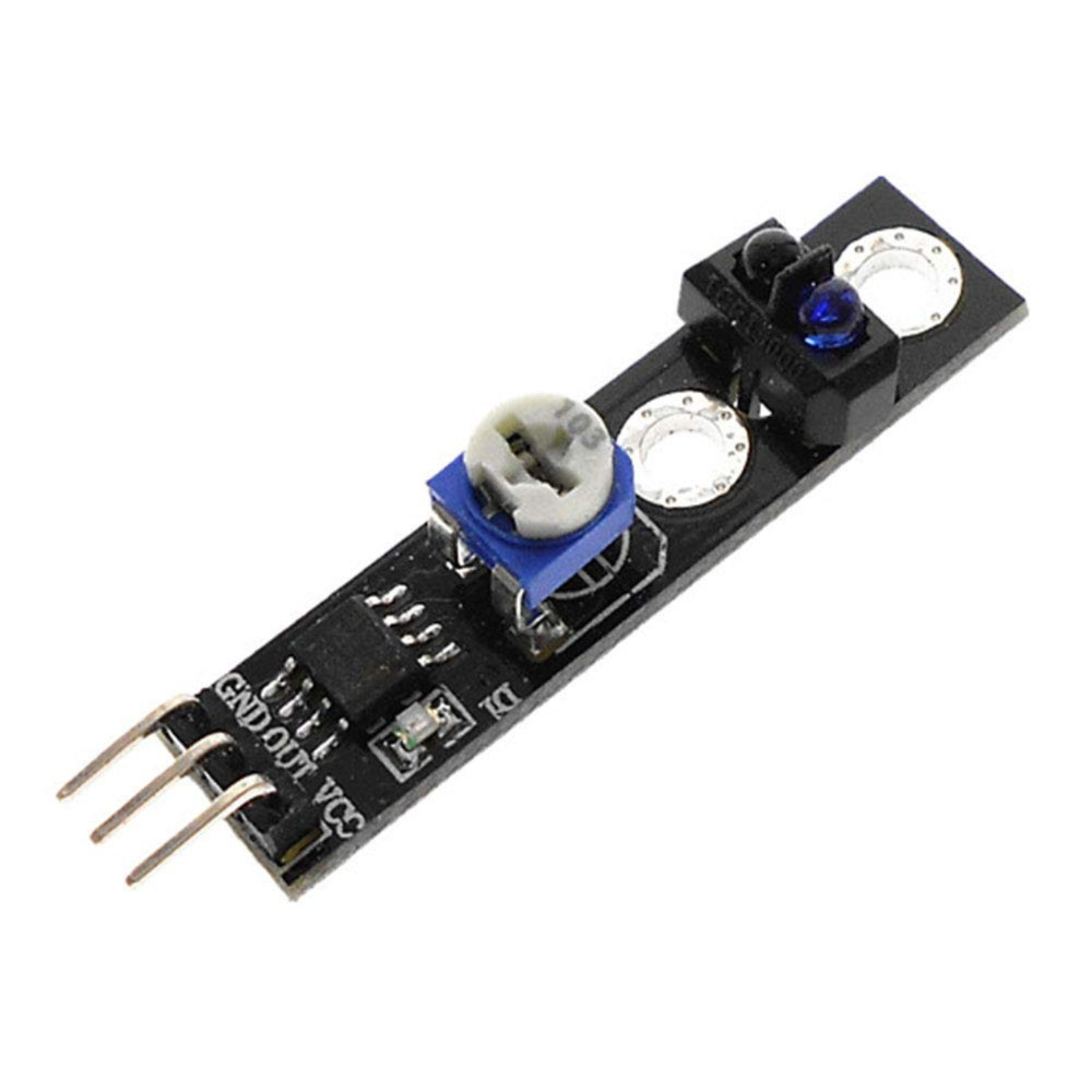

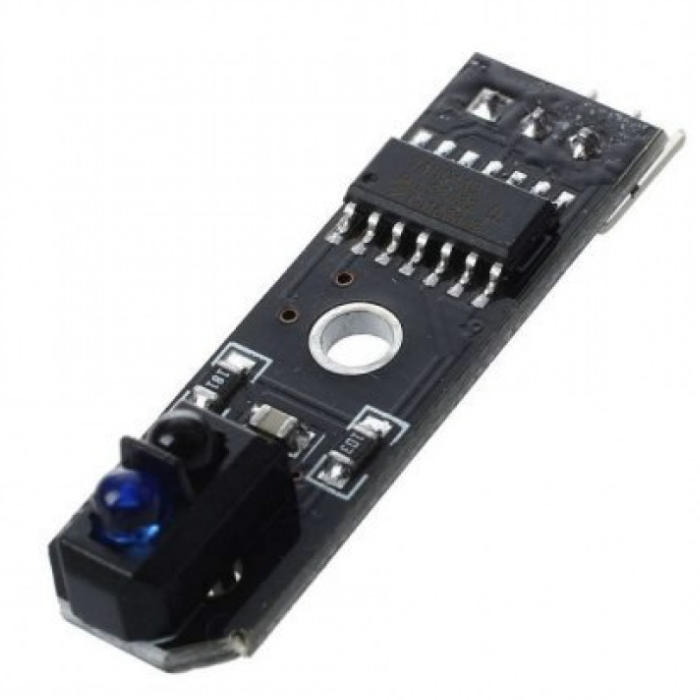

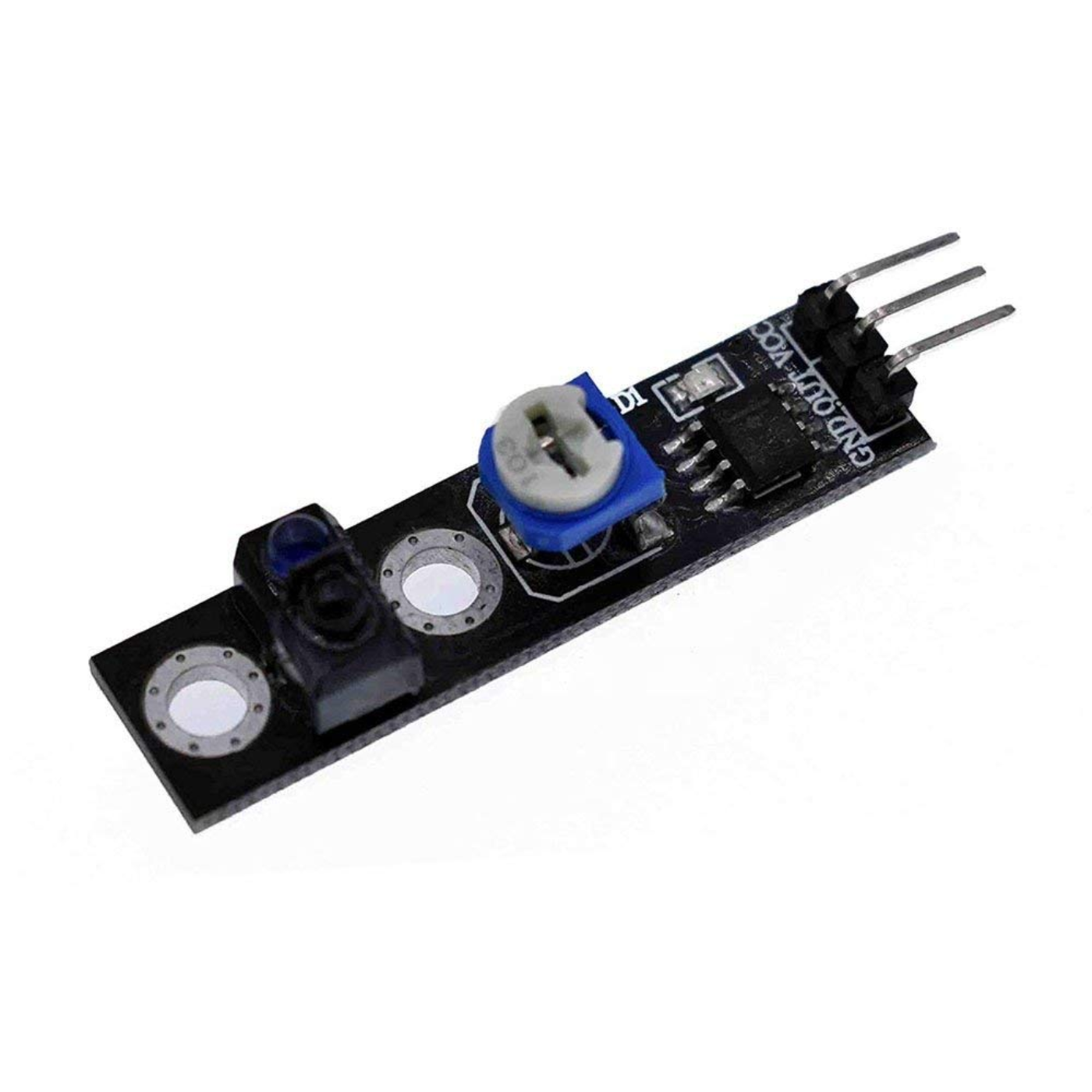

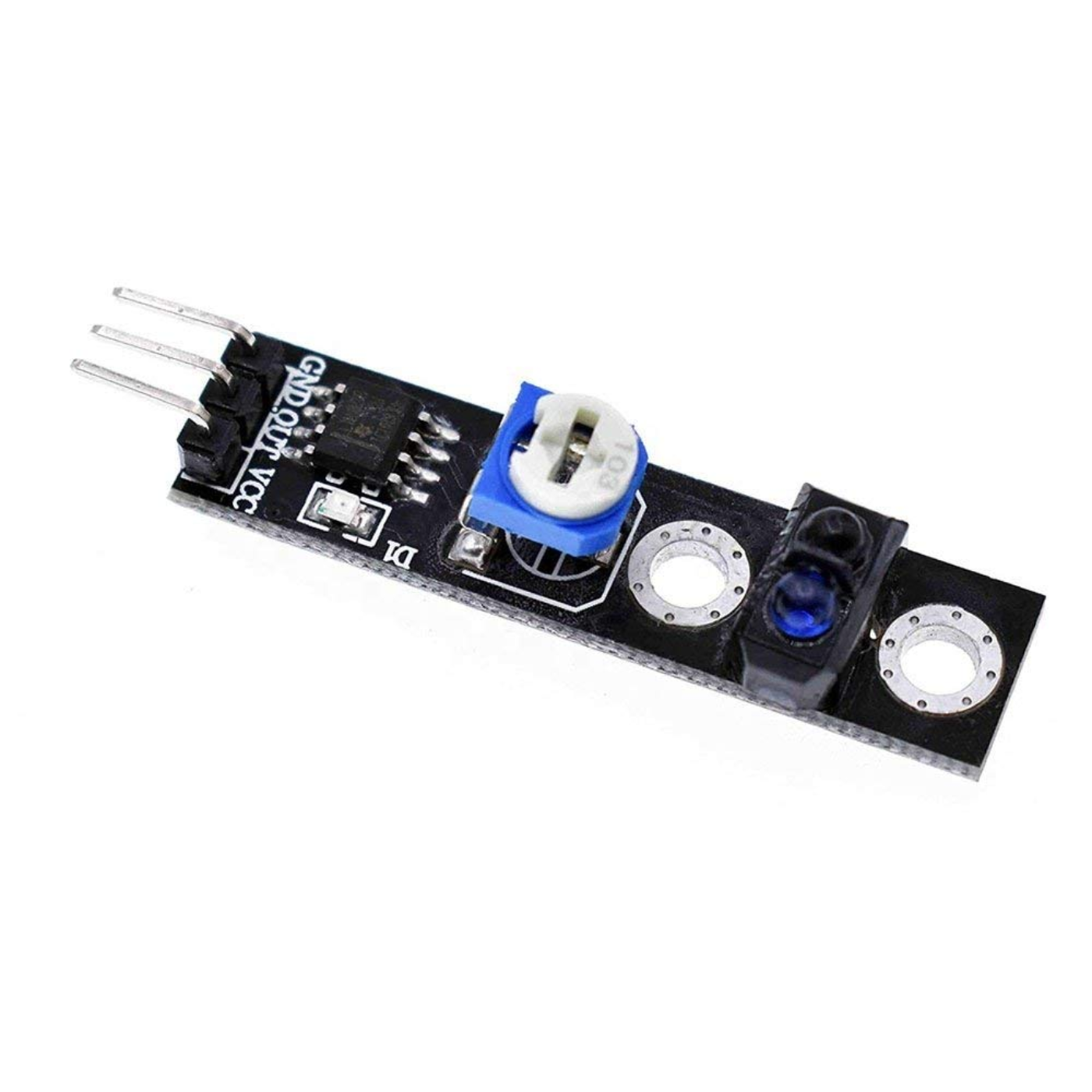

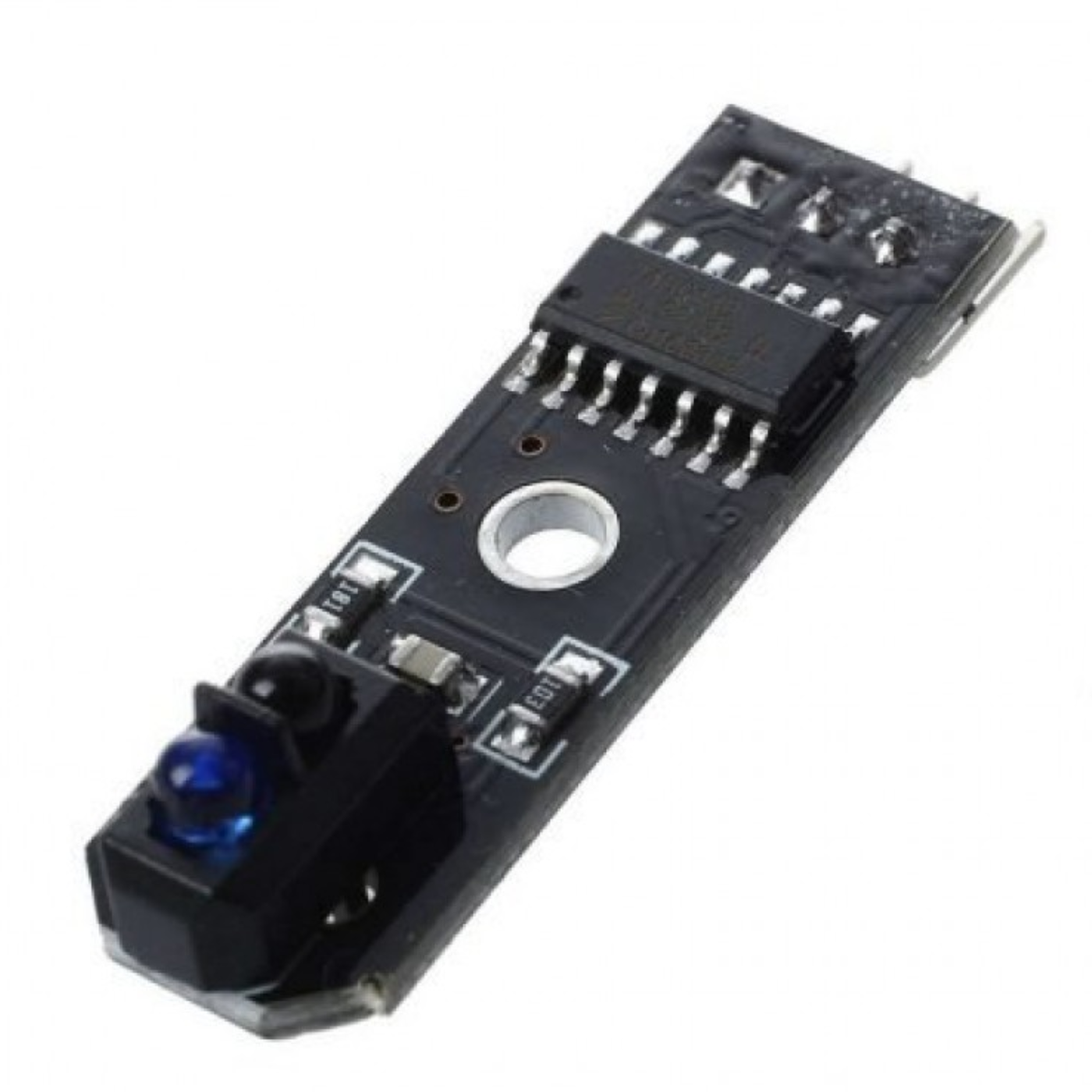

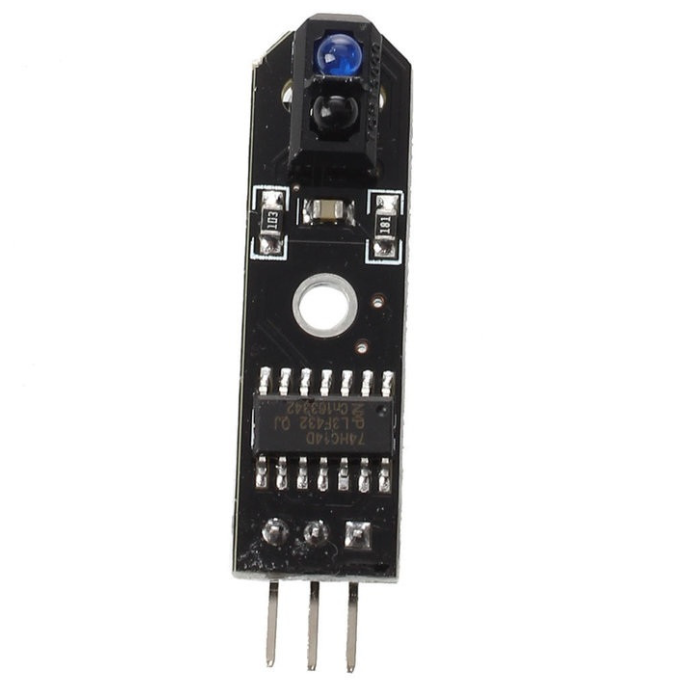

KY033 TCRT5000 Sensor

The TCRT5000 Single Channel Line Tracking Sensor Module is a great detector for a line-following robot. Potentiometer to adjust the sensitivity of the individual sensors.

TCRT5000 infrared sensor emits infrared emitting diode continuously when no infrared rays emitted or reflected back is reflected back but the strength is not large enough, the phototransistor has been in the off state, and the output terminal of the module is high, indicating that the diode has been in the off state; in the object to be detected within the detection range, and the intensity of the reflected infrared rays is large enough, phototransistor saturated, and the output terminal of the module is low, the indicator LED is lit.

TCRT5000 Single Channel Line Tracking Sensor Module is a carrier board for the TCRT5000 reflective optical sensor. Although it is designed for use with line-following robots, it can be used in mini-sumo robots for line control. The board has a digital output.

Applications:

  • Position sensor for shaft encoder
  • Detection of reflective material such as paper, IBM cards, magnetic tapes etc.
  • Limit switch for mechanical motions in VCR
  • General purpose - wherever the space is limited

Package Includes:

  • 1 x KY033 TCRT5000 Sensor

Specifications:

Operating Voltage (VDC) 3.3 ~ 5
Supply Current (A) 20mA
Output Format Analog and Digital Voltage
Dimensions 4.2 x 1 x 1cms
Weight  5 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

People Also Buy

-39%
UNO DIY Line Follower Kit compatible with Arduino-Robocraze

Arduino UNO DIY Line Follower Kit compatible

Rs. 1,499
Rs. 2,456 Rs. 1,499
You save Rs. 957 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Sale
-36%
37 in 1 Sensors Kit for Arduino-Robocraze

37 in 1 Sensors Kit for Arduino

Rs. 962
Rs. 1,499 Rs. 962
You save Rs. 537 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Sold out
-24%

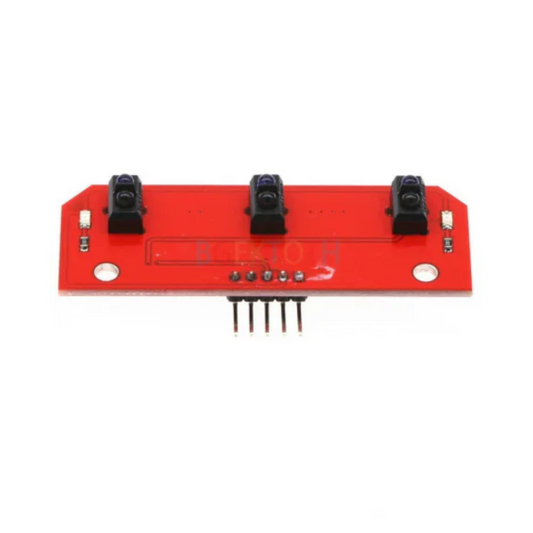

3 Channel IR Infrared CTRT5000 Line Detection Module

3 Channel IR Infrared CTRT5000 Line Detection Module

Rs. 156
Rs. 204 Rs. 156
You save Rs. 48 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Sale

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 4

ADDITIONAL RESOURCES

1. What is an IR Sensor and why is it not visible?

  • An infrared (IR) sensor is an electronic device that measures and detects infrared radiation in its surrounding environment. Infrared radiation was accidentally discovered by an astronomer named William Herchel in 1800. While measuring the temperature of each color of light (separated by a prism), he noticed that the temperature just beyond the red light was highest. IR is invisible to the human eye, as its wavelength is longer than that of visible light. Anything that emits heat gives off infrared radiation

2. What are the types of IR sensor and their difference?

  • There are two types of infrared sensors: active and passive.
    • Active infrared sensors both emit and detect infrared radiation.
    • Passive infrared (PIR) sensors only detect infrared radiation and do not emit.
