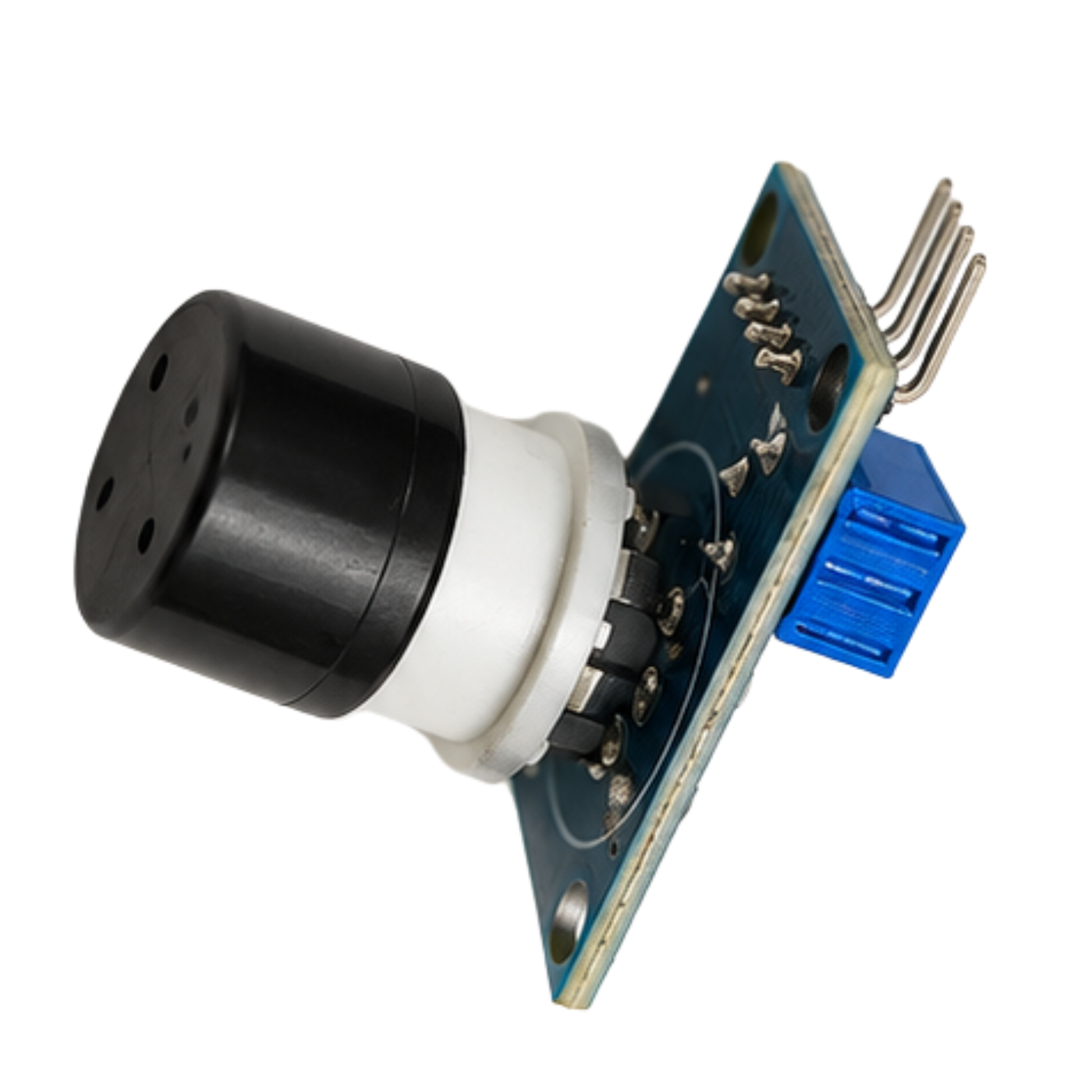

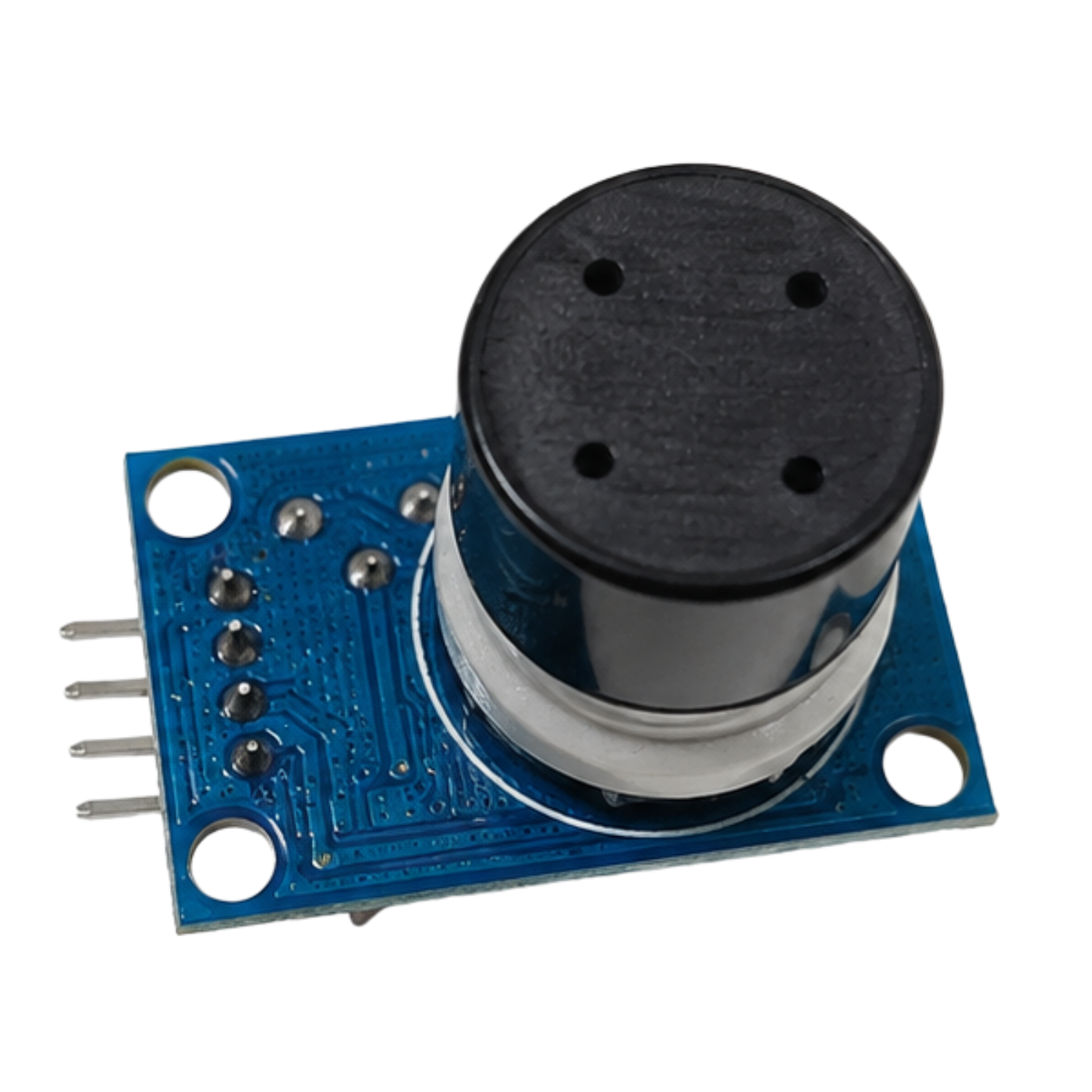

MQ131 Ozone Gas Detection Module For ozone gas (O3) Detector Module
MQ131 Ozone Gas Detection Module For ozone gas (O3) Detector Module
Low stock: 8 left
Regular price
Rs. 1,609
Regular price
Rs. 1,999
Sale price
Rs. 1,609
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
-
The gas sensor module is integrated with MQ131 as its main chip.
-
The MQ131 gas sensor is designed to sense ozone gas in the environment.
-
It features rapid response and recovery characteristics.
-
The probe can plug design for easy testing.

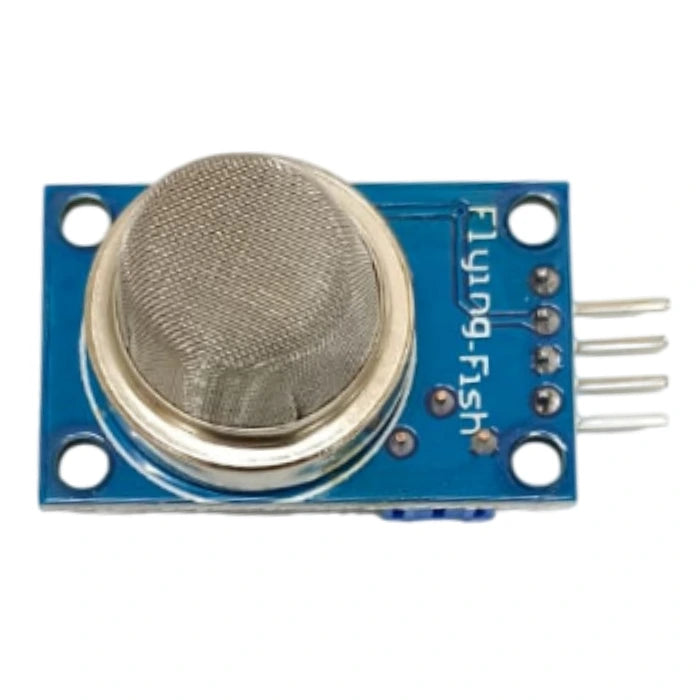

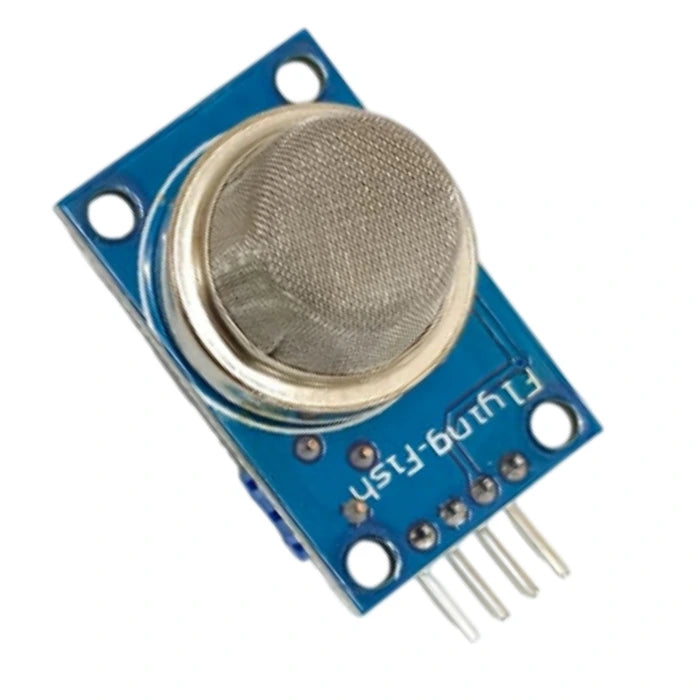

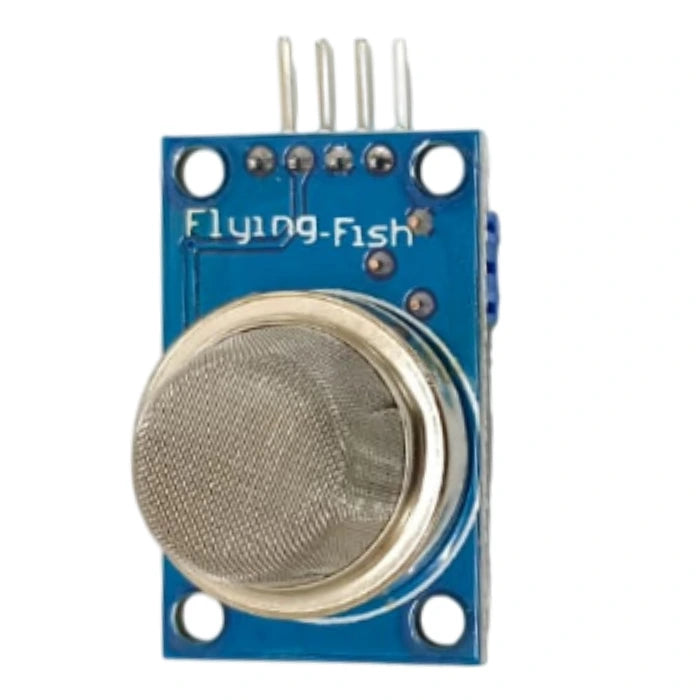

MQ131 Ozone Gas Detection Module
The MQ131 gas sensor module is a device that can detect the presence of ozone gas (O3) in the air. It is commonly used in applications such as air quality monitors and industrial control systems. The MQ131 sensor operates by using a chemical reaction between the ozone gas and a conductive metal oxide to produce a current. The magnitude of the current is proportional to the concentration of ozone gas in the air. The sensor can be used to detect ozone gas concentrations in the range of 0.05-10 ppm. Ozone is a toxic gas that can be harmful to humans at high concentrations. It is recommended to use the MQ131 sensor with caution and to take appropriate safety measures when working with it.
The sensitive material of the MQ131 gas sensor is O3 SnO2, which with lower conductivity in clean air. When Ozone gas exists. The sensor’s conductivity is higher along with the gas concentration rising. Please use a simple electro circuit, Convert the change of conductivity to corresponding output signal of gas concentration. MQ131 gas sensor has a high sensitivity to Ozone, also sensitive to O3 CL2, NO2, etc.
Features:
- Detection Gas: Ozone (O3).
- Detection Range: 10 to 1000 ppb (parts per billion).
- Sensor Type: Semiconductor.
- Operating Voltage: Typically 5V DC.
- Output: Analog signal output, with a voltage range of 0-5V.
- Sensitivity: High sensitivity to ozone and other strong oxidizing gases like chlorine (Cl2) and nitrogen dioxide (NO2).
- Response Time: Fast response and recovery.
- Durability: Long service life and reliable stability.
- Interface: Easy to interface with microcontrollers like Arduino and Raspberry Pi.
- Power Consumption: Low power consumption, suitable for continuous monitoring
APPLICATIONS:
- Domestic ozone concentration alarm
- Industrial ozone concentration alarm
- Portable ozone concentration detector
Package Includes:
- 1 x MQ131 Ozone Gas Detection Module
Specifications:
| Model | MQ131 |
| Gas Sensitivity | Ozone |
| Working Voltage | 5V |
| Dimensions | 32mm X22mm X30mm |
| Weight | 10 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
MQ-137 NH3 Gas Sensor Module for Ammonia, Carbon monoxide Detector Module
Regular price
Rs. 1,554
Regular price
Rs. 1,999
Sale price
Rs. 1,554
Unit price
per
Incl. GST (No Hidden Charges)
Sale

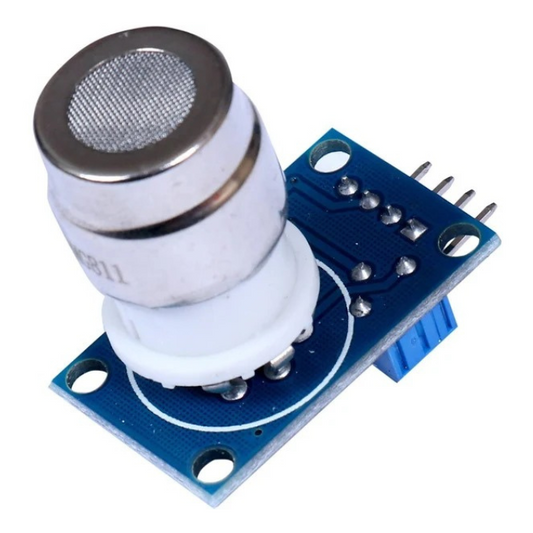

MG811 Carbon Dioxide Sensor For Carbon Dioxide Detector Module
Regular price
Rs. 2,569
Regular price
Rs. 3,914
Sale price
Rs. 2,569
Unit price
per
Incl. GST (No Hidden Charges)
Sale
24 in 1 Sensors DIY Learning Kit
Regular price
Rs. 1,358
Regular price
Rs. 1,604
Sale price
Rs. 1,358
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. What are gas sensors? How do they work?
- Gas sensors (also known as gas detectors) are electronic devices that detect and identify different types of gasses. They are commonly used to detect toxic or explosive gasses and measure gas concentration.
Gas sensor detects the presence or concentration of gases in the atmosphere. Based on the concentration of the gas the sensor produces a corresponding potential difference by changing the resistance of the material inside the sensor, which can be measured as output voltage. Based on this voltage value the type and concentration of the gas can be estimated.
2. What is MQ-131 Ozone gas sensor?

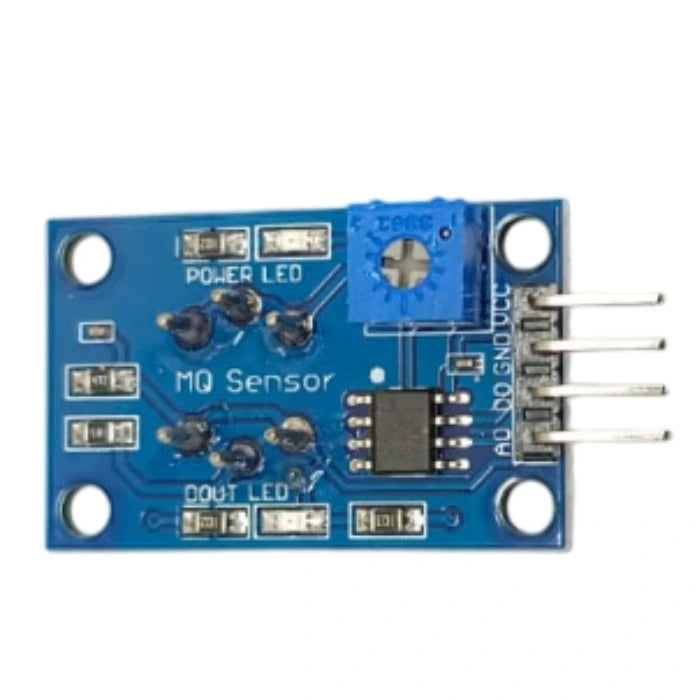

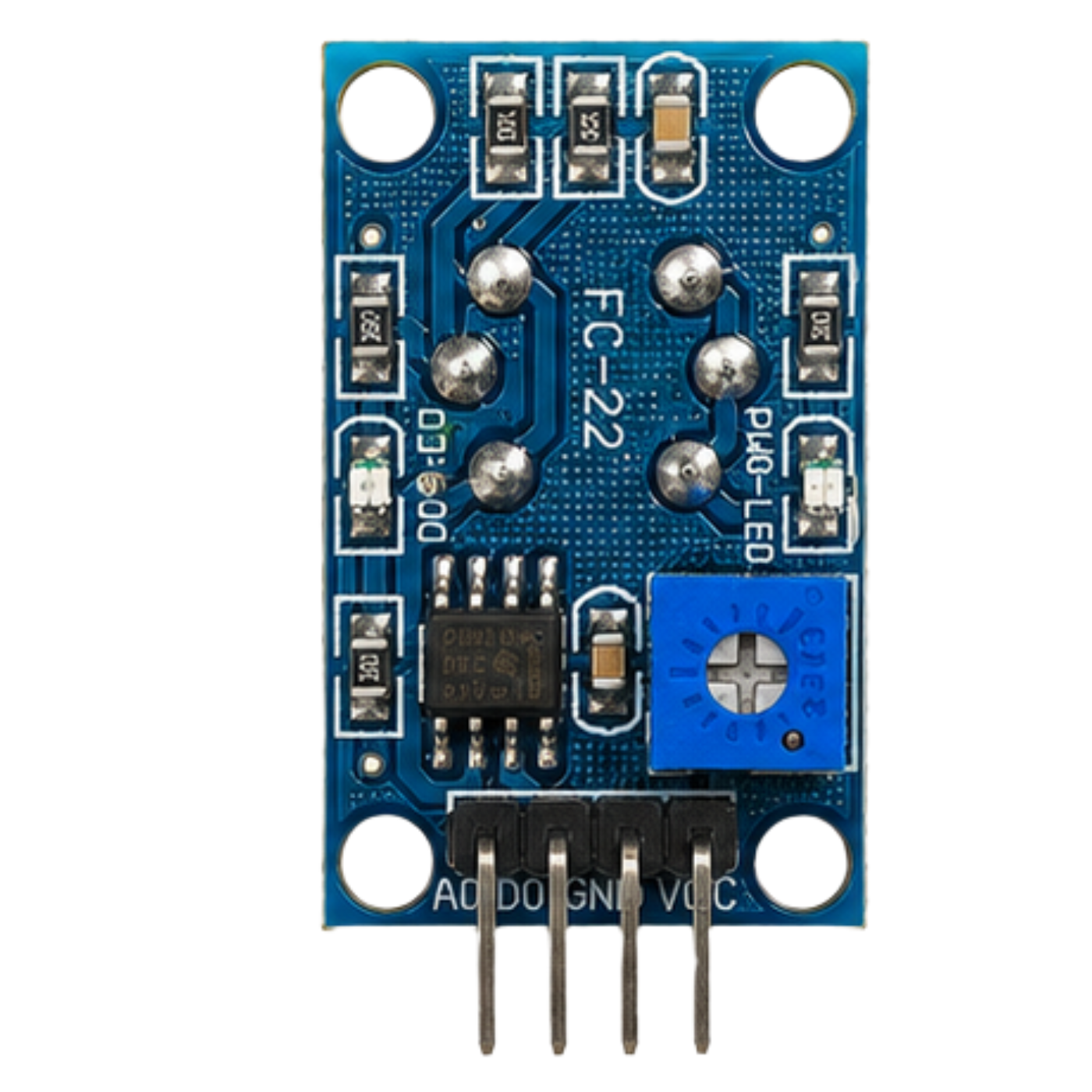

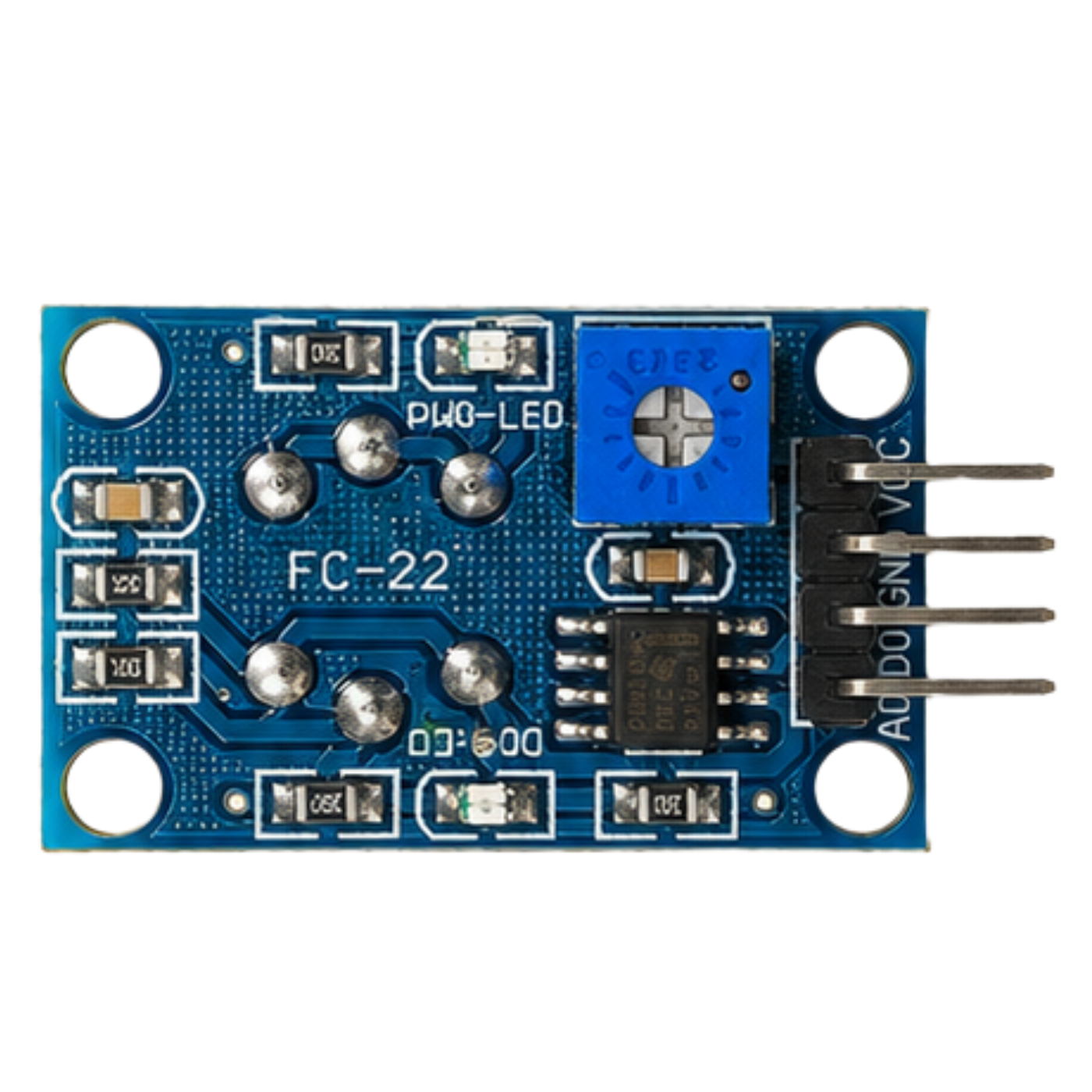

- MQ131 Ozone Gas Sensor Module is a compact board based on the MQ-131 sensor. It is equipped with a very wide range sensitivity to ozone which able to detect ozone concentration up to (10～1000ppb) in ambient air. The tin dioxide (SnO2) is the sensor’s sensitive material, has a low conductivity (high resistance) in a clean air environment, and react really good in a presence of ozone. Thus, causing the sensor to be very sensitive in presence of ozone. The higher the ozone concentration the better the conductivity. The board has a trimmer to set the threshold value, analog output and digital output (TTL), status LED for power supply and output signal. The digital output can be connected directly to a microcontroller. The analogue output provides a voltage (0-5 VDC) that increases with increasing ozone concentration in the air. It can be used with Arduino or other microcontroller.
3. What is the operating voltage for the MQ131 Ozone Gas Detection Module?
- The MQ131 operates at a voltage range of 4.5V to 5V DC
4. How does the MQ131 sensor detect ozone gas?
- The MQ131 sensor uses SnO2 (tin dioxide) as the sensitive material, which has lower conductivity in clean air. When ozone gas is present, the sensor’s conductivity increases, allowing it to detect ozone concentrations ranging from 10 to 1000 ppb
5. How do I calibrate the MQ131 sensor for accurate measurements?
- The MQ131 sensor comes pre-calibrated, but for precise measurements, it is recommended to perform a final calibration in the specific environment where it will be used. This involves adjusting the sensor’s output to match known ozone concentration levels
