1 year ago
Works great, no issues.
I bought two of these with different speeds, and I'm very pleased with the quality. They're really quiet and great.
Robocraze BEST PRICE GUARANTEED
30 RPM 12V Centre Shaft DC Geared Motor
30 RPM 12V Centre Shaft DC Geared Motor
11
Regular price
Rs. 159
Regular price
Rs. 249
Sale price
Rs. 159
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
Currently, 13 people are actively viewing.
Free shipping on Orders Above Rs 499/-
Fast Delivery
Technical Support & Easy Returns
Raise a Ticket
Earn RC Coins on Every Purchase
Rewards
Cash on Delivery Available
Cash Delivery
COUPON
RC100
FLAT ₹ 100/- OFF
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is the 30 RPM 12V DC Motor
- These are simple DC motors featuring gears
- The metal gears have better wear and tear properties.
- The gearbox is sealed and lubricated with lithium grease and requires no maintenance.
- The motor runs smoothly from 4V to 12V and gives a wide range of RPM, and torque.
- The shaft has a hole for better coupling.

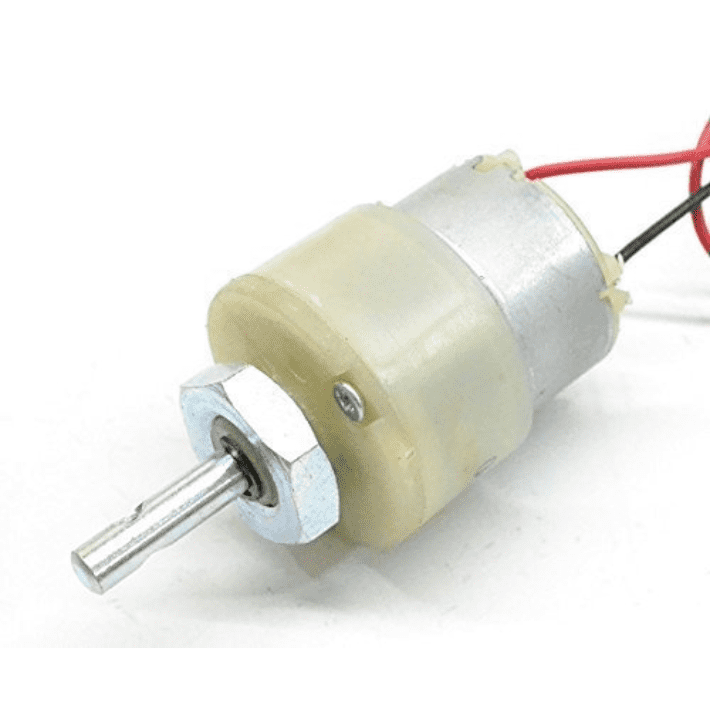

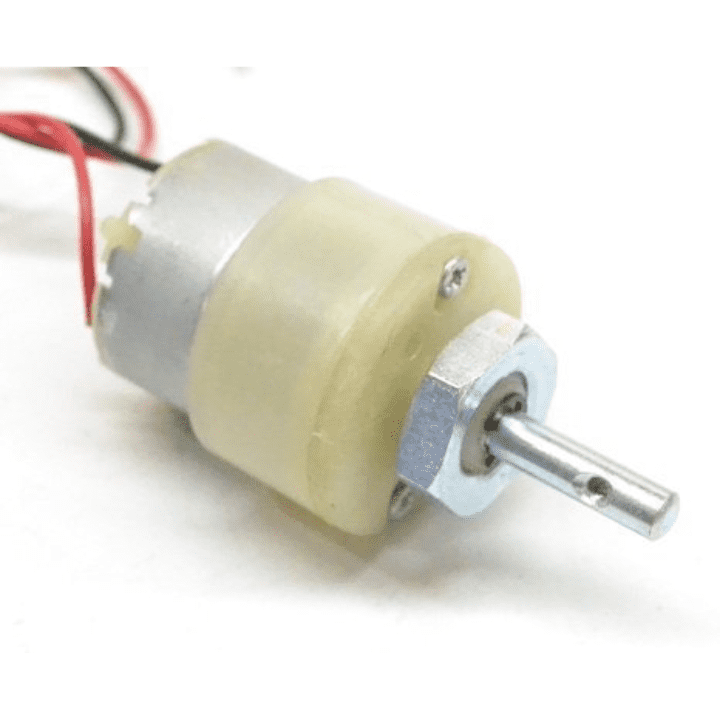

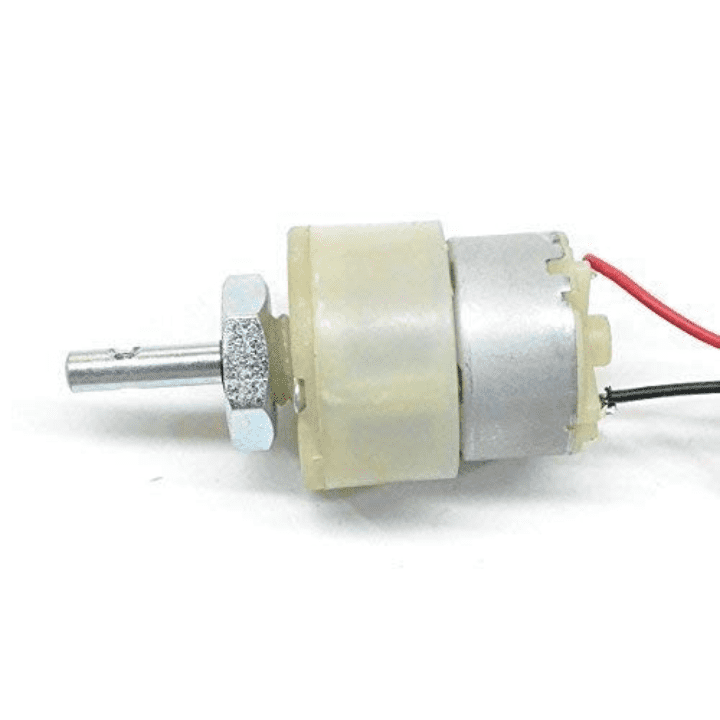

30 RPM 12V Centre Shaft DC Gear Motor
This is the 30RPM 12V DC Motor, these motors are simple DC Motors featuring gears for the shaft for obtaining the optimal performance characteristics. They are known as Center Shaft DC Gear Motors because their shaft extends through the centre of their gearbox assembly.
These standard size DC gear Motors are very easy to use. Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. TheL298N H-bridge module with onboard voltage regulator motor driver can be used with this motor that has a voltage of between 5 and 35V DC.
This DC Motor of 12V 30 RPM can be used in all-terrain robots and a variety of robotic applications. These motors have a 3 mm threaded drill hole in the middle of the shaft thus making it simple to connect it to the wheels or any other mechanical assembly.
Nut and threads on the shaft to easily connect and internally threaded shaft for easily connecting it to the wheels. These DC Geared motors with robust metal/Plastic gearbox for heavy-duty applications, and ideally suited for robotics and industrial applications.
Package Includes:
- 1 x 30 RPM 12V Centre Shaft DC Geared Motor
Specifications:
| RPM | 30 |
| Operating Voltage | 12V DC |
| Gearbox | Attached Plastic (spur)Gearbox |
| Shaft diameter | 6mm with an internal hole |
| Torque | 5 kg-cm |
| No-load current | 60 mA(Max) |
| Load current | 300 mA(Max) |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
200 RPM + 10X4cm WHEEL - SET OF 2
10
Regular price
Rs. 494
Regular price
Rs. 649
Sale price
Rs. 494
Unit price
per
Incl. GST (No Hidden Charges)
Sale
200 RPM GEAR MOTOR + 7X4cm WHEEL + 6-7 INCH BLACK METAL CHASSIS
6
Regular price
Rs. 849
Regular price
Rs. 1,250
Sale price
Rs. 849
Unit price
per
Incl. GST (No Hidden Charges)
Sale
500 RPM Geared Motor
7
Regular price
Rs. 150
Regular price
Rs. 249
Sale price
Rs. 150
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
1. Is DC motor and DC gear motor same?
- A DC gear motor has the same basic motor design as a DC motor, but it also has a gearbox, resulting in a single motion control component. In electromechanical applications, this design allows for reduced speed while increasing torque output.
2. How do I choose a DC gear motor?
- Voltage, speed, and torque are the three most important specifications for any DC gear motor application. Once you've determined these factors, you're ready to embark on your journey to find the best gear motor solution.
3. What is the rpm of 12V DC motor?
- The 12V DC motors are simple DC motors with shaft gears to achieve the best performance characteristics. Center Shaft DC Geared Motors is so named because its shaft runs through the center of the gearbox assembly. This 12V DC Motor has an RPM of 30.
4. What is the torque of a 30 rpm DC motor?
- The RPM and torque of the motor will vary depending on the gearbox design. This motor has an RPM of 30 and a torque of 5 kg-cm
5.What is the lowest RPM of DC motor?
- This is the 30RPM 12V DC Motor are simple DC Motors with shaft gears for optimal performance characteristics. The 30RPM 12V DC Motor are the lowest RPM dc motor available in the market, because their shaft extends through the centre of the gearbox assembly, they are known as Center Shaft DC Geared Motors.
6.How much RPM does a normal DC motor have?
- DC controls change the speed of the motor by varying the voltage applied to it (this differs from AC motor controls which adjust the line frequency to the motor). No load or synchronous speeds for an AC fractional horsepower motor are typically 1800 or 3600 rpm, and 30-7000 rpm for DC fractional horsepower motors.
