125KHz EM4100 RFID Card Read Module

125KHz EM4100 RFID Card Read Module

9

Regular price Rs. 238
Regular price Rs. 371 Sale price Rs. 238
Sale Sold out 36% off Best Price Guaranteed
You save Rs. 133 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, 16 people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 21 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • The RFID module board has a 125KHz frequency and uses TTL RS232 interface.
  • Combined with efficient decoding algorithms, to complete the EM4100 compatible ID card data reception.
  • Suitable for access control, time and attendance, charges, anti-theft, Patrol and other radio frequency identification applications.
  • The dedicated module RDM630 series is a non-contact RF ID card that uses advanced RF receiver circuits and embedded microcontroller design.
Trust Badge 1 Trust Badge 2 Trust Badge 3

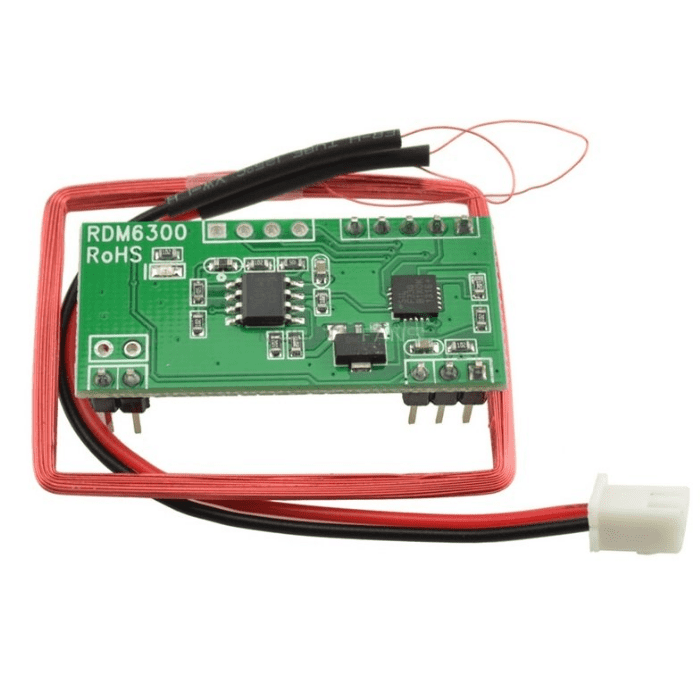

125KHz EM4100 RFID Card Read Module

The 125KHz Card Mini-Module is designed for reading code from 125KHz/ 134.2KHz card-compatible read-only tags and read/write a card. It can be applied in office/home security, personal identification, access control, anti-forgery, interactive toy, and production control systems.

This module is easy to use, serial port connects to Arduino MCU after power-up when the RFID card enters into the card reading range, this module will send the card number to Arduino by UART You can further connect the relay Arduino shield to your Arduino in order to enable the simple door keeper controlling system.

RFID or Radio Frequency Identification system consists of two main components, a transponder/tag attached to an object to be identified, and a Transceiver also known as an interrogator/Reader. A Reader consists of a Radio Frequency module and an antenna that generates a high-frequency electromagnetic field.

Pinout:

Pinout Of 125KHz EM4100 RFID Card Read Module
Also check 125KHz RFID Reader TTL Module available on Robocraze. It operates at an operating voltage of 5V DC and has a frequency of 125 kHz. The module is designed for various applications, including access control, time and attendance, asset management, handheld readers, immobilizers, and other RFID-enabled applications. It features a proximity RFID reader with a serial and TTL interface, making it easy to integrate with microcontrollers such as Arduino and Raspberry Pi.
Also check RFID Reader Serial. The RFID Reader Serial is a device that can be used to read RFID tags. It has a range of about 6cm. It operates at 5v with 500ma of current. The RFID Reader Serial is best suited for applications in access control.

Package Includes:

  • 1 x 125Khz EM4100 RFID Card Key ID Reader Module

RFID Card Key ID Reader Module Specifications

Frequency  125KHz
Card Type  RFID Card Reader Module
Model  EM4100 RFID Card
Interface TTL RS232
Current <50mA
Working Temperature -10°C ~ +70°C
Dimensions  3.85 x 1.9 x 0.9cms
Weight  15 grams
  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

NaN of -Infinity

1. What is RFID reader module?

  • A radio frequency identification reader (RFID reader) is a device used to gather information from an RFID tag, which is used to track individual objects. Radio waves are used to transfer data from the tag to a reader. RFID is a technology similar in theory to bar codes.

2. What is the use of the RFID module?

  • The RFID Module is designed for reading code from 125KHz/ 134.2KHz card compatible read-only tags and read/write a card. It can be used in office/home security, personal identification, access control, anti-forgery, interactive toy, and production control systems.

3. How does a RFID card reader work?

  • The RFID reader is a network-connected device that can be either portable or fixed. It transmits signals that activate the tag using radio waves. When the tag is turned on, it sends a wave back to the antenna, which is converted into data.

4. What is the difference between NFC vs RFID?

  • RFID stands for Radio Frequency Identification, a contactless one-way communication method at varying distances. NFC stands for Near Field Communication, allows for two-way Communication and requires action by the user.

5. How does RFID work without power?

  • Passive RFID tags have no power of their own and are powered by the radio frequency energy transmitted from RFID readers/antennas. The signal sent by the reader and antenna is used to power the tag and reflect the energy back to the reader.
