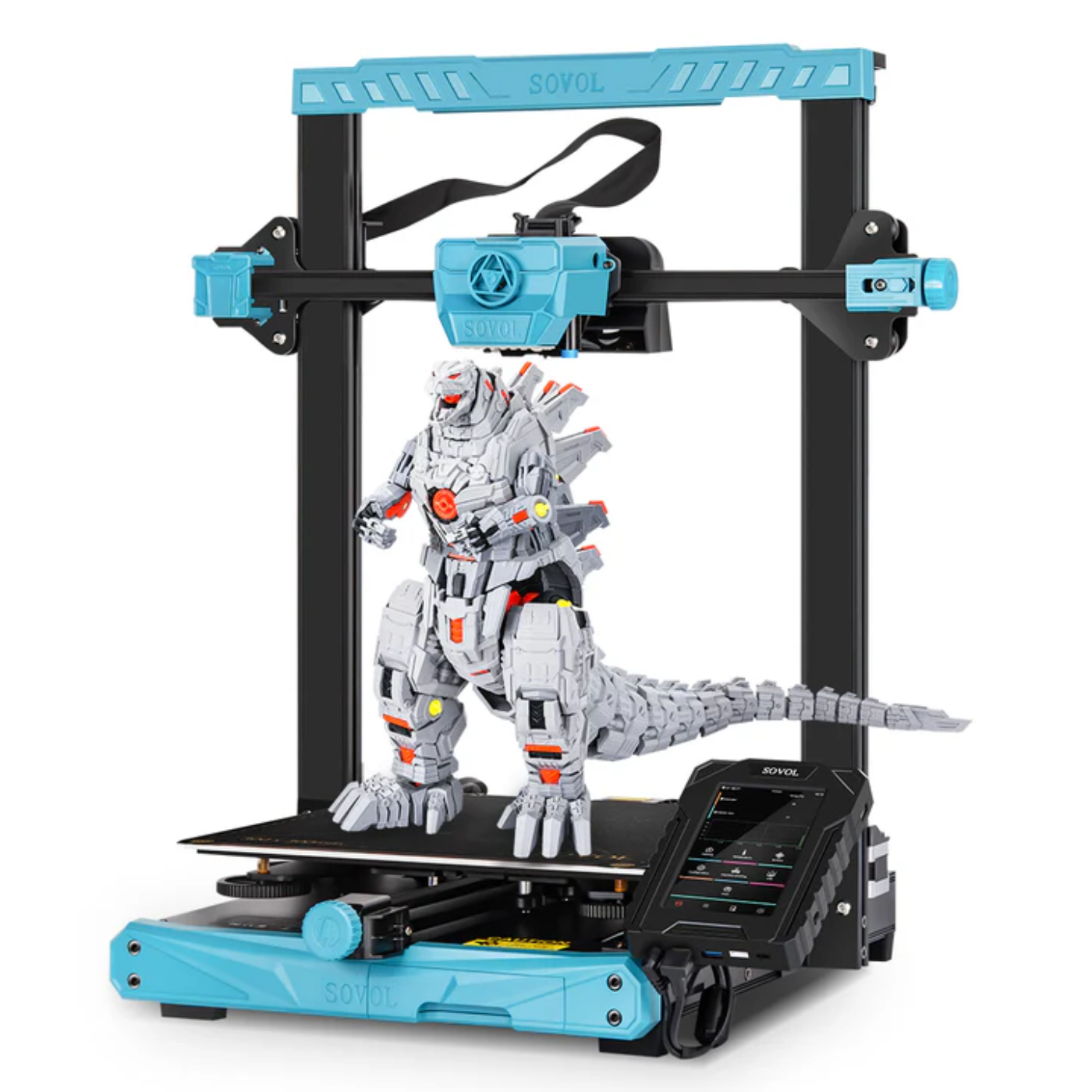

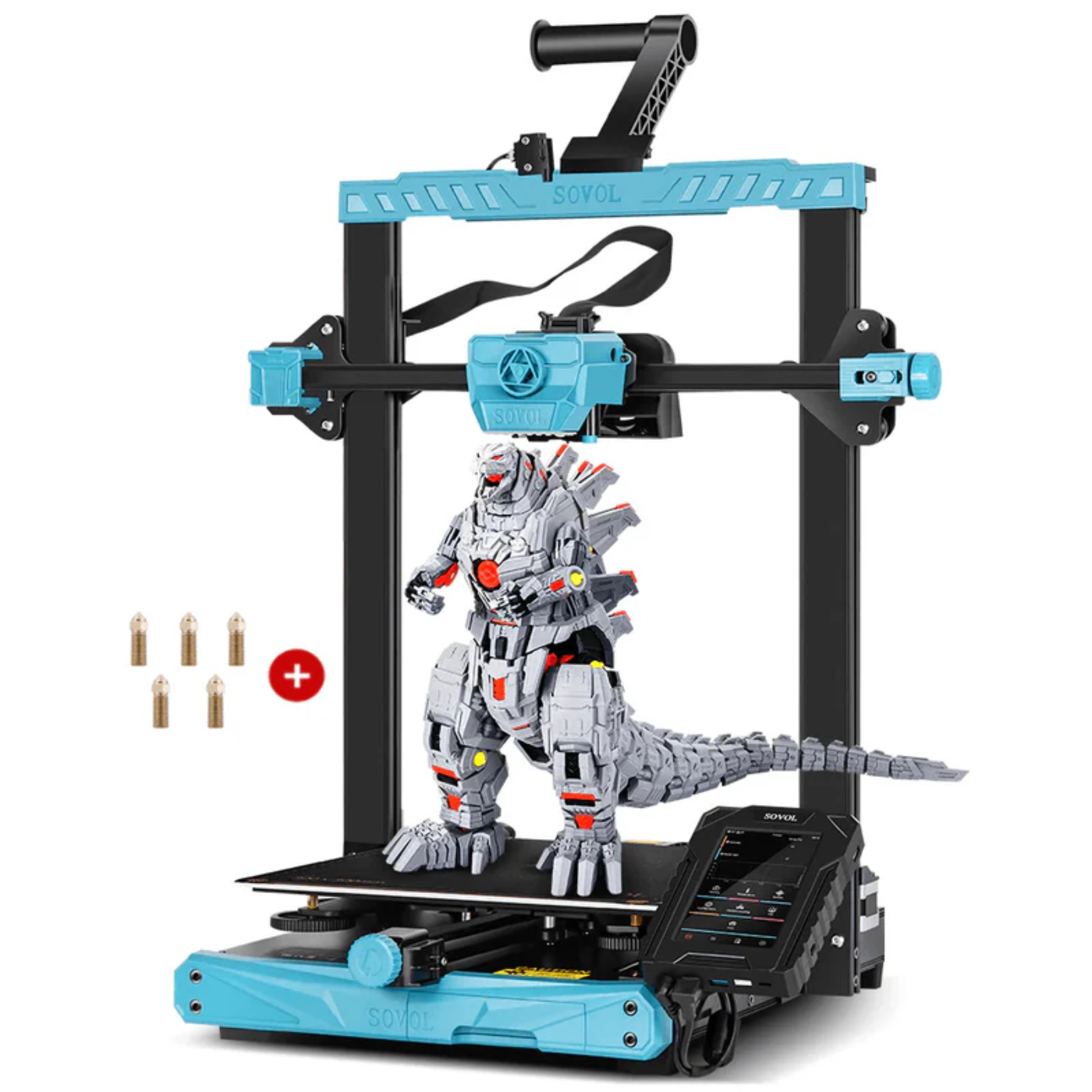

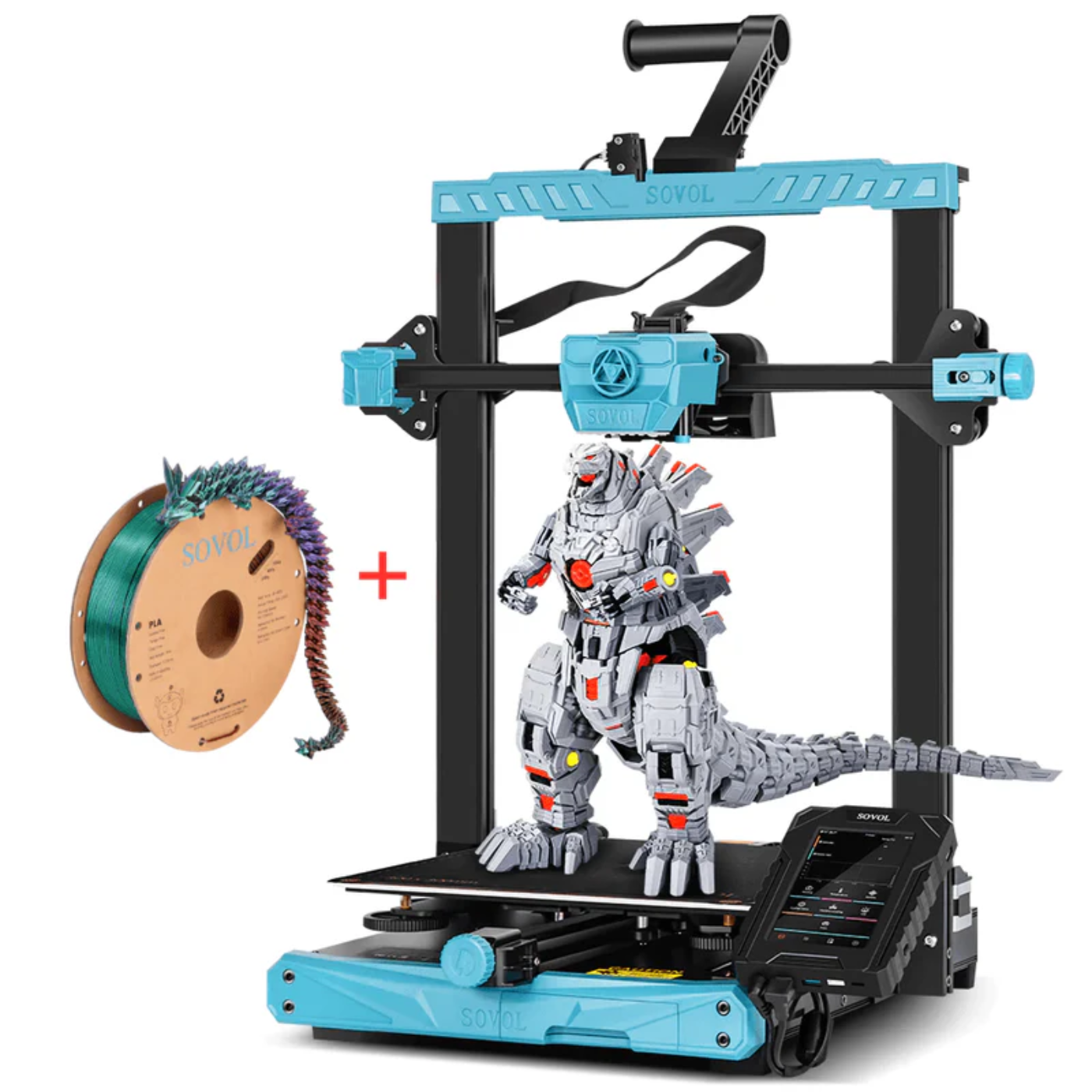

Sovol SV07 Plus 3D Printer with Full Klipper Screen

Sovol SV07 Plus 3D Printer with Full Klipper Screen

The Sovol SV07 Plus 3D Printer with Full Klipper Screen is a high-performance machine that pushes the boundaries of modern 3D printing. Designed for both professionals and hobbyists, it combines precision, power, and convenience in one sleek package.

Featuring a larger build volume than its predecessors, the SV07 Plus supports more ambitious print projects while maintaining excellent accuracy. Its robust frame, crafted from durable materials, ensures reliable performance even during prolonged use.

The integration of the full Klipper touchscreen enhances usability, enabling smoother control and real-time monitoring. Built with user experience in mind, this printer offers easy maintenance and upgradeability, making it a smart choice for anyone looking to elevate their 3D printing capabilities.

Features:

5-inch Touchscreen with Klipper Firmware

The SV07 PLUS, equipped with the ARM A53 64-bit main frequency quad-core processor, provides a fast-printing experience of up to 500mm/s (recommended print speed of 250mm/s). Advanced features such as Input Shaping and Pressure Advance provide fast, high-quality printing.

Large Printing Volume

The SV07 PLUS 3D printer has a build volume of 300x300x350mm/11.81x11.81x13.78 inches, which is ideal for manufacturing larger models or batch printing efficiently.

MeanWell 600-Watt Power Supply

The best power source is built in, providing the printer with consistent and sufficient power. Increased power also helps to shorten the hotbed and nozzle heat times.

Metal High-Flow Hotend with a Maximum Nozzle Temperature of 300°

All Meltal hotends with bigger melt zones allow us to print at high speeds and in a variety of materials, meeting your demands for high temperature and high speed.

Auto Leveling

SV07 employs an inductive sensor to detect the metal print bed with 25 points and automatically compensate for hotbed unevenness. The rapid, smart, and precise detection will assist you in correctly levelling the bed and achieving a wonderful first layer.

Filament Run-Out Sensor

It will immediately cease printing if you run out of filament or if the filament breaks.

Triple Fan Cooling

Unlike earlier Sovol printers, the SV07 PLUS includes a big cooling fan beneath the print head, which helps to ensure the quality of the final structure while printing quickly.

G34 Auto-Z Align

As UART mode is enabled on the SV07 Plus mainboard and G34 is updated, the SV07 Plus now has G34 Auto Z align. To level the X axis, simply click Auto Z-Align, and the printer will level the X axis automatically. Save time and effort.

STM32 Silent Mainboard with TMC2209 Driver

It offers more torque and faster acceleration, four layers, superior cooling, powerful anti-interference capabilities, and a Type-C connection.
