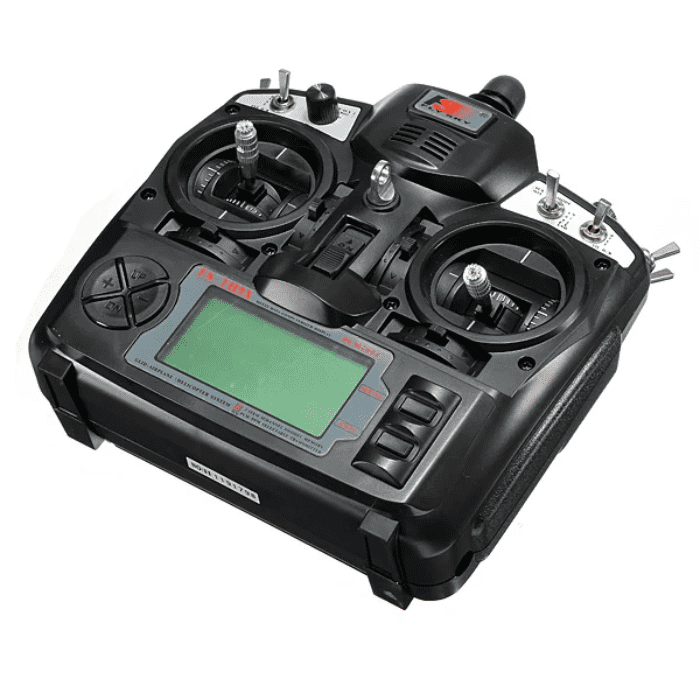

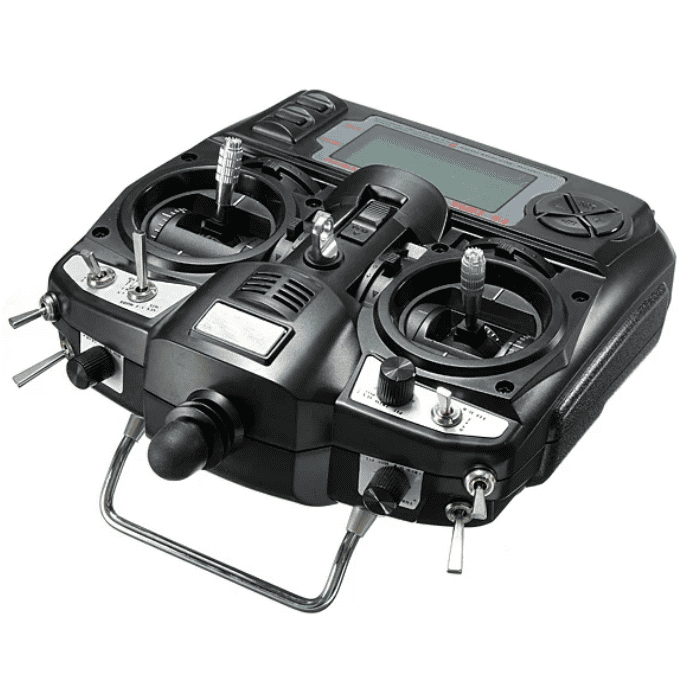

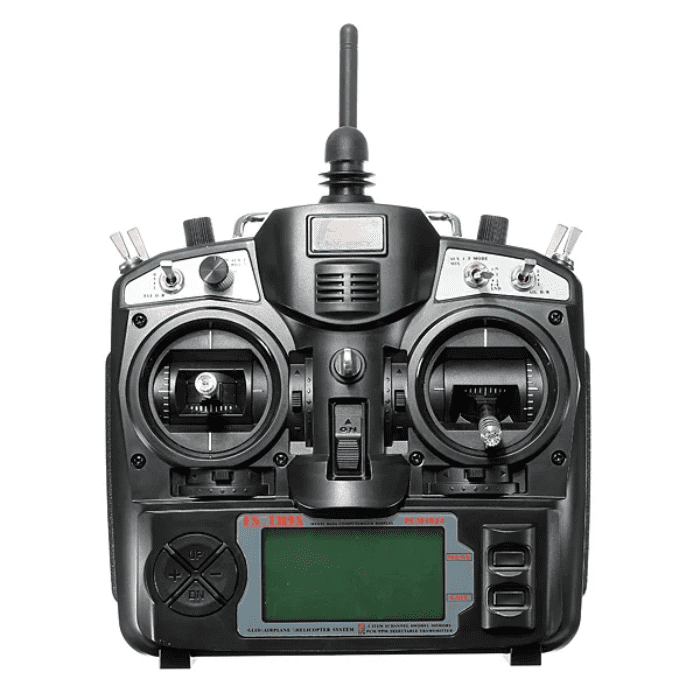

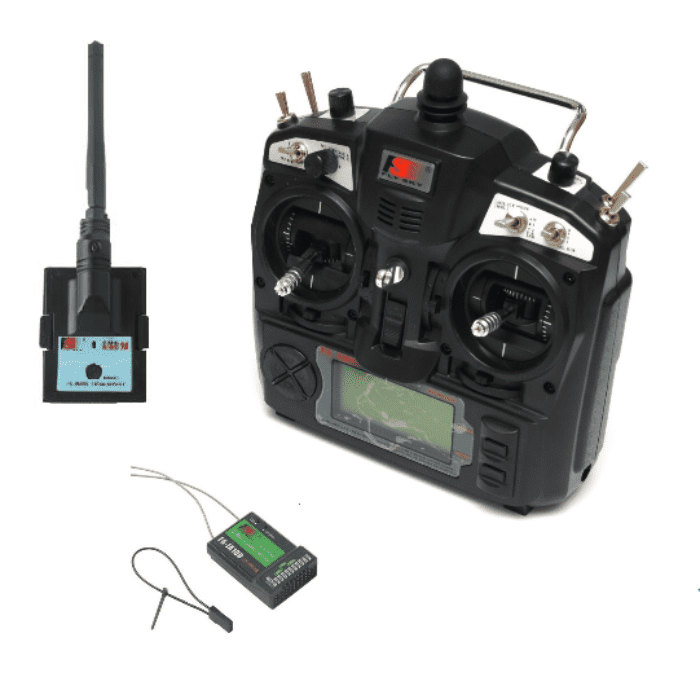

FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver
When using a drone, a transmitter is one of the most important components. You can’t fly a multirotor without it because it uses radio signals to send commands wirelessly to a Radio Receiver, which is connected to an aircraft or multirotor that is being remotely controlled.
FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver has revolutionized the way people experience RC, and now this radio transmitter and Receiver can stand up to the top competition.

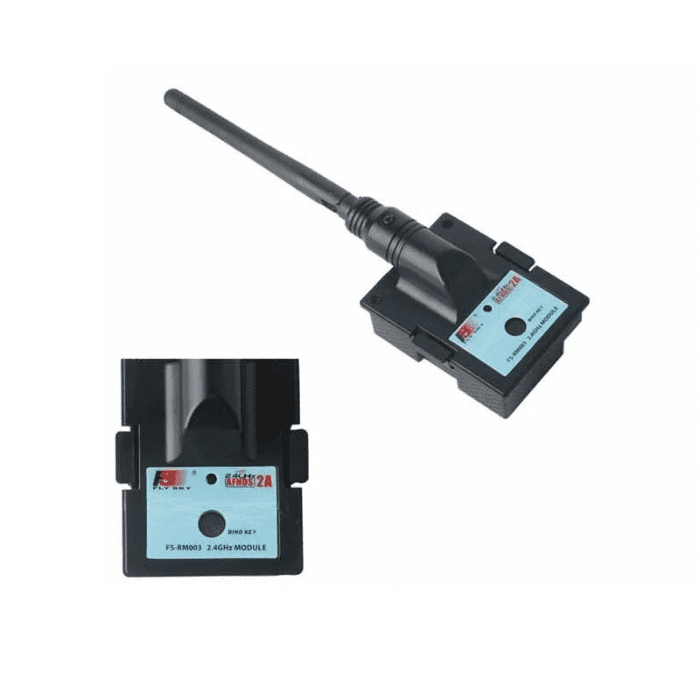

This Upgraded 9 channel with FS-RM003 2.4GHz Module TRANSMITTER’S AFHDS (automatic frequency hopping digital system), is developed by FLYSKY for all the Radio Control model lovers and is patented by FLYSKY at home. The system is specially developed for all the Radio control models, that offer super active and passive anti-jamming capabilities, very low power consumption, and high receiver sensitivity. With extreme rigorous testing by engineers and studying the markets for years, FLYSKY AFHDS is now considered to be one of the best systems available in the market.
2.4GHz is the standard of the new generation radio system because it has a lot of advantages. Operating at 2.4 GHz puts the radio control out of the frequency range of any ‘noise’ generated by the other electronic components on your helicopters – such as the brushless motor, Electronic speed controller, Servos, and any metal to metal noise – eliminating interference and glitching that can affect traditional frequency system.
How to bind the RX (receiver) to the TX (transmitter):
- Plug bind plug into BAT, turn on plane/heli, and the LED light should flash (make sure power is connected to RX via ESC)
- Hold down the bind button on the transmitter module while turning on the TX
- The light should go steady now
- Let go of the bind button, turn off plane/heli, remove the bind plug, and turn off TX
- Turn on TX and then turn on plane/heli
- 1 x FS-TH9X 2.4GHz 9CH Upgrade Transmitter with FS-IA10B Receiver
|Operating Voltage (VDC)||12|
|No. of Channels||Receiver: 10, Transmitter: 9|
|Band-Range (GHz)||2.40 ~ 2.48|
|Dimensions (mm) LxWxH||180 x 220 x 70|
