- A capacitor is a passive two-terminal electrical component used to store energy electrostatically in an electric field.
- The forms of practical capacitors vary widely, but all contain at least two electrical conductors (plates) separated by a dielectric.
- The SI unit of capacitance is the farad (F), which is equal to one coulomb per volt (1 C/V). Typical capacitance values range from about 1 pF (10−12 F) to about 1 mF (10−3 F).
When there is a potential difference across the conductors (e.g., when a capacitor is attached across a battery), an electric field develops across the dielectric, causing positive charge +Q to collect on one plate and negative charge −Q to collect on the other plate. If a battery has been attached to a capacitor for a sufficient amount of time, no current can flow through the capacitor. However, if a time-varying voltage is applied across the leads of the capacitor, a displacement current can flow. An ideal capacitor is characterized by a single constant value for its capacitance. Capacitance is expressed as the ratio of the electric charge Q on each conductor to the potential difference V between them.

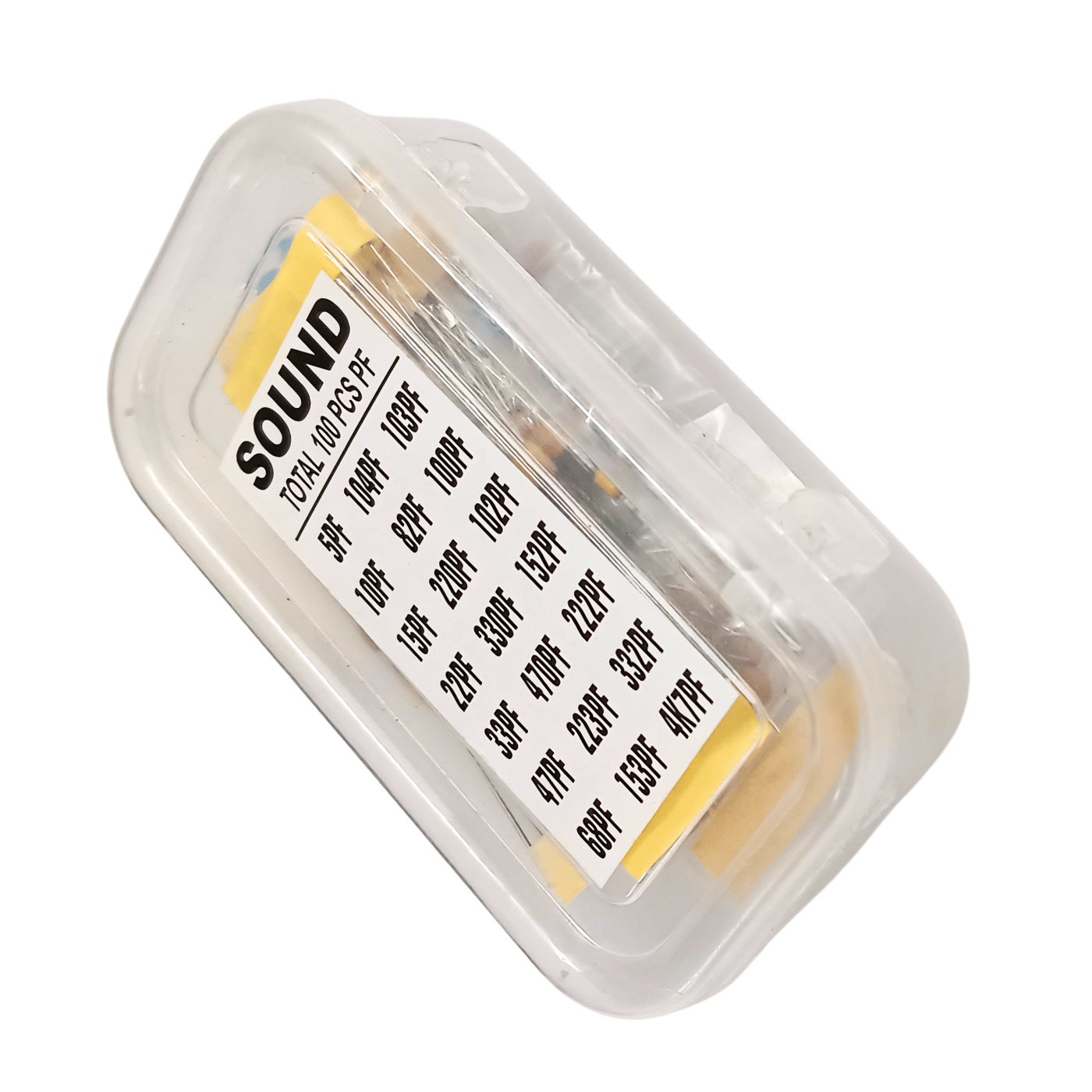

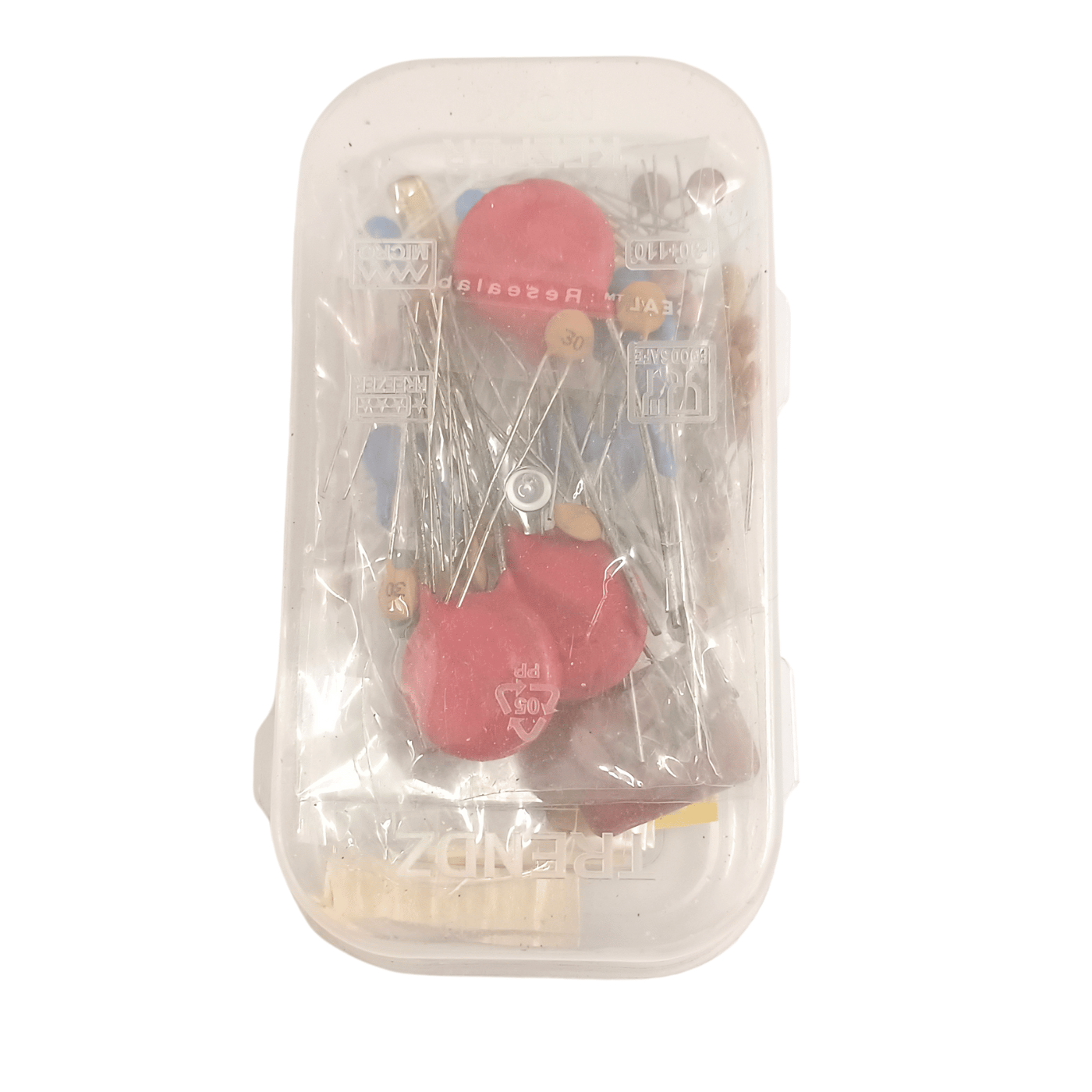

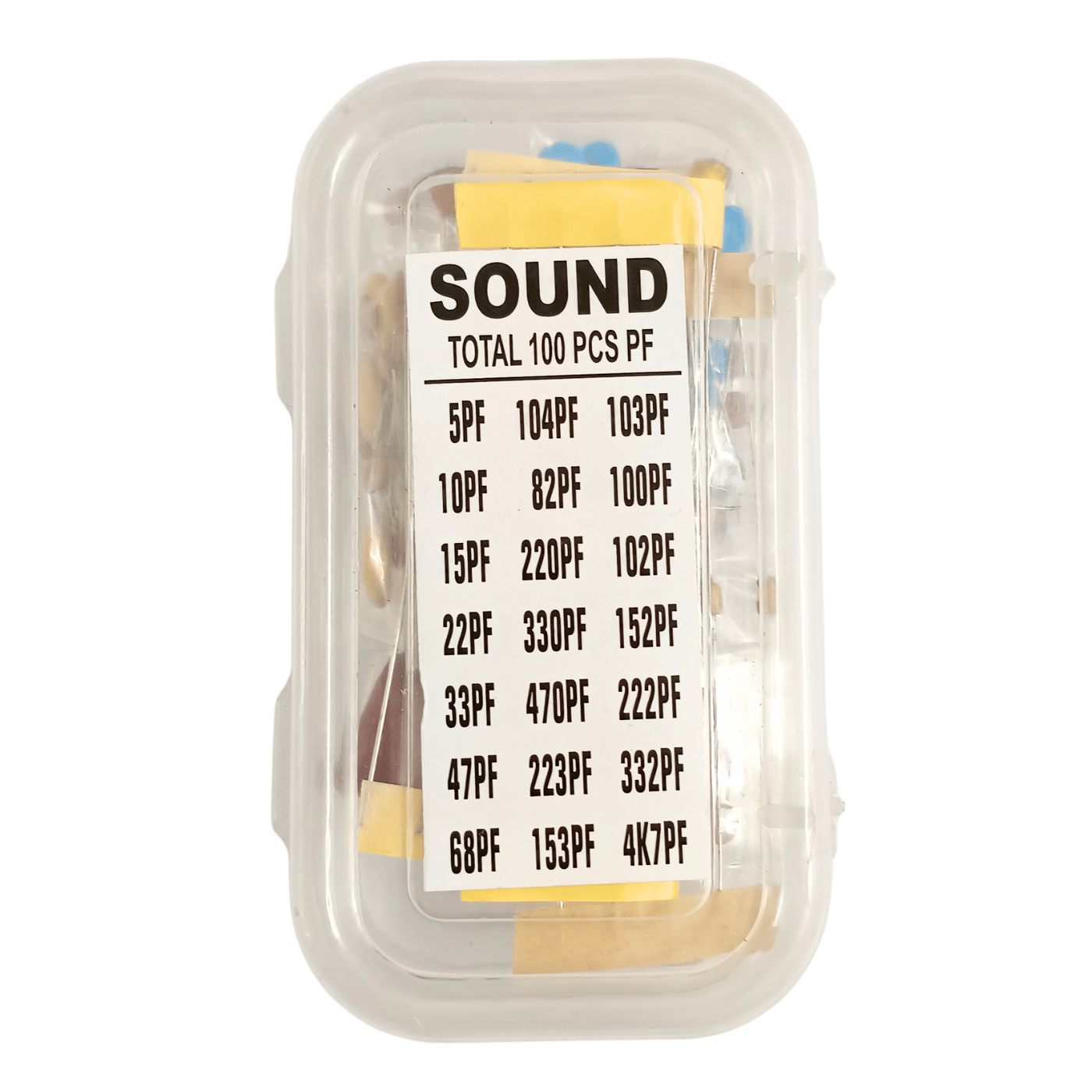

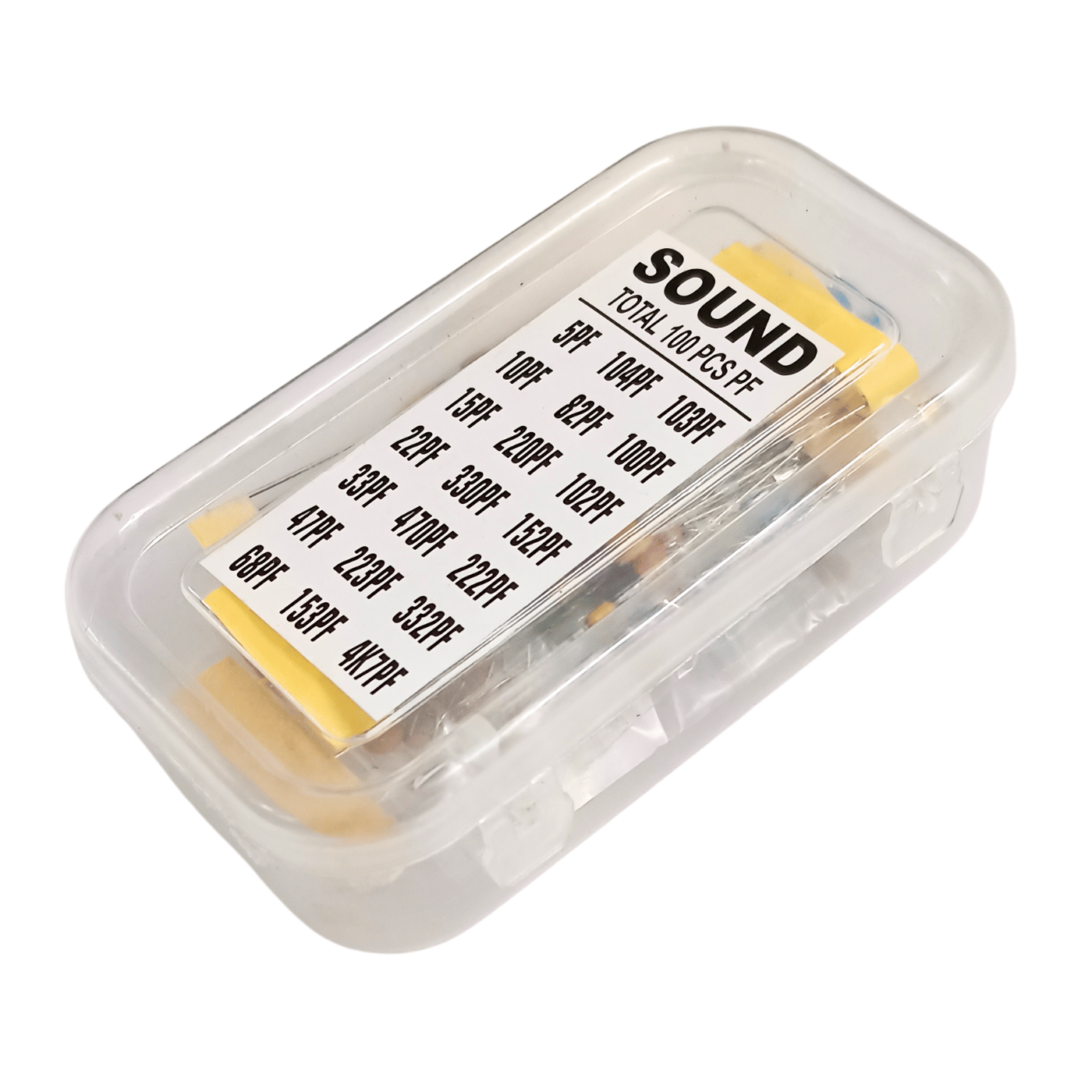

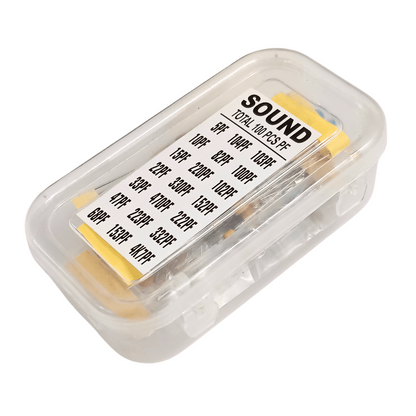

- 1 x Capacitor Box
|Box Name||Capacitor Box|
|Dimensions||11 x 5 x 3cms|
