18650 lithium ion Batteries: A Comprehensive Guide

An 18650 lithium-ion battery is a rechargeable cylindrical cell measuring approximately 18 mm in diameter and 65 mm in length. It is widely used in portable electronics, battery packs, flashlights, power tools and robotics projects. Most standard 18650 lithium-ion cells have a nominal voltage of 3.6V or 3.7V, a fully charged voltage of 4.2V, and capacities that vary by model.

For DIY electronics, an 18650 cell can provide a compact power source for an Arduino-based project, a portable device or a small robot. However, choosing the right cell involves more than checking its capacity. You also need to consider its discharge-current rating, protection circuitry, charging method and the voltage requirements of your circuit.

This guide explains 18650 battery specifications, compares common capacity ratings, covers safe charging with a TP4056 module, and explains how to build and identify battery packs safely.

What Is an 18650 Battery?

An 18650 battery is a cylindrical rechargeable lithium-ion cell. Its name describes its approximate physical dimensions: 18 mm in diameter and 65 mm in length. The final zero indicates a cylindrical shape in the common battery-size naming convention.

The term 18650 describes the cell format, not its exact capacity, chemistry, discharge rating or protection features. Two cells of the same size can have very different electrical characteristics.

Typical applications include:

• Portable electronics and rechargeable lighting

• Battery packs for power tools and other equipment

• DIY robotics and mobile projects

• Portable power supplies and battery-powered instruments

• Electronics projects that need a rechargeable supply

For Arduino and ESP32 projects, an 18650 cell may be used with a suitable regulator or power-management circuit. A single cell's voltage changes as it discharges, so it should not be connected directly to a circuit that requires a stable 5V supply unless that circuit explicitly supports the cell's voltage range.

18650 Battery Specifications

Before selecting an 18650 battery, understand its main electrical and physical ratings.

These are general values, not specifications for every 18650 cell. Always use the manufacturer's datasheet for the exact model you intend to purchase.

1. Voltage

Most conventional 18650 lithium-ion cells have a nominal voltage of 3.6V or 3.7V. For a standard cell designed for a 4.2V charge limit, the voltage at full charge is typically 4.2V.

The voltage falls during discharge, and the minimum permitted voltage depends on the specific cell. Do not assume that every cell can safely discharge to the same lower voltage.

A single cell is useful for circuits designed to operate across its voltage range. If your project requires a stable 5V, use an appropriate boost converter or regulated power supply. If your board supports a battery input, verify its documented voltage range before connecting the cell.

2. Capacity

Battery capacity is usually stated in milliamp-hours (mAh). It indicates how much electrical charge the cell can deliver under specified test conditions.

For example, a 2,200mAh cell has a nominal capacity of 2.2Ah. Its usable capacity in a real project depends on the discharge current, temperature, cutoff voltage, cell condition and efficiency of the connected electronics.

A higher mAh rating does not automatically mean a battery can supply more current. Capacity and discharge-current capability are different specifications.

3. Discharge current

The discharge-current rating describes how much current a cell is designed to supply under its specified operating conditions. This matters for devices such as motors, high-power LEDs and wireless transmitters that can draw substantial current.

A cell with high capacity is not necessarily suitable for a high-current application. Check the continuous discharge rating and temperature limits in the manufacturer's datasheet. Do not rely on an unverified wrapper label or a seller's headline alone.

4. Protection

An 18650 cell may be sold with or without built-in protection circuitry. Protected cells generally include a small circuit intended to interrupt operation under certain fault conditions, such as overcharge, over-discharge or excessive current. The exact protections depend on the product.

Protection circuitry is not a substitute for a correctly designed charger, suitable wiring, a properly rated battery holder, or appropriate pack-level protection.

18650 Battery Capacity: 2200mAh vs 2600mAh vs 3000mAh

Capacity affects how long a battery can power a device, but a higher capacity is not always the best choice. The cell must also meet the device's current requirements and fit the battery holder.

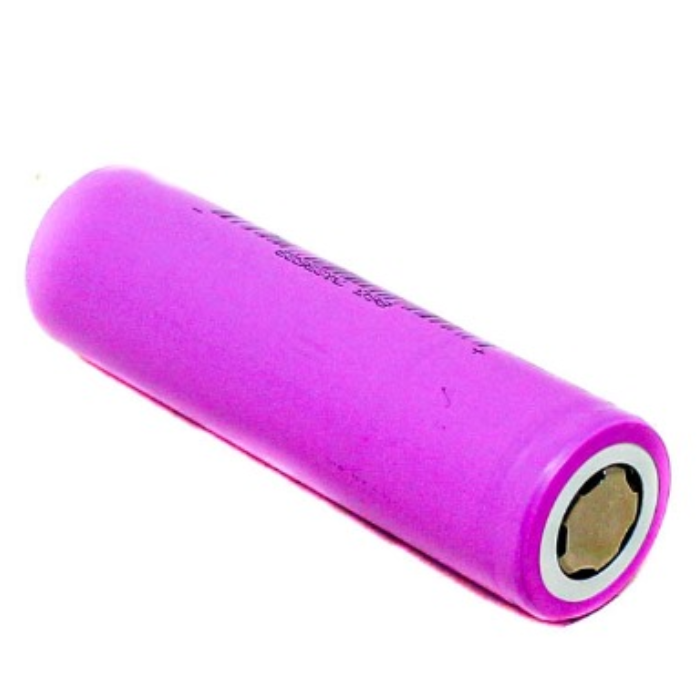

The Robocraze product referenced in this guide is a 3.7V, 2200mAh 18650 lithium-ion cell. Its product listing specifies 2200mAh capacity. The actual runtime depends on the connected load, operating conditions and usable battery capacity.



These are capacity categories, not a ranking of quality. The exact capacity, discharge capability, dimensions and protection features must be confirmed for each cell model.

How to estimate battery runtime

A basic estimate divides the battery's capacity by the average current drawn by the load:

For example, if a 2200mAh battery supplies a device that draws an average of 220mA, the ideal calculation gives:

This is a theoretical estimate, not a guaranteed runtime. The actual operating time can be shorter because of conversion losses, discharge limits, current peaks, battery age, temperature and the device's cutoff voltage.

For a circuit powered through a boost converter, estimate runtime using energy and efficiency rather than treating the cell capacity as though it were available at the output voltage. A 3.7V cell supplying a regulated 5V output must deliver more current from the battery than the 5V load current, because the converter increases voltage and incurs losses.

How much energy does a 2200mAh cell store?

A rough energy estimate uses nominal voltage multiplied by capacity in amp-hours:

For a nominal 3.7V, 2.2Ah cell:

This is a nominal energy estimate. Usable energy depends on the cell's discharge characteristics and the equipment connected to it.

18650 vs 21700 Battery: What Is the Difference?

The 18650 and 21700 formats describe different cylindrical cell sizes. A typical 18650 measures about 18mm in diameter and 65mm in length, while a typical 21700 measures about 21mm in diameter and 70mm in length.

A 21700 cell may offer more energy in a larger package, but it is not automatically better. Choose a cell based on the equipment's dimensions, current requirements, charging system and manufacturer specifications. Never force a larger cell into an incompatible holder.

How to Charge an 18650 Battery Safely

A standard 4.2V lithium-ion 18650 cell should be charged using a charger designed for that specific cell chemistry and charge limit. For a conventional single-cell lithium-ion cell, the charger typically follows a constant-current, constant-voltage process and terminates charging at the specified voltage.

Do not connect an 18650 directly to a 5V USB supply. USB power is not the same as a controlled lithium-ion charging circuit. Applying an unsuitable voltage or current can damage the cell and create a fire hazard.

Using a TP4056 charging module

The TP4056 is a single-cell lithium-ion charger IC commonly found on small USB charging boards. Many boards are designed for a nominal 3.7V lithium-ion cell with a 4.2V full-charge voltage. Some boards also include a separate protection circuit, while others do not. Check the board's schematic or product documentation before use.

For a compatible module, the basic connections are:

The OUT terminals are not present or used in the same way on every TP4056 board. Follow the exact module's markings and documentation. On boards with protection circuitry, the battery terminals and protected output terminals serve different purposes.

Before charging, verify the configured charge current and make sure it is appropriate for the cell's datasheet. Do not assume every TP4056 module is set to a safe current for every 18650 cell.

Can you charge an 18650 with a phone charger?

A phone charger can supply power to the USB input of a suitable TP4056 module, provided the charger output and module input specifications are compatible. The charging module must control the charging process and the current must be suitable for the battery.

Never connect the battery directly to the phone charger. Use a proper single-cell lithium-ion charging circuit with the correct voltage limit. Do not leave a charging cell unattended, charge damaged or swollen cells, or charge a cell outside the temperature range specified by its manufacturer.

A protection board is an additional safety measure, not a replacement for a correct charger. If the battery becomes unusually hot, leaks, swells, smells unusual or shows physical damage, stop using it and keep it away from combustible materials if it is safe to do so.

Building an 18650 Battery Pack: Series and Parallel Connections

Multiple 18650 cells can be combined to create a battery pack with a different voltage or capacity. The two basic arrangements are series and parallel. The arrangement you choose affects the voltage, capacity, current capability and protection requirements of the pack.

Series connection: Increase voltage

In a series arrangement, the positive terminal of one cell connects to the negative terminal of the next cell. The voltages add, while the amp-hour capacity remains approximately that of one cell when the cells are identical.

These values apply to standard 4.2V-per-cell lithium-ion chemistry. Other lithium battery chemistries may have different voltage limits.

A series pack requires a battery management system (BMS) suitable for the number of cells in series. The BMS should support the intended charging and discharging current and provide appropriate cell-level protection. For multi-cell lithium-ion packs, cell balancing is also important because individual cells can drift to different voltages during use.

Do not charge a series pack using a single-cell TP4056 module. Use a charger designed for the complete series configuration and its required charge voltage.

Parallel connection: Increase capacity

In a parallel arrangement, all positive terminals connect together and all negative terminals connect together. The nominal voltage remains the same as a single cell, while capacities add when identical cells are used.

For example, two identical 3.7V, 2200mAh cells connected in parallel form a nominal 3.7V, 4400mAh arrangement. Three such cells would provide a nominal capacity of 6600mAh.

Before connecting cells in parallel, they must be compatible and at closely matched voltages. Connecting cells with significantly different voltages can cause a large equalisation current. Use cells of the same model, age and condition, and follow a proper pack-design procedure.

Battery pack safety checklist

• Use cells with verified specifications and matching characteristics.

• Choose a BMS rated for the series cell count, charge current and discharge current.

• Use a charger designed for the pack configuration and cell chemistry.

• Prevent accidental short circuits at exposed terminals.

• Use suitable insulation, mechanical support and current-rated wiring.

• Do not use swollen, damaged, leaking or overheated cells.

• Avoid soldering directly to bare cells unless the cell manufacturer explicitly permits the method. Properly designed packs commonly use appropriate spot-welded connections.

Battery packs require more care than connecting individual cells in a holder. If you are unfamiliar with pack construction, use a professionally assembled pack with documented voltage, capacity and protection ratings.

How to Identify a Fake or Low-Quality 18650 Battery

The 18650 format is widely used, but cells sold under unclear branding may have overstated capacity, undocumented discharge ratings or uncertain protection features. A printed label alone does not establish that a battery meets its claimed specifications.

Check the following before purchasing:

1. Manufacturer and model information

Look for a traceable manufacturer, a specific cell model and a datasheet. If the seller cannot identify the cell model or provide credible electrical specifications, treat the advertised ratings cautiously.

2. Capacity claims

Compare the capacity with the manufacturer's published data for that exact model. Do not assume that a larger number printed on the wrapper means the cell will provide more runtime.

3. Discharge-current rating

A cell intended for a low-current device may be unsuitable for a motor or another high-current load. Check the continuous discharge-current rating rather than choosing by capacity alone.

4. Physical condition

Avoid cells with torn wrappers, dents, corrosion, damaged terminals or signs of leakage. The wrapper provides electrical insulation, so a damaged covering can create a short-circuit risk if the metal can touches a conductive object.

5. Dimensions and weight

Dimensions and weight can help identify an obvious mismatch with a documented model, but neither measurement proves authenticity. Use the manufacturer's datasheet as the reference.

6. Purchase source

Buy from a supplier that identifies the product clearly and can provide support or documentation. Avoid relying on claims such as “ultra-high capacity” without a named model and supporting data.

For the Robocraze 18650 2200mAh 3.7V cell, the listed capacity is 2200mAh. The listing has shown the item as sold out in the product information checked for this article, so confirm current availability before ordering.



Conclusion

An 18650 lithium-ion battery is a useful power source for portable electronics, Arduino projects, robotics and rechargeable devices. The 2200mAh, 3.7V cell is a practical option for many low to moderate power applications, provided its discharge-current rating meets the load requirements.

Before choosing a battery, check its nominal voltage, full-charge voltage, capacity, discharge rating and protection features. Use a suitable charging module for a single cell, and select a compatible BMS and charger when building a multi-cell pack. Never connect a lithium-ion cell directly to a USB supply, and stop using any cell that is damaged, swollen or unusually hot.

For a DIY project, start with a verified cell such as the 18650 2200mAh 3.7V lithium-ion battery, then select the holder, charger and voltage regulator based on your circuit requirements.
