Arduino Decimilia Duemilanove compatible Board

Arduino Decimilia Duemilanove compatible Board

Out of stock

Regular price Rs. 599
Regular price Rs. 946 Sale price Rs. 599
Sale Sold out 37% off Best Price Guaranteed
You save Rs. 347
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.
Submit your Bulk Enquiry Here

Contact form

  • This is Decimilia Duemilanove Board compatible with Arduino
  • The Operating Voltage of this board is 5V
  • The Input Voltage (recommended): 7-12V
  • The Digital I/O Pins of this board are 14 (of which 6 provide PWM output)
  • The Analog Input Pins of this board are 6
  • The DC Current per I/O Pin is 40 mA
  • The Flash Memory of this board is16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
  • The SRAM of this board is 1 KB (ATmega168) or 2 KB (ATmega328)

Decimilia Duemilanove Board

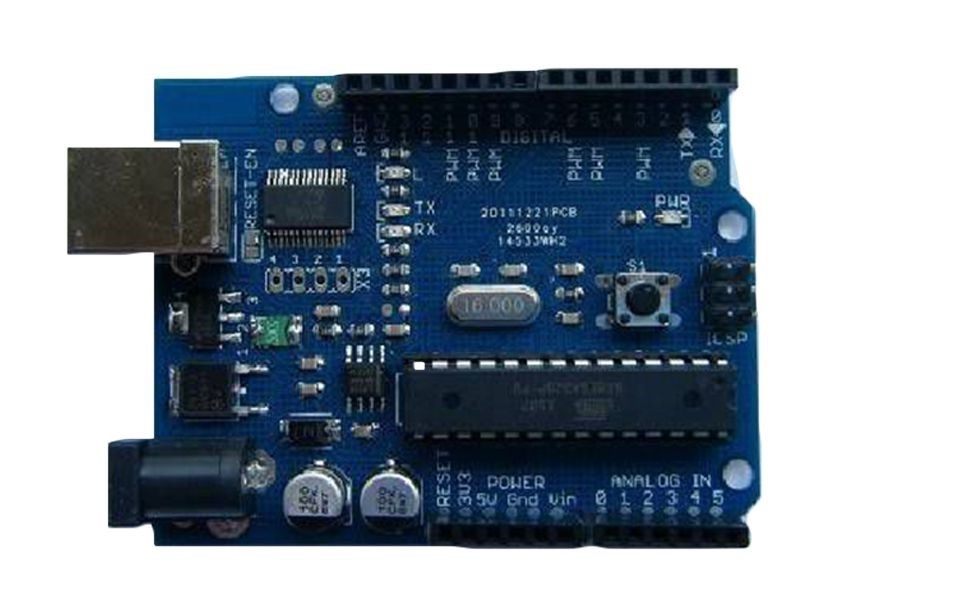

The Decimilia Duemilanove Board compatible with Arduino based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. Decimilia Duemilanove Board contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.

Package Includes:

  • 1 x Decimilia Duemilanove Board compatible with Arduino

Specifications

Microcontroller ATmega328
Operating Voltage 5V
DC Current per I/O Pin 40 mA
Flash Memory 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by bootloader
Dimensions  5 x 4 x 3cms
Weight  25 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What is the difference between Arduino Duemilanove and Diecimila?

The Arduino Duemilanove and Diecimila are two early models of the Arduino board. While they are similar in many ways, there are a few key differences between them.

The main difference between the Arduino Duemilanove and Diecimila is in their USB connectivity. The Duemilanove uses an FTDI USB-to-serial converter chip, while the Diecimila uses an ATmega8U2 microcontroller with built-in USB support. This means that the Duemilanove requires an additional driver to be installed on the computer, while the Diecimila is recognized as a standard USB device.

Another difference is the location of the power jack. The Duemilanove has a power jack on the side of the board, while the Diecimila has a power jack on the end of the board. This can make a difference in how the board is mounted in a project enclosure.

Finally, the Duemilanove has a slightly larger memory capacity than the Diecimila. The Duemilanove has 32 KB of flash memory, while the Diecimila has 16 KB of flash memory.

2. What is the difference between Arduino Uno and Duemilanove?

Arduino Uno and Duemilanove are both popular microcontroller boards, but there are some key differences between them.

The main difference between the Arduino Uno and Duemilanove is the microcontroller used on the board. The Uno uses an ATmega328 microcontroller, while the Duemilanove uses an ATmega168 or ATmega328 microcontroller. The ATmega328 microcontroller used on the Uno has more flash memory (32 KB) and RAM (2 KB) than the ATmega168 microcontroller used on the Duemilanove (16 KB of flash memory and 1 KB of RAM).

Another difference is that the Uno has a different USB-to-serial converter chip than the Duemilanove. The Uno uses an ATmega16U2 microcontroller with built-in USB support, while the Duemilanove uses an FTDI USB-to-serial converter chip. This means that the Uno can appear as a USB keyboard or mouse, while the Duemilanove requires an additional driver to be installed on the computer.

The Uno also has a few additional features that the Duemilanove does not have. For example, the Uno has an extra hardware UART (serial communication) port, a reset button that can be used to restart the board, and more input/output pins than the Duemilanove.
